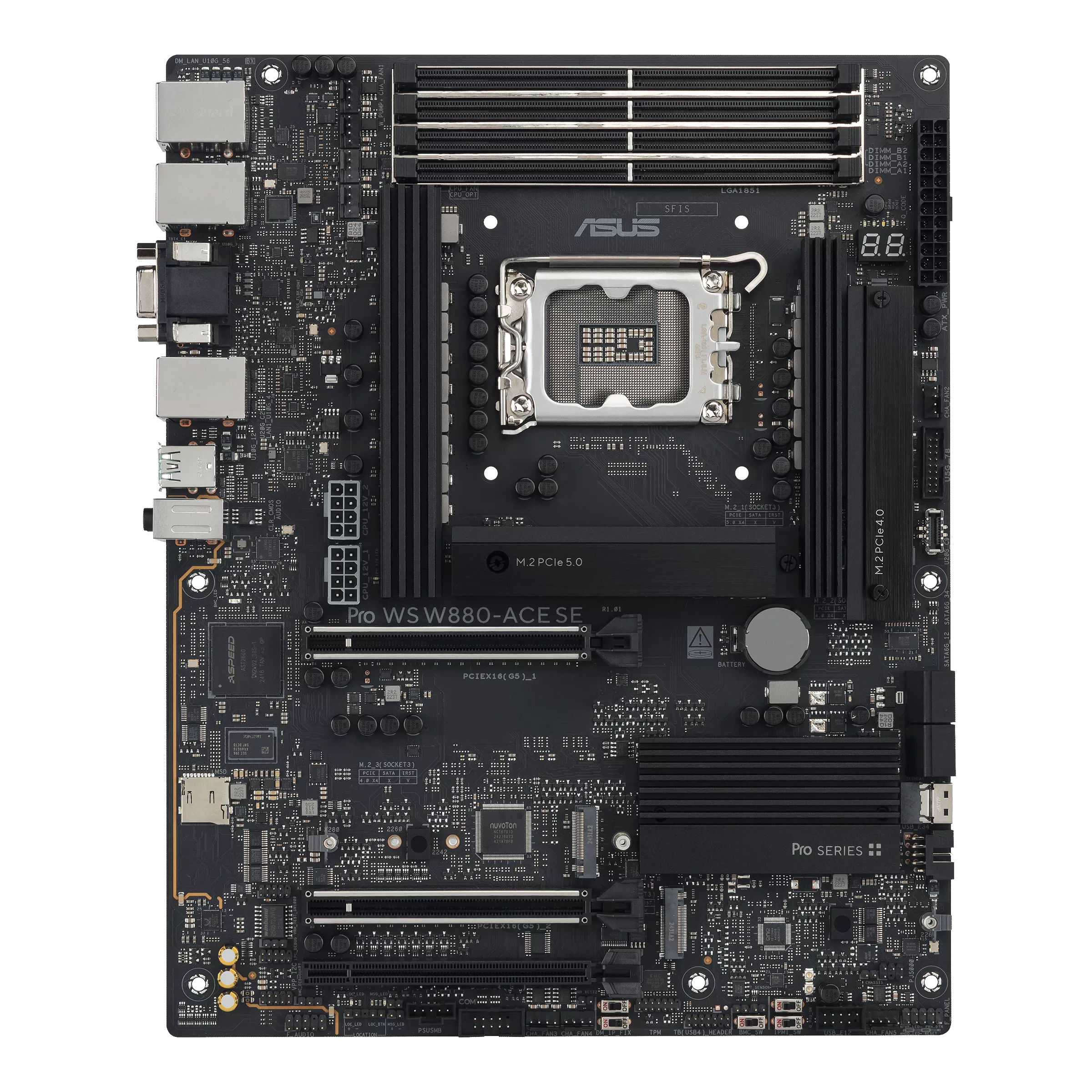

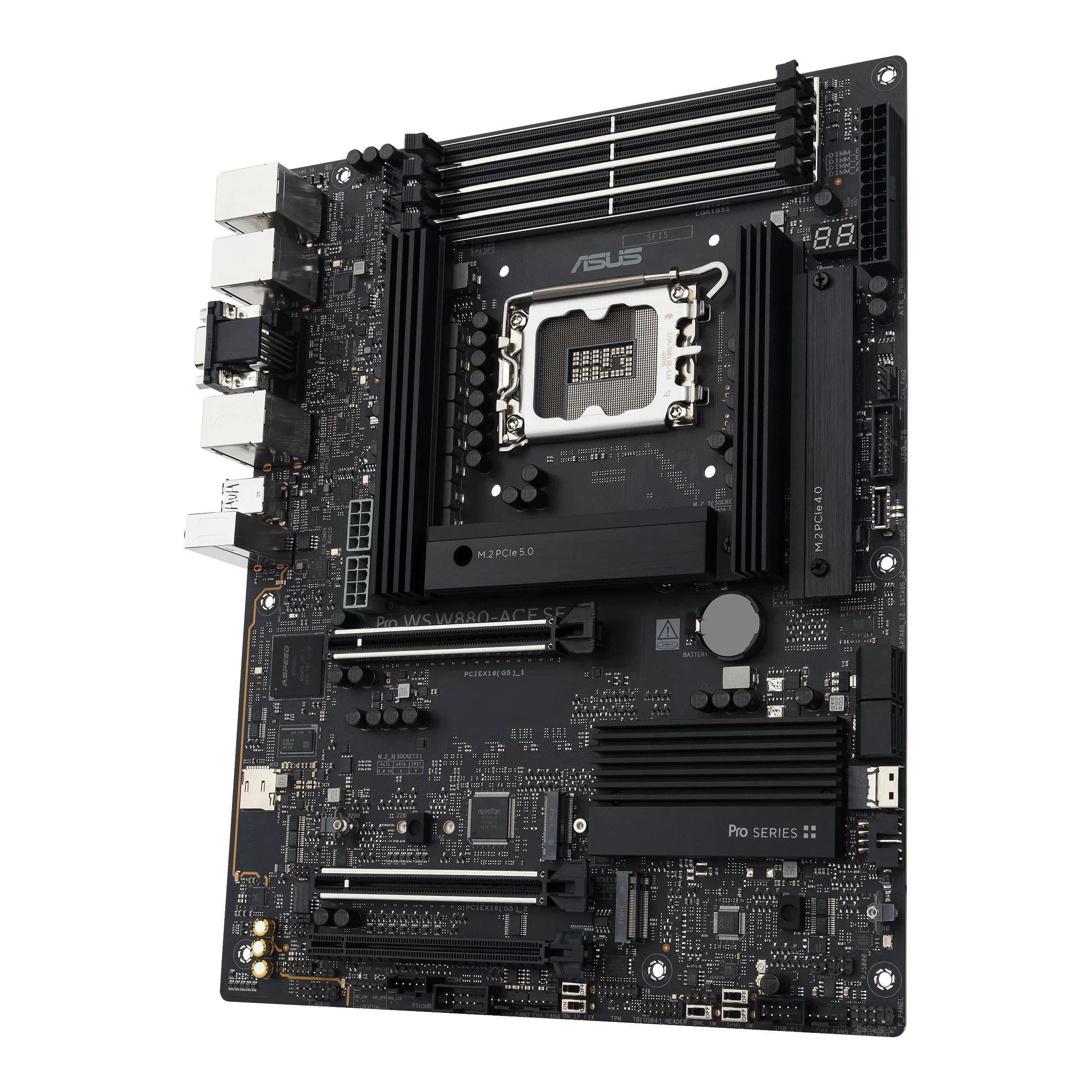

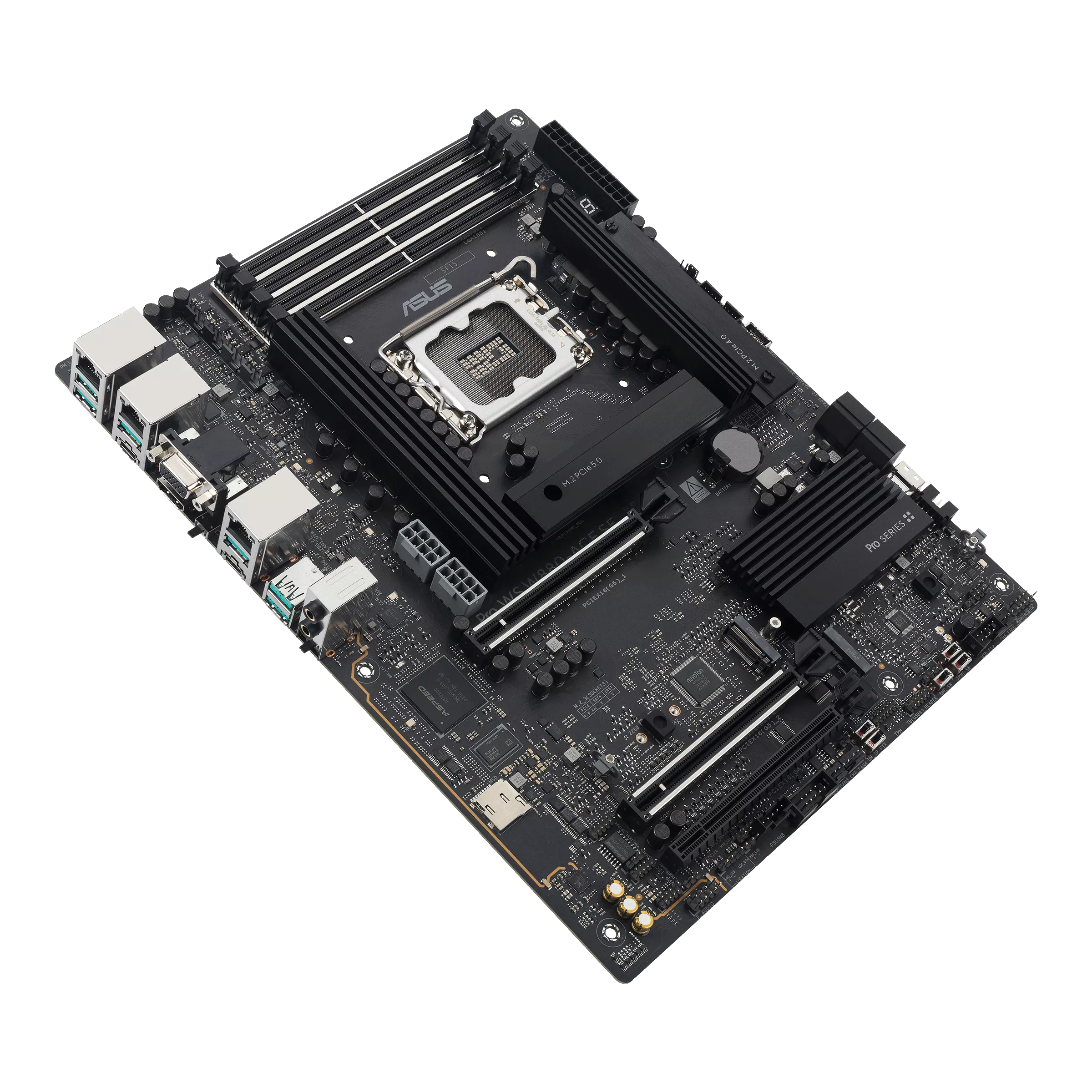

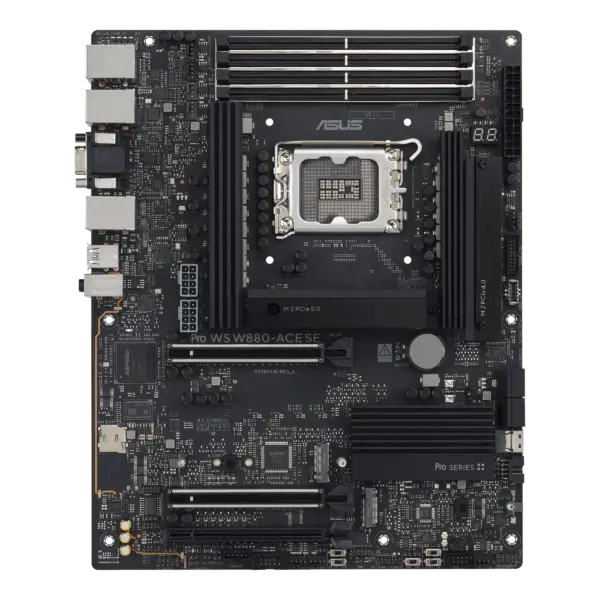

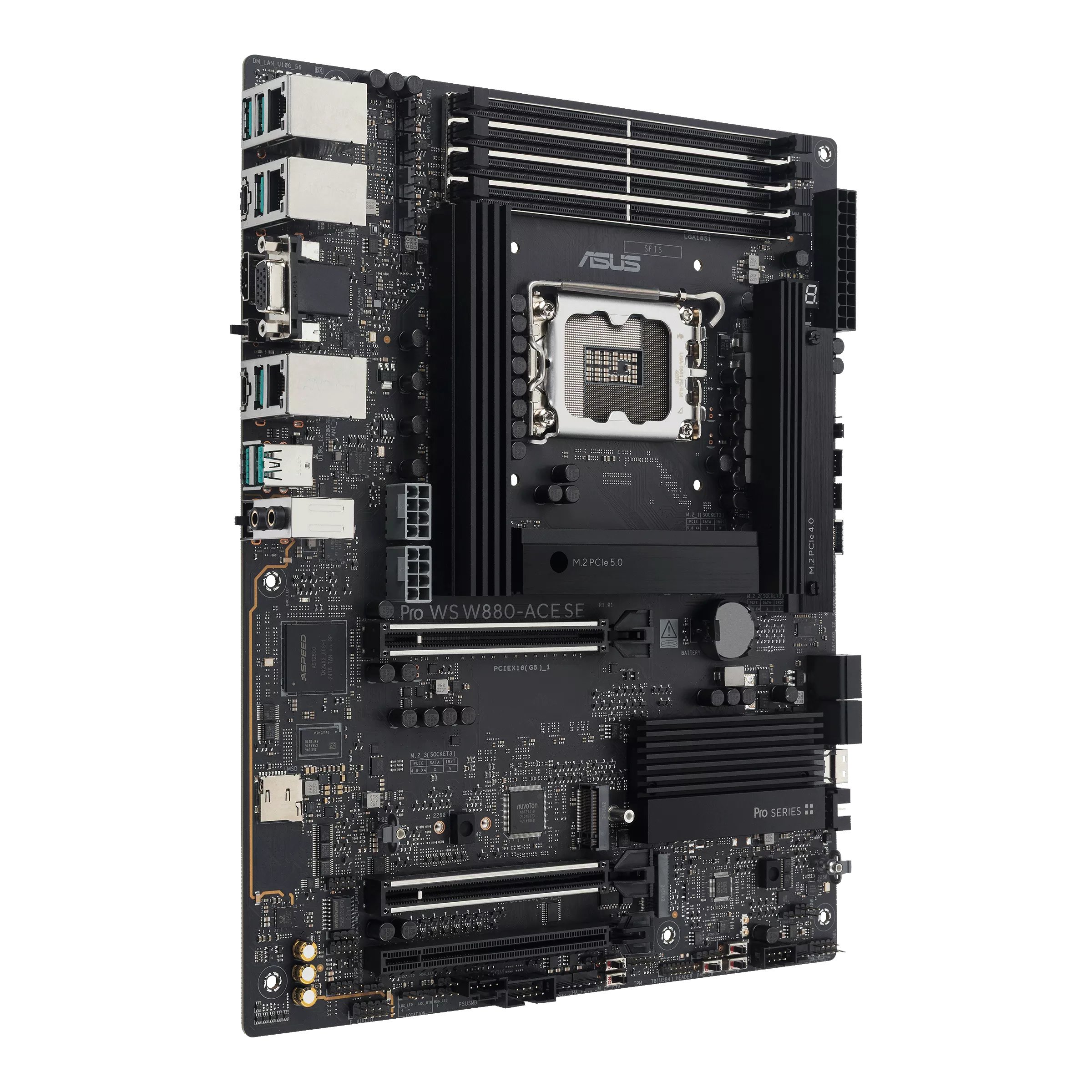

About the Asus Pro WS W880-ACE SE Motherboard
| Component / Feature | Specification / Details |
|---|---|
| Model Name | ASUS Pro WS W880-ACE SE |
| CPU Support | Intel Core™ Ultra Processors (Series 2) – LGA1851 |
| Chipset | Intel W880 |
| Memory | 4 × DDR5 DIMM slots (Max 256 GB), ECC & Non-ECC support, up to ~9066+ MT/s (OC) |
| PCIe Expansion Slots | 2 × PCIe 5.0 ×16 (x16 or x8/x8), 1 × PCIe 4.0 ×16 (x4) |
| Storage Interfaces | 4 × M.2 (1 × PCIe 5.0, 3 × PCIe 4.0); SATA 6 Gb/s; SlimSAS |
| USB & Front Panel | 1 × USB 20 Gbps Type-C, USB 20 Gbps header, USB 5 Gbps header |

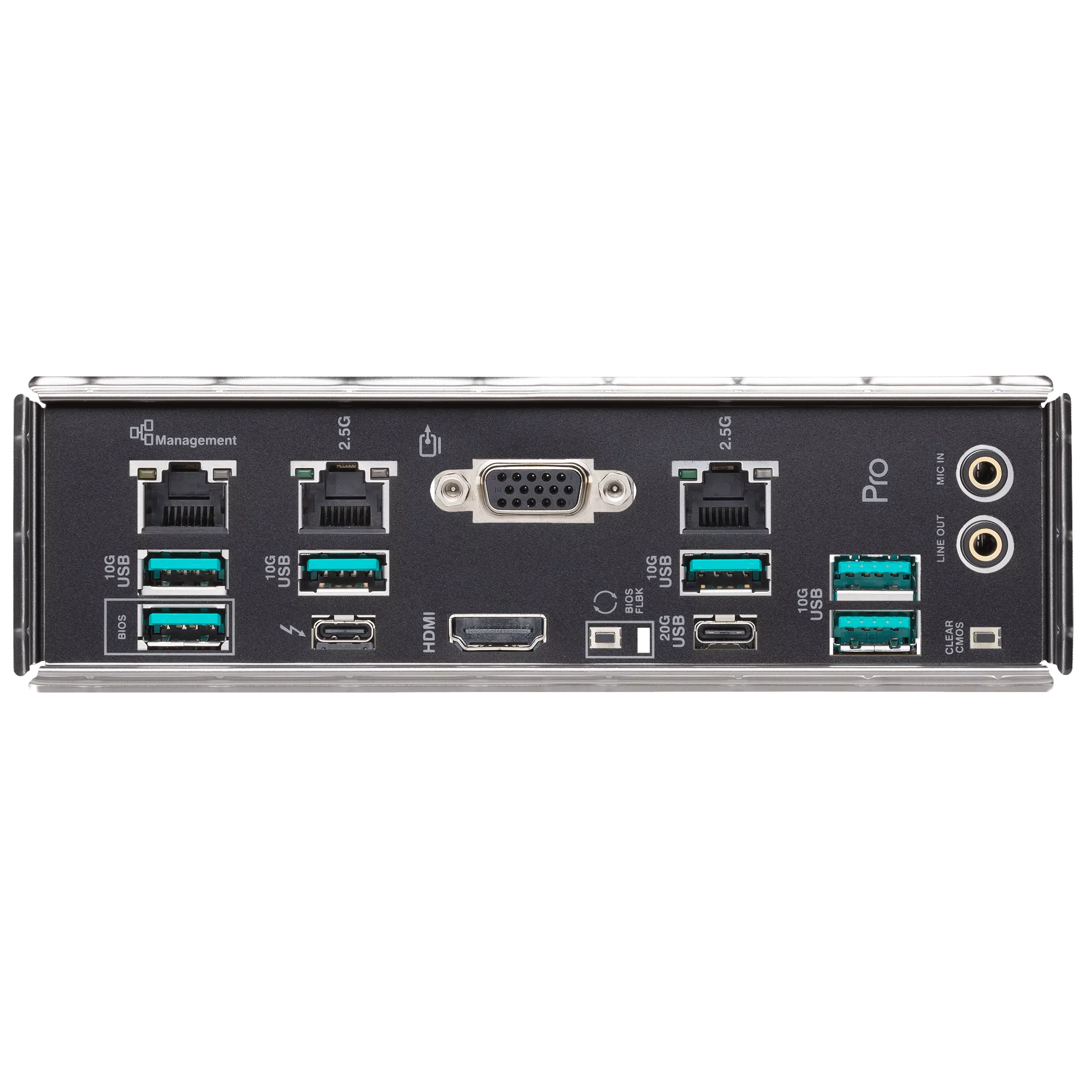

| Rear I/O | Thunderbolt™ 4 (USB4), USB 10 Gbps, USB 2.0, USB Type-C |
| Networking | Dual Intel 2.5Gb LAN, dedicated BMC LAN |
| Graphics Output | HDMI |
| Audio | 7.1-Channel HD Audio (Realtek ALC1220P) |
| Management | Onboard BMC (AST2600) with IPMI, ASUS Control Center Express |
| Cooling & Power | 8+1+2+2 teamed power stages, ProCool II, robust VRM cooling |
| Special Features | AI Cooling II, AI Advisor, M.2 Q-Latch, BIOS FlashBack |
| Reliability | Tested for 24/7 operation (45 °C, 80 % humidity) |
| Form Factor | ATX (305 × 244 mm) |
The Asus Pro WS W880-ACE SE Motherboard is engineered for advanced workstation environments where performance, scalability, and reliability matter.
Intel Core Ultra Series 2 processors in the Intel W880 Workstation Motherboard offers support on the LGA1851 platform, that delivers robust power delivery through an 8+1+2+2 power stage design and enhanced VRM cooling ensures stability is present in the motherboard during heavy compute loads.
The Asus Pro Series Motherboard has a powerful memory architecture that supports up to 256 GB of DDR5 RAM with an ECC and non-ECC modules. That offers speed and error-resilient operation for professional applications.
The Intel W880 Workstation Motherboard has a connectivity that is comprehensive: dual 2.5 Gb Ethernet, Thunderbolt 4, USB 20 Gbps ports, and four M.2 slots (including a PCIe 5.0 slot) .
Making it ideal for fast storage, graphics, and peripherals.
The board’s server-grade management stack includes an onboard AST2600 BMC, IPMI, and ASUS Control Center Express, enabling real-time monitoring and remote control — a key benefit for IT administrators.
Additional features like AI Cooling II, AI Advisor, Q-Latch M.2, and BIOS FlashBack enhance usability and performance tuning.
The design of the Asus Pro ATX Workstation Motherboard is validated for 24/7 uptime in harsh conditions, making it suitable for continuous workflows, professional rendering, deep learning, or enterprise computing environments.
Ideal Utility of the Asus Pro WS W880-ACE SE Motherboard
-
High-end workstation builds.
-
Professional content creation and editing rigs.
-
AI & deep learning development systems.
-
Enterprise desktops with remote management needs.
-
Servers requiring BMC/IPMI management.
-
Multi-GPU accelerated workstations.
-
Large storage arrays with RAID support.
-
Engineering and simulation workstations.
-
24/7 continuous-operation computing.
-
IT admin managed corporate systems.
