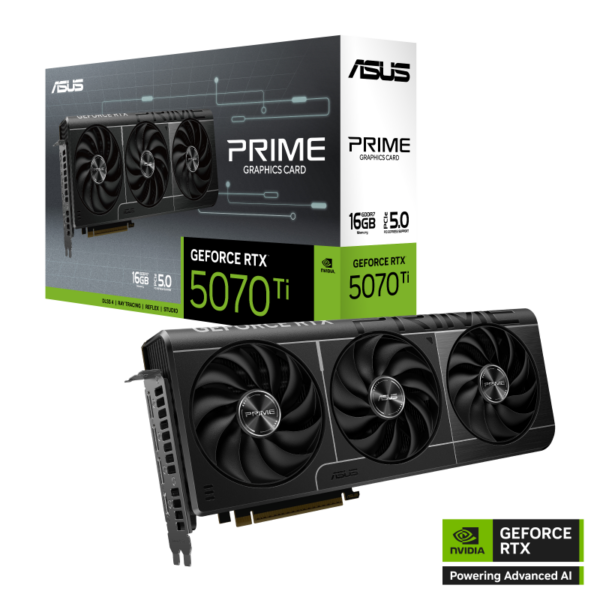

About ASUS Prime GeForce RTX 5070 Ti 16GB GDDR7 Graphics Card
Prime Series: Sleek & Compatible The ASUS Prime series is engineered for broad compatibility and a clean aesthetic that fits any build. This RTX 5070 Ti model is officially certified as “SFF-Ready Enthusiast”, measuring just 50mm thick (2.5 slots) and 304mm long. This compact footprint allows it to bring high-end Blackwell performance to smaller Micro-ATX and Mini-ITX cases without the clearance issues often faced by larger cards.
Advanced Cooling Technologies To cool the powerful GPU, ASUS employs three Axial-tech fans with smaller hubs and longer blades to increase downward air pressure. The cooling solution is upgraded with a Phase-Change Thermal Pad, which liquifies under heat to fill microscopic gaps between the die and heatsink, offering superior thermal transfer compared to traditional paste. 0dB Technology stops the fans completely when temperatures are below 50°C, ensuring silence during light tasks.
Next-Gen Performance (GDDR7 & DLSS 4) Upgrading from previous standards, this card utilizes 16GB of GDDR7 memory (28 Gbps) and the PCIe 5.0 interface, providing massive bandwidth for 4K textures and AI workflows. It fully supports DLSS 4, which introduces AI Multi-Frame Generation and Ray Reconstruction to deliver significantly higher frame rates and visual fidelity than DLSS 3.5.
ASUS Prime GeForce RTX 5070 Ti 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2482 MHz (OC Mode) / 2452 MHz (Default) |
| CUDA Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Cooling System | Triple-Fan (Axial-tech Fans) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 750W |
| TDP | 300W |
| Card Dimensions | 304 x 126 x 50 mm (2.5-Slot SFF-Ready) |
| Feature Support | DLSS 4, Phase-Change Thermal Pad, 0dB Tech |
Key Features
-
16GB GDDR7 Memory: Next-gen speed for lag-free 4K gaming.
-
SFF-Ready Design: Slim 2.5-slot profile fits compact cases.
-
Triple Axial-tech Fans: Enhanced airflow with quiet operation.
-
Phase-Change Thermal Pad: Superior heat transfer for longevity.
-
DLSS 4 & PCIe 5.0: Future-proof technology support.
