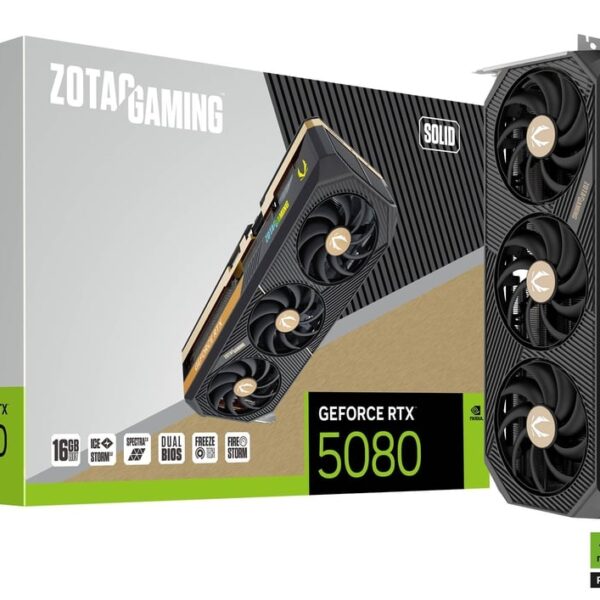

About ZOTAC GAMING GeForce RTX 5080 SOLID OC 16GB GDDR7 Graphics Card
Ultimate Durability & AV1 Power The “SOLID” moniker represents ZOTAC’s commitment to structural integrity. A rigid die-cast metal mid-frame and full-length backplate sandwich the PCB, eliminating sag for this 3.5-slot giant. For streamers and editors, the card features 8th Gen NVIDIA Encoders (NVENC) with full support for AV1 Encoding. This allows for 40% more efficient live streaming quality compared to H.264, making it the ultimate tool for broadcasting high-fidelity gameplay to platforms like YouTube and Twitch.
IceStorm 3.0 with Vapor Chamber To manage the thermal output of the factory-overclocked Blackwell GPU, ZOTAC employs its most advanced IceStorm 3.0 cooling system. It features three massive 100mm BladeLink Fans that drive air through a high-density fin stack. A large Vapor Chamber sits directly over the GPU and GDDR7 memory, rapidly transferring heat to composite copper heat pipes. This setup ensures that even during long renders or 4K gaming sessions, the card remains cool and quiet.
Next-Gen Performance With 16GB of GDDR7 memory running at a blistering 30 Gbps, the RTX 5080 SOLID OC eliminates memory bandwidth bottlenecks in 4K resolution. It fully utilizes DLSS 4 with AI Multi-Frame Generation and Ray Reconstruction, delivering buttery-smooth frame rates in the most demanding titles. SPECTRA 2.0 RGB lighting adds a customizable glow to the setup, which can be synchronized with external LED strips via the onboard header.
ZOTAC GAMING GeForce RTX 5080 SOLID OC 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2640 MHz (Factory Overclock) |
| CUDA Cores | 10,752 Units |
| Memory Speed | 30 Gbps |
| Cooling System | IceStorm 3.0 (Triple 100mm BladeLink Fans) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 850W |
| TDP | 360W |
| Card Dimensions | 329.7 x 137.8 x 67.8 mm (3.5-Slot) |
| Feature Support | DLSS 4, AV1 Encode/Decode, Vapor Chamber |
Key Features
-
16GB GDDR7 Memory: 30 Gbps speed for 4K textures and creative workloads.
-
AV1 Encoding: Superior stream quality with next-gen video codecs.
-
3.5-Slot Design: Massive heatsink surface area for whisper-quiet cooling.
-
IceStorm 3.0: Vapor Chamber + Triple 100mm BladeLink fans.
-
Metal Mid-Frame: Industrial-grade reinforcement prevents PCB flexing.
