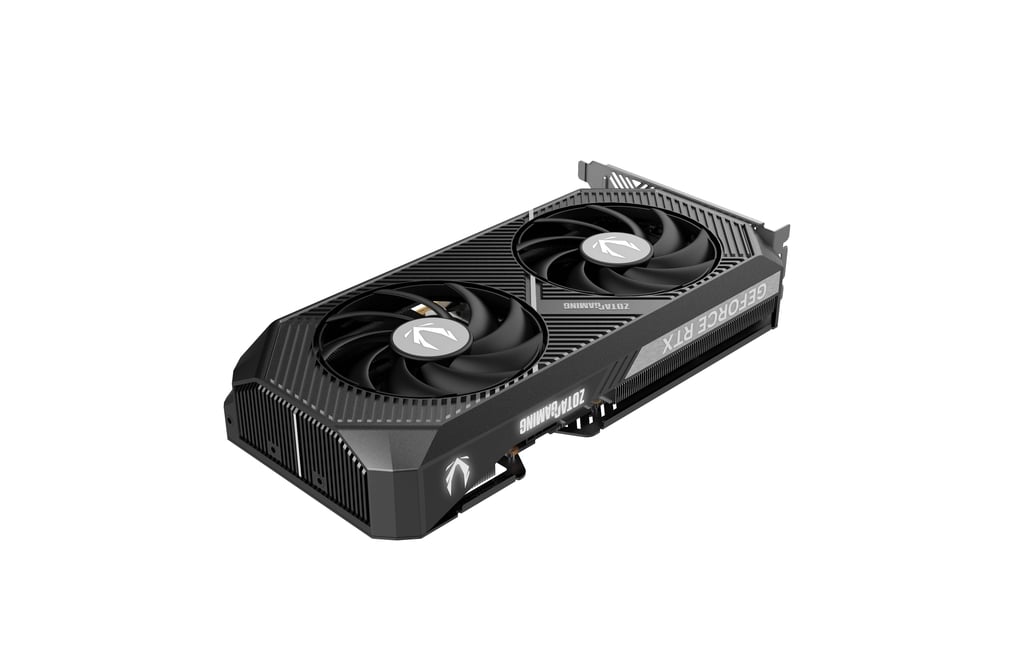

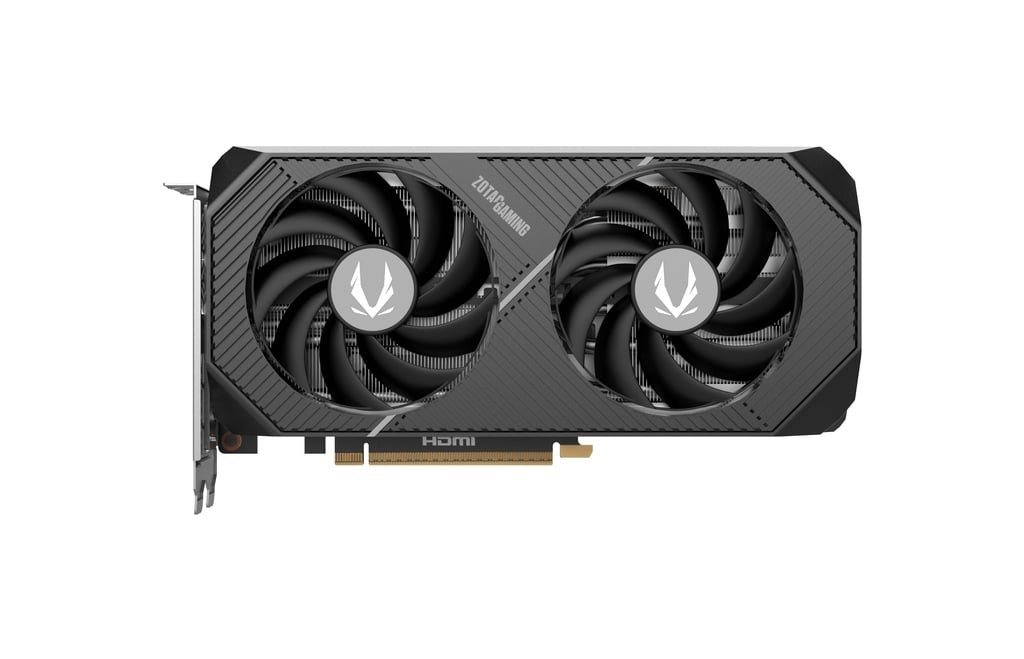

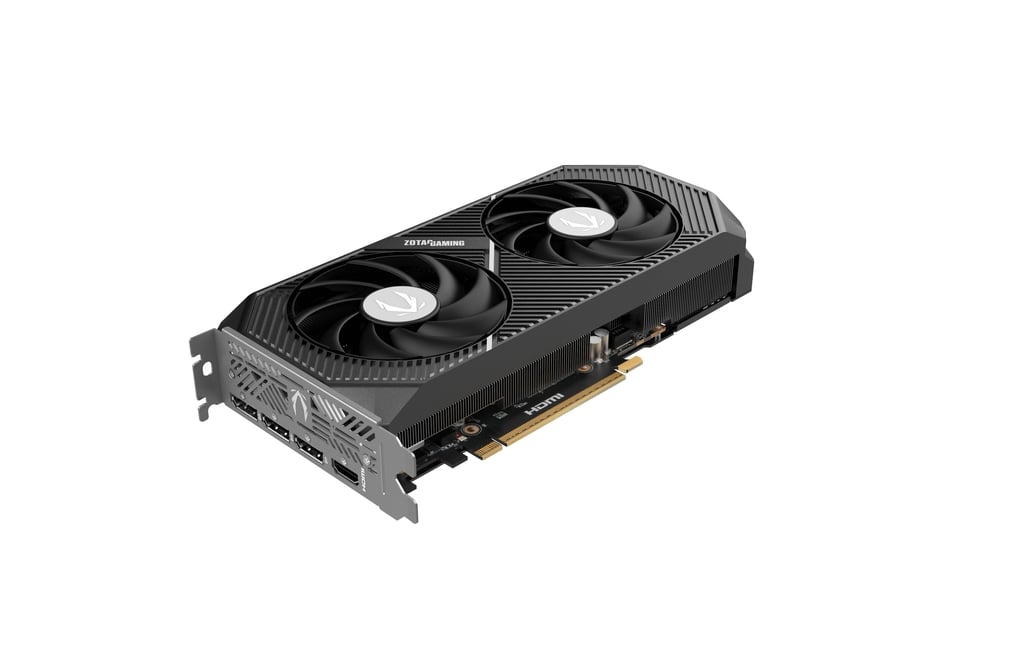

About ZOTAC Gaming GeForce RTX 5070 Twin Edge Card
Specification Category | Detail Description |
---|---|
GPU Architecture | NVIDIA GeForce RTX 5070 (Blackwell architecture) |
CUDA Cores | 6,144 CUDA cores |
Video Memory | 12 GB of GDDR7 memory |
Memory Bus Width | 192-bit |
Boost Engine Clock | 2,512 MHz |
Memory Clock Speed | 28 Gbps |
PCI Express Compatibility | PCI Express 5.0 x16 |
Cooling Solution | IceStorm 2.0 advanced cooling, dual 90 mm BladeLink fans, FREEZE fan-stop feature |
Body Features | Metal backplate, Side Retention Mount for secure transport |

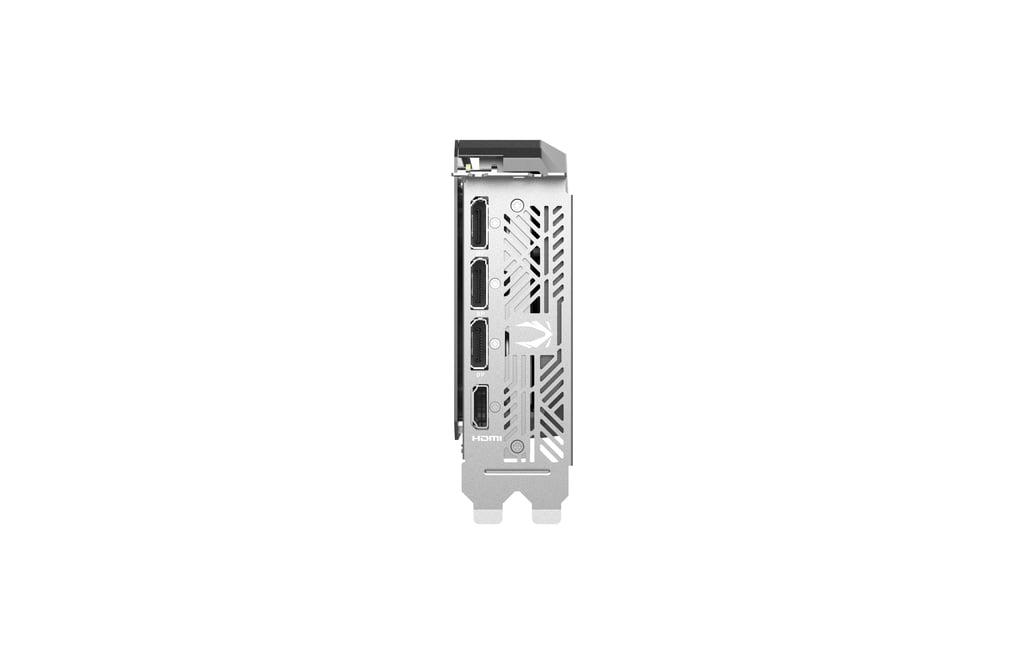

Display Outputs | 3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b; supports up to 4 displays; delivers up to 4K 480 Hz or 8K 165 Hz (DP) and 4K 480 Hz or 8K 120 Hz (HDMI) with DSC, plus VRR |
Power Requirement | Recommended 650 W power supply |
Software Support | Compatible with NVIDIA Game Ready & Studio drivers, supports DirectX 12 Ultimate, Vulkan RT APIs (v1.4), OpenGL 4.6; OS support: Windows 10/11 64-bit, plus others |
Other Features | 12V-2×6 power safety light indicator; ZOTAC GAMING FireStorm utility software |
Elevate your gaming and creative workflows with the ZOTAC Gaming GeForce RTX 5070 Twin Edge, a compact powerhouse built upon NVIDIA’s pioneering Blackwell architecture.
This GPU redefines the sweet spot between size, performance, and versatility—delivering exceptional capabilities in both immersive AI compute tasks and high-frame-rate gaming.
Key Features ZOTAC Gaming GeForce RTX 5070 Twin Edge Card
-
Advanced Blackwell Architecture present in the Zotac Computer Gaming Graphics Card
The Twin Edge harnesses NVIDIA’s next-generation Blackwell architecture, delivering groundbreaking advances in ray tracing, AI inferencing, and computational efficiency. Combined with DLSS 4 and 12 GB of ultra-fast GDDR7 memory, it delivers outstanding responsiveness and visual fidelity across demanding applications. -
FireStorm Utility present in the Zotac Twin Edge Fan Graphics Card
Take command of your GPU with ZOTAC FireStorm, your control hub for customization and optimization. Monitor clock speeds, adjust memory frequencies, set fan curves, and configure vibrant RGB—empowering you to fine-tune performance and aesthetics with ease. -
Robust Durability and Compact Design of the Zotac Twin Edge Fan Graphics Card

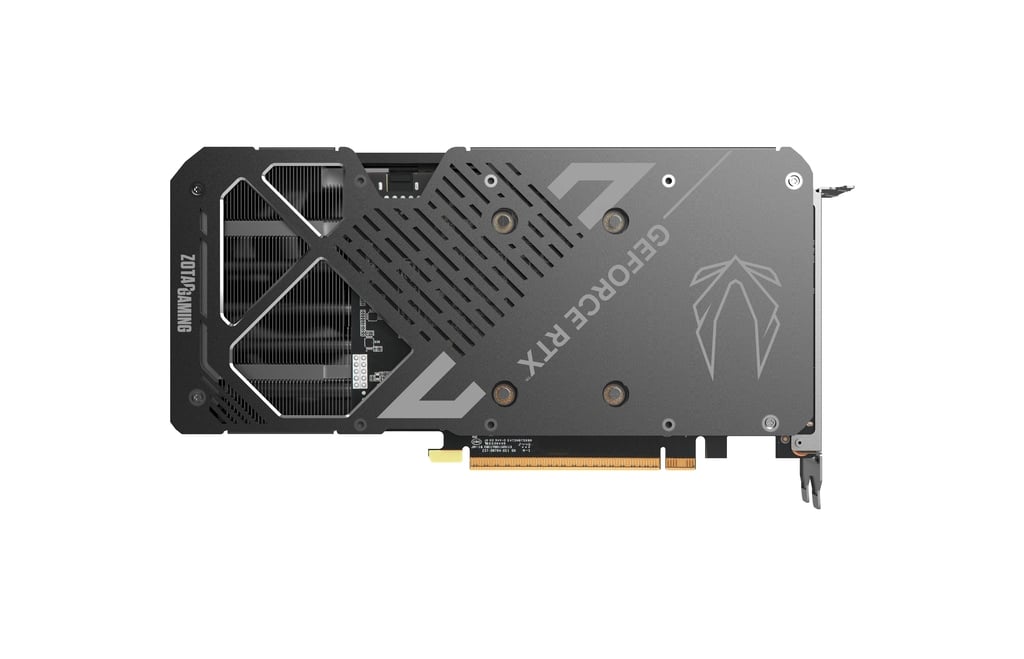

Crafted for confidence, this card’s metal shroud and backplate enhance structural integrity. Compact at 241.5 mm in length and spanning only two slots, the Twin Edge fits snugly within smaller builds and tight cases—ideal for high-performance, space-conscious systems.
-
Powerful Cooling, Whisper-Quiet Operation performance in the Zotac Twin Edge Fan Graphics Card
The IceStorm 2.0 cooling system features dual 90 mm BladeLink fans, heat-dissipating channels, and a fan-stop feature that pauses operation during light tasks. The result: controlled temperatures under load, and near-silent operation when idle. -
Reliable Power Connectors
Equipped with a 12V-2×6-pin power connection, this GPU ensures stable and efficient power delivery—designed for consistent performance during intense workloads. -
Vibrant Spectra RGB Lighting
Illuminate your build with Spectra RGB lighting, fully customizable through FireStorm. Create ambient lighting or synchronize with your setup’s color scheme for immersive style. -
AI & Gaming Versatility
-
Next-Gen Game Performance: From real-time ray tracing to smooth frame rates powered by DLSS 4, gamers experience breathtaking visuals and top-tier performance—even at ultra-high resolutions.
-
AI Workload Acceleration: With Blackwell’s tensor cores, CUDA support, and 12 GB of GDDR7 memory, the Twin Edge excels at AI-driven rendering, inference, and creative processing workflows.
-
The ZOTAC Gaming GeForce RTX 5070 Twin Edge Card merges cutting-edge architecture, compact durability, silent cooling, customizable lighting, and robust software tuning.
Whether you’re pushing visual fidelity in the latest titles or accelerating AI-driven creative tasks, it delivers all this in a sleek, two-slot form factor—perfectly balancing performance, flexibility, and style.
