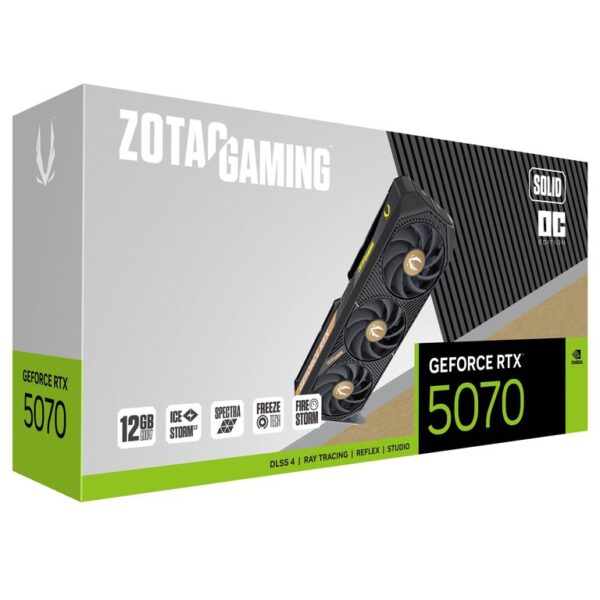

About ZOTAC GAMING GeForce RTX 5070 SOLID OC 12GB GDDR7 Graphics Card
Built Solid for SFF Enthusiasts The ZOTAC SOLID OC is engineered to solve the sizing headache of modern GPUs. With a thickness of just 41.6mm (strictly 2 slots) and a length of 304mm, it meets NVIDIA’s “SFF-Ready” guidelines, ensuring compatibility with a wide range of Mini-ITX and compact mid-tower cases. The design is understated and industrial, featuring a matte black finish that blends perfectly into stealth builds.
IceStorm 2.0 with BladeLink Fans Despite its slim profile, the card maintains low temperatures thanks to the IceStorm 2.0 cooling system. It utilizes three 90mm BladeLink Fans, which feature interconnected fan blades to improve stability and static pressure. This design minimizes air turbulence and noise while driving air effectively through the full-length heatsink. FREEZE Fan Stop technology ensures the card remains completely silent when the GPU is idle or under light load.
Blackwell & GDDR7 Performance Powered by the NVIDIA Blackwell architecture, this card introduces DLSS 4 with Multi-Frame Generation, offering significantly higher frame rates than the DLSS 3.5 found in previous generations. The upgrade to 12GB of GDDR7 memory running at 28 Gbps provides the high bandwidth necessary for smooth 1440p gaming and ray tracing, eliminating the bottlenecks seen in older GDDR6 cards.
ZOTAC GAMING GeForce RTX 5070 SOLID OC 12GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Core Clock | 2542 MHz (Boost) |
| CUDA Cores | 6144 Units |
| Memory Speed | 28 Gbps |
| Cooling System | IceStorm 2.0 (Triple 90mm BladeLink Fans) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 650W |
| TDP | 250W |
| Card Dimensions | 304.4 x 115.8 x 41.6 mm (SFF-Ready 2-Slot) |
| Feature Support | DLSS 4, Metal Backplate, FREEZE Fan Stop |
Key Features
-
12GB GDDR7 Memory: Next-gen memory speed for high-FPS 1440p gaming.
-
SFF-Ready Design: Strict 2-slot thickness fits compact cases.
-
IceStorm 2.0: Efficient cooling with stabilised BladeLink fans.
-
Factory Overclock: Boost clock tuned to 2542 MHz for extra performance.
-
Solid Durability: Reinforced with a full metal backplate.
