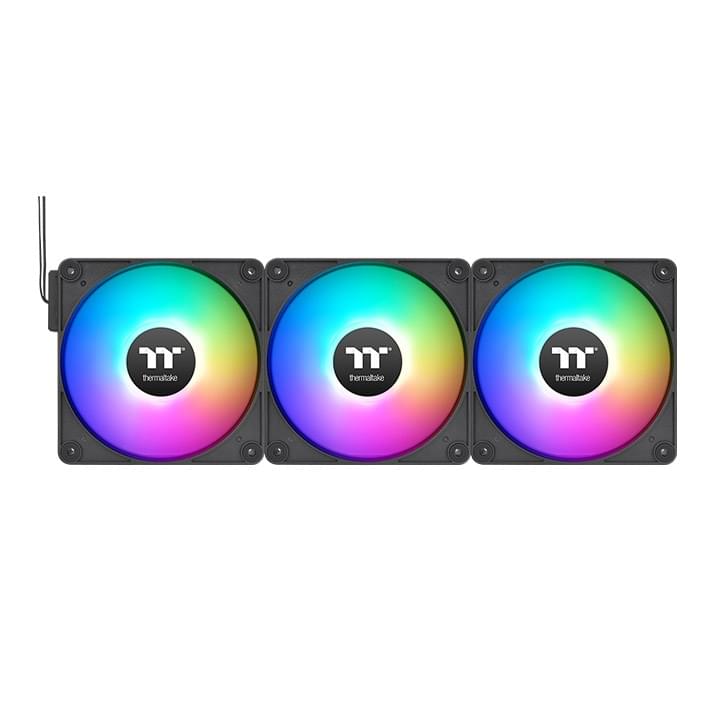

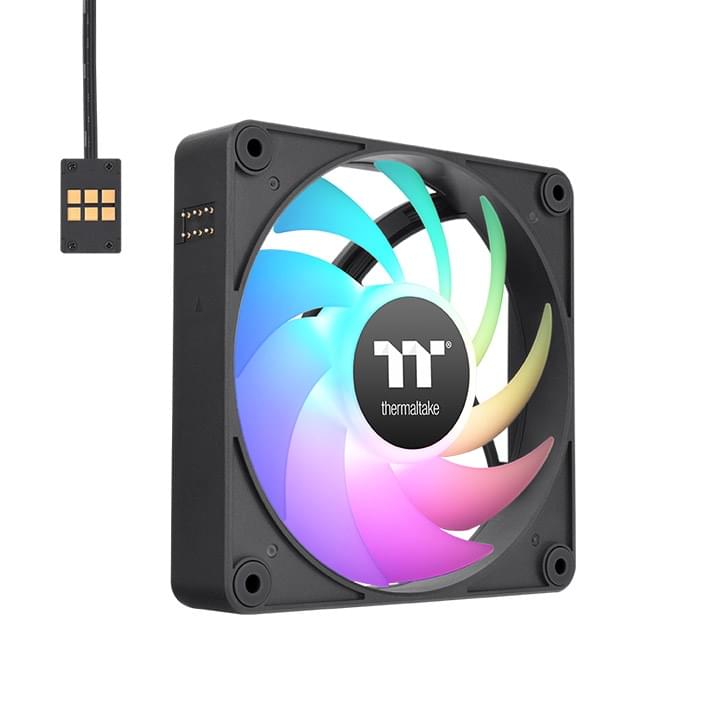

About Thermaltake CT120 EX ARGB Reverse 3 Fan
| P/N | CL-F192-PL12SW-A |
|---|---|
| Fan Dimension | 120 x 120 x 25 mm |
| INTERFACE | 4 Pin – PWM 12 V 3 Pin – ARGB Sync 5 V |
| Started Voltage | 5 V |
| Fan Rated Voltage | 12 V & 5 V |
| Rated Current | 0.19 A & 0.32 A (one fan) |
| Power Input | 2.28 W & 1.6 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max. Air Pressure | 1.87 mm-H2O |
| Max Air Flow | 65.82 CFM |
| NOISE LEVEL | 31.2 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
| Included items | Fan x 3, Cable x 3 |

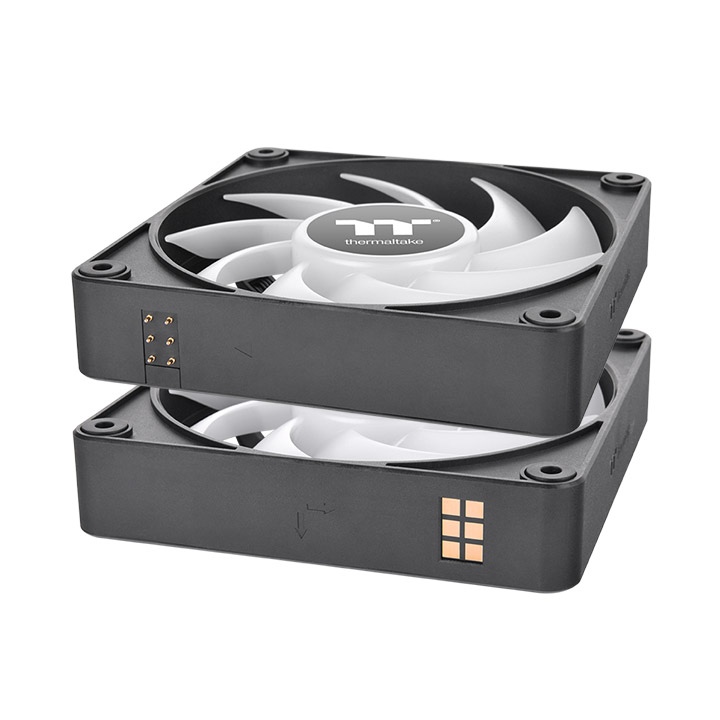

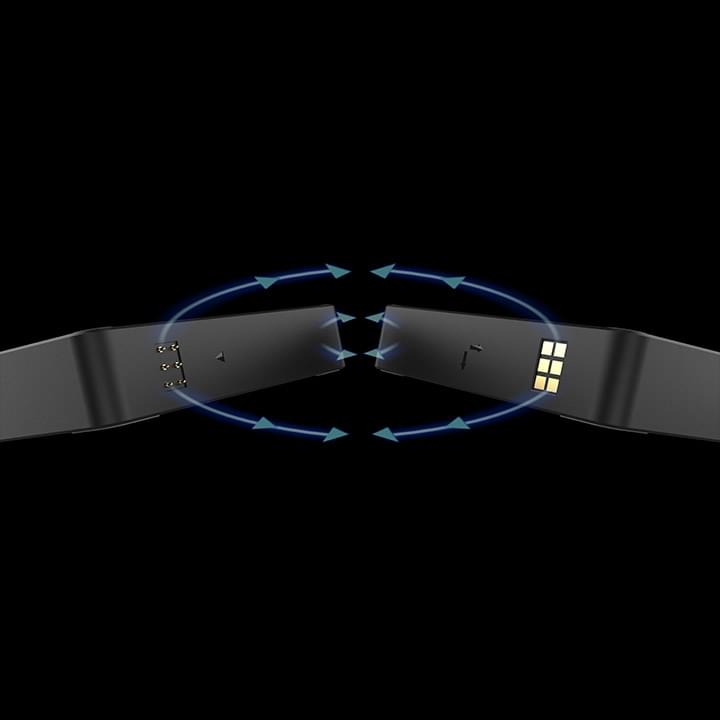

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Caution: Due to safety and motherboard signal limitations, CT120 EX Reverse ARGB Sync PC Cooling Fan is only recommended to daisy-chain up to 8 fans per cable.
Say Goodbye to Excessive Cables
Connect your fans with Thermaltake CT120 EX ARGB Reverse 3 Fan’s MagForce 2.0 Quick Connect Design and be free from messy cables!
Ordinary Fans
VS
CT EX Reverse ARGB Sync Fans
Unlocks the Full Potential of RGB Lighting
Reversed blade fan enables airflow from rear to front while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!
Remarkably Improved Performance
After extensive research and testing, the Thermaltake CT120 EX ARGB Reverse 3 Fan can generate 65.82 CFM of airflow and 1.87 mm-H2O static pressure while maintaining a 31.2 dBA noise level, pushing ARGB fans to their limits.
Solid Structure for Better Performance
The new CT Series fan frames are crafted to be steady and robust so the fan won’t deform easily. We have also modified the exterior design to allow the fans to fit the chassis or radiator even better, so there won’t be gaps for air to slip through.
A little Surprise for Extra Security
The Thermaltake CT120 EX ARGB Reverse 3 Fan are equipped with round anti-vibration rubber pads on each of the fan’s corners. They are designed to be stable and dampen the fan’s vibration, allowing the fans to spin at a higher speeds under certain noise levels.
Spectacular Lighting Effects
Featuring 9 addressable LEDs for users to build up spectacular lighting effects through motherboard sync software, providing great coverage of 16.8 million uniform colors.
You can create stunning lighting effects through your motherboard software to customize your ideal lighting effects. The Thermaltake CT120 EX ARGB Reverse 3 Fan now support ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software.
