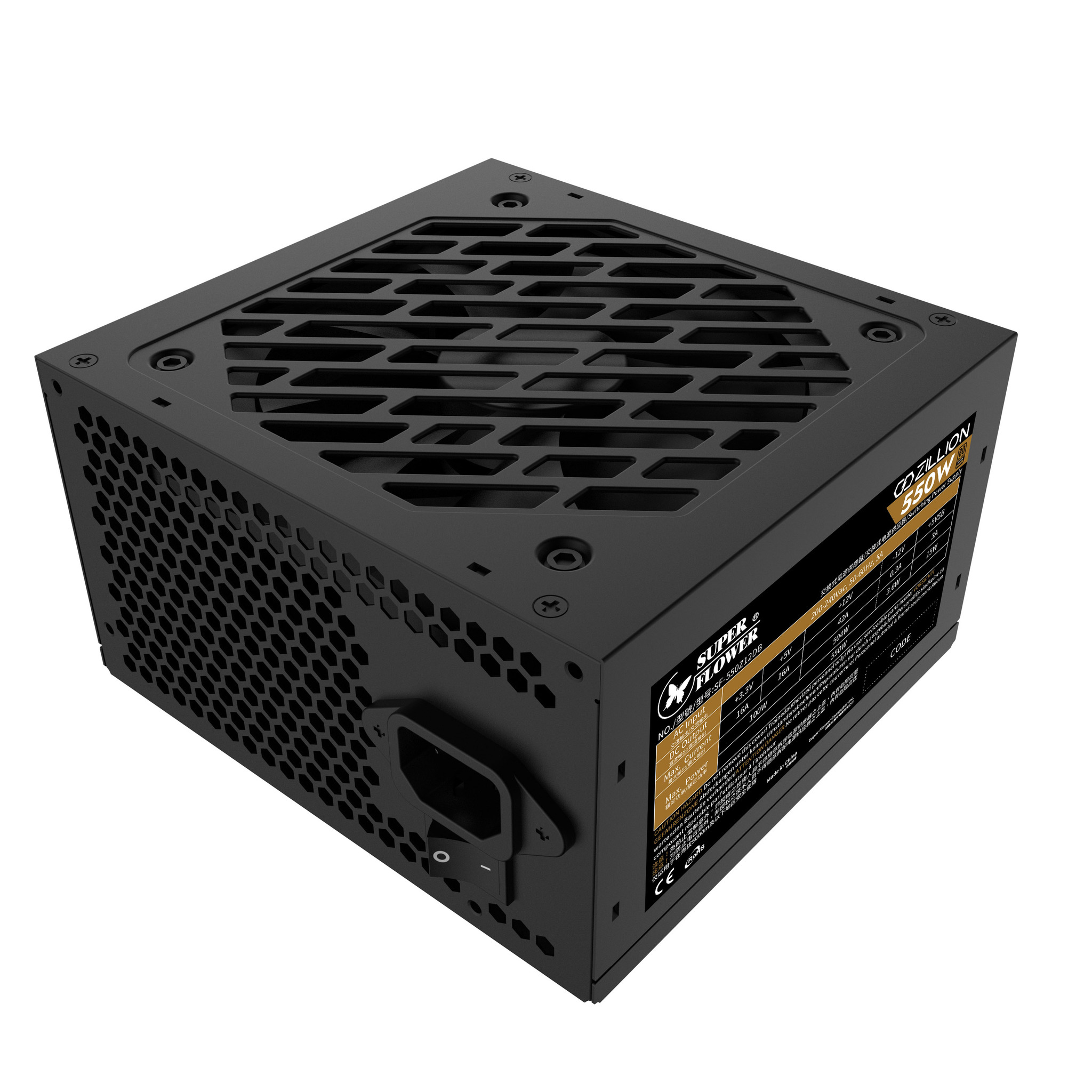

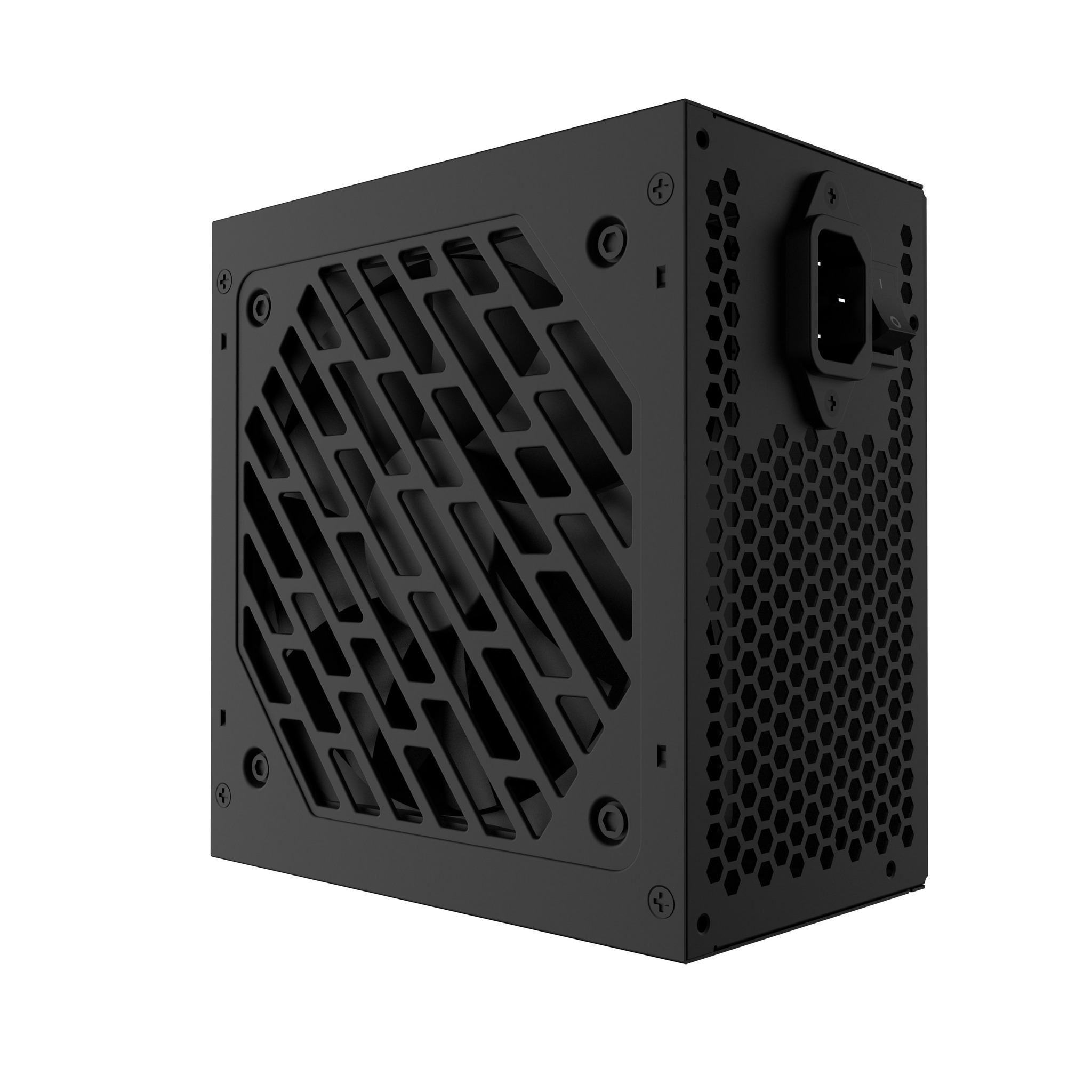

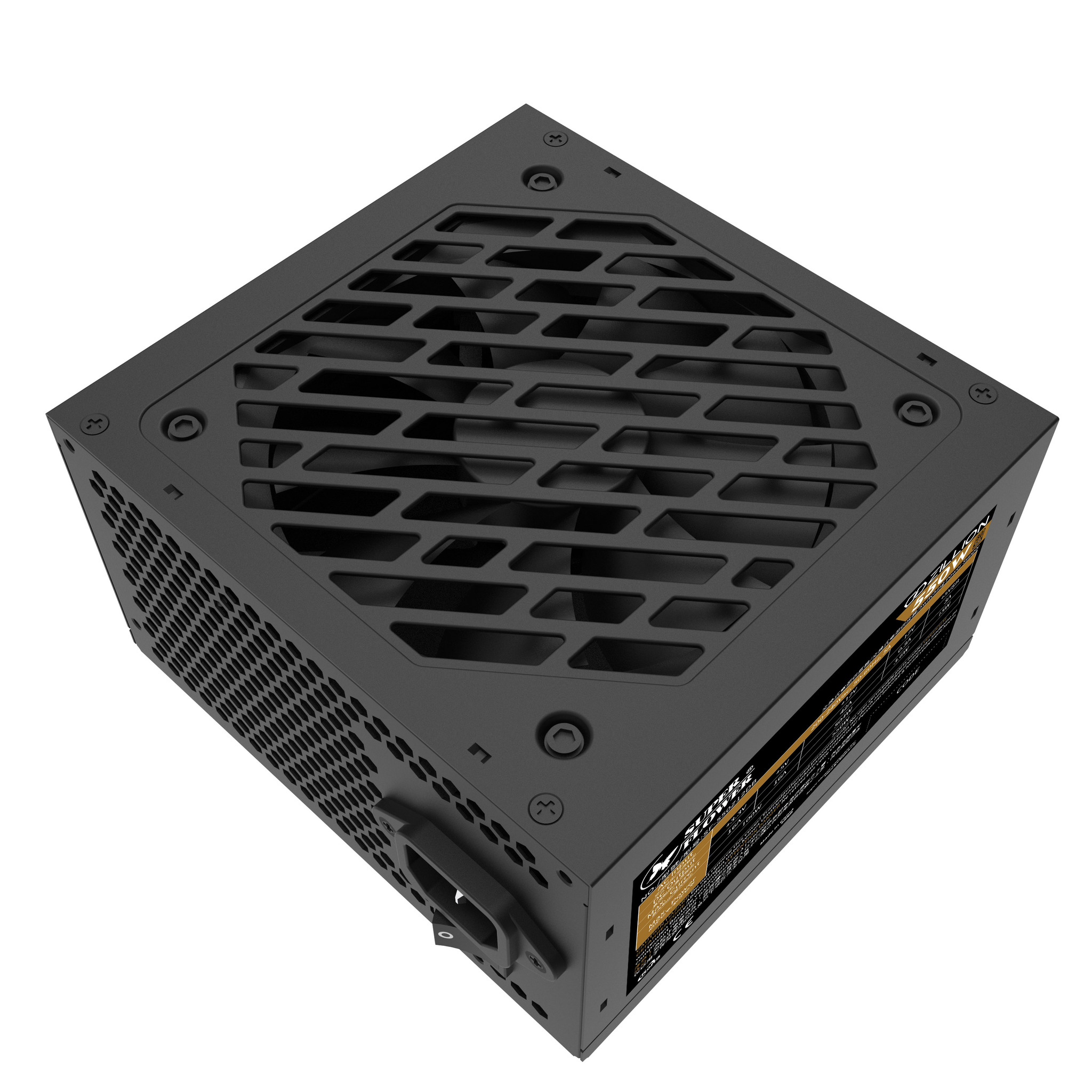

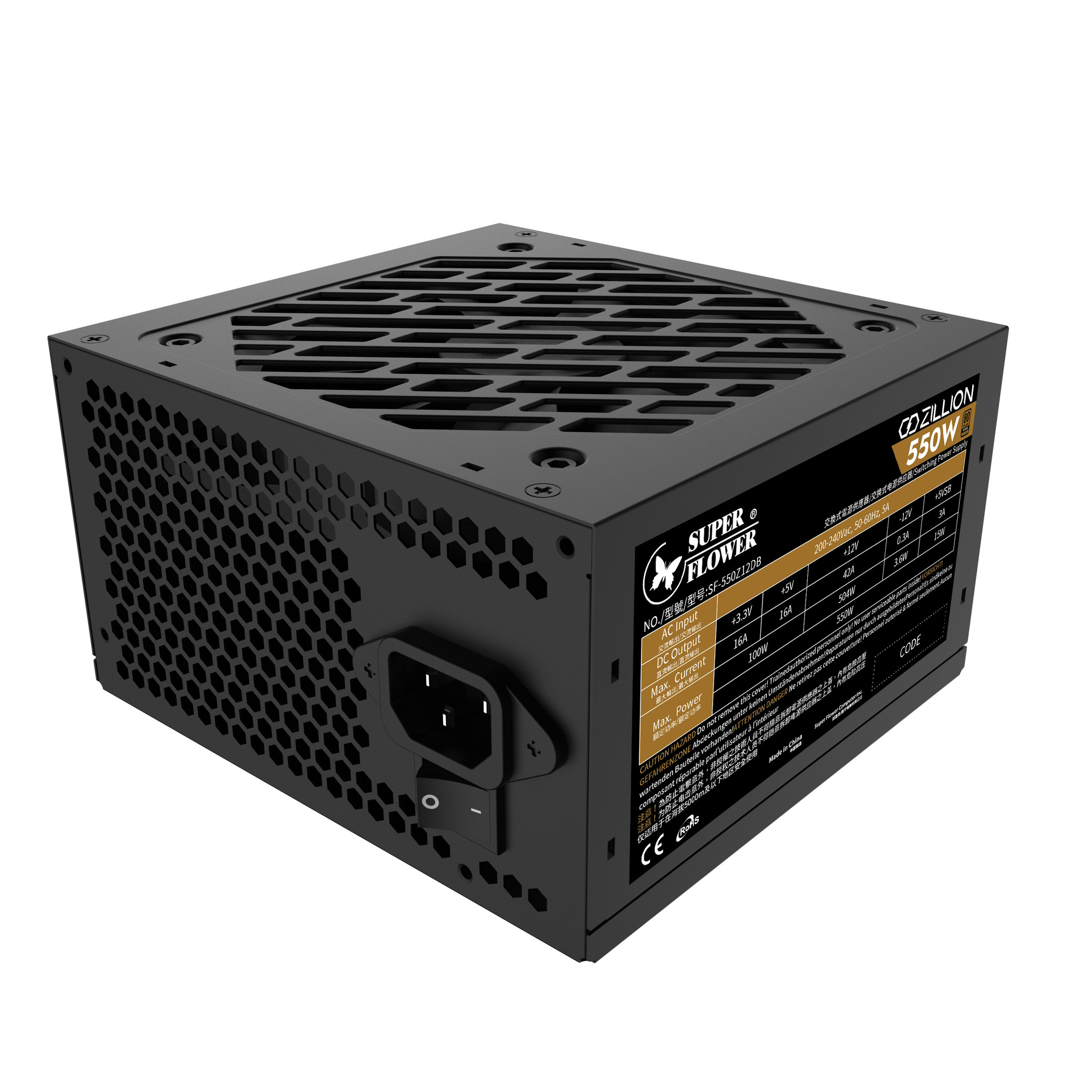

About Superflower 550W Zillion Bronze Power Supply
| Specification | Details |
|---|---|
| Model Number | SF‑550Z12DB (Zillion DB Bronze 550 W) |
| Total Output | 550 W |
| Efficiency Ratings | 85 % at 20 % load, 88 % at 50 %, 85 % at full load (230 V EU Bronze) |
| Intel/AMD Compatibility | Supports ATX 12V v2.3 and EPS 12V v2.92 motherboards |
| AC Input / Frequency | 200–240 V ~, 5 A @ 50–60 Hz |
| Fan Type & Size | 120 mm sleeve fan |
| Physical Dimensions (L×W×H) | 140 × 150 × 86 mm |
| Weight | ~1.5 kg |
| Protection Circuits | OVP, SCP, OPP, NLP |
| Certifications | TÜV, CB, CE, RoHS |
| Main Capacitor | Japanese‑style, 105 °C Taiwanese main capacitor |
| Cable Configuration | – 20 4 Pin ATX (500 mm) – 8 Pin & 4 4 Pin CPU (600 mm 150 mm) – 2 × PCI‑E 6 2 (SLI) (500 mm 150 mm) – 2 × SATA 1 × PATA (450 mm 150 mm × 2) |
| DC Output Rails | 3.3 V @ 16 A, 5 V @ 16 A, 12 V @ 42 A, –12 V @ 0.3 A, 5VSB @ 3 A |
| Combined Wattage | 3.3 V 5 V = 100 W; 12 V = 504 W; –12 V = 3.6 W; 5 VSB = 15 W; Total = 550 W |
