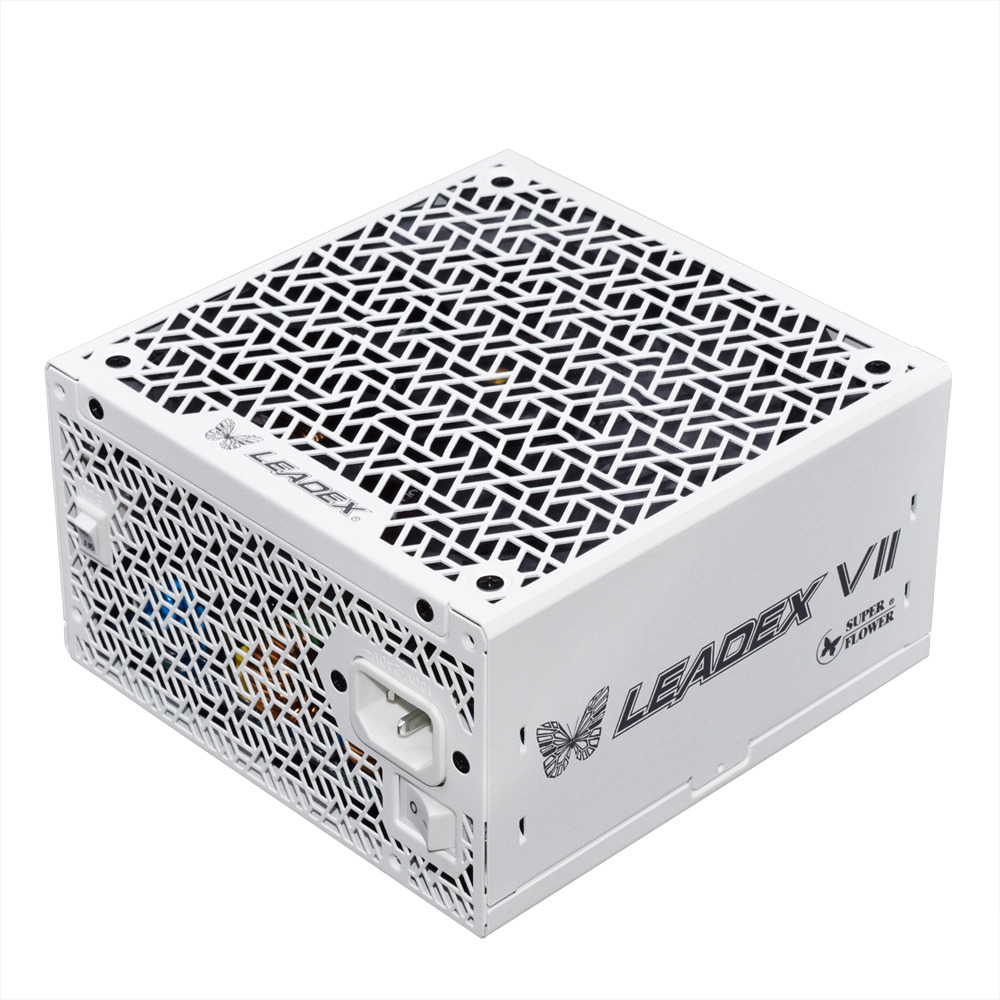

About Super Flower Leadex VII Platinum PRO 1000W White
Specification Category | Details |
---|---|
Model Name | Super Flower Leadex VII Platinum PRO 1000W White |
Power Output | 1000 Watts (Continuous Output) |
Efficiency Certification | 80 PLUS Platinum Certified |
Platform Standard | Intel ATX 3.1 / EPS 2.92 |
Transient Power Support | Supports up to 200% power excursion |

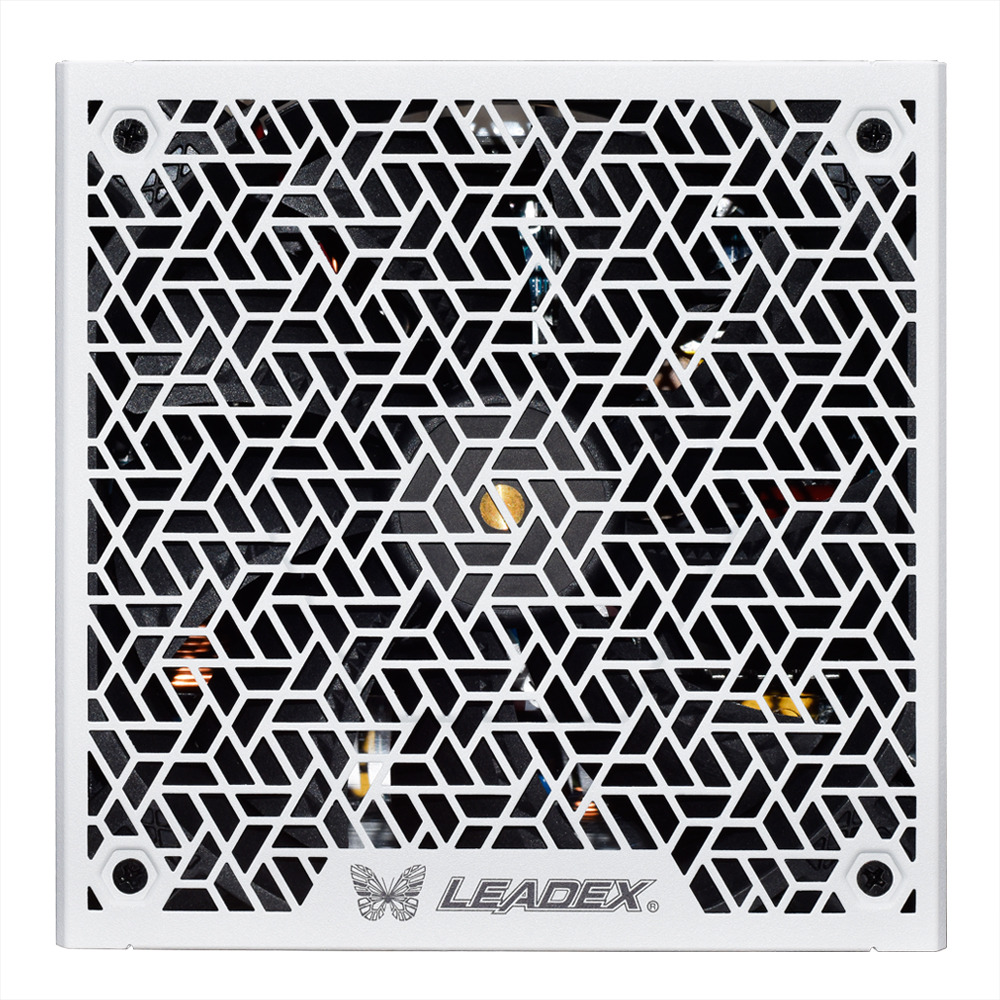

Cooling System | 140 mm Fluid Dynamic Bearing (FDB) Fan with ECO Intelligent Fan Control |
Modularity | Fully Modular with flat black ribbon cables |
Main Capacitors | 100% Japanese 105°C electrolytic capacitors |
12V Rail Output | Single Rail +12V @ 83.3 A (999.6 W) |
Other Outputs | +3.3V @ 20A, +5V @ 20A, -12V @ 0.5A, +5VSB @ 2.5A |

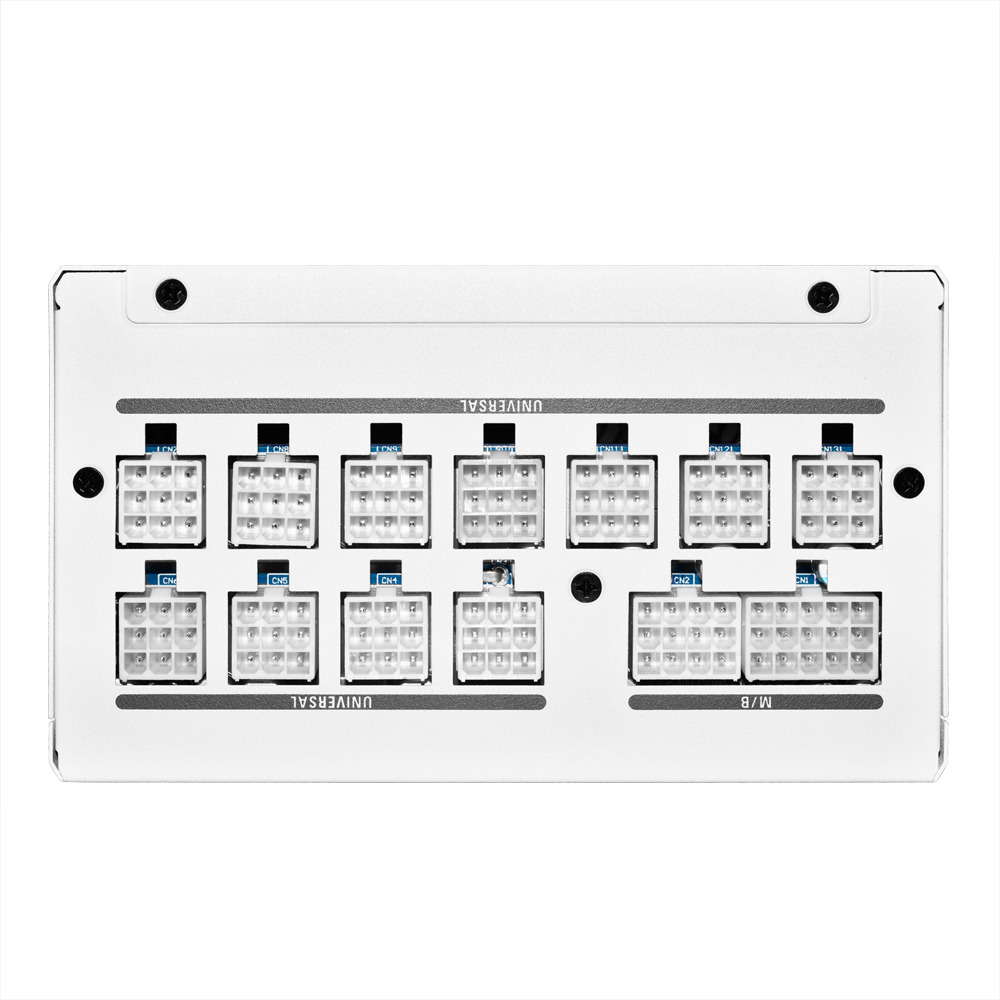

Connector Types | 1× 24-pin ATX, 2× 4+4-pin EPS, 3× 6+2-pin PCIe, 1× 12VHPWR, SATA, Molex |
Cable System | Patented Super Connector with 9-pin multi-function support |
Dimensions | 150 mm (W) × 150 mm (L) × 86 mm (H) |
Protections | OVP, UVP, OCP, OPP, SCP, OTP, NLO, SIP |
Certifications | CE, FCC, CB, TUV, RCM, BSMI, UKCA, RoHS, CCC, KCC, EAC |
Operating Temperature | Designed for operation up to 50°C |
Noise Rating | Optimized for low acoustic output with fan off under low loads |
