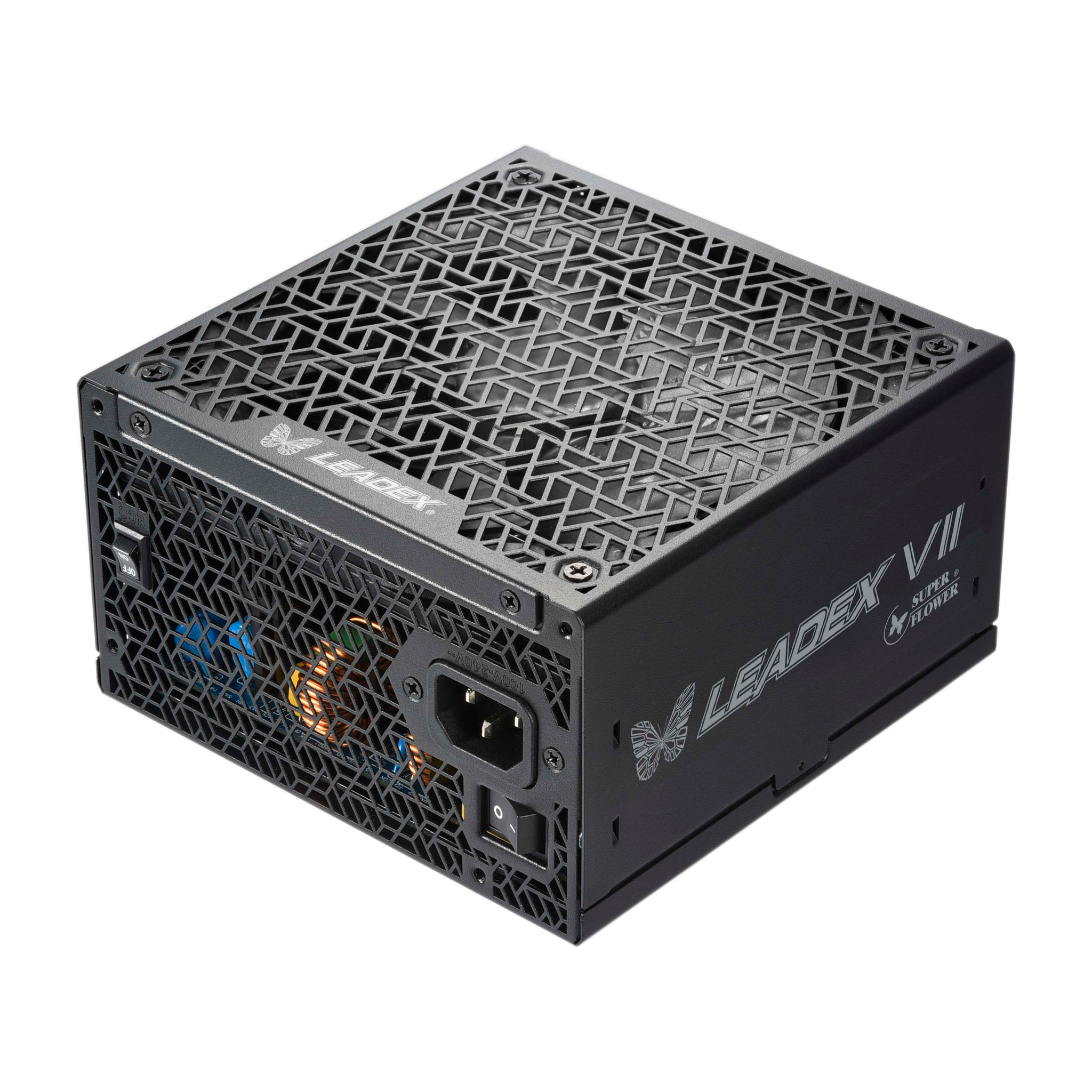

Super Flower LEADEX VII Platinum PRO 1000W ATX 3.1 , PCIe5.1
Super Flower LEADEX VII Platinum PRO 1000W ATX 3.1 , PCIe5.1
Original price was: ₹36,900.00.₹15,899.00Current price is: ₹15,899.00.
Avail the all-new Super Flower LEADEX VII Platinum PRO 1000W SMPS from Avika Retails at the best price. Best in-class features includes:
| Specification | Detail |
|---|---|
| Model | LEADEX VII Platinum PRO 1000 W ATX 3.1 |
| Efficiency | 80 PLUS Platinum, Cybenetics Platinum |
| Compatibility | Intel ATX 3.1 standard (200% transient) |
| Fan Type | 140 mm Fluid Dynamic Bearing (FDB) |
| Fully Modular | ✅ |
About the item:
-
Ultra‑efficient performance – Achieves 80 PLUS Platinum (~90–92%) efficiency with Cybenetics Platinum certification on both 115 V and 230 V inputs.
-
Next‑gen ATX 3.1 + PCIe Gen5 ready – Meets Intel ATX 3.1 standard with up to 200% transient power support; includes native 12 V‑to‑12+4 pin Super Connector cable for future GPUs.
-
Innovative connector technology – Patented dual‑9 pin Super Connector system on modular panel allows flexible, stress‑free cable routing and universal compatibility.
-
Quiet, reliable cooling – 140 mm Fluid Dynamic Bearing fan with copper‑shaft design ensures stable operation and low acoustics (≈30–35 dBA).
-
Rock‑solid stability and protection – Tight regulation (±0.5%), fast hold‑up times (~26 ms), strong transient response, minimal ripple, full suite of protections (OVP/OCP/OPP/SCP etc.).
About Super Flower LEADEX VII Platinum PRO 1000W
| Specification Category | Details |
|---|---|
| Model No. | LEADEX VII Platinum PRO 1000 W ATX 3.1 (Black or White) |
| Wattage | 1000 W maximum output |
| Efficiency | 80 PLUS Platinum at 115 V & 230 V; Cybenetics Platinum certification with ~90–92% efficiency |
| Input Voltage / Frequency | 100–240 V AC, 50/60 Hz with full-range APFC (meets modern designs) |
| Compatibility | Intel ATX 3.1 spec, supports up to 200% transient power excursion; PCIe Gen5-ready Super Connector 12+4‑pin output connector |
| Cooling Fan | 140 mm FDB (Fluid Dynamic Bearing) fan with copper‑shaft design for quieter, durable operation |
| Dimensions | Typically ~150 × 150 × 86 mm (similar to 850 W variant) |
| Protection Features | Full suite: OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP, surge/inrush/No‑load protections (in line with modern PSU standards) |

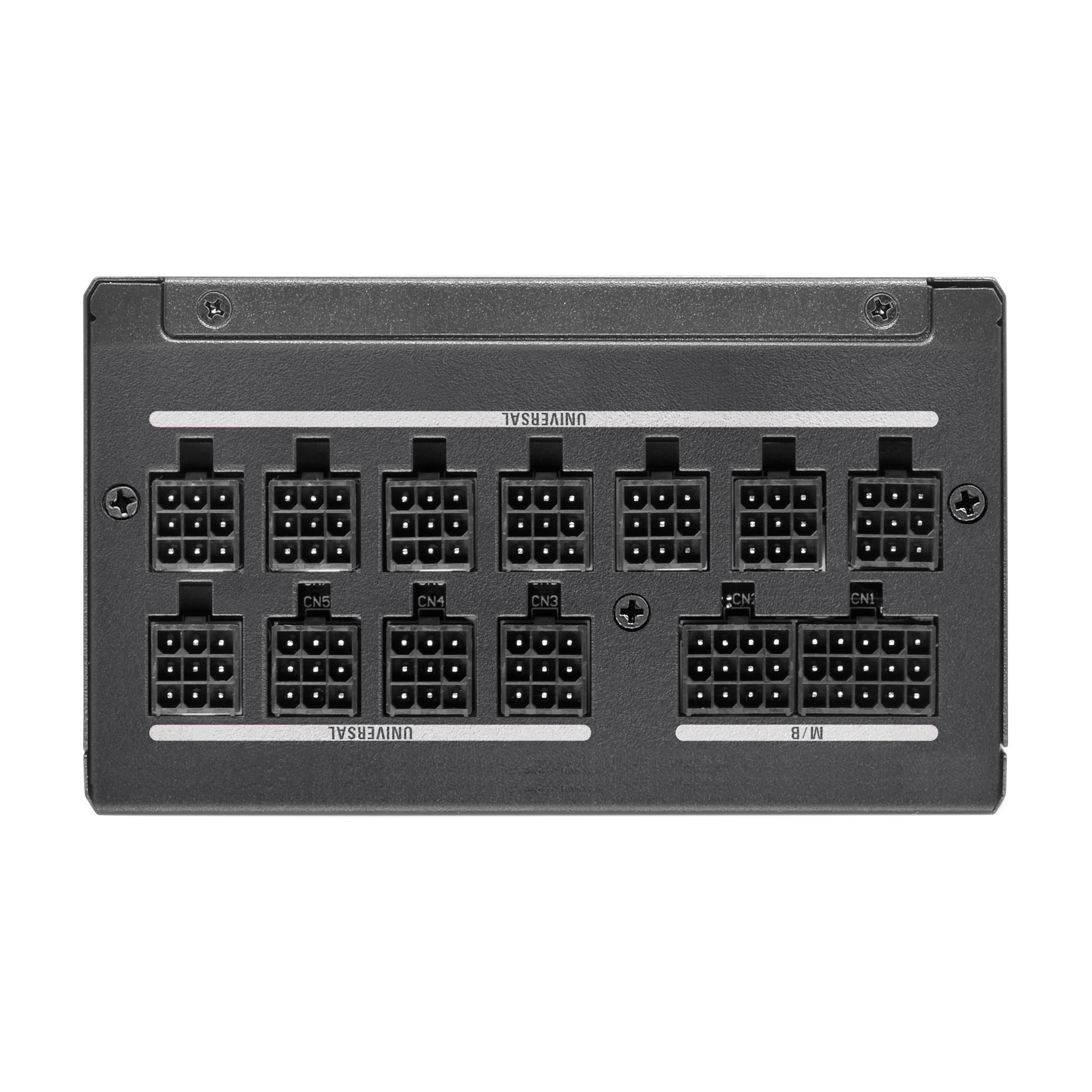

| Cables & Connectors | 100% fully modular ribbon cables; patented dual 9‑pin Super Connector, flexible routing, supports CPU/PCIe/SATA/Molex sockets |

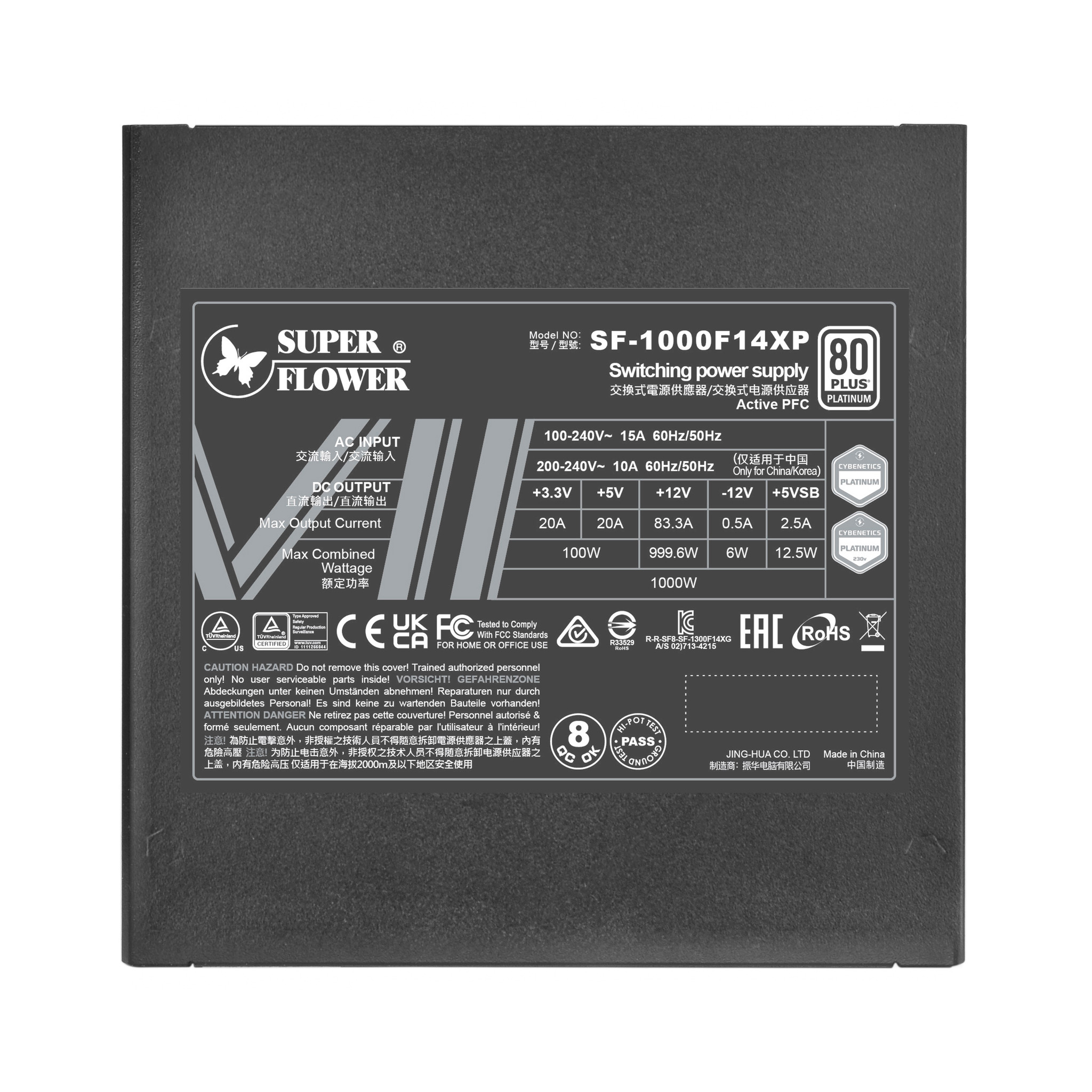

| DC Output Specs | +3.3 V @ 20 A; +5 V @ 20 A; +12 V @ 83.3 A (~999.6 W); –12 V @ 0.5 A; +5 VSB @ 2.5 A |
| Hold‑Up Time / Timings | Hold‑up ≈ 26.3 ms; PWR_OK delay ~2.7 ms; startup timings ~104 ms (at 20%/100%) |
| Regulation / Ripple | Tight ± 0.5 % voltage regulation on 12 V, 5 V, 3.3 V; very low ripple and excellent transient behavior |
| Noise Rating | Cybenetics Standard++ (approx. 30–35 dBA under load) |
