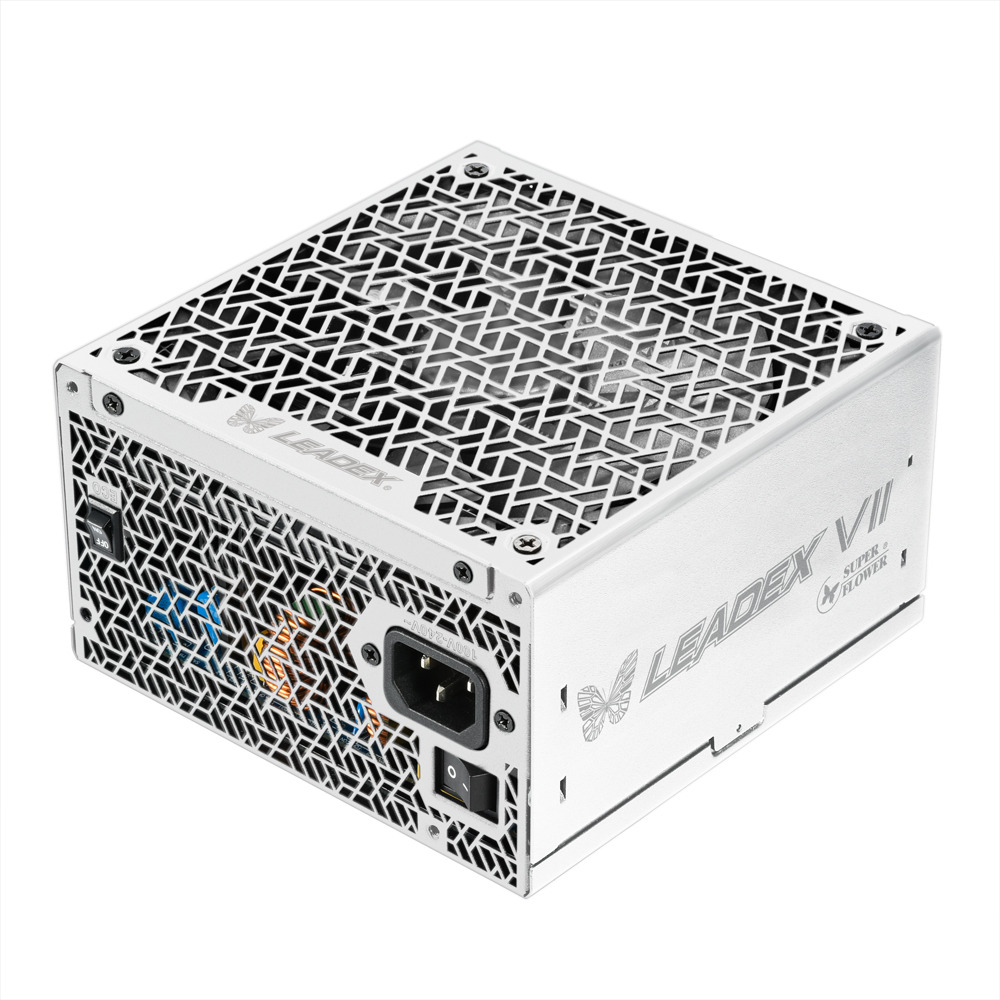

About Super Flower Leadex VII GOLD-1000W White
| Category | Specification / Detail |
|---|---|

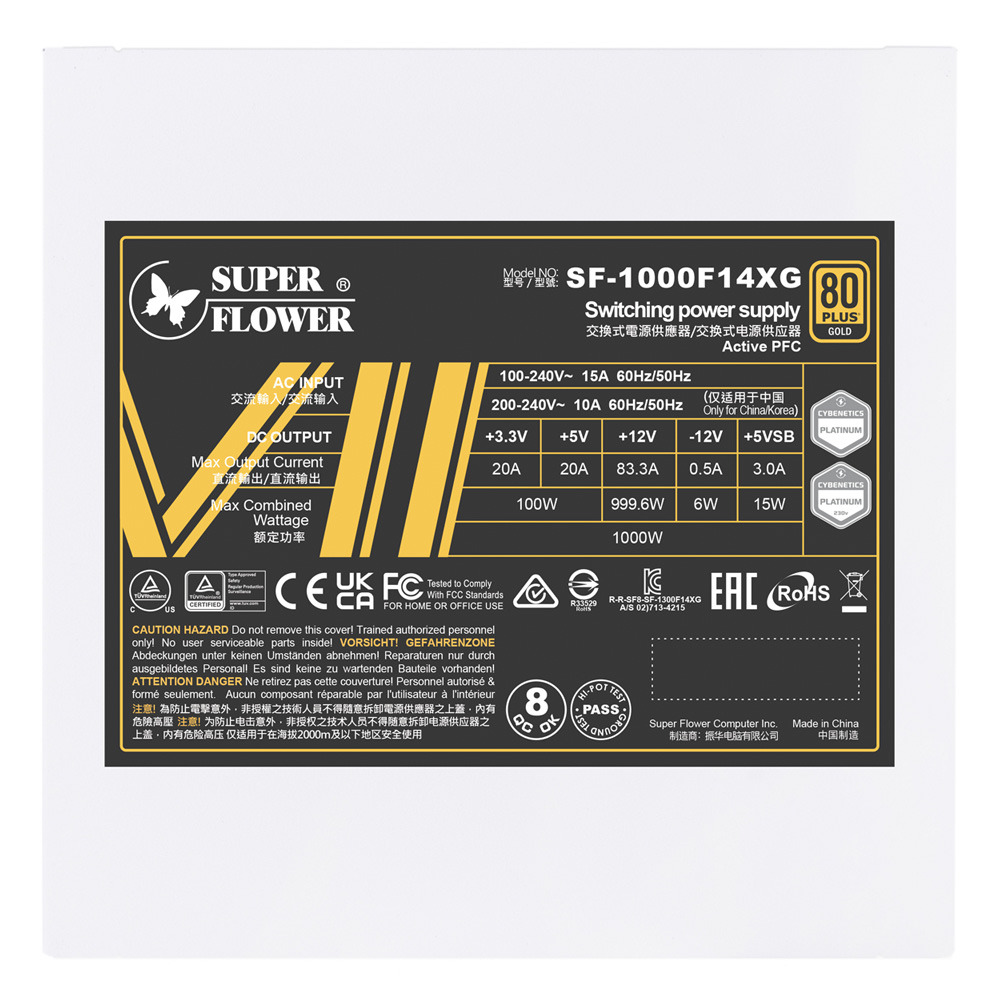

| Model No. | SF‑1000F14XG (White Edition) |
| Total Power | 1000 W |
| Efficiency | 87% @ 20%, 90% @ 50%, 87% @ 100% load (80 PLUS Gold) |
| Cybenetics Certification | Platinum efficiency at 115 V & 230 V inputs |
| Compatibility | Intel ATX 3.1, EPS v2.92 spec; PCIe 5.0 ready; up to 200% power excursion handling |
| Input Characteristics | 100–240 V AC, 50/60 Hz; Active Power Factor Correction |

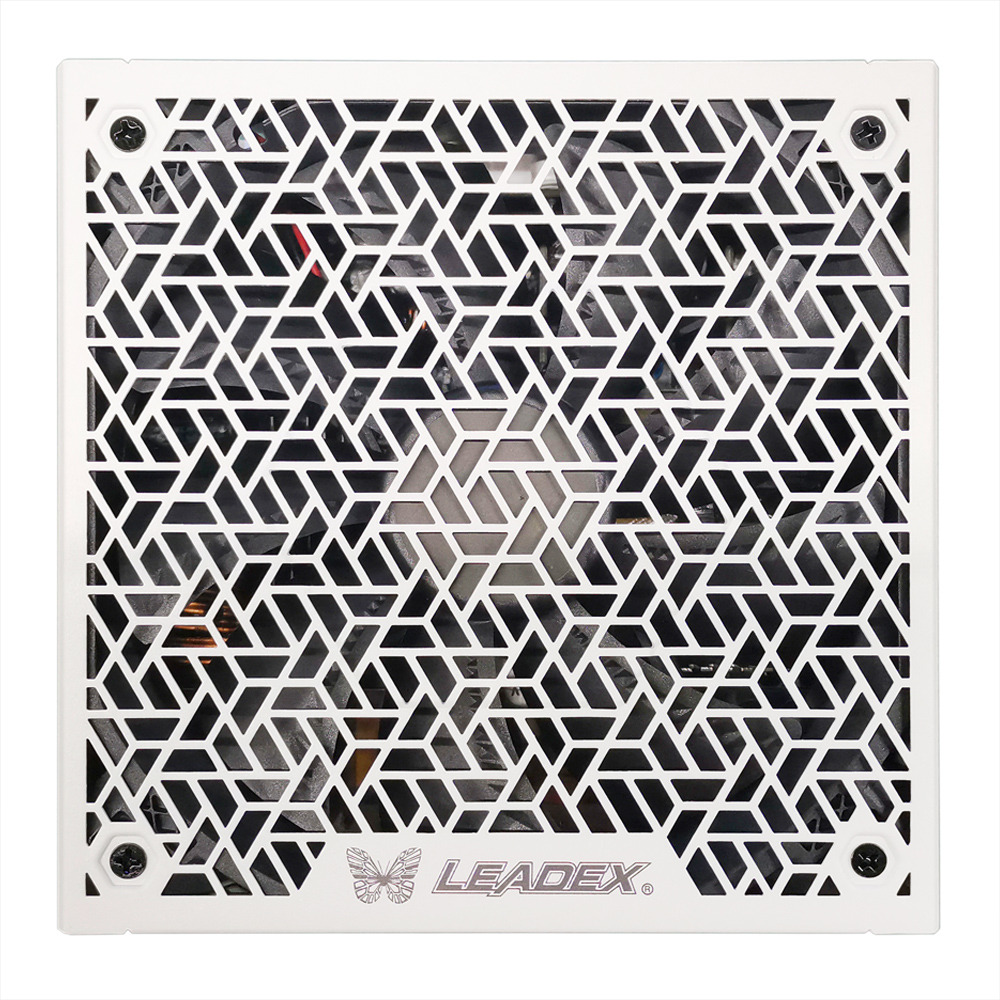

| Cooling | 140 mm FDB, 9‑blade fan; semi‑passive/ECO mode |

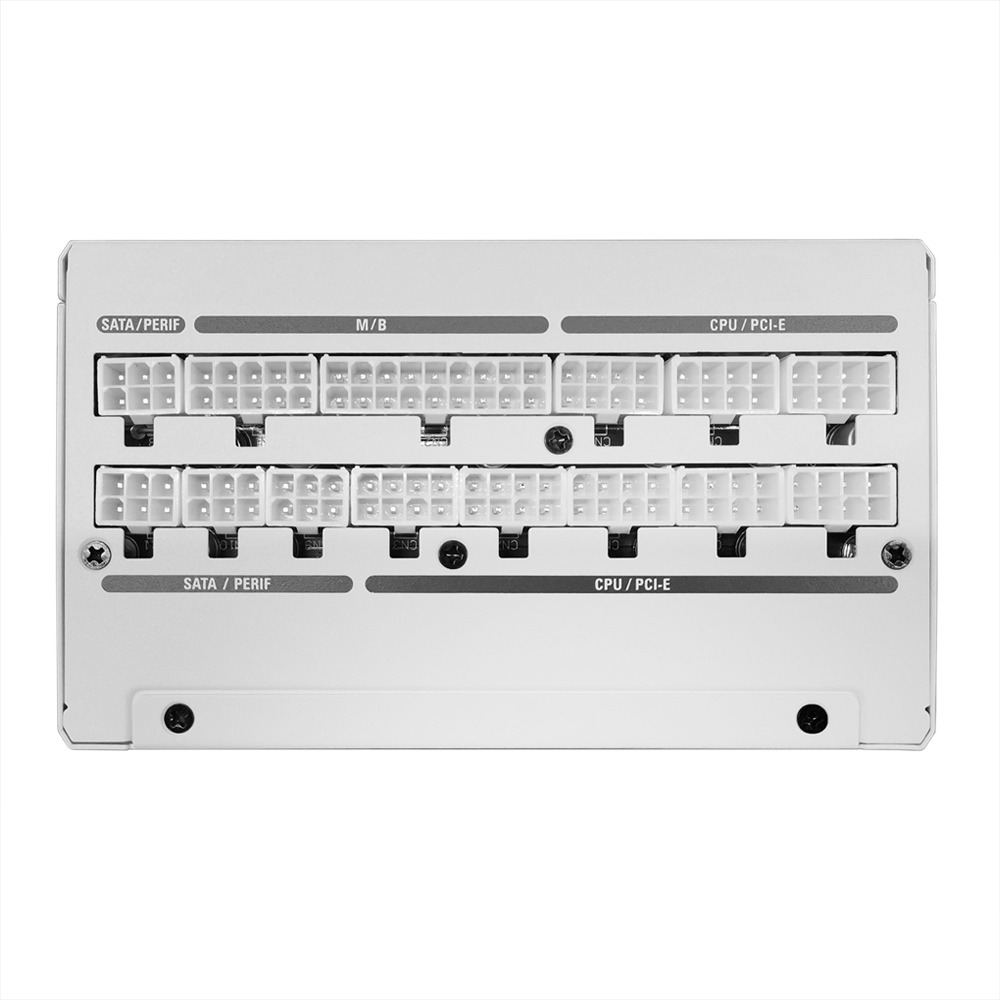

| Modularity & Cabling | Full modular with ultra-flex ribbon cables; includes 20 4, CPU 8(4 4) pins, PCIe 6 2 (×3) and 12 4 pin cables, SATA and Molex |
| Capacitors | All Japanese 105 °C capacitors on mainboard and modular panel |
| Protections | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
| Rail Stability / Ripple | Low ripple output and enhanced transient response on 12V/ 5V/ 3.3V rails |
| Dimensions & Weight | 150 × 150 × 86 mm; approx. 1.53 kg |
| Operating Temp | Tested stable at up to 50 °C |
| Safety Certifications | cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC |
| Warranty | 10 years |
