About Super Flower Leadex Titanium 1600W SMPS
| Specification Category | Details |
|---|---|
| Model Name | Super Flower Leadex Titanium 1600W (SF‑1600F14HT) |
| Maximum Output Power | 1600 W continuous delivery |
| Efficiency Curve | Titanium-rating: ~90% at 10%, ~92% at 20%, ~94% at 50%, ~90% at full load |
| ATX/EPS Compliance | Intel ATX v3.1 and EPS 2.92 compliant; supports ATX12V v2.2, SSI EPS v2.92 |

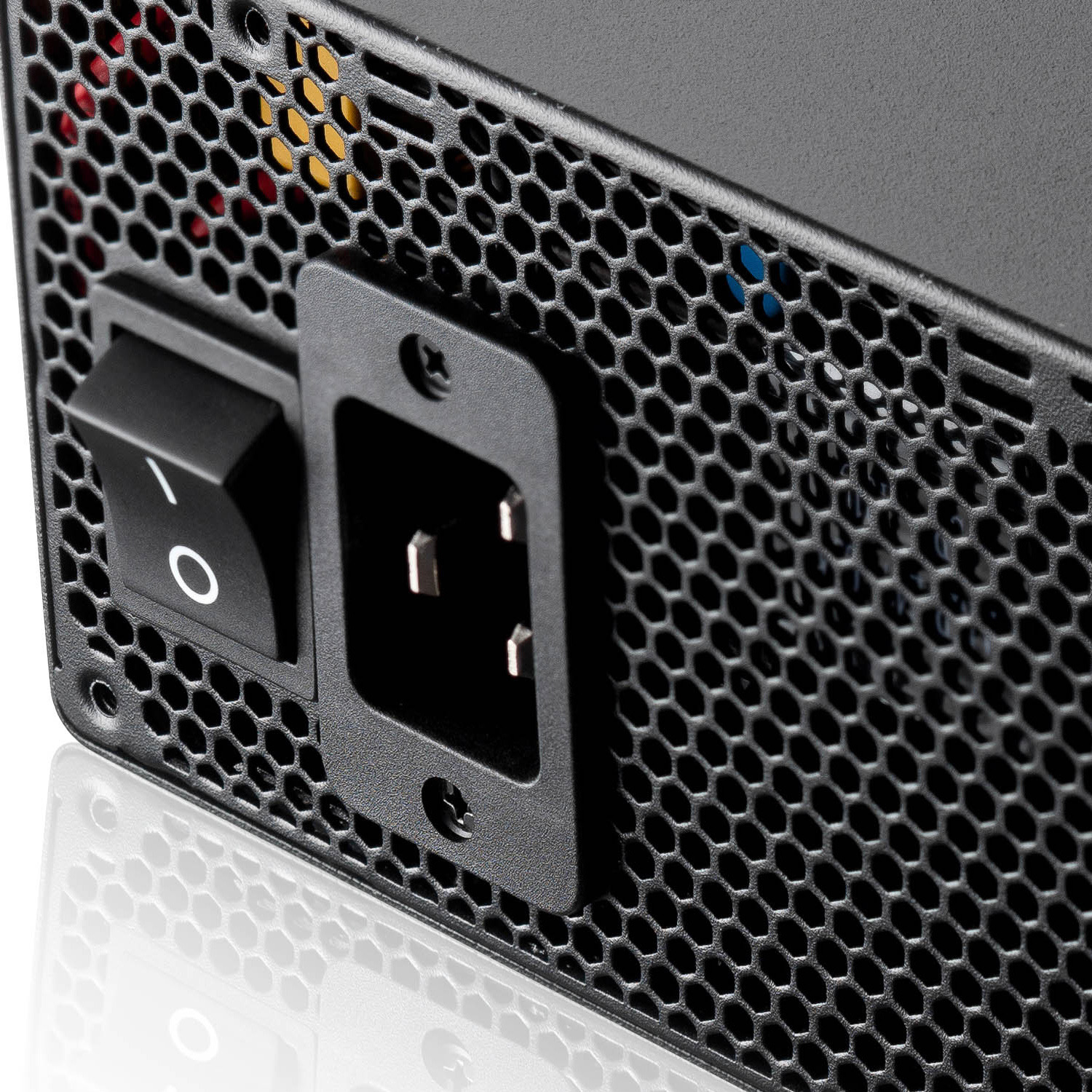

| AC Input Range | 100‑240 VAC, 50/60 Hz with Active PFC |

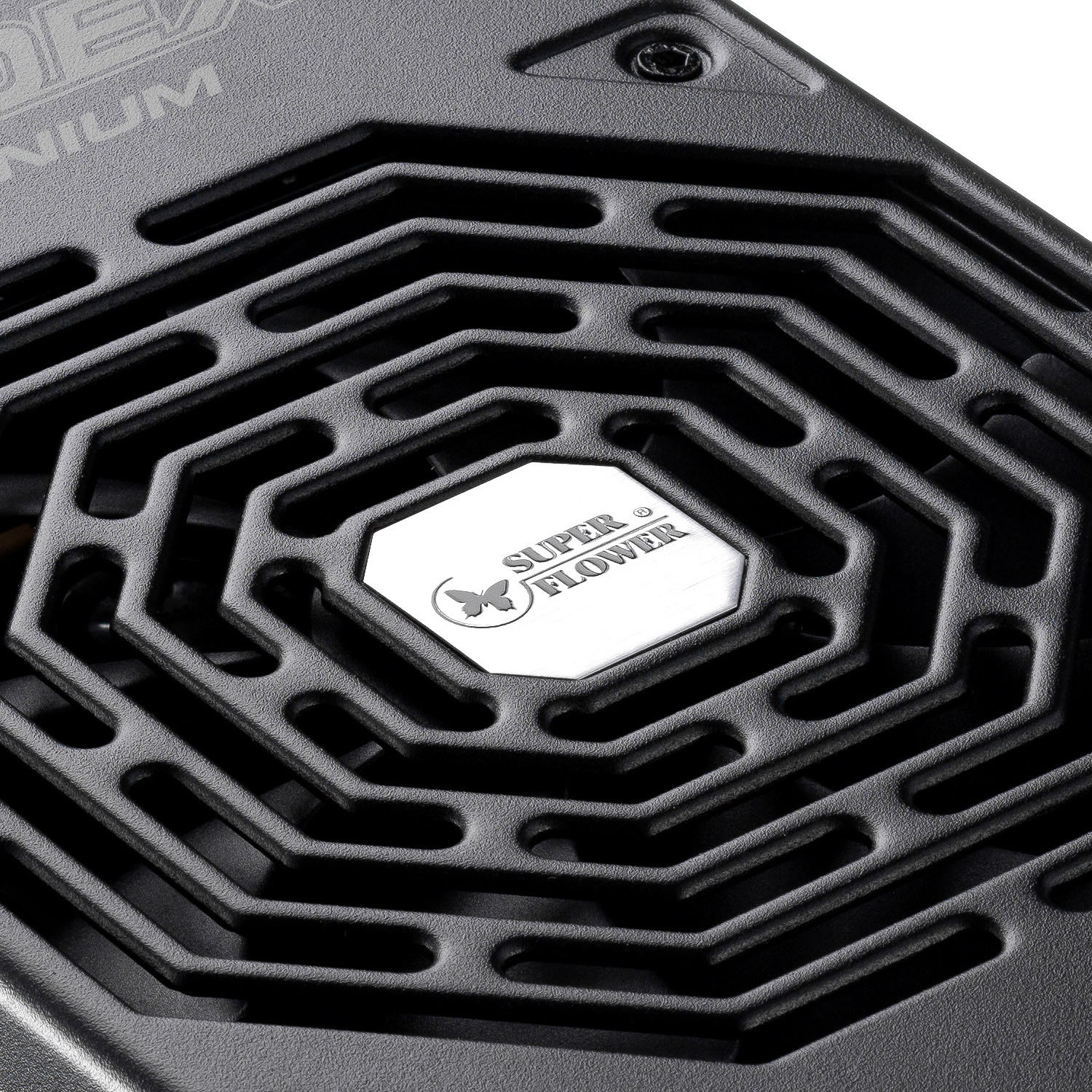

| Cooling System | 140 mm Fluid Dynamic Bearing fan; semi-passive ECO thermal control |
| Semi-Fanless Mode | Yes; fan remains idle at low-to-moderate loads |
| Dimensions | 220 mm (L) × 150 mm (W) × 86 mm (H) |
| Protection Features | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
| Main Capacitors | 100% Japanese 105 °C-grade electrolytic caps |
| 12 V Rail | Single-rail 12 V, delivering up to 133.3 A (~1,599.6 W) |

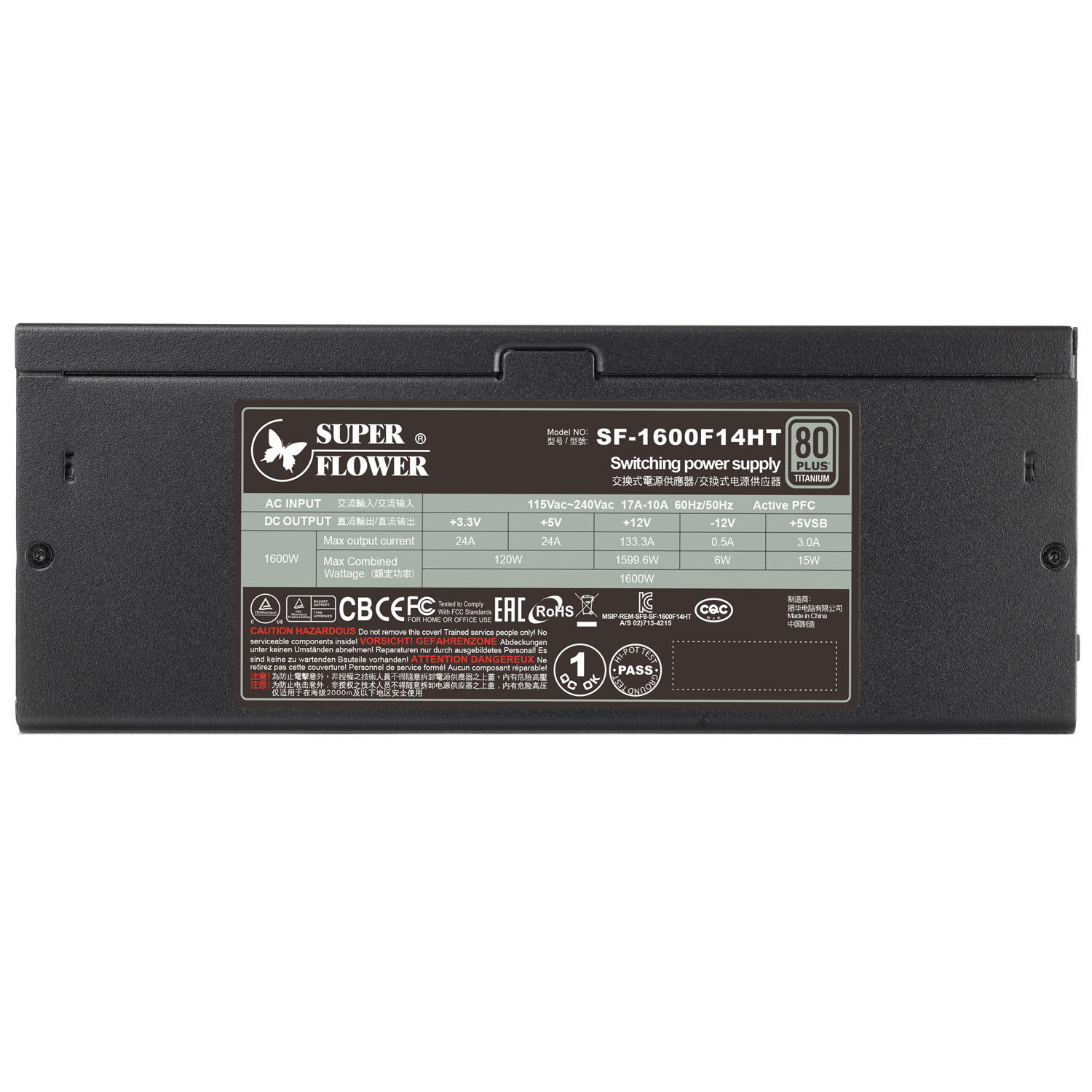

| Other DC Outputs | 3.3 V @ 24 A; 5 V @ 24 A (combined 120 W); –12 V @ 0.5 A; 5VSB @ 3 A |

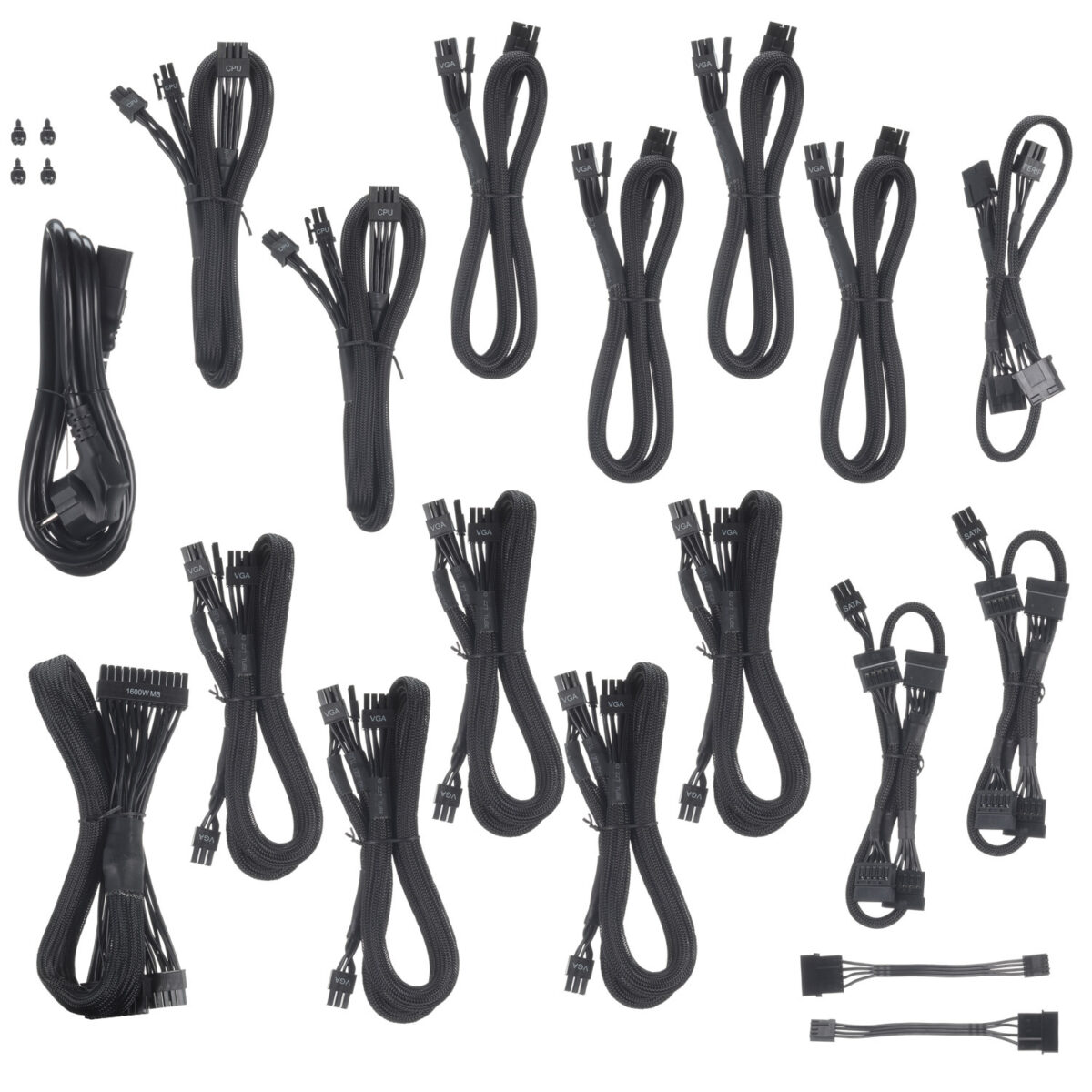

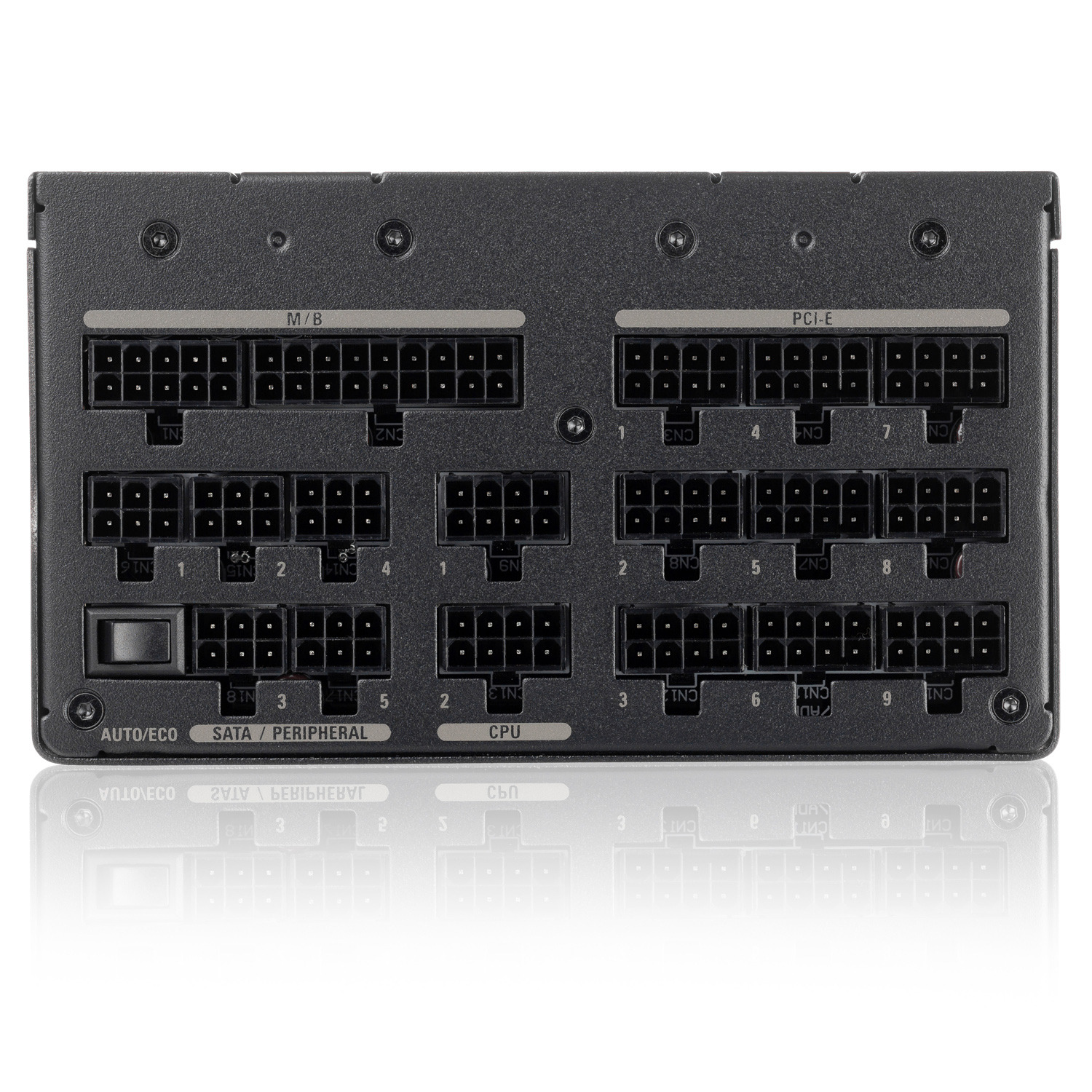

| Cables & Connectors | Fully modular: 1× 24‑pin ATX, 2× EPS, multiple 6 2 PCIe, plus SATA, Molex, FDD support same cable instrumentation as OEM platform |
| Spike Handling | Supports power surge peaks up to ~3200 W without shutdown |
| Noise Profile | Cybenetics Standard noise rating; ~35–40 dBA under load |
| Operating Temp | Tested and rated for continuous operation up to 50 °C |
| Certifications | Compliant with CE, FCC, TÜV, cTÜVus, CB, RCM, RoHS, KCC, CQC standards |
| Warranty | Ten-year manufacturer warranty specified |
