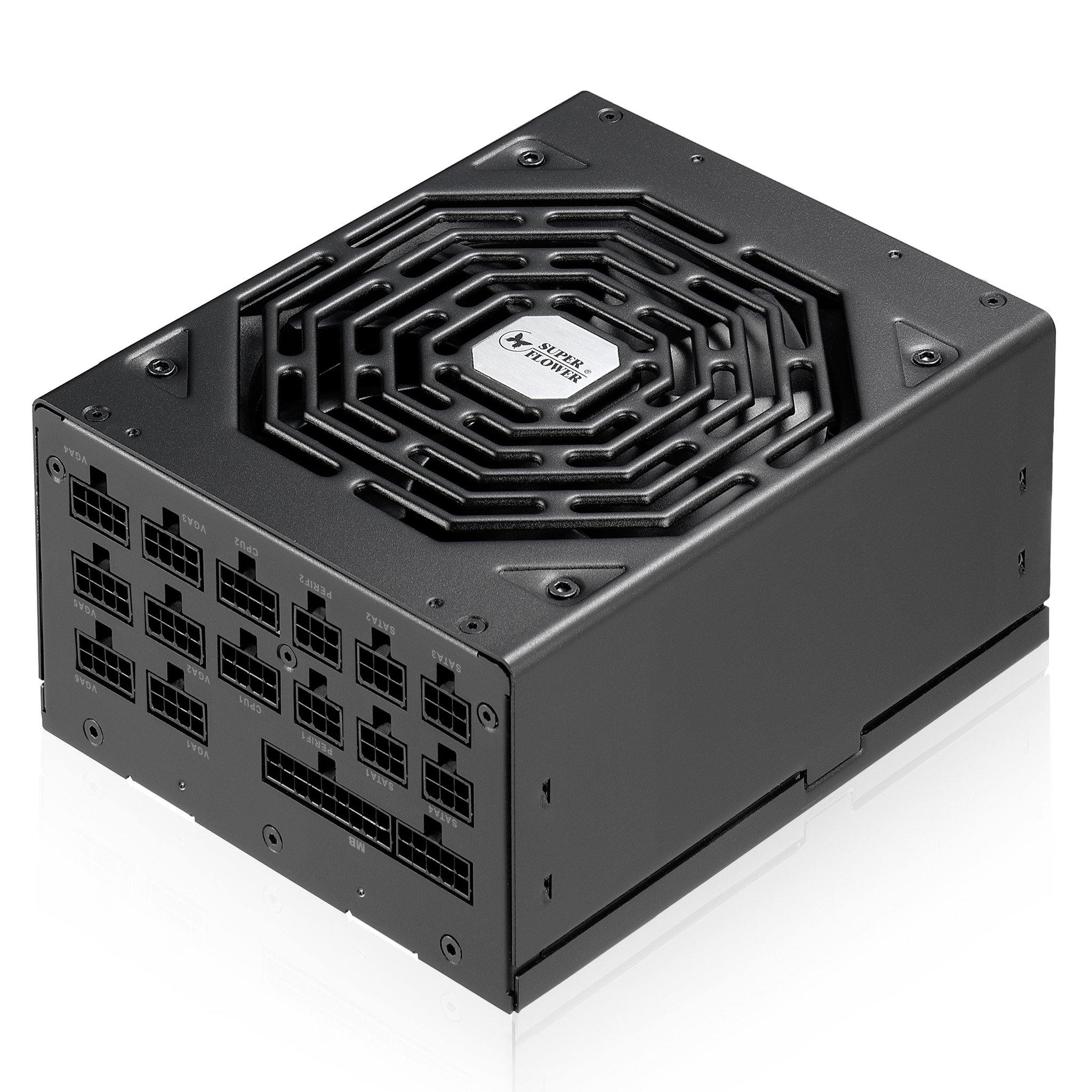

About Super Flower Leadex Platinum SE 1200W SMPS
Specification Category | Details |
---|---|
Model Name | Super Flower Leadex Platinum SE 1200W |
Maximum Output Power | 1200 Watts (Continuous Output) |
Efficiency Certification | 80 PLUS Platinum Certified |
ATX Version | Intel ATX 2.4 |

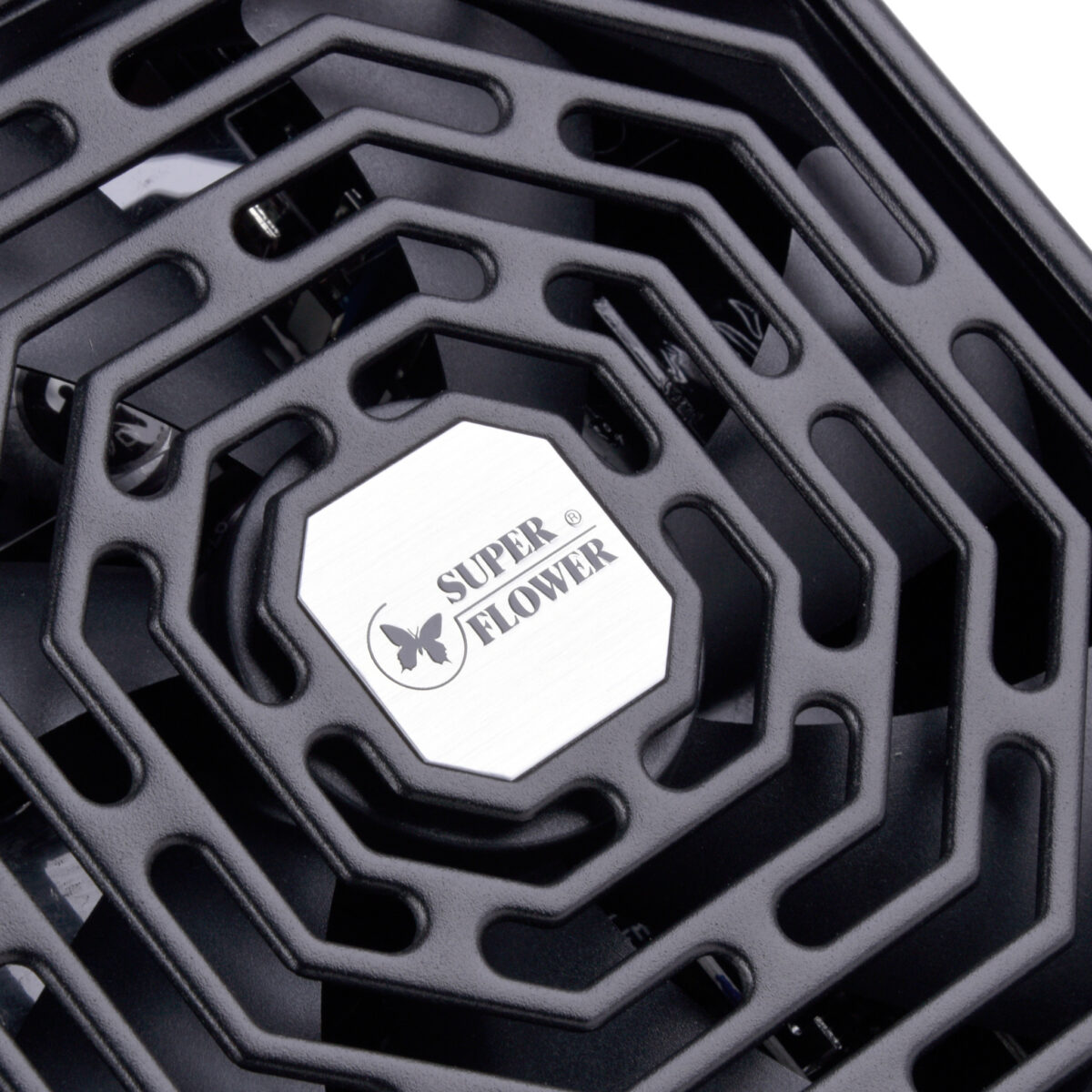

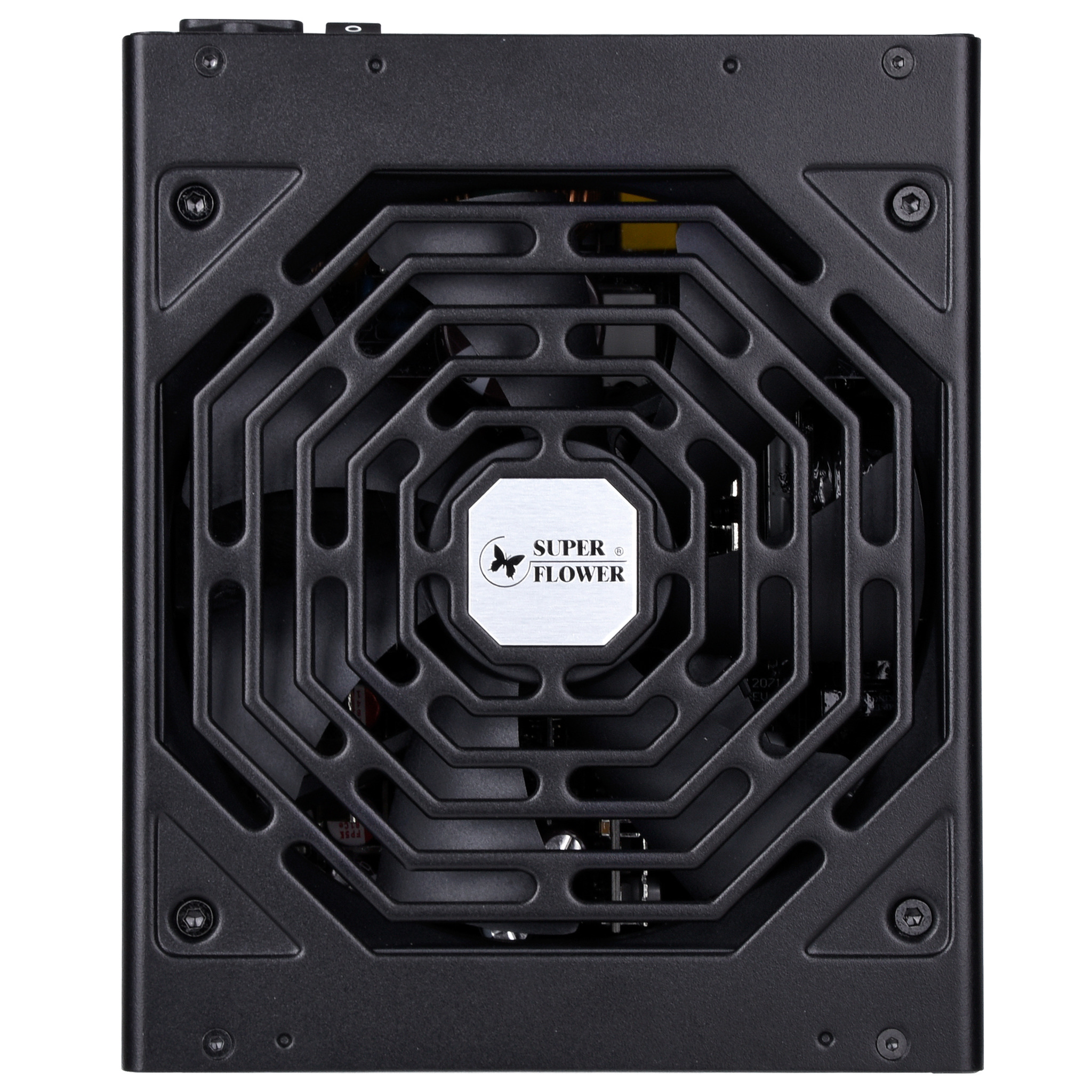

Cooling System | 140 mm Fluid Dynamic Bearing (FDB) fan with ECO Intelligent Fan Control |
Fan Feature | Semi-fanless operation under low load |
Modularity | Fully Modular Design |
Main Capacitors | High-quality 105°C Japanese electrolytic capacitors |

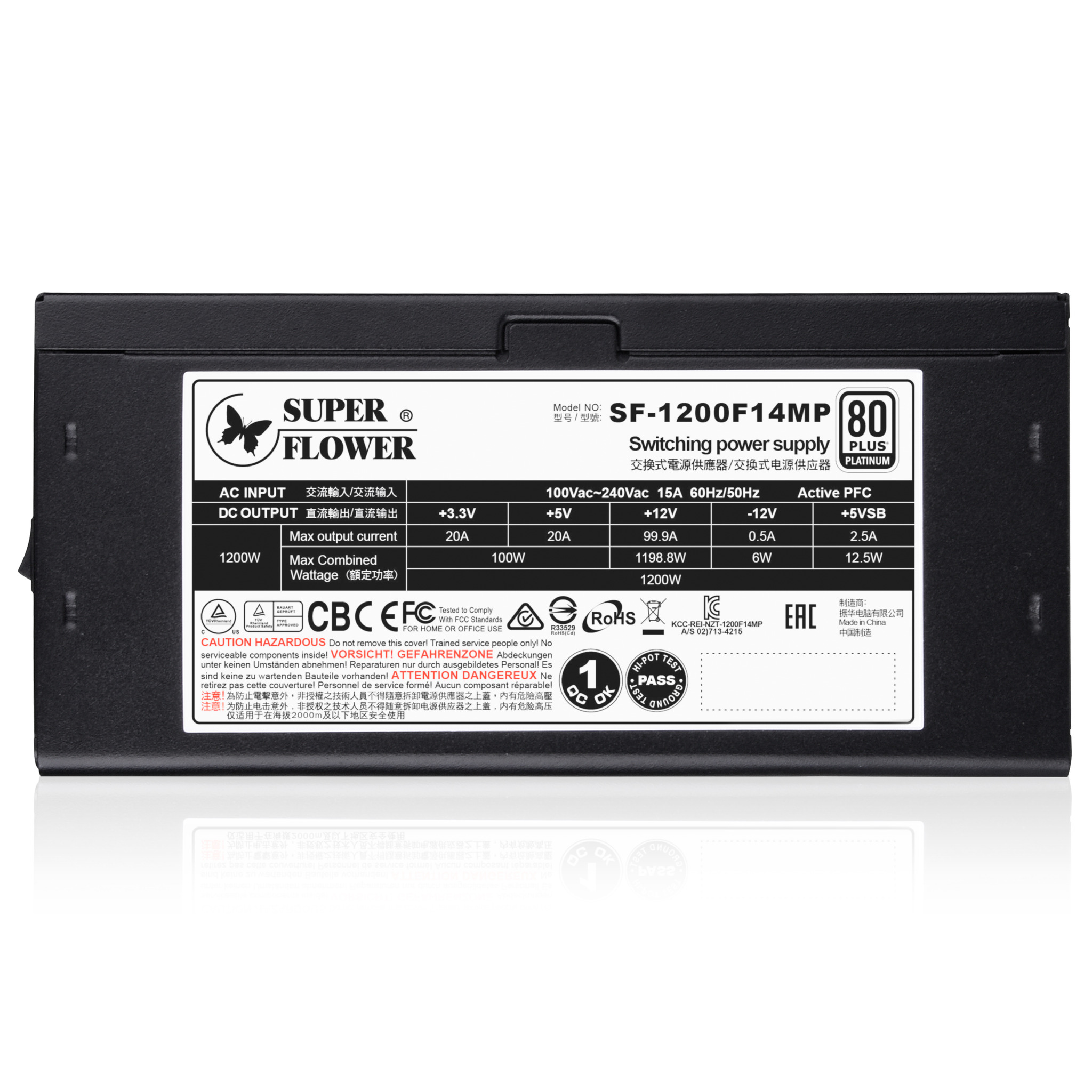

12V Rail Output | Single Rail +12V @ 99.9 A (1198.8 W) |
Other Outputs | +3.3V @ 20A, +5V @ 20A, -12V @ 0.5A, +5VSB @ 2.5A |

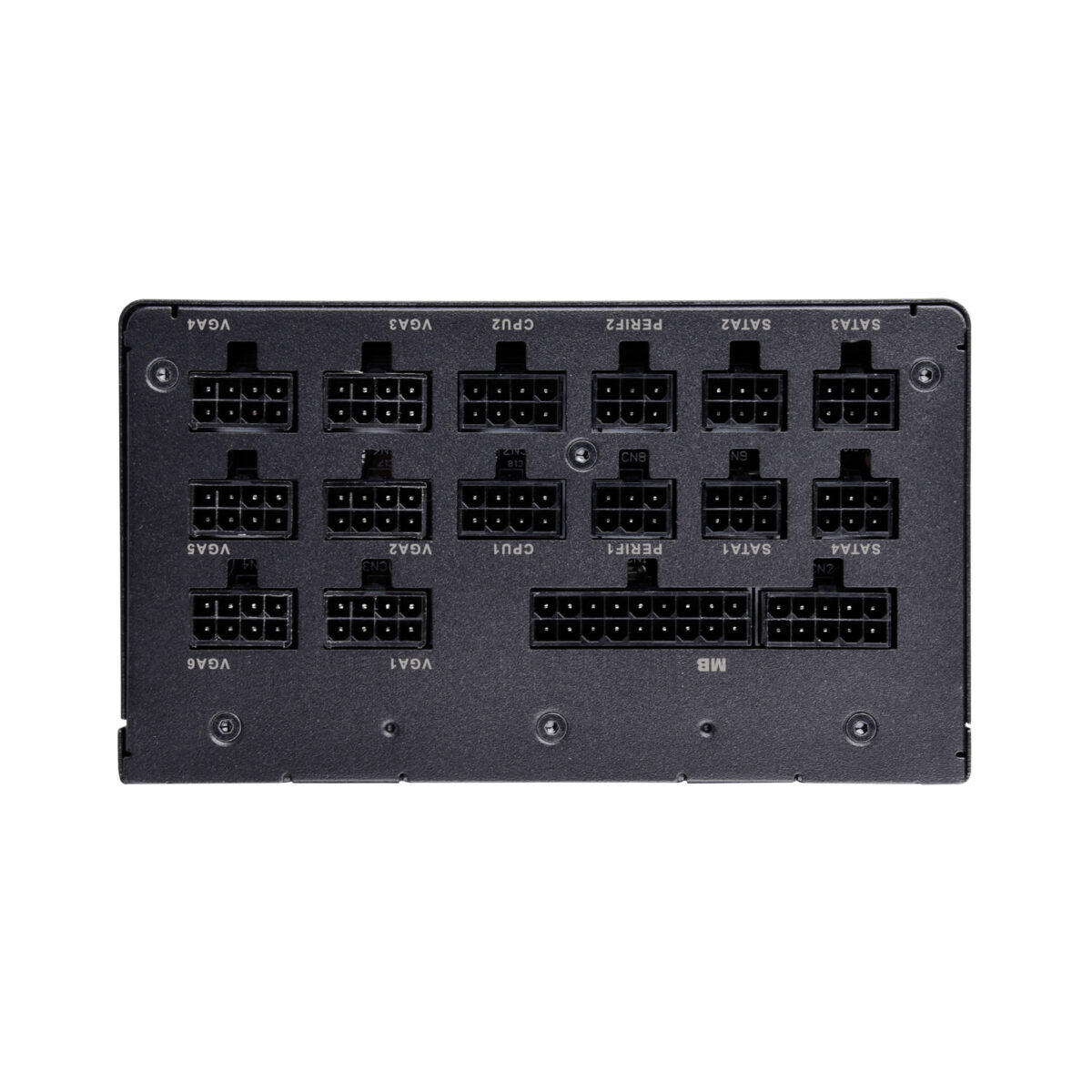

Connector Support | 1× 24-pin ATX, 2× 4+4-pin EPS, 8× 6+2-pin PCIe, SATA, Molex |

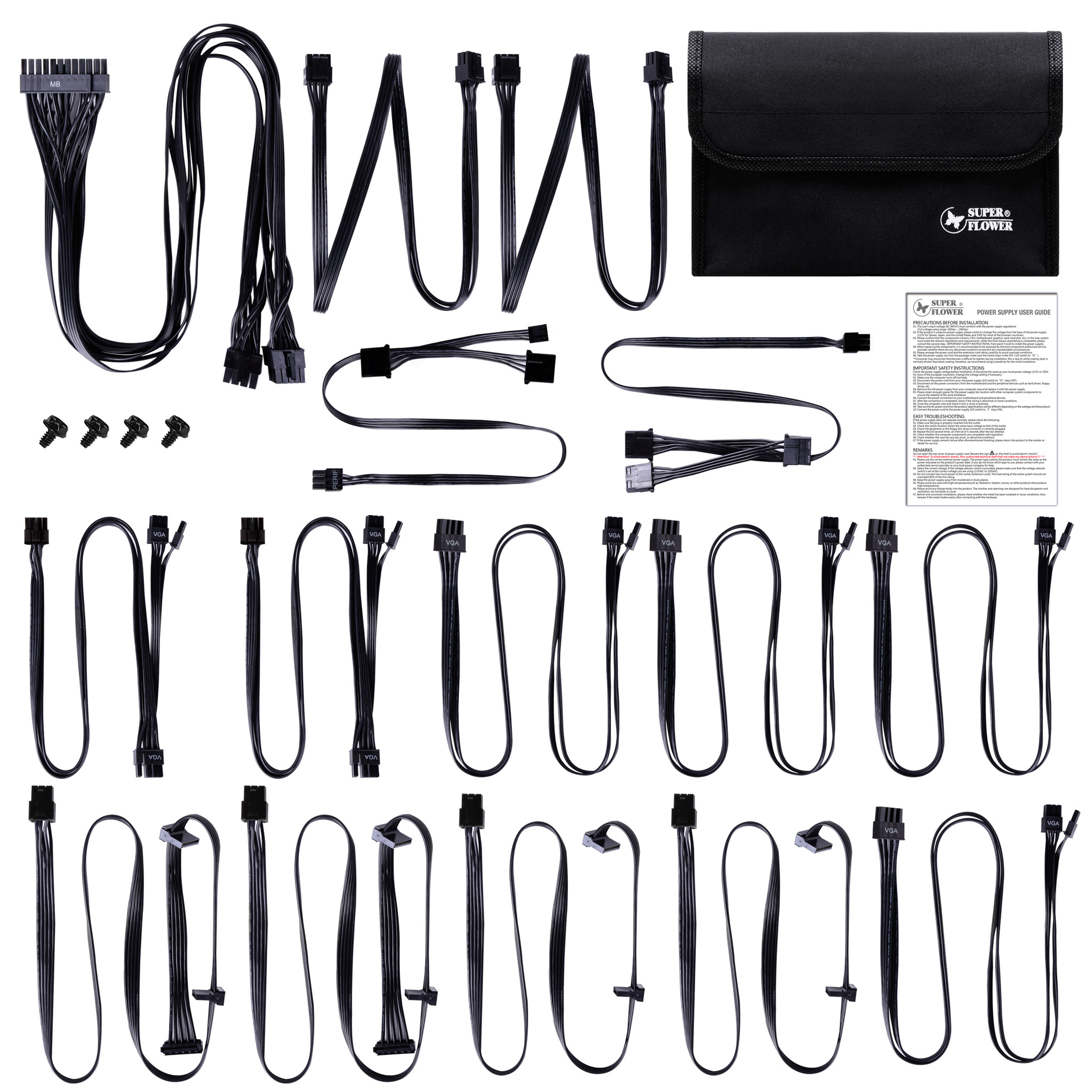

Cable Type | Flat ribbon-style modular cables |
Protection Mechanisms | OVP, UVP, OCP, OPP, SCP, OTP |
Dimensions | 150 mm (W) × 180 mm (L) × 86 mm (H) |
Noise & Fan Control | ECO mode for silent operation under low loads |
Certifications | Includes safety and environmental certifications (e.g., RoHS, CE, FCC) |
Build Quality | Robust internal design with optimized airflow and thermal layout |
Target Usage | Ideal for high-performance gaming rigs, workstations, and GPU mining |
