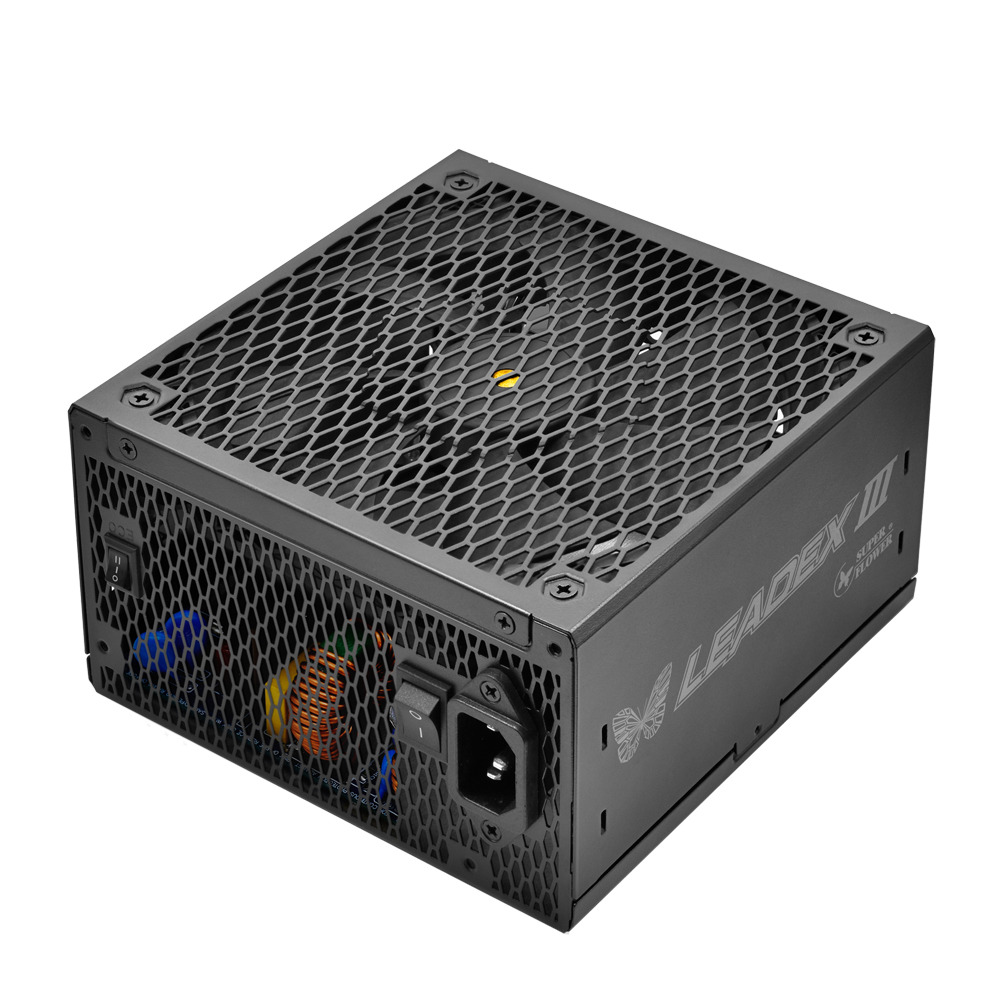

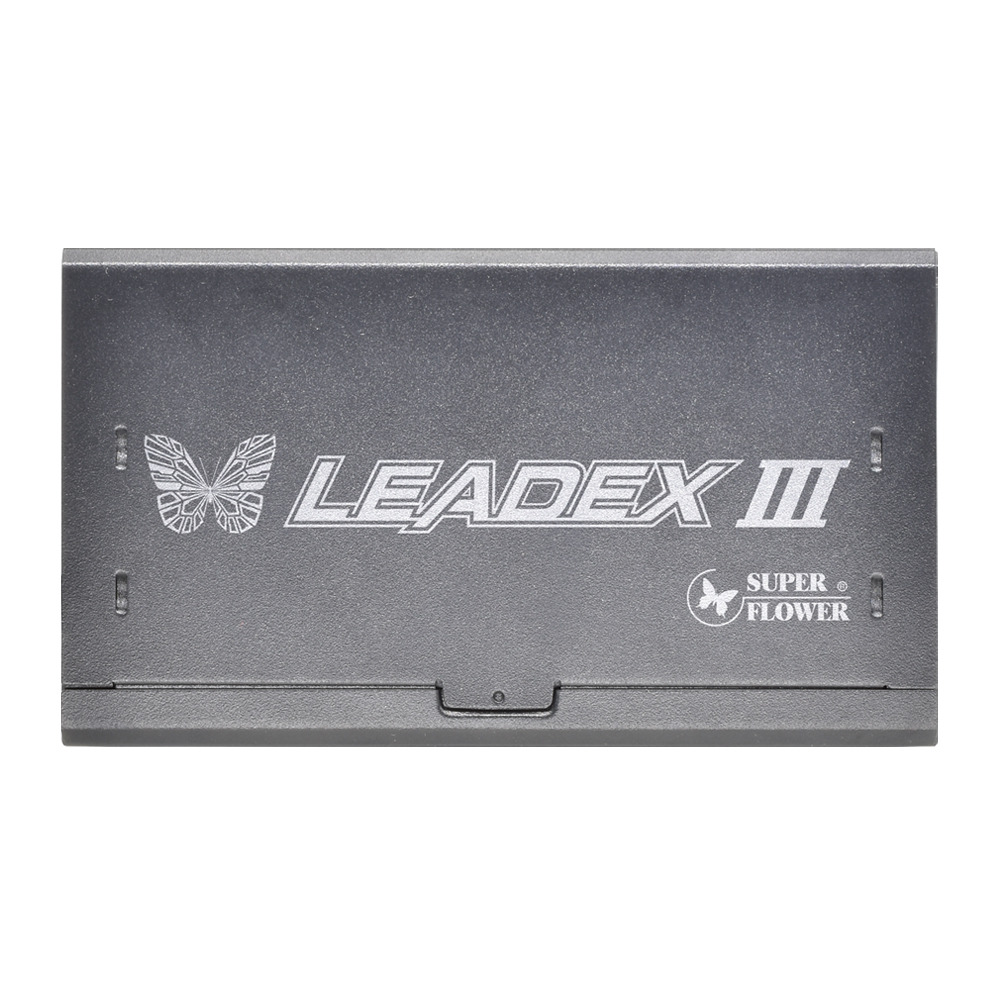

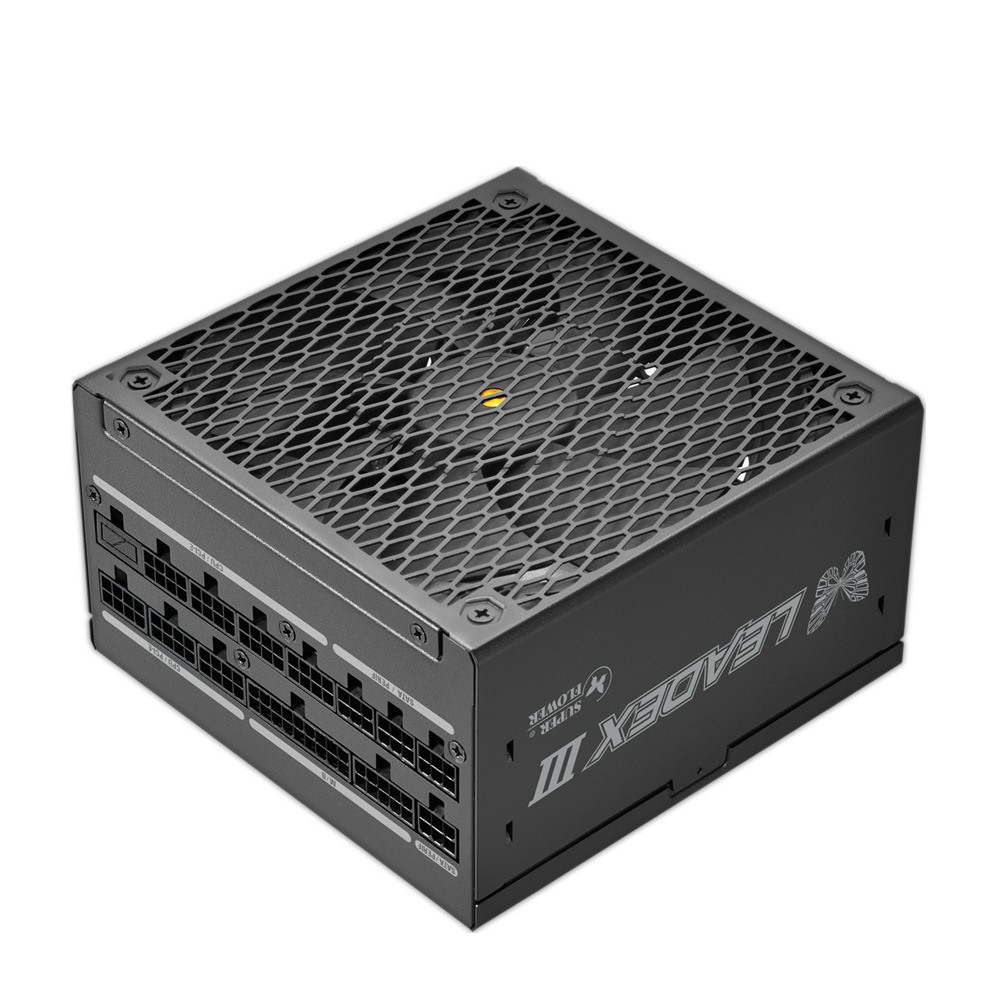

Super Flower Leadex III GOLD-850W ATX3.1, PCIe5.1
Super Flower Leadex III GOLD-850W ATX3.1, PCIe5.1
Original price was: ₹21,000.00.₹8,499.00Current price is: ₹8,499.00.
Avail the all-new Super Flower Leadex III GOLD-850W SMPS from Avika Retails at the best price. Best in-class features includes:
| Attribute | Specification |
|---|---|
| Model | Leadex III GOLD 850W (SF‑850F14GE) |
| Wattage | 850 W |
| Efficiency | 80 PLUS Gold: approx. 87 % @ 20 %; 90 % @ 50 %; 87 % @ 100 % load |
| Cooling & Fan | 140 mm Fluid Dynamic Bearing (FDB) fan; ECO/semi‑fanless mode |
| Compatibility | Supports ATX 12V v3.1, EPS 12V v2.92, PCIe 5.1 GPUs |
About the item:
-
Exceptional Gold Efficiency – Maintains ~90 % efficiency at mid-load—reducing power draw and heat, ideal for sustained performance.
-
ATX 3.1 & PCIe 5.1 Ready – Certified to Intel ATX 12V v3.1 and EPS v2.92, and includes PCIe 5.1 support with 12V‑2×6 connector directly on PSU—great for next-gen GPUs.
-
Robust Cooling Mechanism – Large 140 mm FDB fan with copper shaft ensures quiet and efficient cooling; ECO/semi-passive mode minimizes noise during low loads.
-
High-Quality Construction – Uses 105 °C-rated Japanese (Nippon Chemi‑con) capacitors plus Taiwan A‑grade caps for longevity and stable output.
-
Fully Modular with Ribbon Cables – Compact flat cables enhance airflow and internal neatness; modular design supports flexible configurations including SLI/CrossFire setups.
About Super Flower Leadex III GOLD-850W SMPS
| Specification | Details |
|---|---|

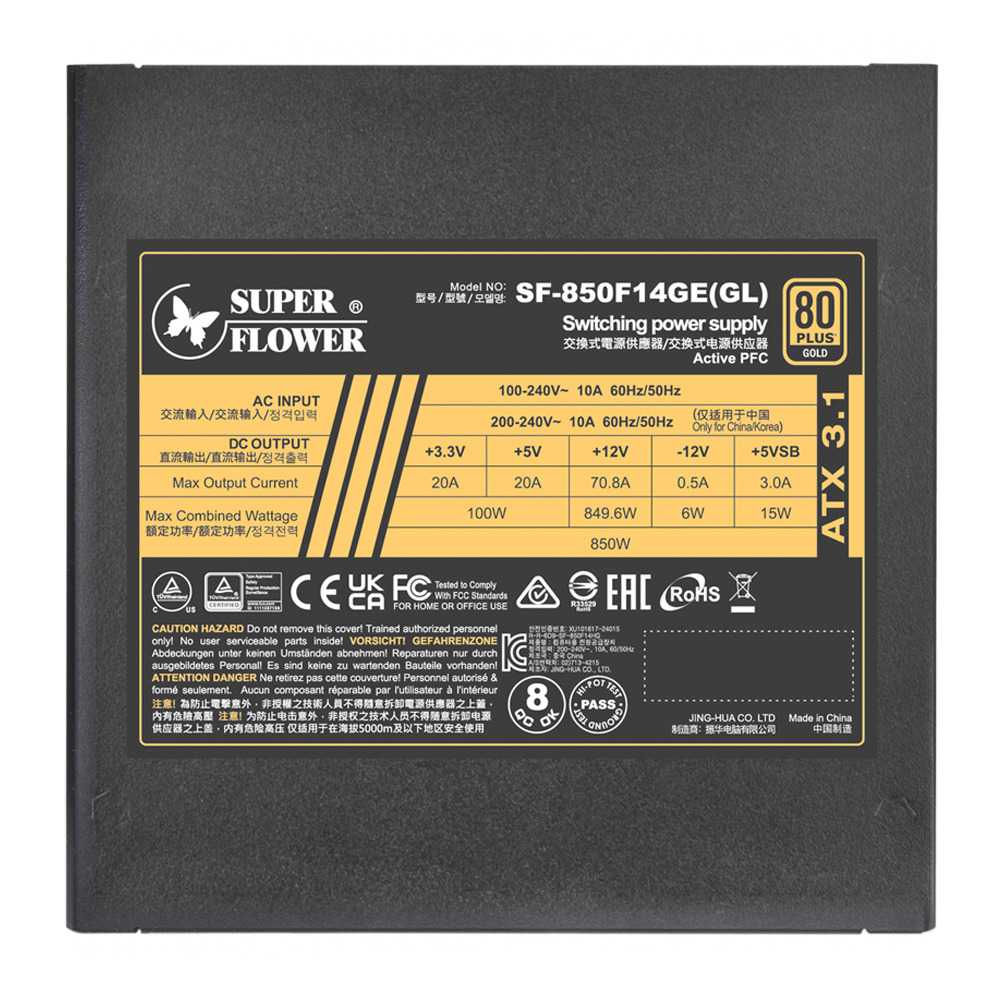

| Model Number | SF‑850F14GE (Leadex III GOLD 850 W ATX 3.1) |
| Total Output | 850 W |
| Efficiency Ratings | 87 % @ 20 % / 90 % @ 50 % / 87 % @ 100 % load (tested @115 V) |
| Compliance / Standards | Fully compliant with Intel ATX 12V v3.1 and EPS 12V v2.92; PCIe 5.1-ready (12V‑2×6 connector) supporting 200 % power excursions |
| AC Input / Frequency | 100 V–240 V ~, 50–60 Hz; Active PFC (auto voltage detection) |
| Fan & Cooling Mode | 140 mm FDB fan with copper‑shaft bearing for stability; ECO/semi‑fanless thermal control |
| Dimensions (L×W×H) | ~160 × 150 × 86 mm; approximate weight ~1.55 kg (3.4 lb) |
| Protection Features | Comprehensive: OVP, OCP, OPP (dual), SCP, UVP, OTP, NLO, SIP, surge & inrush protection |
| Capacitors | Japanese 105 °C capacitors (main board and modular backpanel); Taiwan A‑grade 105 °C capacitors |
| Cabling | Fully modular ribbon‑style cables for improved airflow and management; includes: • 20+4 pin ATX (600 mm) • 2× CPU (8‑pin/4+4, 700 mm) • PCI‑E (3× 6+2 pin + 12V‑2×6) • SATA / Molex / PCIe 16‑pin cables per spec |
| Safety Certs | cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC; passed 50 °C hot testing |
| Load Regulation & Ripple | Excellent regulation on +12 V (~0.5 %), +5 V (~0.3 %), +3.3 V (~1.2 %); ripple under 20 mV across rails; transient response within spec including 200 % loading on 12 V rail |
