About Super Flower Leadex III GOLD-1300W SMPS
Category | Specification / Detail |
---|---|
Model Number | SF‑1300F14GE (Leadex III GOLD UP ATX 3.1 1300 W) |
Max Power Output | 1300 W continuous |
Efficiency Curve | 80 PLUS Gold: ~87% at 20% load, ~90% at 50%, ~87% at 100% (115 V) |
Cybenetics Rating | Platinum certification on both 115 V & 230 V; handles ~2600 W power excursions |
ATX / PCIe Compliance | Intel ATX 3.1 / EPS 2.92, PCIe 5.1 ready (ATX 3.1 spec support) |

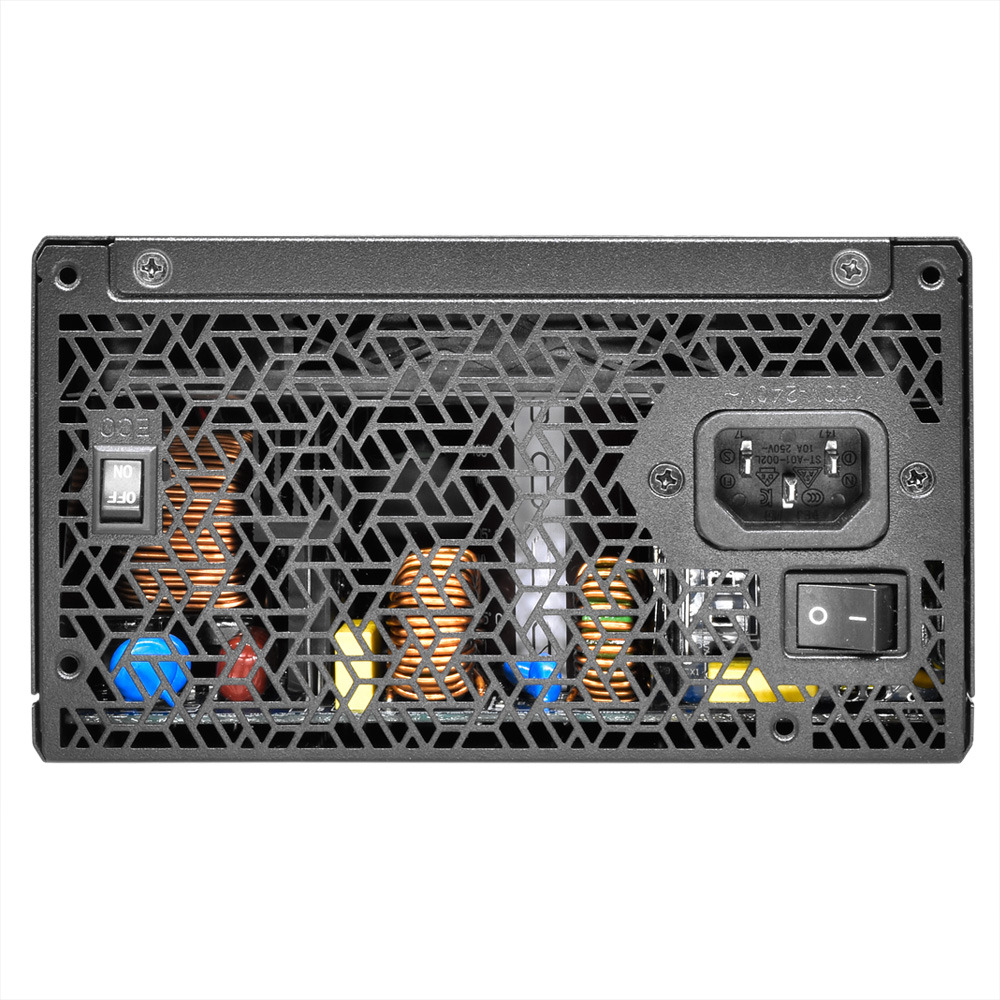

Input Voltage / PFC | 100–240 V AC, 50/60 Hz, Active PFC |

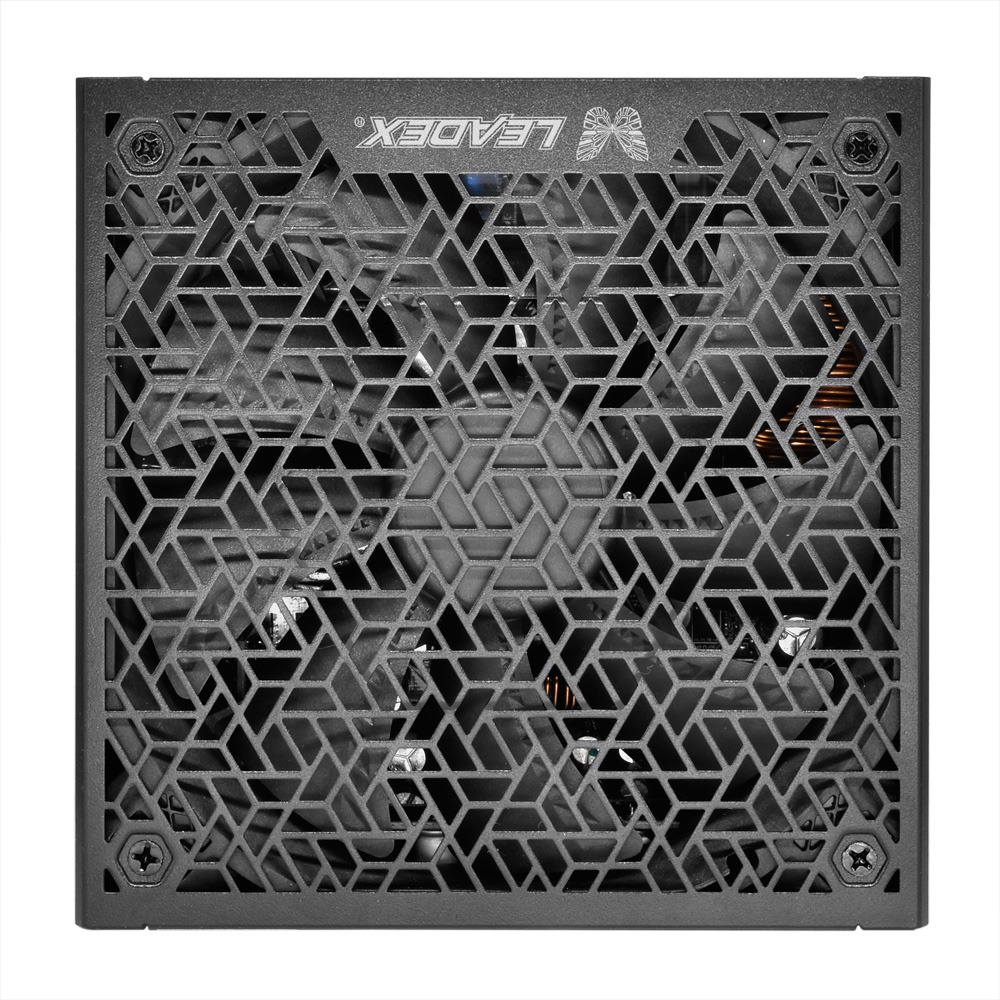

Cooling System | 140 mm Fluid Dynamic Bearing fan (copper shaft), semi‑passive ECO mode for near‑silent idle |

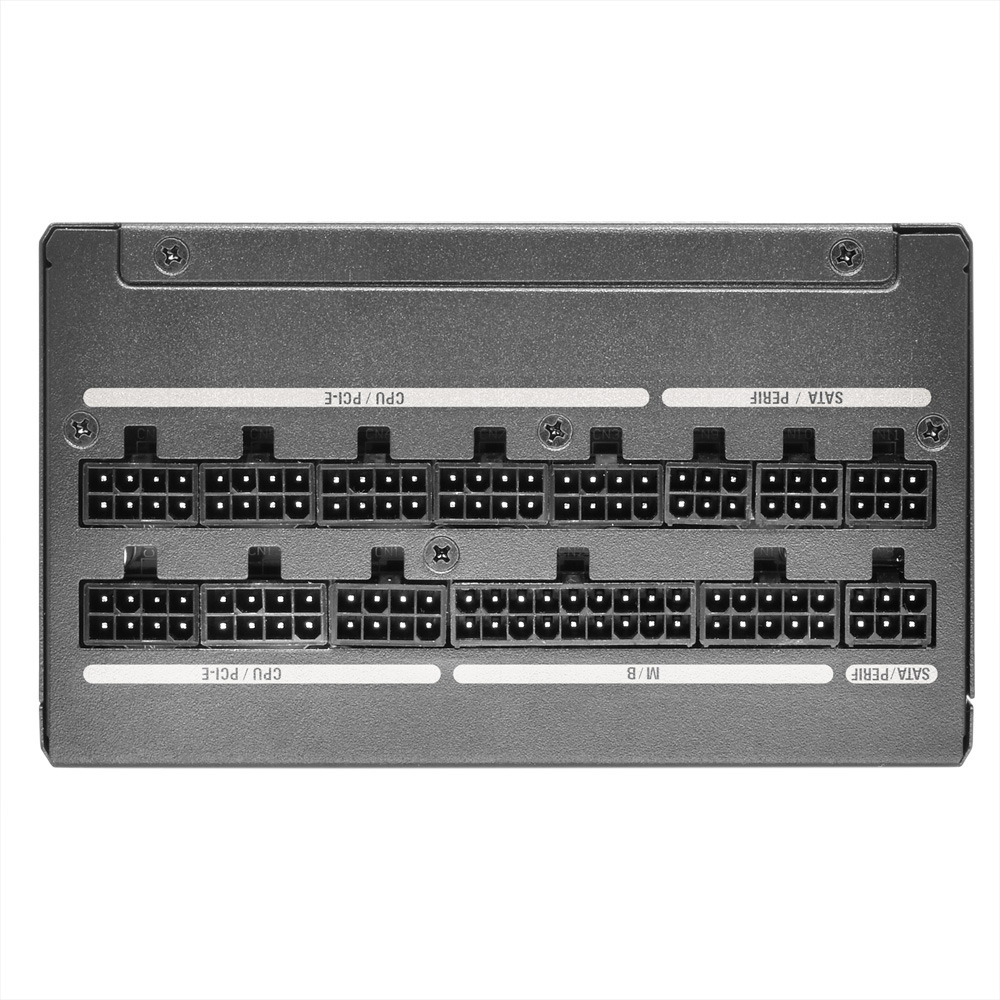

Cabling / Modular Design | Fully modular; cables include 20+4 pin MB, 8(4+4) pin CPU ×2, PCIe 6+2 (×4), SATA ×4, Molex, PCIe‑12 V‑2×6 ×1 |
Protection Features | Comprehensive suite: OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
Dimensions & Weight | 150 × 150 × 86 mm; approximately 1.5 kg |
Operating Temp Range | Certified stable up to 50 °C ambient |

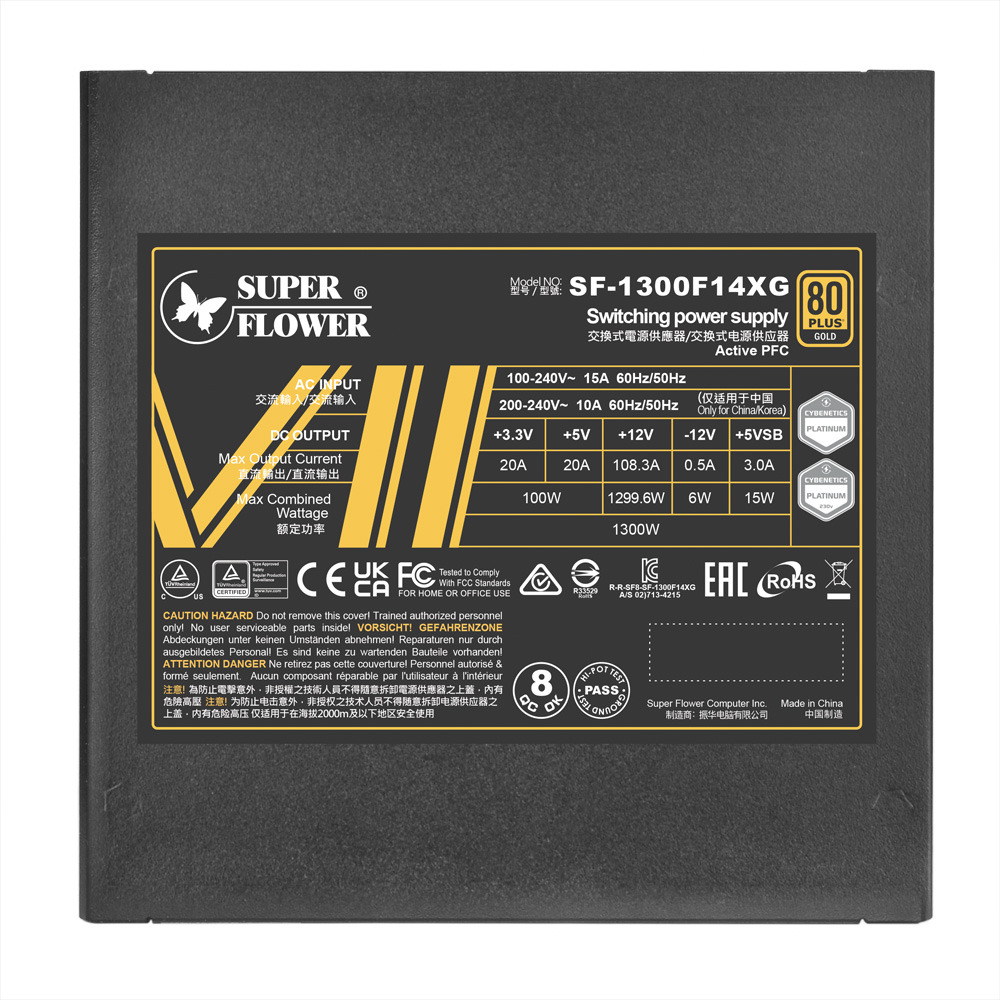

Safety / Regulatory | Certifications include cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC |
Warranty | 10‑year limited warranty |
