About Sapphire Pulse Radeon RX 9070 16 GB GDDR6
With the Navi 48 GPU, AMD’s RDNA 4 architecture serves as the foundation for the Sapphire Pulse Radeon RX 9070. With 16 GB of GDDR6 memory on a 256-bit bus and 3,584 stream processors (56 compute units), it has a bandwidth of about 644 GB/s. Ray tracing, AI acceleration, AV1 media encoding/decoding, AV/FSR4 upscaling, HYPR-RX, Radeon Anti-Lag-2, and PCIe 5.0 are among the next-generation features that the card supports.

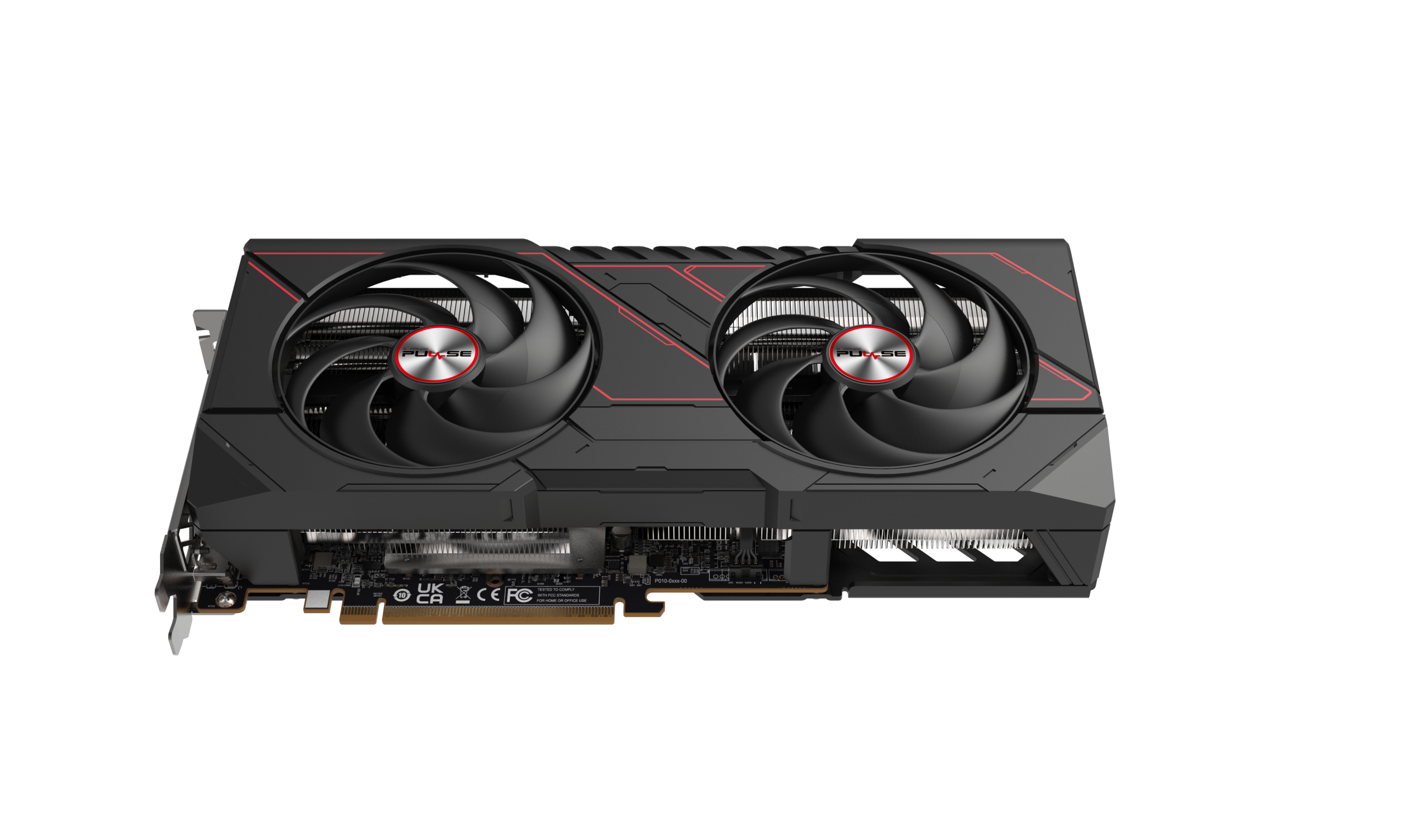

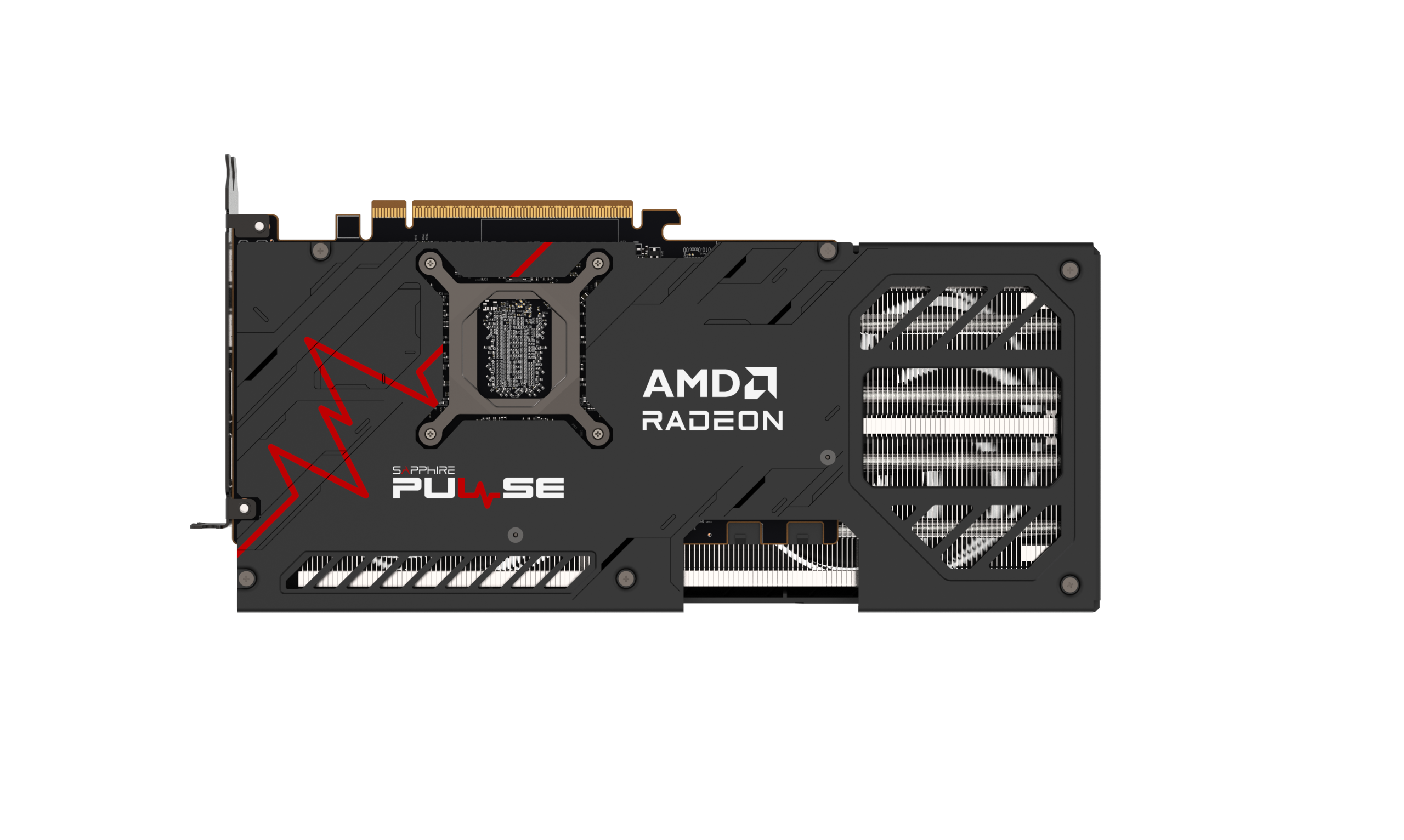

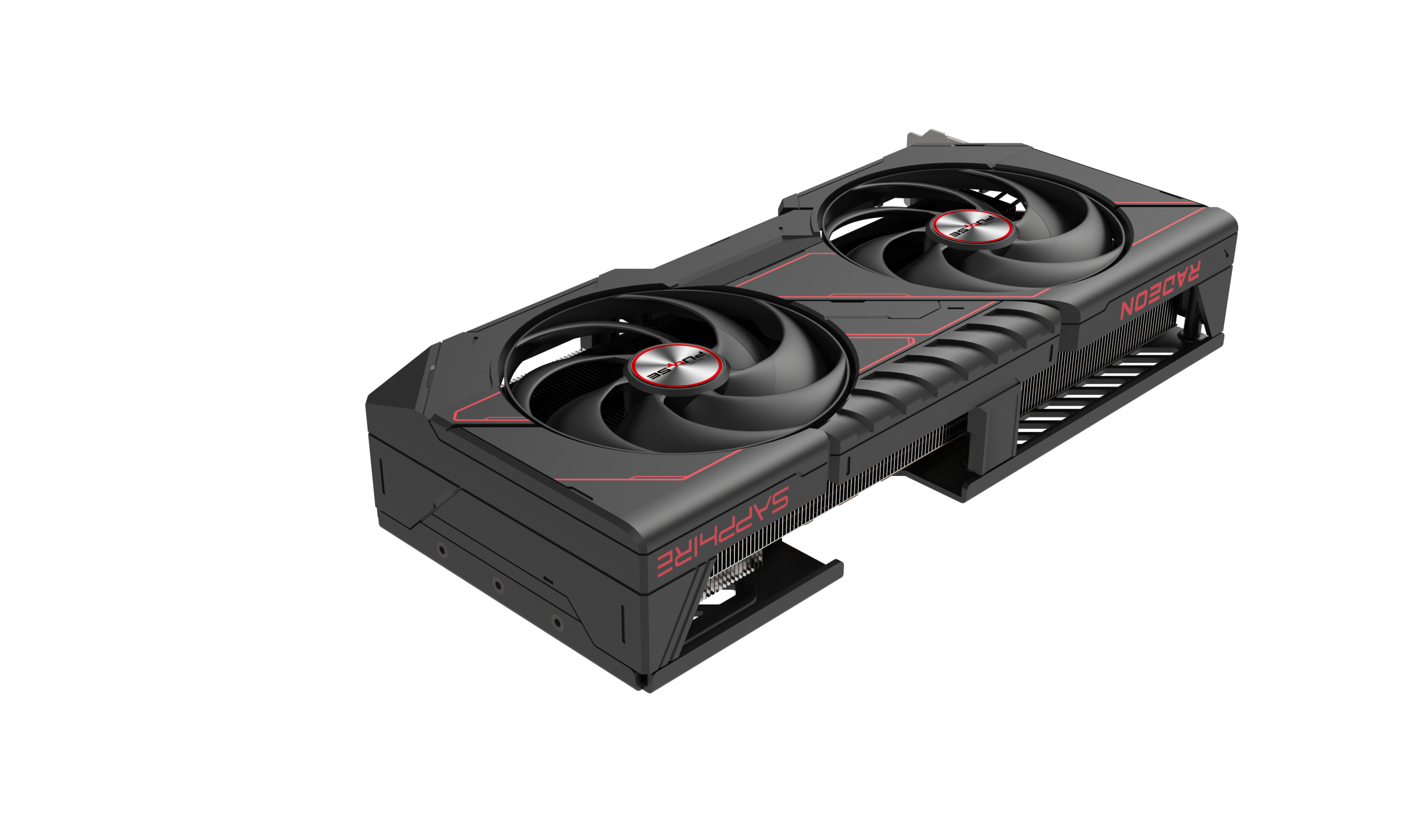

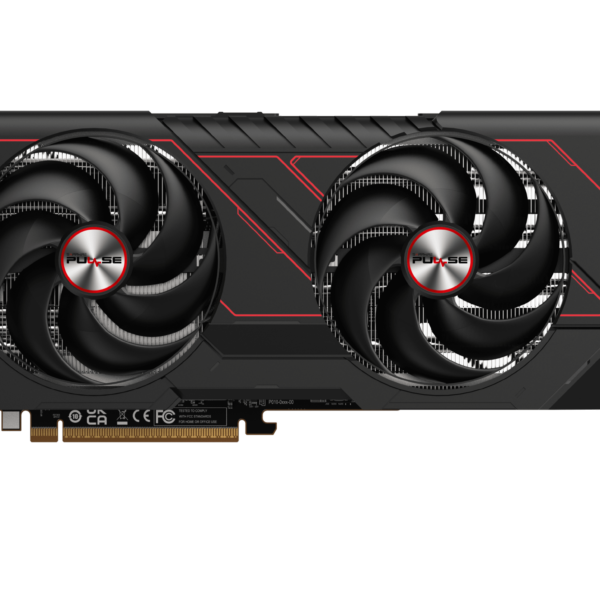

Sapphire’s Dual-X cooling system, which measures about 280 x 120 x 51.5 mm, has AeroCurve fans, optimized heatpipes, a full metal backplate, a smart 0 dB idle, and a compact dual-slot form. The average board power is about 220 W.
Features of Sapphire Pulse Radeon RX 9070 16 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA 4 (Navi 48), 3,584 stream processors, 56 CUs |
| Game Clock | ~2,070 MHz |
| Boost Clock | Up to 2,520 MHz |
| Memory | 16 GB GDDR6 @ 20.1 Gbps, 256‑bit (≈644 GB/s) |
| Infinity Cache | 64 MB |
| Bus Interface | PCIe 5.0 x16 |
| Display Outputs | 2× HDMI 2.1b 2× DisplayPort 2.1a |
| Cooling | Dual‑X dual‑fan, heatpipes, full metal backplate, 0 dB idle |
| Power Connectors | 2×8-pin PCIe |
| Board Power (TBP) | ~220 W |
| Dimensions | ~280 × 120 × 51.5 mm (2.5 slots) |
| Recommended PSU | 550 W |
Ideally Best For
- Gamers seeking high-refresh 1440p and occasional 4K performance.
- Compact builds that need a dual-slot, efficient GPU.
- Buyers looking for modern features—AV1, FSR 4, HYPR‑RX, ray tracing—without excessive power draw.
Buy Sapphire Pulse Radeon RX 9070 16 GB GDDR6 Dual‑Fan Dual‑Slot PCIe 5.0 Online Today.
