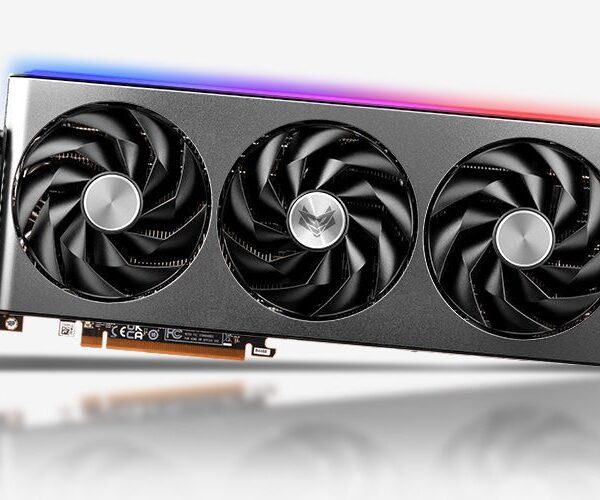

About Sapphire NITRO+ Radeon RX 7700 XT 12 GB GDDR6
The Sapphire NITRO+ RX7700XT has 54 compute units with ray and AI accelerators, 3,456 stream processors, and a 48 MB Infinity Cache, all of which are powered by AMD’s RDNA3 architecture and Navi32 GPU. It provides robust performance with improved stability in factory-tuned OC mode, achieving game clocks of about 2,276 MHz and boost clocks of up to 2,599 MHz.
12 GB of GDDR6 on a 192-bit bus operating at 18 Gbps is part of the memory configuration. Rich textures and seamless multitasking are made possible by the approximately 432 GB/s bandwidth this offers.

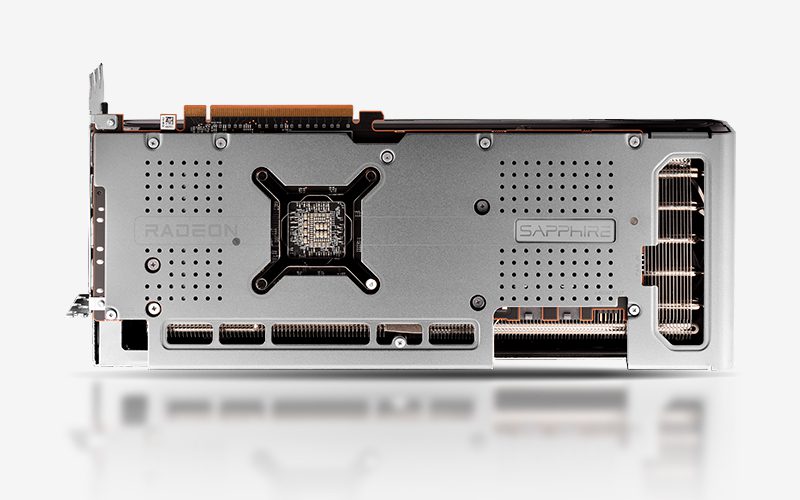

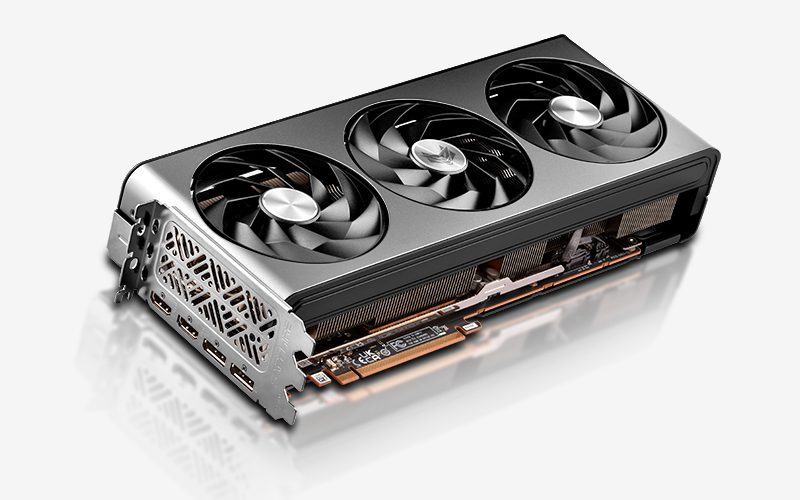

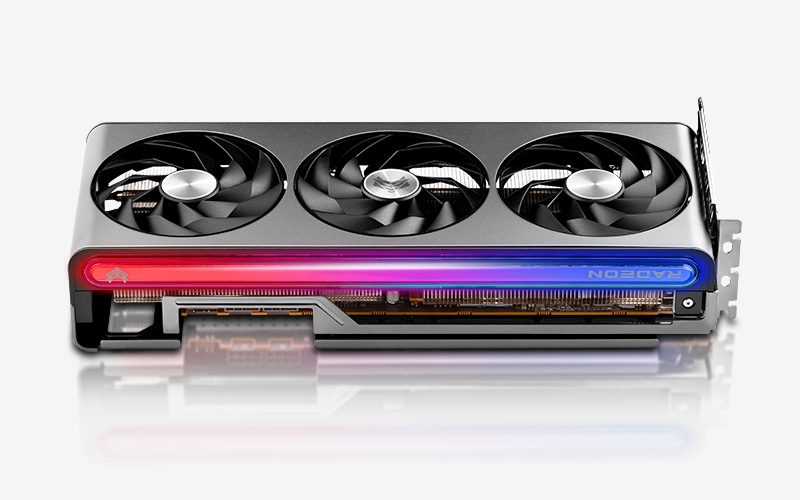

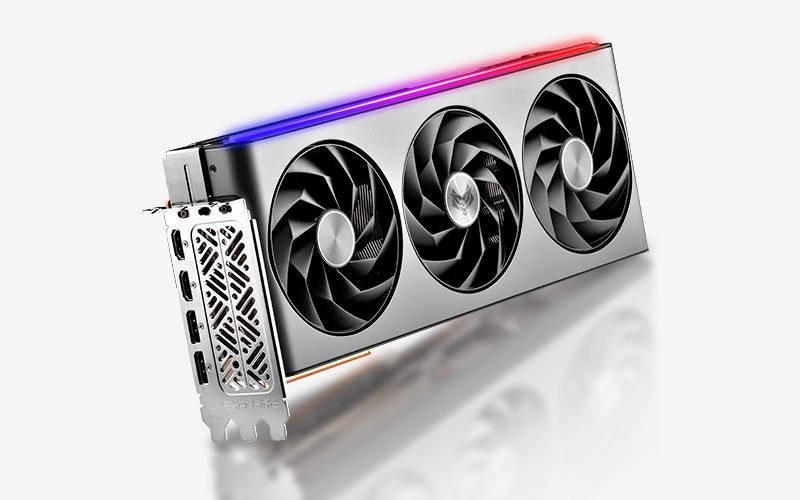

With a multi-heatpipe heatsink, a full metal backplate, and intelligent fan control, the triple-fan cooler manages thermals, enabling both quiet idle and effective cooling under load. Having two BIOS gives you more options for silent or performance settings.
It’s a large but manageable GPU with dimensions of about 320 mm, three slots, and a board power of about 252 W. It works best when combined with a high-quality 700 W+ PSU.
Features of Sapphire NITRO+ Radeon RX 7700 XT 12 GB GDDR6
Specification | Details |
---|---|
GPU Architecture | AMD RDNA 3 (Navi 32) – 3,456 Stream Processors, 54 Compute Units |
Game Clock (OC) | ~2,276 MHz |
Boost Clock (OC) | Up to 2,599 MHz |
Memory | 12 GB GDDR6 @ 18 Gbps, 192-bit (≈432 GB/s) |
Infinity Cache | 48 MB |
Ray/AI Accelerators | Yes – RDNA 3 second-gen cores |
PCIe Interface | PCIe 4.0 x16 |
Display Outputs | 2× HDMI 2.1 + 2× DisplayPort 2.1 |
Cooling | Triple-fan heatsink, full backplate, smart fan control |
Form Factor | 320 mm × 135 mm × 62 mm, 3-slot design |
Power Connectors | 2×8-pin PCIe |
Board Power | ~252 W |
Recommended PSU | 700 W or higher |
BIOS Modes | Dual BIOS (Performance / Silent) |
Software Features | FSR, RDNA 3 features, Radeon Adrenalin |
Warranty | 3 years |
Ideally Best For
- Gamers aiming for high-refresh 1440p visuals with modern settings.
- Builders who want a feature-rich, future-capable GPU with ray tracing and AV1.
- Cases that can accommodate larger GPUs, benefiting from quieter and cooler operation.
- Users wanting tailored performance/noise control via Dual BIOS.
Buy Sapphire NITRO+ Radeon RX 7700 XT 12 GB GDDR6 Triple‑Fan Cooling PCIe 4.0 Online Today.
