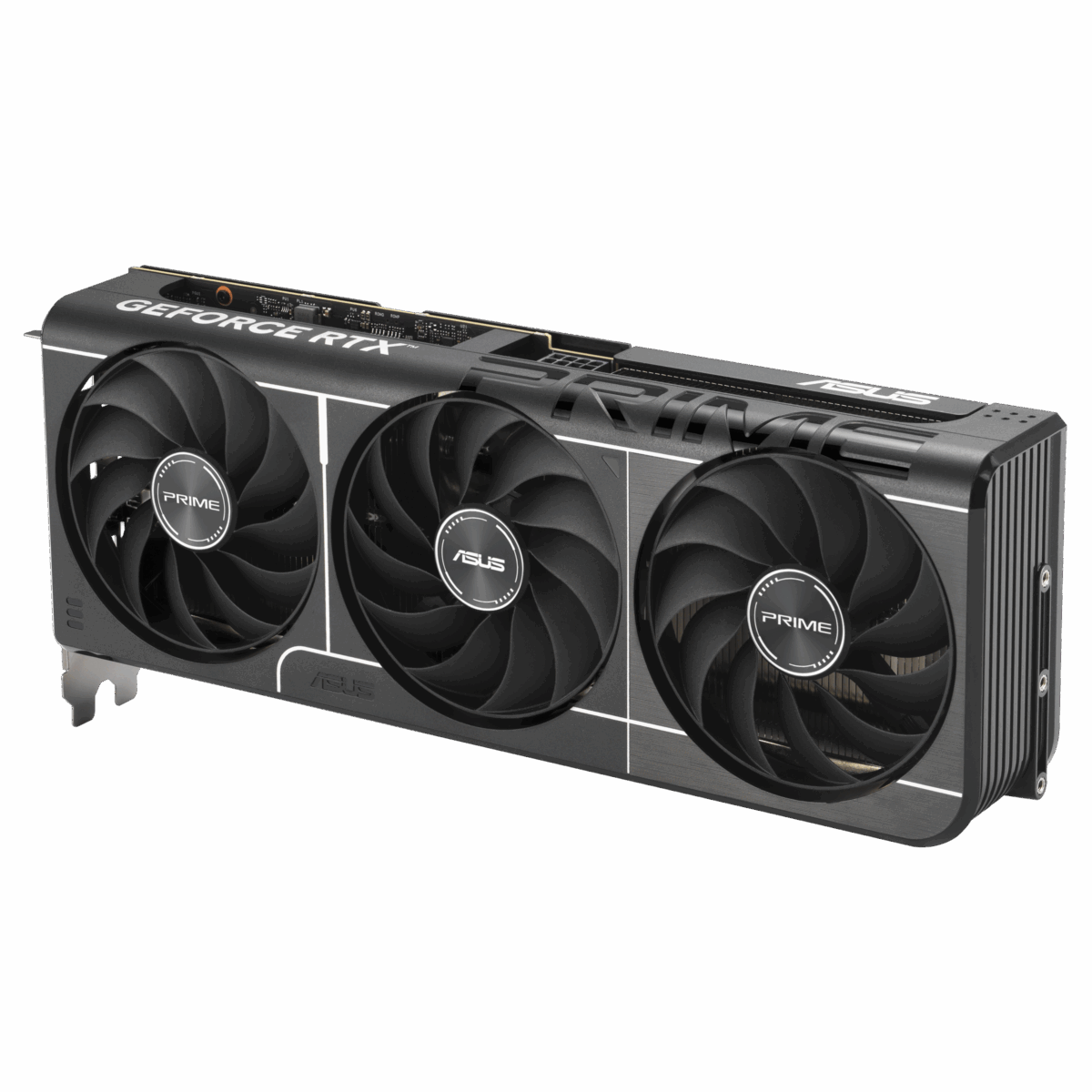

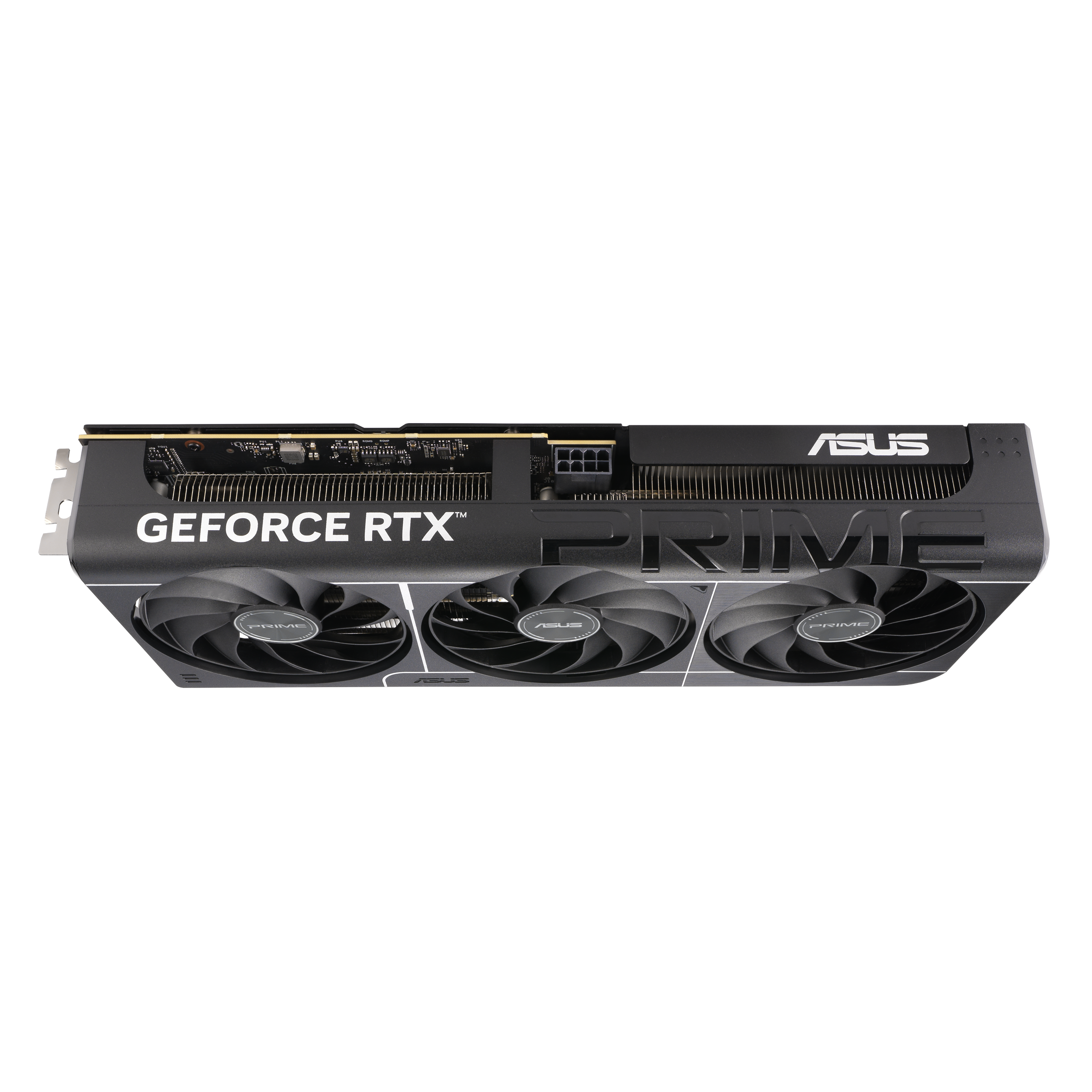

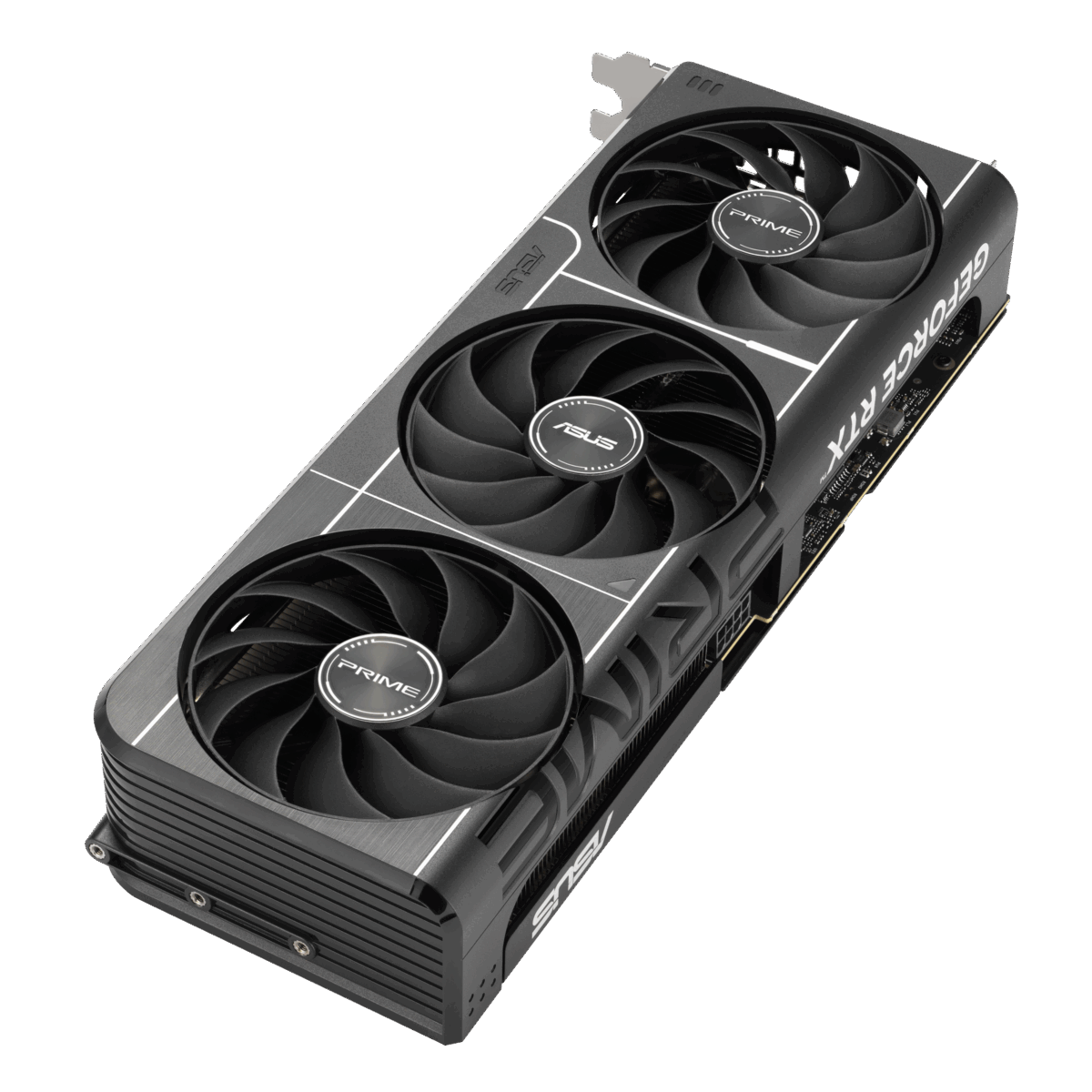

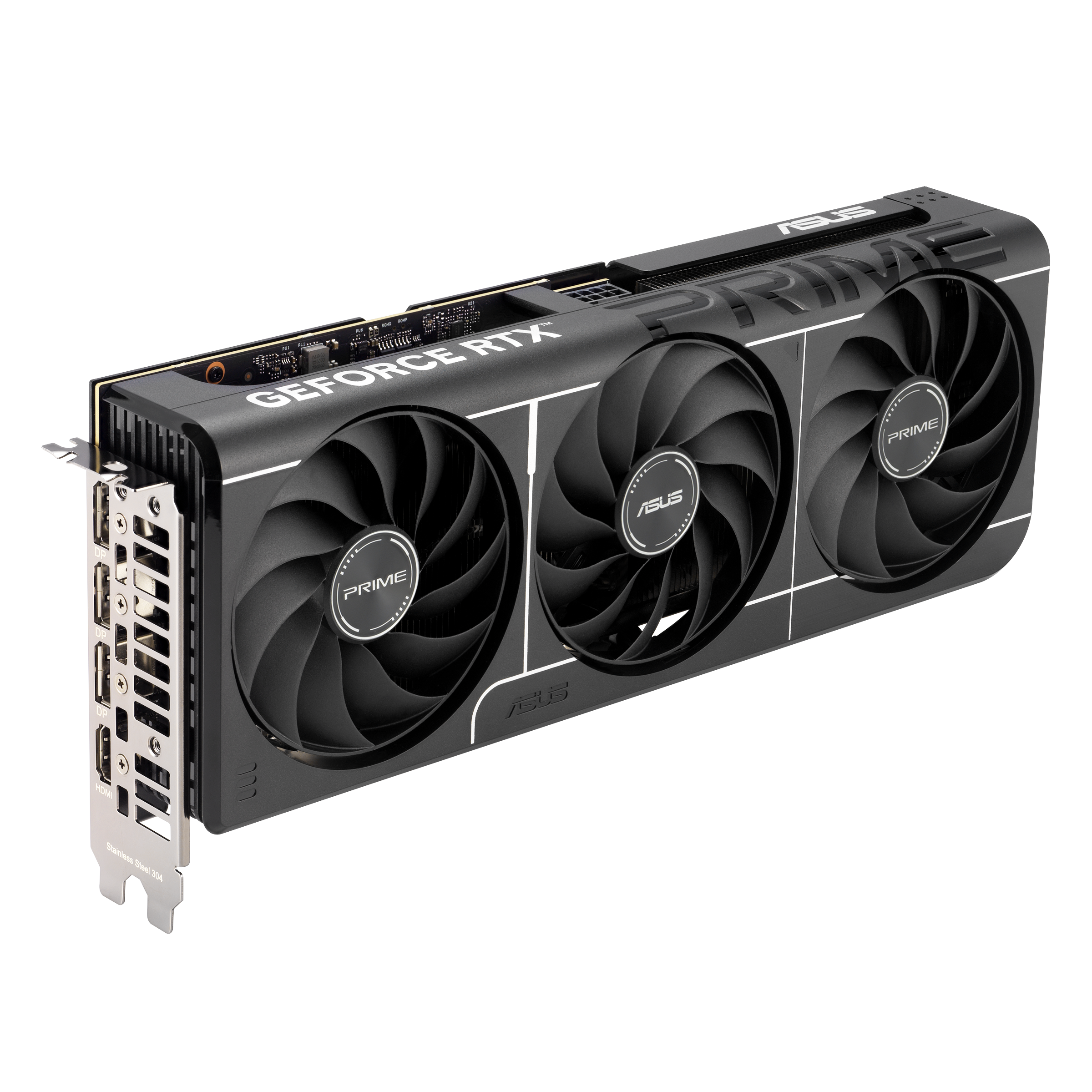

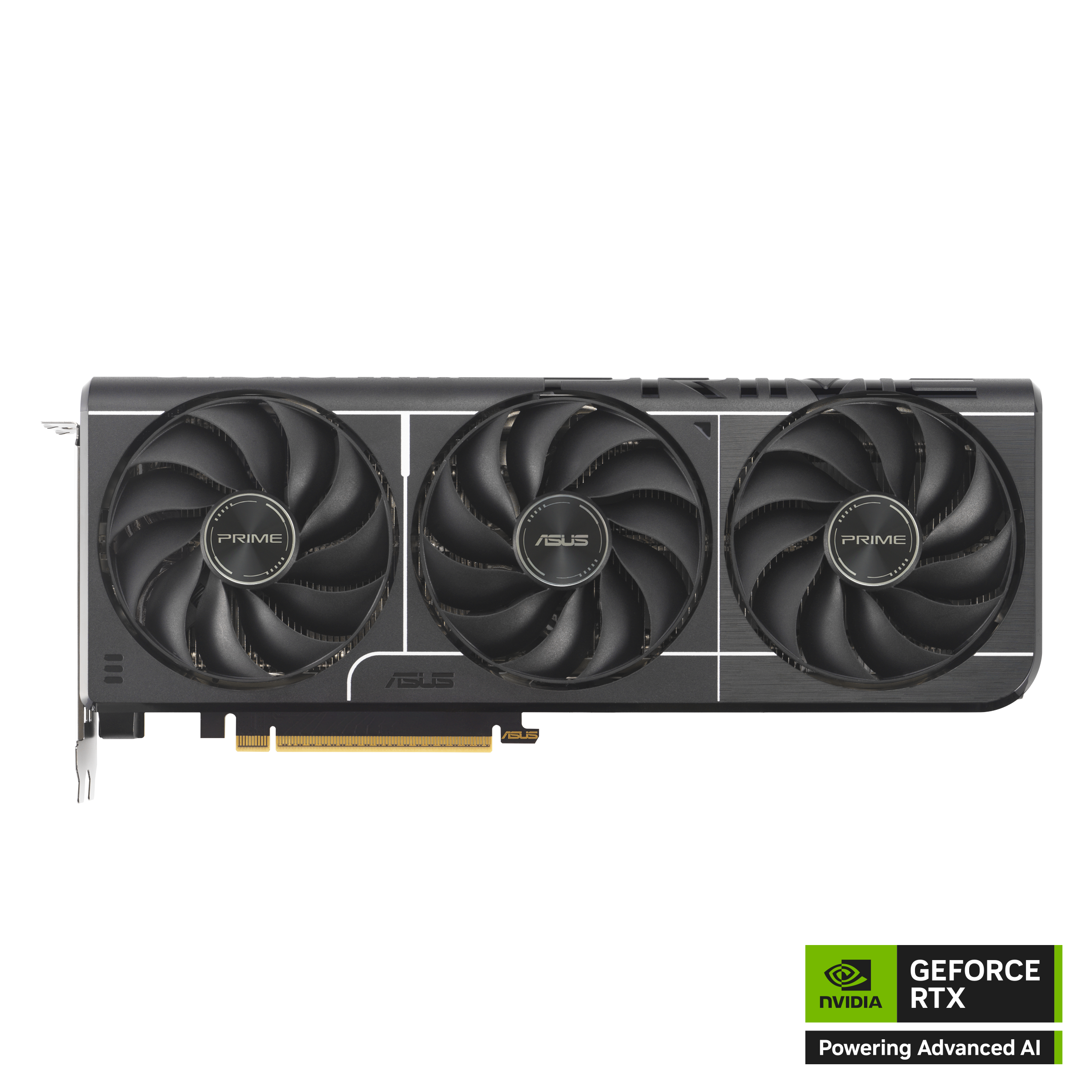

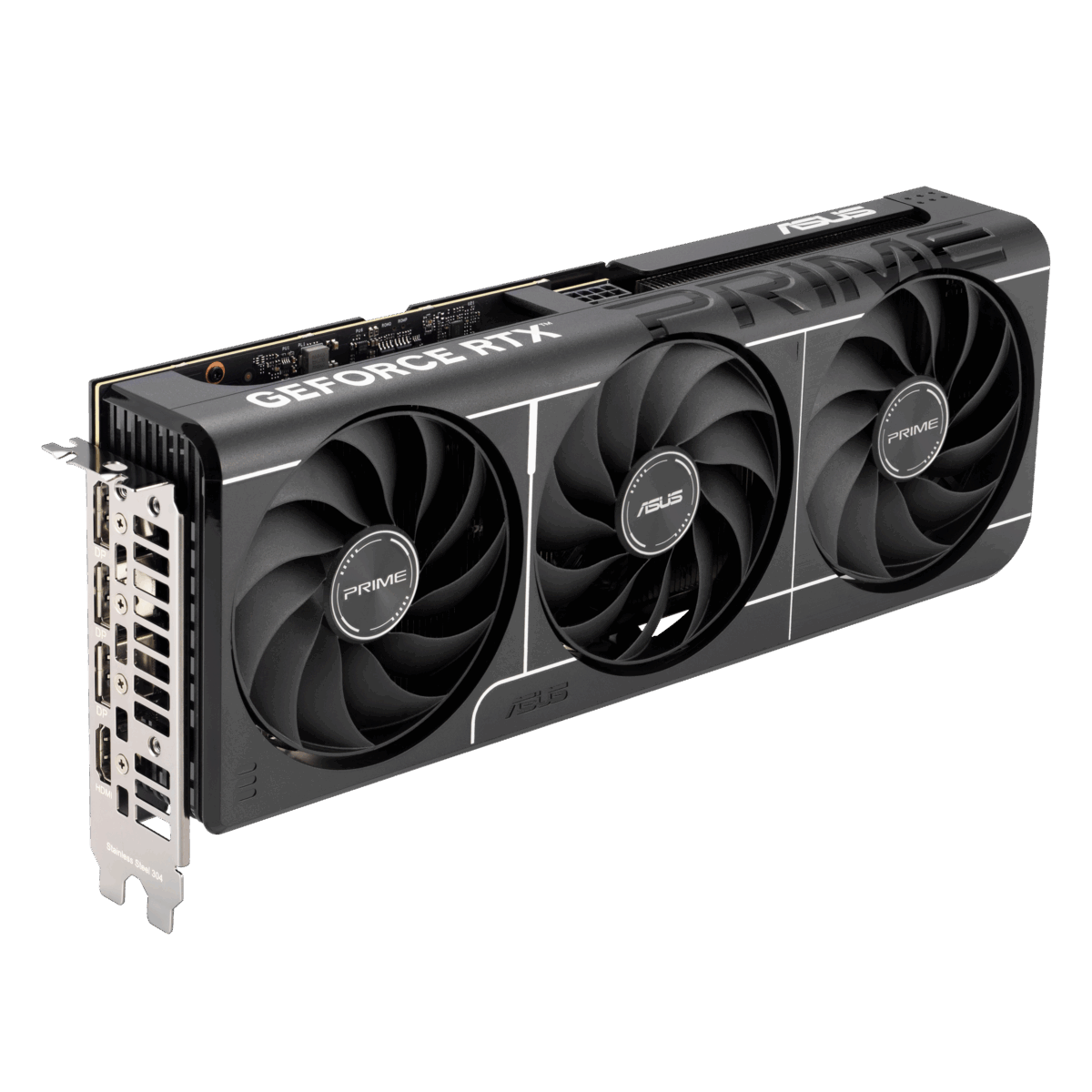

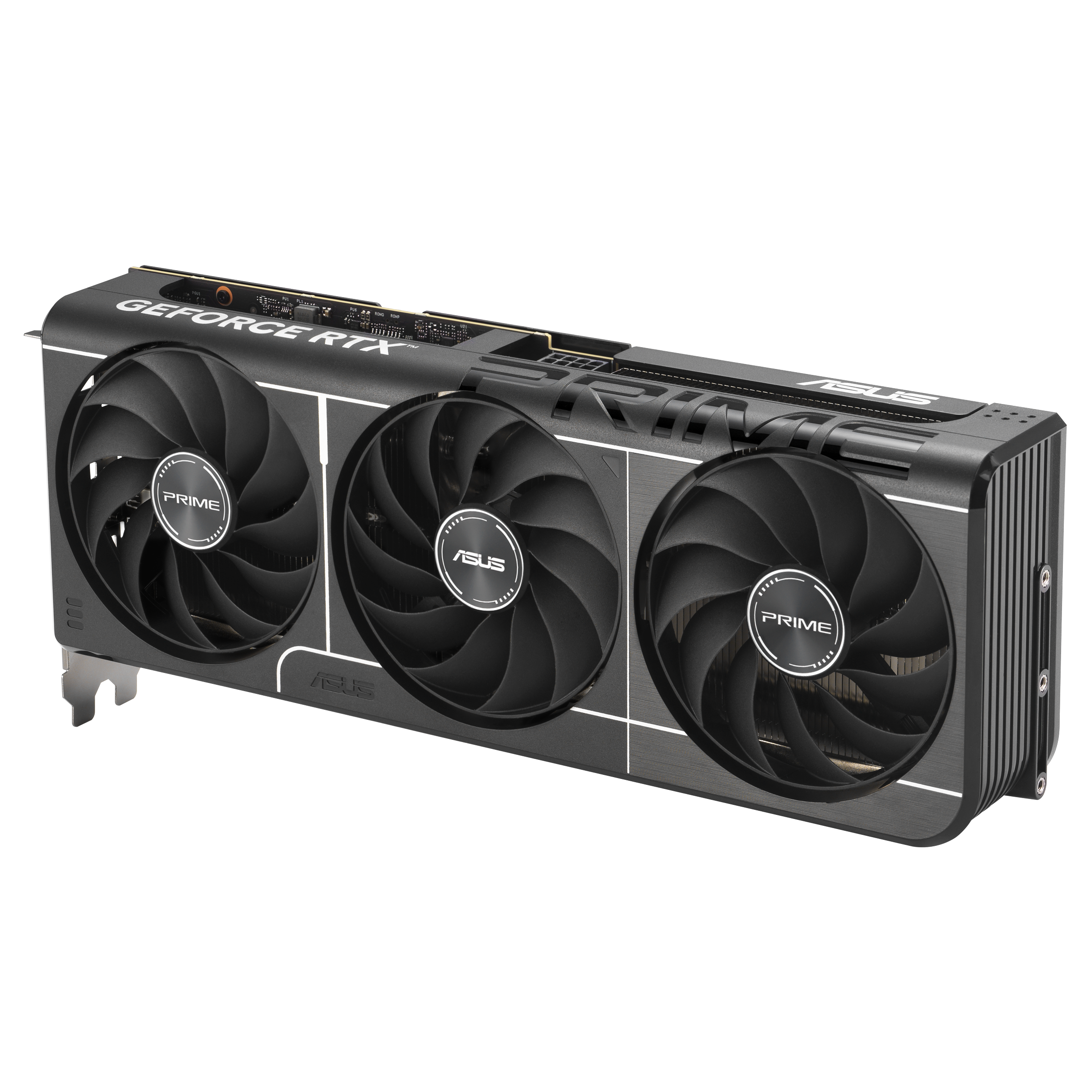

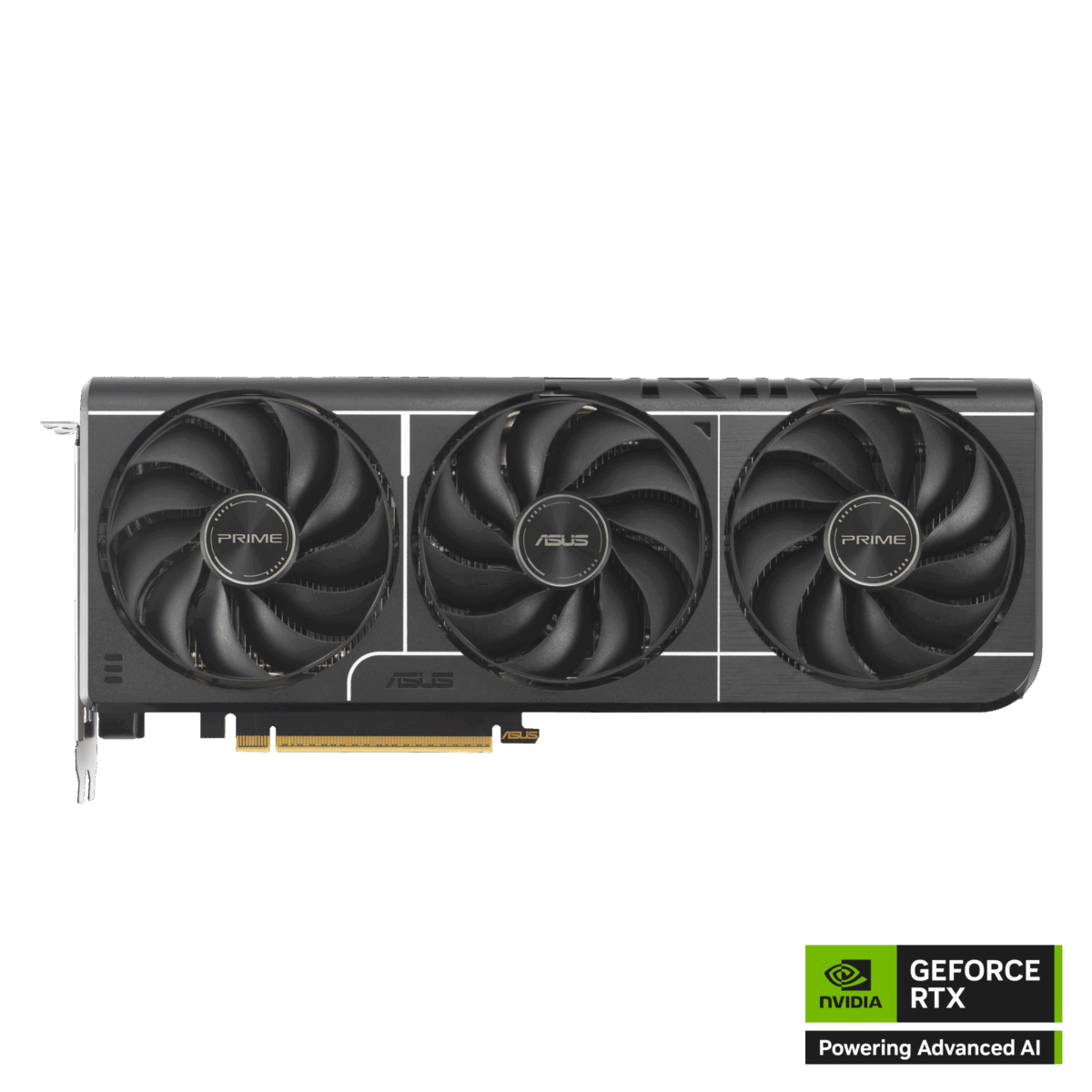

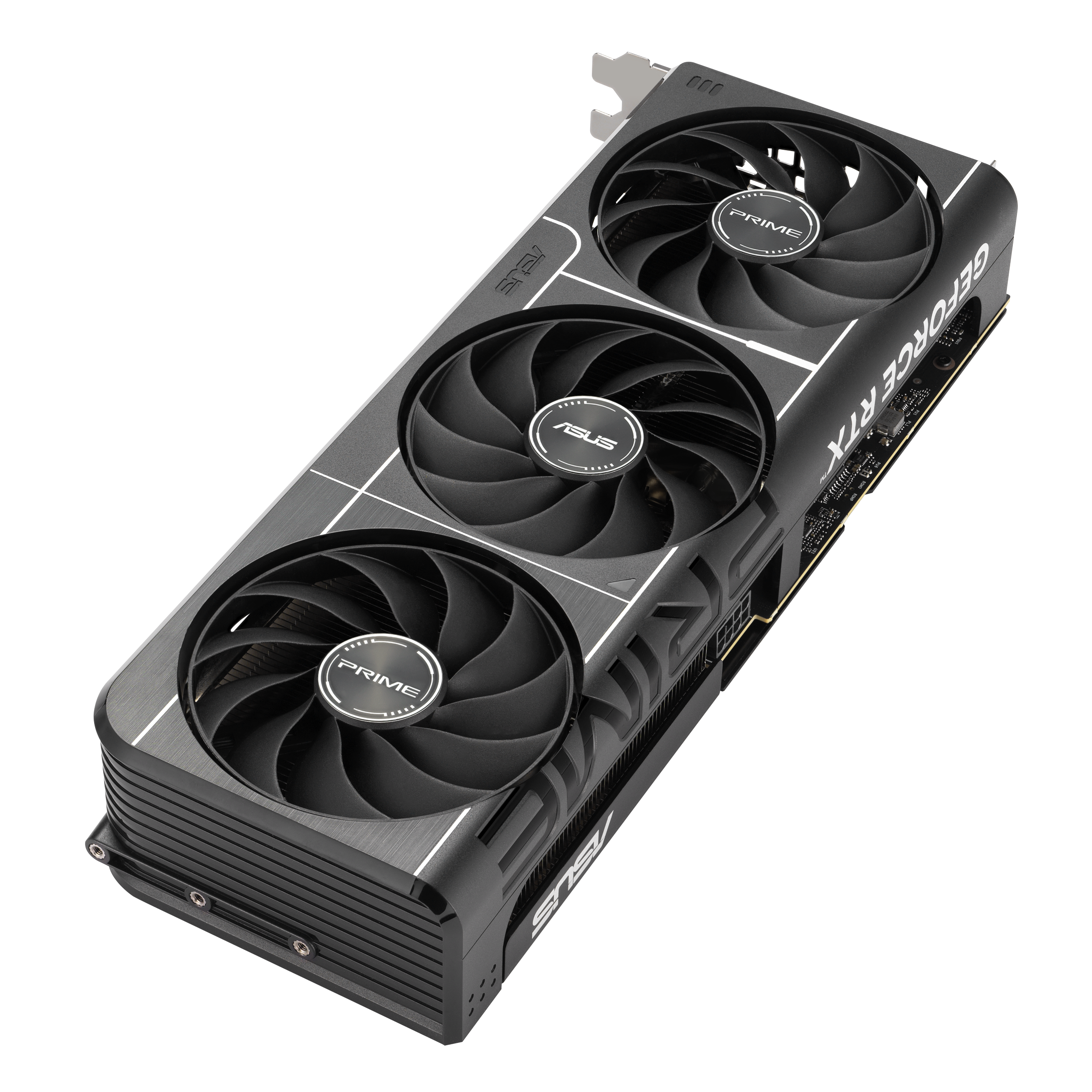

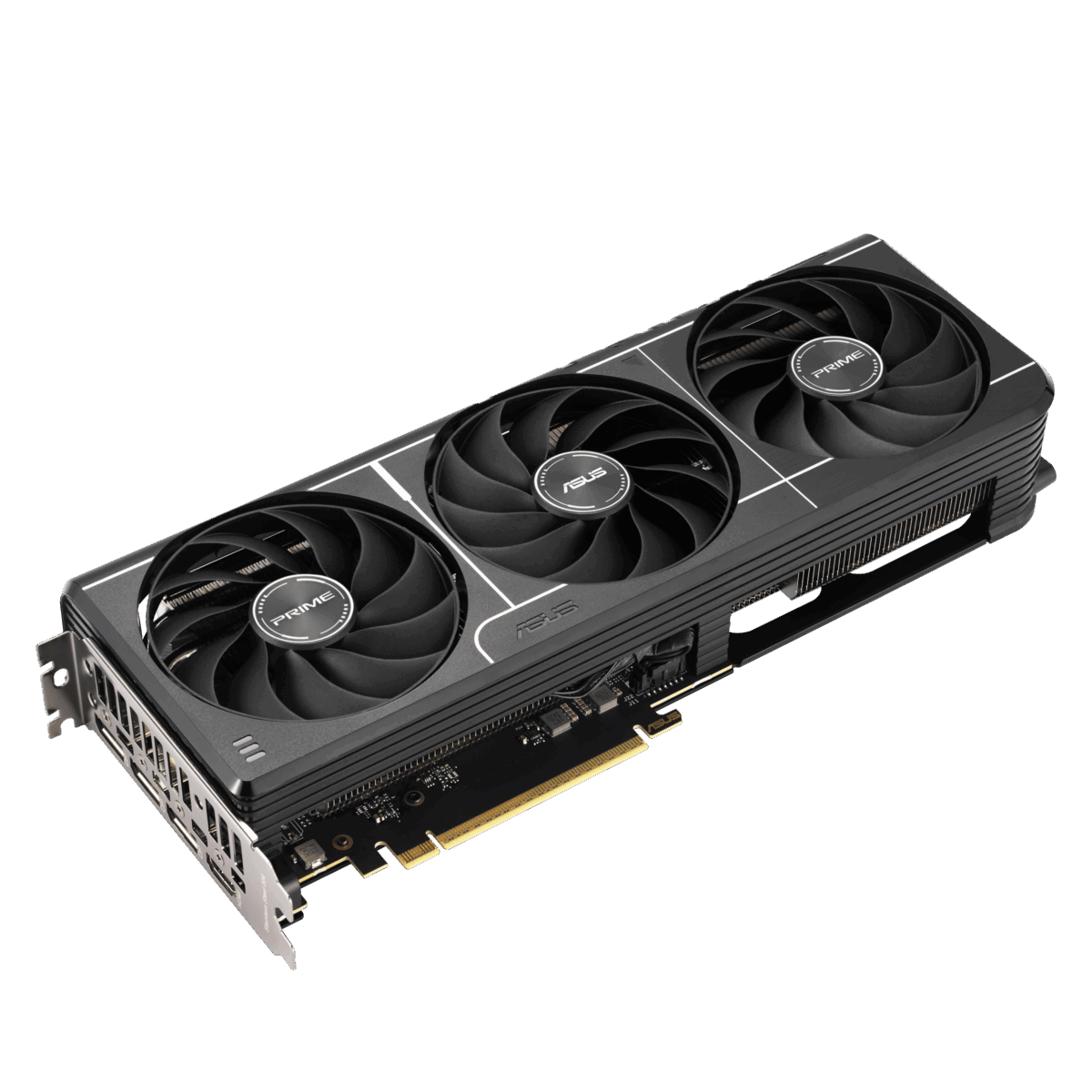

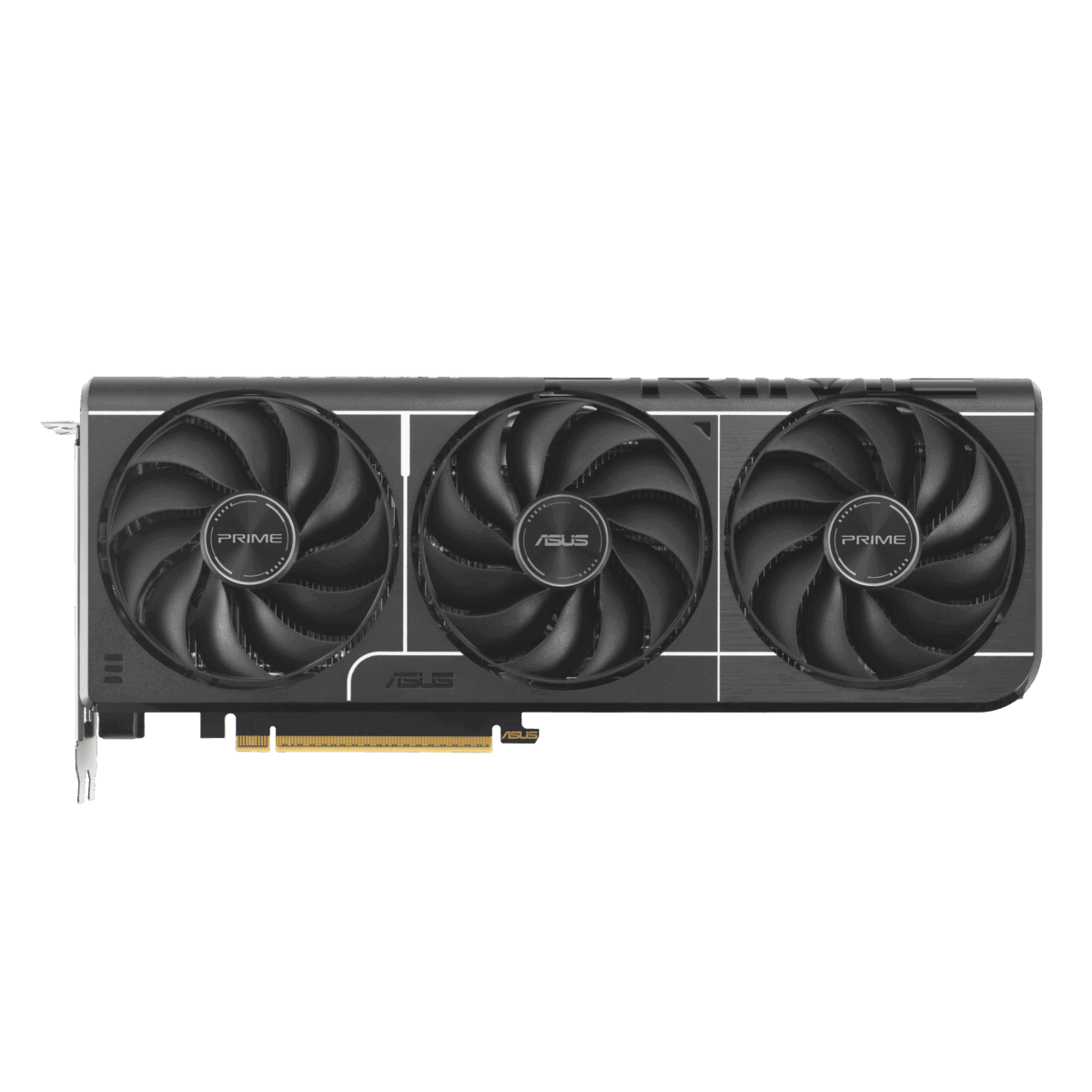

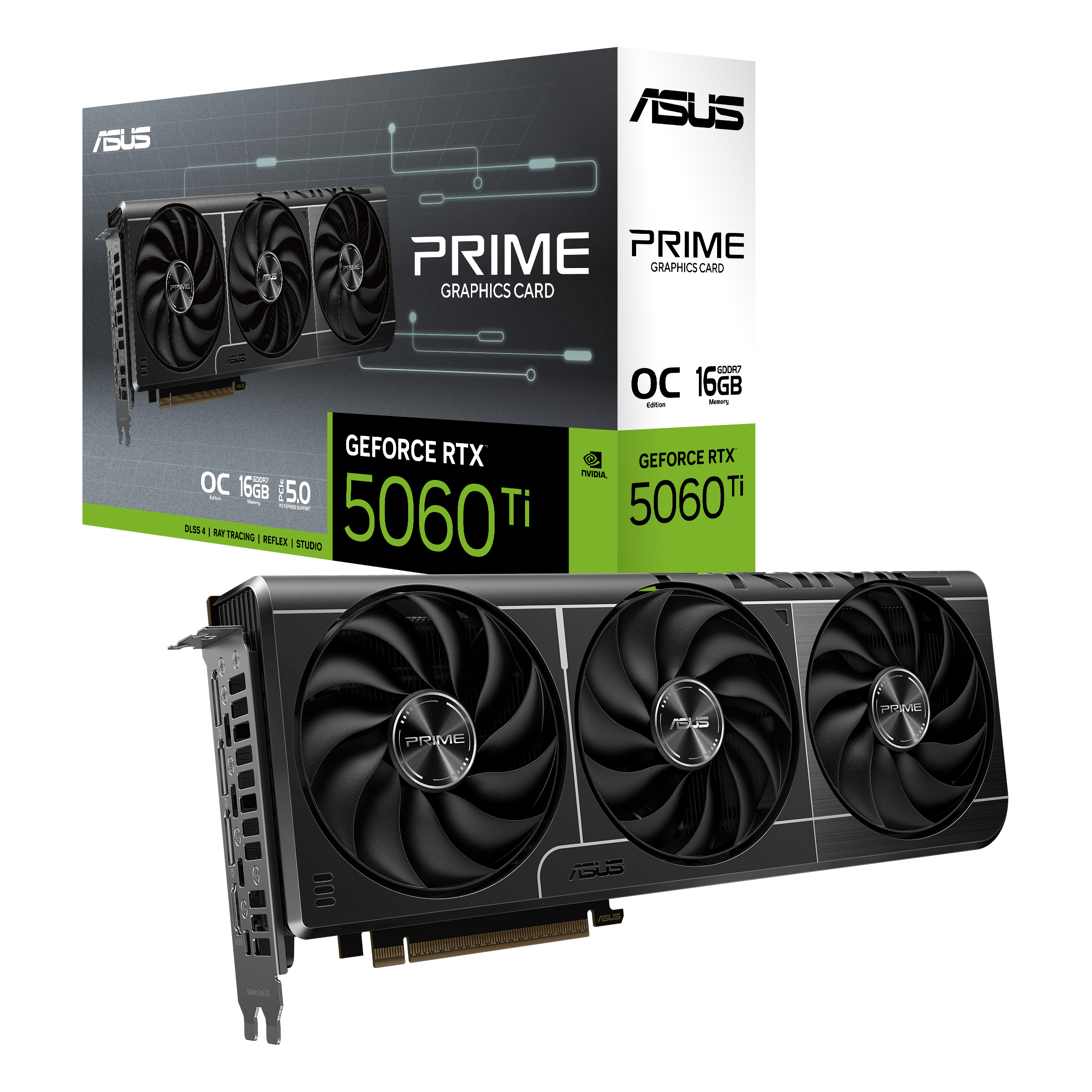

About Asus Prime RTX 5060 Ti 16GB GDDR7 OC Edition
| Specification | Detail |
|---|---|
| Model | PRIME-RTX5060TI-O16G |
| GPU Engine | NVIDIA GeForce RTX 5060 Ti |
| AI Performance | 772 TOPS |
| Bus Standard | PCI Express 5.0 |
| OpenGL Support | OpenGL 4.6 |
| Video Memory | 16 GB GDDR7 |
| Engine Clock (OC mode) | 2647 MHz |
| Boost Clock (Default) | 2617 MHz |
| CUDA Cores | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Max Resolution | Digital Max — 7680 × 4320 |

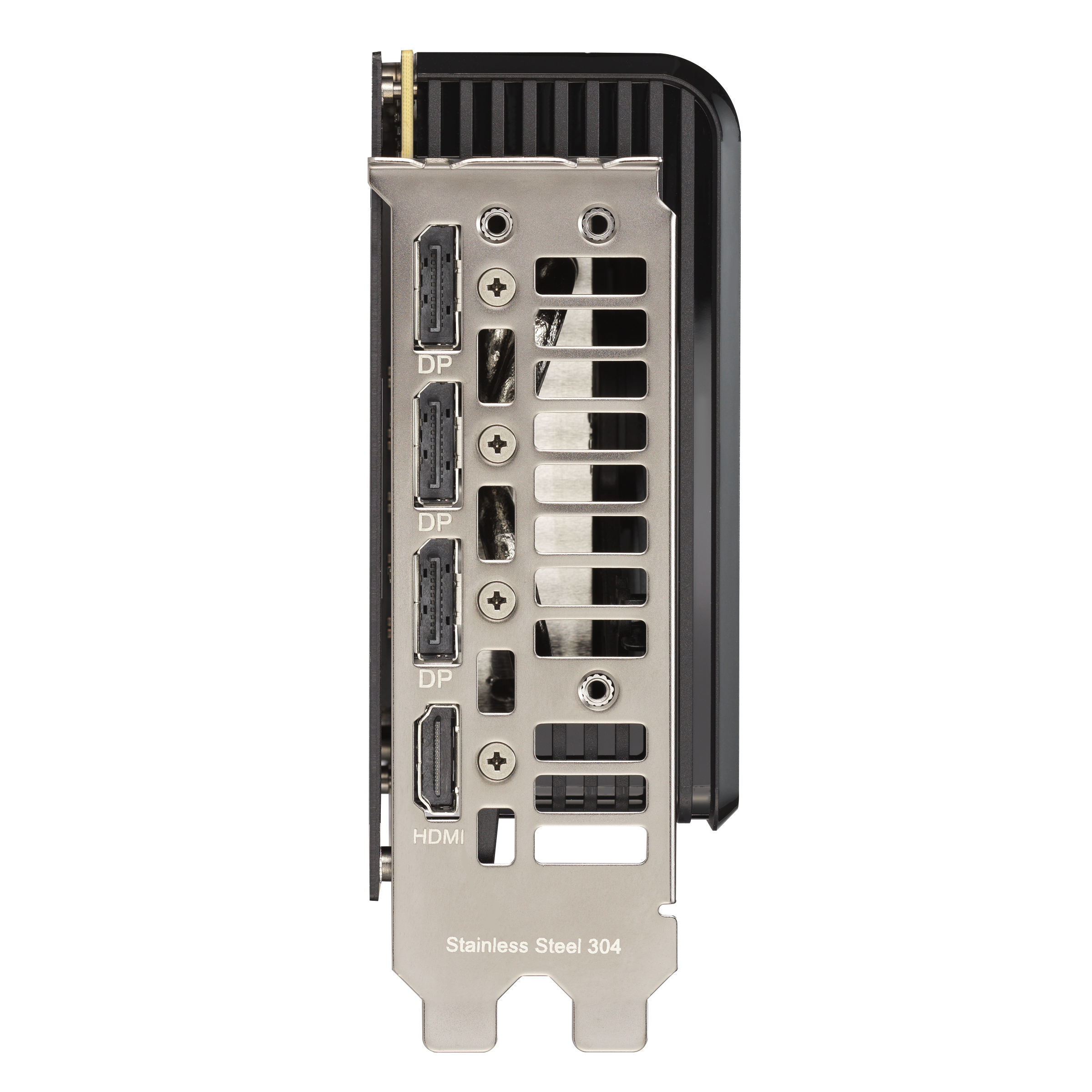

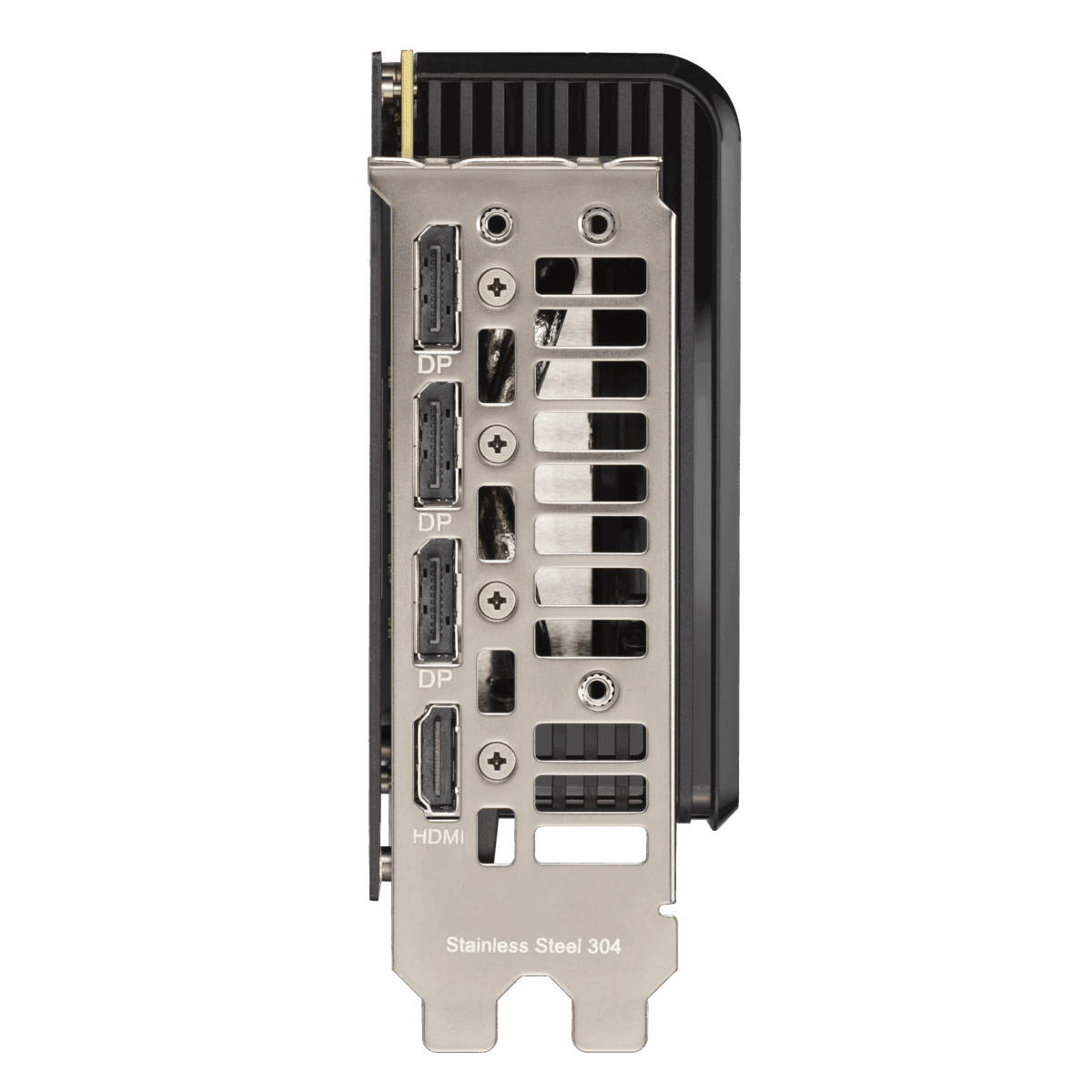

| Display Outputs | 1× HDMI 2.1b; 3× DisplayPort 2.1b; HDCP 2.3 support |
| Max Displays Supported | 4 |
| NVLink / Crossfire | Not supported |

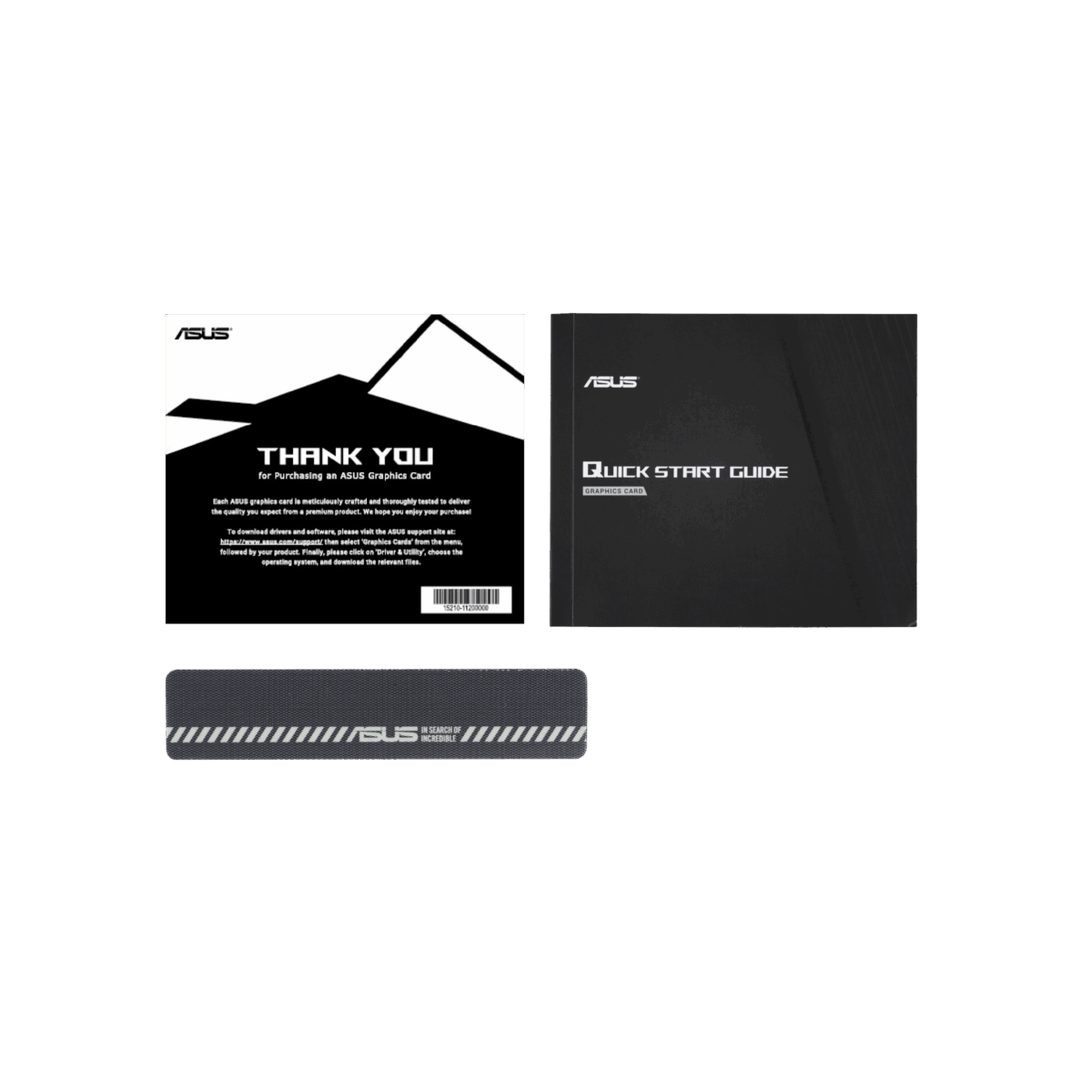

| Accessories Included | Speedsetup Manual, Velcro Hook & Loop, Thank You Card |
| Software | ASUS GPU Tweak III, MuseTree, Game Ready & Studio Drivers |
| Dimensions | 304 × 120 × 50 mm |
| Recommended PSU | 550 W |
| Power Connector | 1× 8-pin connector |
| Slot Size | 2.5-slot design |
| Notable Cooling Features | Triple Axial-Tech fans, 0 dB technology, Dual-ball bearings, Vented backplate, MaxContact heatsink |

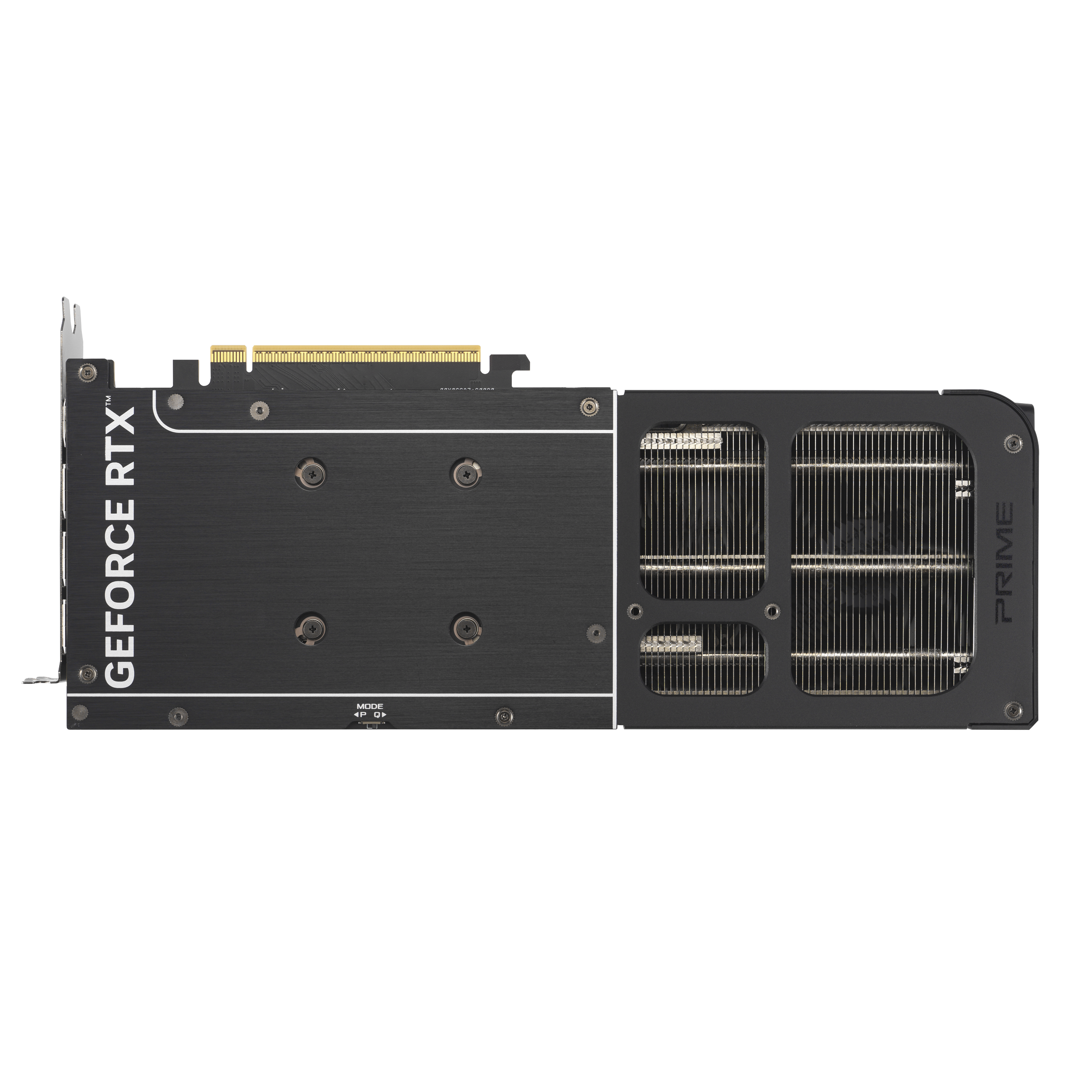

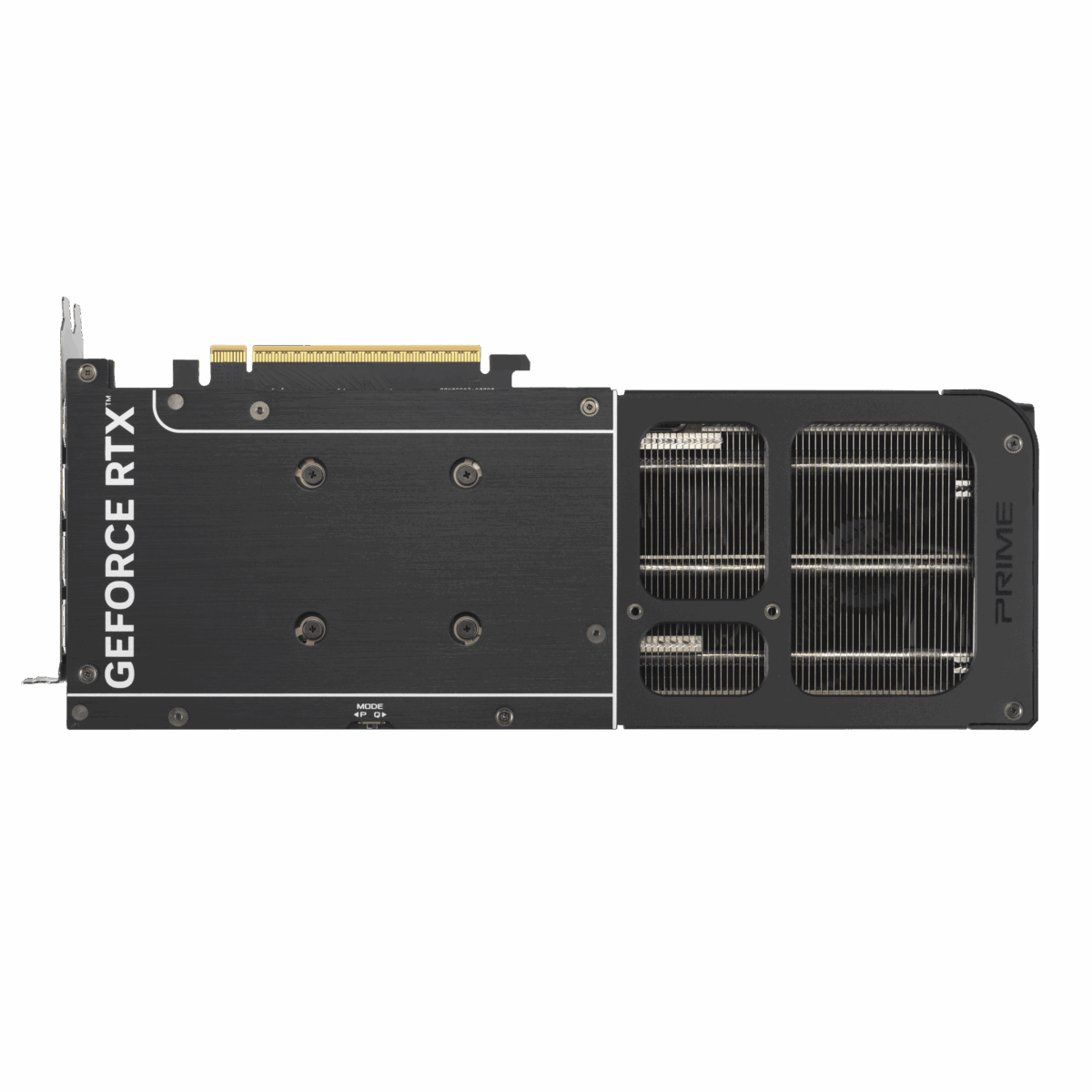

| Structural & Durability | GPU Guard, reinforced backplate, stainless steel bracket |
