About PowerColor Red Devil RX 9070 XT 16GB OC GDDR6
| Category | Specification |
|---|---|
| GPU Manufacturer | AMD |
| GPU Chipset | Radeon RX 9070 XT |
| Stream Processors | 4,096 units |
| Memory Size & Type | 16 GB GDDR6 |
| Memory Speed | 20 Gbps (data rate) |
| Memory Interface | 256-bit |
| Memory Bandwidth | ~645 GB/s |
| Boost Clock | Up to ~3,060 MHz (factory OC) |
| PCI Express Interface | PCIe 5.0 x16 |

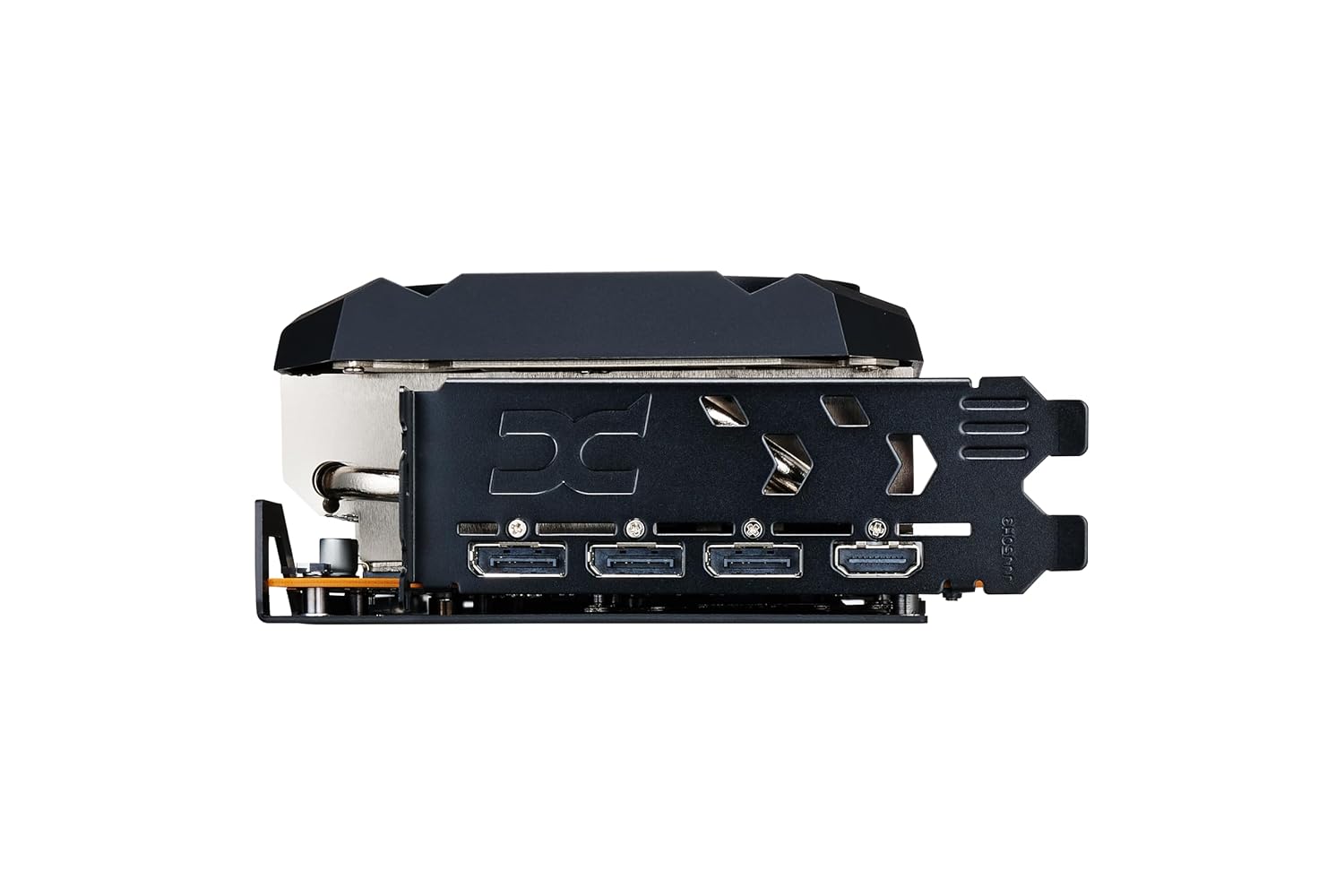

| Display Outputs | 3 × DisplayPort 2.1a, 1 × HDMI 2.1b |
| Power Connectors | 3 × 8-pin (for this custom model) |
| Recommended PSU | 900 W system power recommended |
| Form Factor / Size | Triple-fan cooler, large card (~352 mm length) |

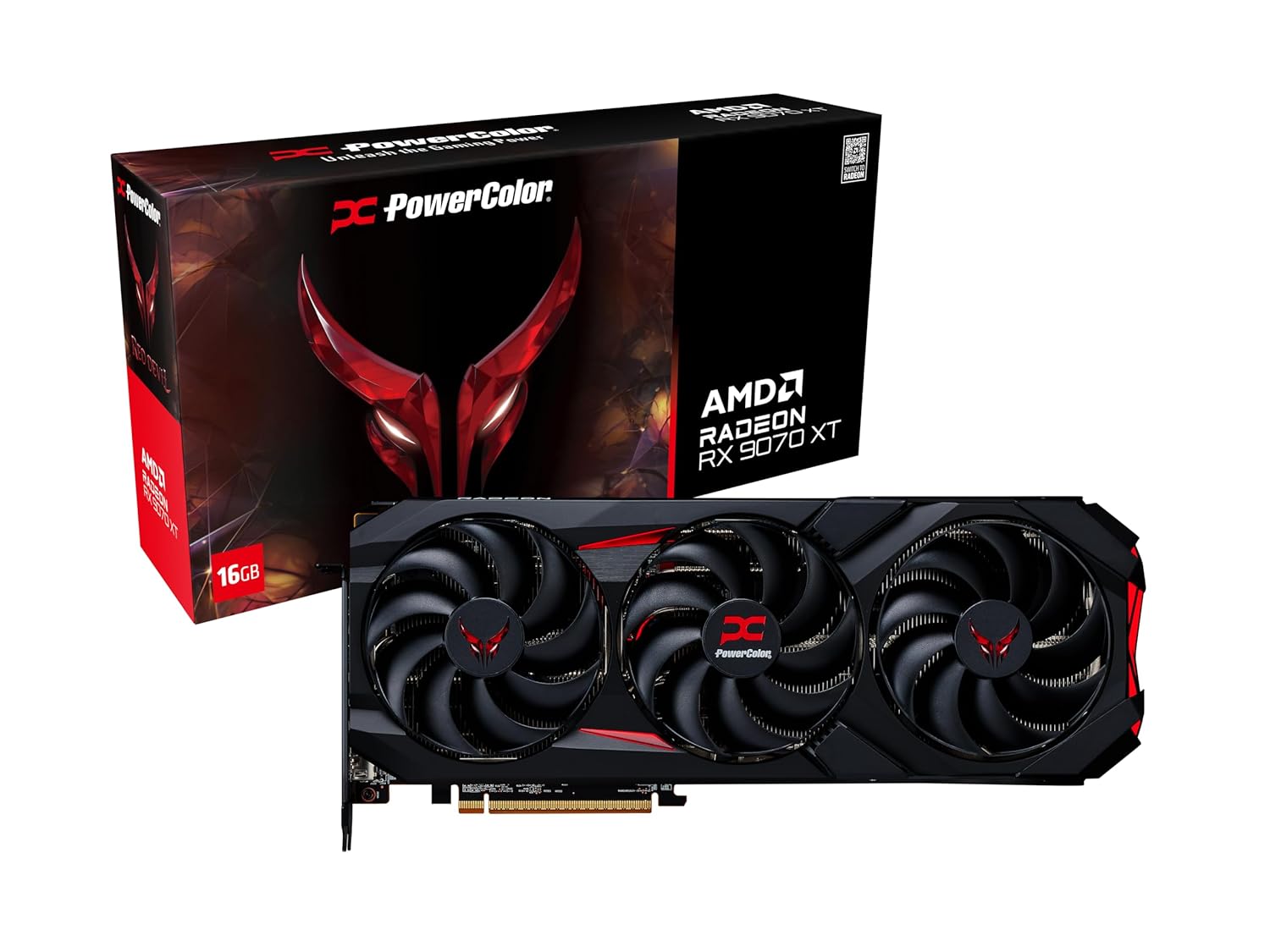

PowerColor Red Devil RX 9070 XT 16GB OC: The Ultimate Weapon in Gaming
The Red Devil emerges as the unparalleled force in gaming, pushing performance to its absolute peak.
Powered by AMD’s cutting-edge RDNA™ 4 architecture and equipped with PowerColor’s advanced, whisper-quiet cooling system, PowerColor Red Devil RX 9070 XT 16GB OC delivers exceptional performance and immersive gameplay.
At its core lies the Hellstone, a breathtaking design element where vibrant RGB lighting pulses with an otherworldly glow, embodying fiery power and precision.
This symbolic feature not only illuminates but represents the Red Devil’s boundless strength, leading gamers through the darkness to ultimate victory.
Red Devil AMD Series Graphics Card: Engineered for Triumph
The PowerColor Red Devil RX 9070 XT 16GB OC is a gaming powerhouse built to dominate.

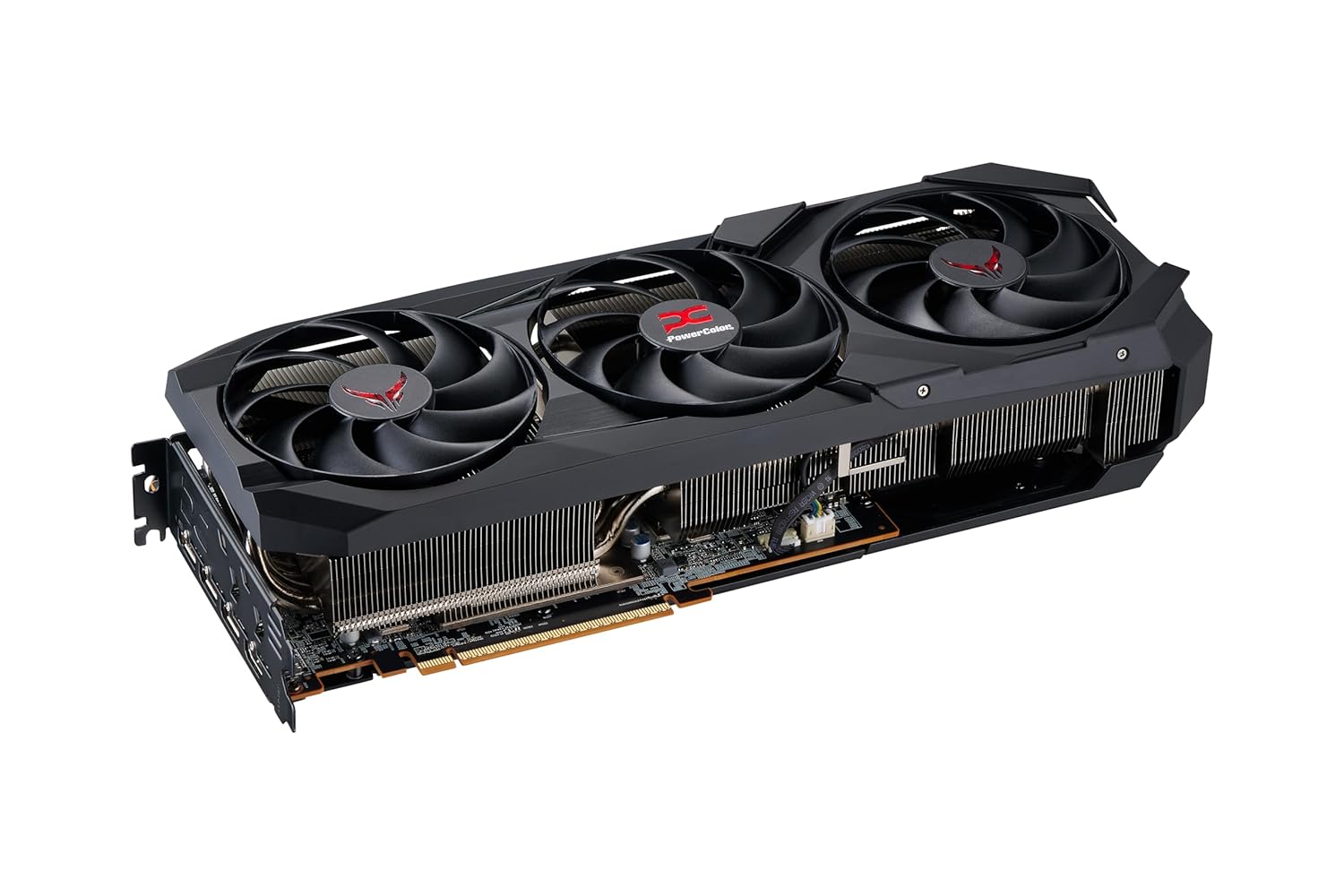

With an enhanced triple fan cooling system (100mm each), 7 x 6φ heatpipes threading through its robust heatsink, and a premium copper plate ensuring direct contact with the GPU and VRAM, heat dissipation is lightning fast.
Its premium phase VRM design, backed by high-quality PCBs, and DrMOS, guarantees unmatched overclocking, stability and cooling efficiency.
The Red Devil is your ultimate companion for gaming victory—unleash its power and conquer every challenge.
High Quality Japanese Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
1. Metal Reinforced Backplate
2. Dual BIOS
3. High-Quality PCB Design
4. High-Efficiency DrMOS Power Module
5. Optimum Heatpipe Arrangement
6. Personalized ARGB Lighting Effect
7. High-Efficiency Ring Blade Fans
8. Three 8-Pin PCI-E Power Connectors
9. TBP Monitoring with 12V Source Detection
10. Supports PCIe 5.0 x16
11. Honeywell PTM7950

Intelligent Fan Controller in the PowerColor Red Devil Series Graphics Card
Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃.
Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

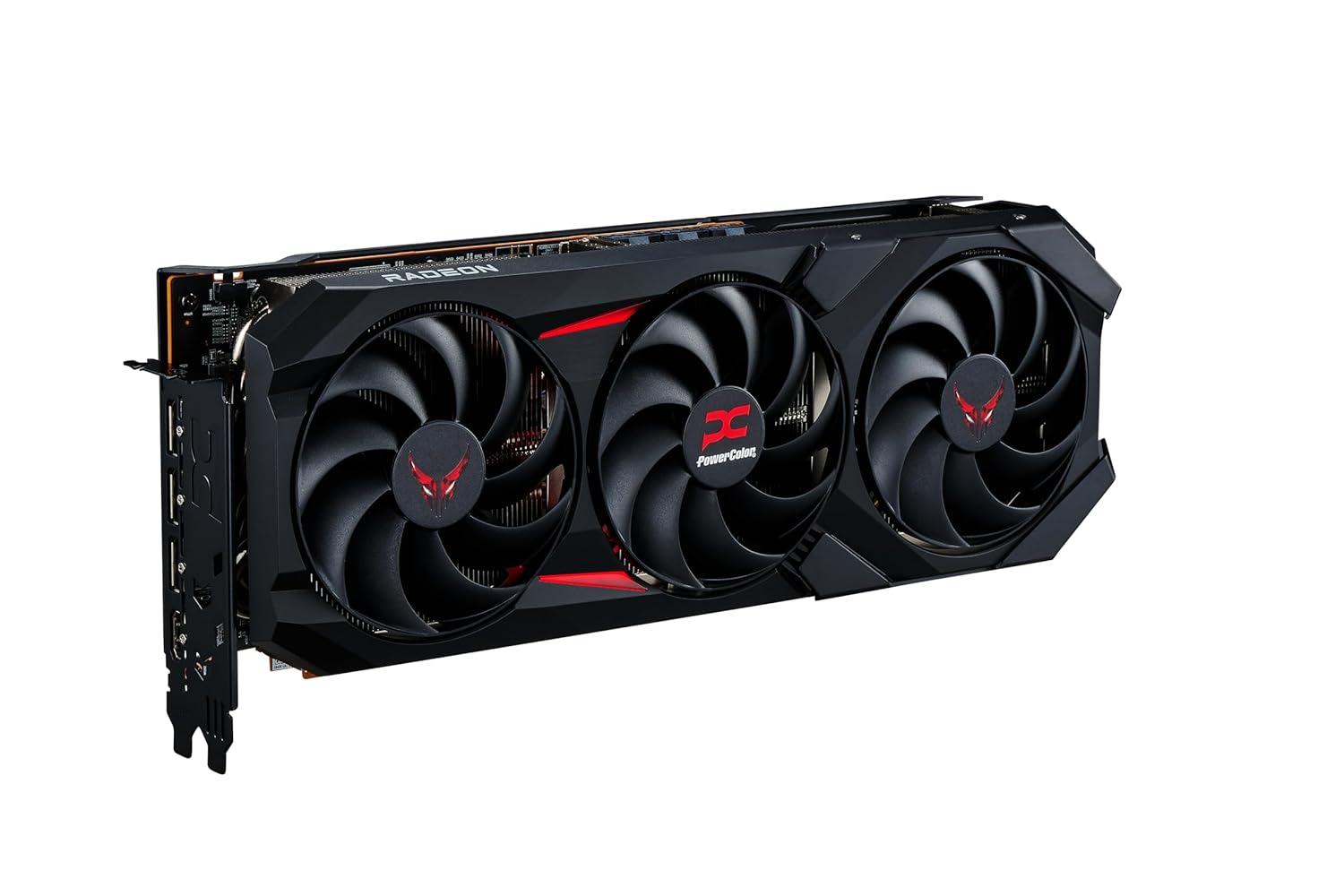

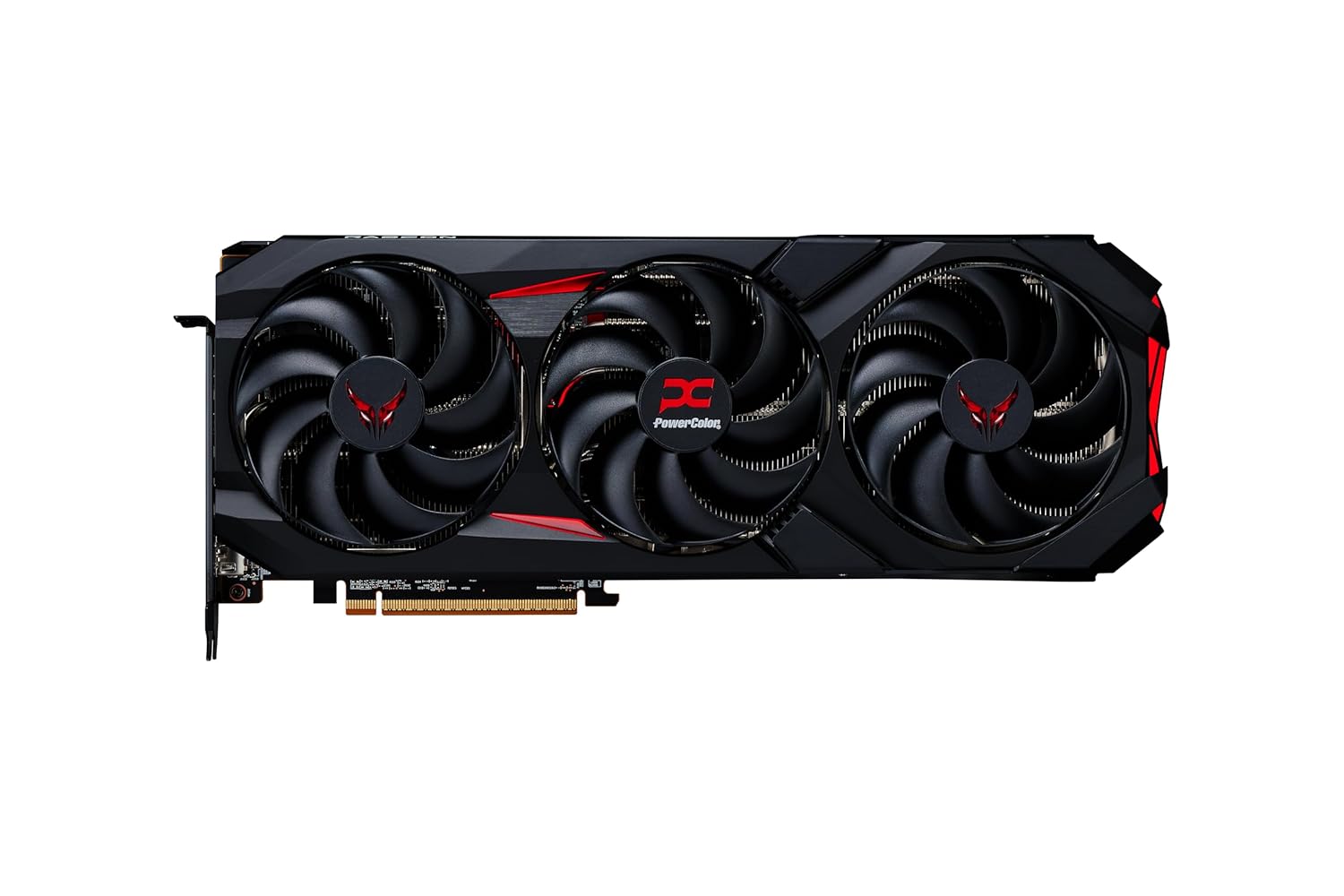

High-Efficiency Ring Blade Fans
Designed for passionate gamers, delivering the coolest experience.
Exclusive ring blade design with up to 9 blades improves fan speed while maintaining low noise levels.
It enhances air pressure and airflow, achieving optimal cooling performance.
GPU Direct-Contact Copper Plate
Efficient heat conduction at all times.
Features a large, smooth nickel-plated copper base covering the GPU and memory, capable of rapidly absorbing and evenly dissipating heat.
Ensures effective cooling even during high-speed operations.
Vertical Fin Heatsink
A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.
Optimum Heatpipe Arrangement in the PowerColor Red Devil Series Graphics Card
A set of 7 x 6φ nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.
High Quality PCB Design
Utilizes a 12-layer high thermal conductivity PCB material with a 2oz power layer, reducing signal attenuation during high-frequency transmission.
This design meets the stability and high-current demands of advanced GPUs.

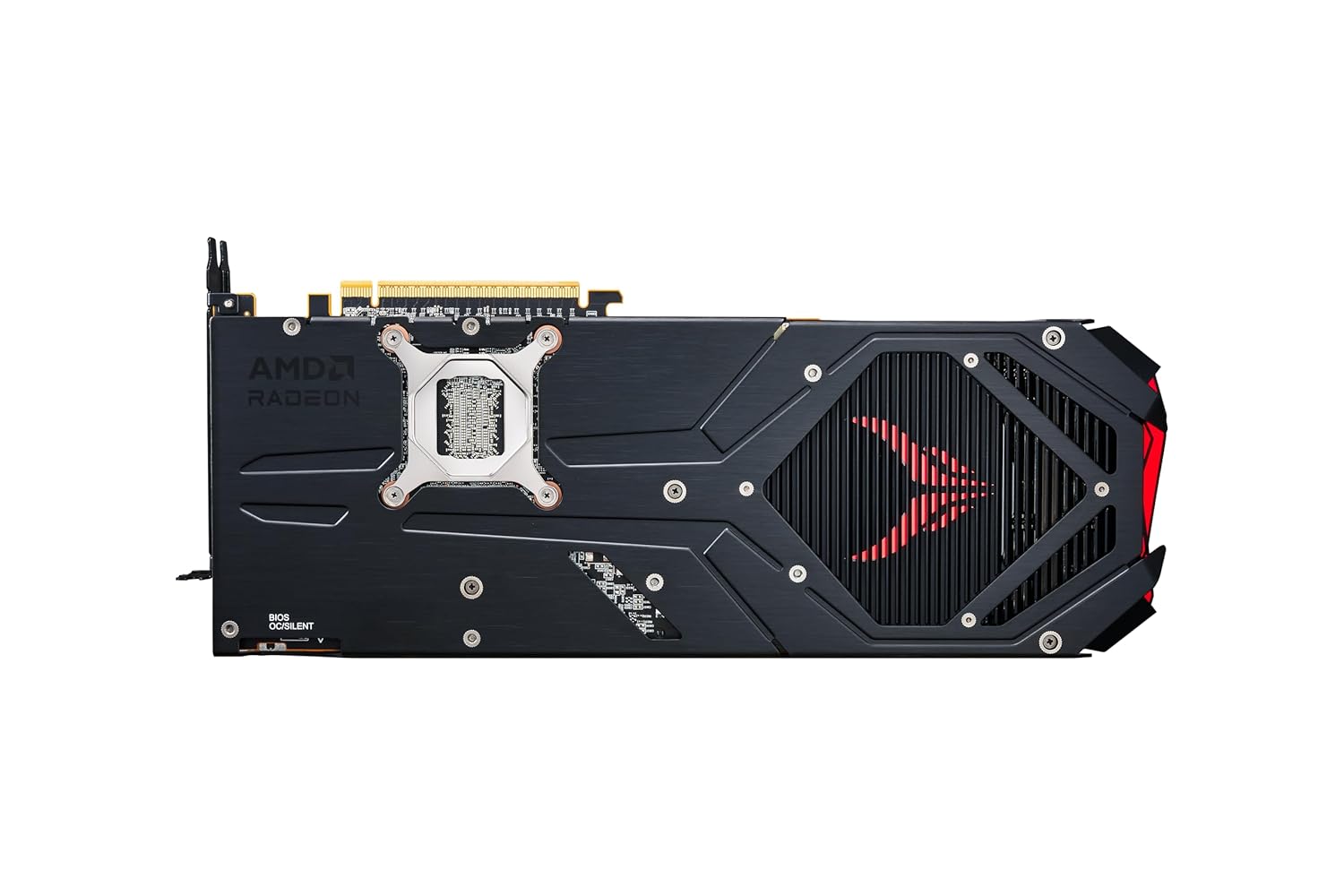

Reinforced Metal Backplate
Crafted from durable metal material, the backplate not only enhances overall structural support to prevent PCB bending and component damage but also integrates an excellent thermal design.

PowerColor GDDR6 OC Edition Graphics Card: ALL YOU NEED FOR ULTRA-FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion.
The ultra-fast Radeon RX 9000 Series Graphics are powered by unified AMD RDNA 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions.
Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games.
Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.
PowerColor GDDR6 OC Edition Graphics Card: INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon to an even higher level with the superpower of AMD Software.
Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon GPU, leveraging the combined forces of AMD Radeon Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon Anti-Lag and AMD Radeon Boost.
UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
