About NZXT Chassis H6 Flow White Dual Chamber
| Category | Specification |
|---|---|
| General | Compact Dual-Chamber Mid-Tower Case |
| Model | H6 Flow White Dual Chamber |
| Chassis Material | SGCC Steel, Ultra-Clear Tempered Glass |
| Motherboard Formats | ATX, Micro-ATX, Mini-ITX |
| Dimensions | Height: 435 mm / Width: 287 mm / Depth: 415 mm |
| Weight | 9.4 kg |
| Drive Bays | Up to 2 × 2.5″ + 1 × 3.5″ |
| Expansion Slots | Standard 7 (No vertical included) |
| Front I/O Ports | USB 3.2 Gen1 Type-A ×2; USB 3.2 Gen2x2 Type-C ×1; Audio Jack ×1 |
| Fan Support (Ventilation) | Front/Right: 3 × 120 mm (F120Q included)Top: 3 × 120 mm or 2 × 140 mmBottom: 2 × 140 mmRear: 1 × 120 mm |
| Included Fans | 3 × 120 mm F120Q Airflow fans |
| Filters | Integrated High-Performance Mesh |
| Radiator Compatibility | Top: Up to 360 mm; Rear: Up to 120 mm |
| Clearance Limits | GPU Length: 365 mmCPU Cooler Height: 163 mmPSU Length: 200 mmCable Management: 91 mm |
| Cable Management | Wide channels with straps |
| Tool Access | Tool-Free Top & Side Panels |
| Cooling Design | Optimized airflow panels & dual chamber layout |
| Colour | White |
| Warranty | 2 Years (typical NZXT warranty) |
At its core, the H6 Flow introduces a dual-chamber architecture that separates primary system components—like the motherboard, GPU, and CPU cooling—from secondary items such as the power supply and cables.
This architectural choice not only improves airflow pathways but also results in a cleaner, more organized internal layout that significantly enhances cooling potential and reduces hotspots around critical components.
The chassis is constructed using high-quality SGCC steel, coupled with an ultra-clear tempered glass side panel that allows you to showcase your components in style.
The white finish accentuates modern minimalism while offering a striking contrast to RGB hardware or premium cooling solutions.
Integrated mesh panels along the top and sides promote robust airflow and keep dust out without compromising aesthetics.
One of the standout aspects of the H6 Flow is its pre-installed fan configuration.
You get three 120 mm F120Q Airflow fans positioned for optimal air intake and circulation.
Combined with the mesh-optimized panel design, this results in exceptional ventilation out of the box—reducing temperatures for both CPU and GPU under sustained load.
When building powerful systems, compatibility and clearance are crucial.
The H6 Flow accommodates a wide range of hardware, supporting ATX, Micro-ATX, and Mini-ITX motherboards.
There’s substantial space for large GPUs (up to 365 mm in length), tower coolers up to 163 mm tall, and PSUs up to 200 mm deep.
In addition to generous component fitment, the chassis also offers flexible radiator support—up to 360 mm at the top and 120 mm at the rear—for users planning custom AIO or liquid cooling loops.
Cable management is another area where the H6 Flow shines.
Thoughtfully routed channels, built-in straps, and generous clearance behind the motherboard tray make it effortless to achieve a tidy and professional build.
This not only improves airflow but also enhances the overall visual appeal through the tempered glass side panel.

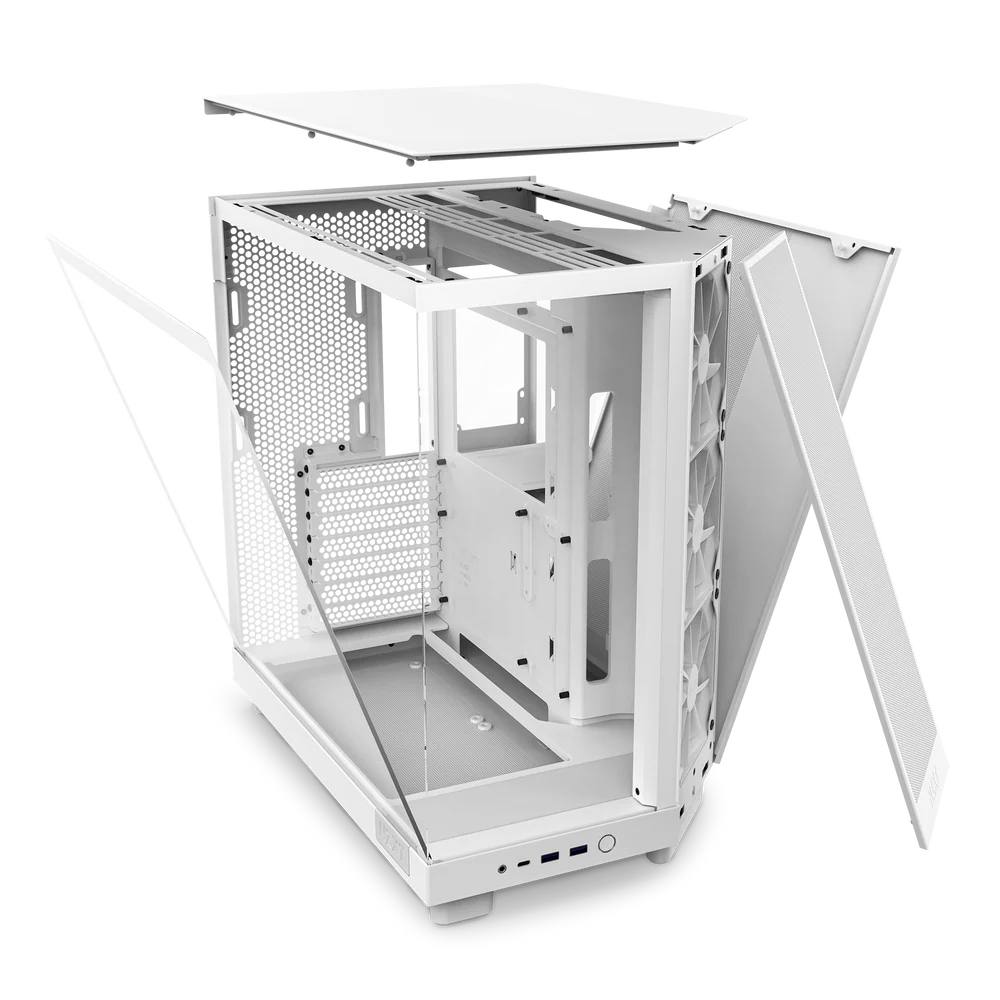

Functionality meets convenience with tool-free access to top and side panels, enabling quick upgrades or maintenance without the hassle of screws or tools.
The front I/O panel is modern and versatile, including two USB 3.2 Type-A ports, one USB 3.2 Gen2x2 Type-C port, and a headphone jack—ensuring you’re well equipped for peripherals and devices.
The NZXT H6 Flow White Dual Chamber is an excellent choice for builders who want efficient airflow, clean internal design, and premium build quality.
Whether you’re crafting a high-performance gaming rig, a content creation workstation, or a future-ready PC, this chassis delivers a compelling blend of aesthetics and engineering excellence that stands out in the competitive mid-tower segment.
