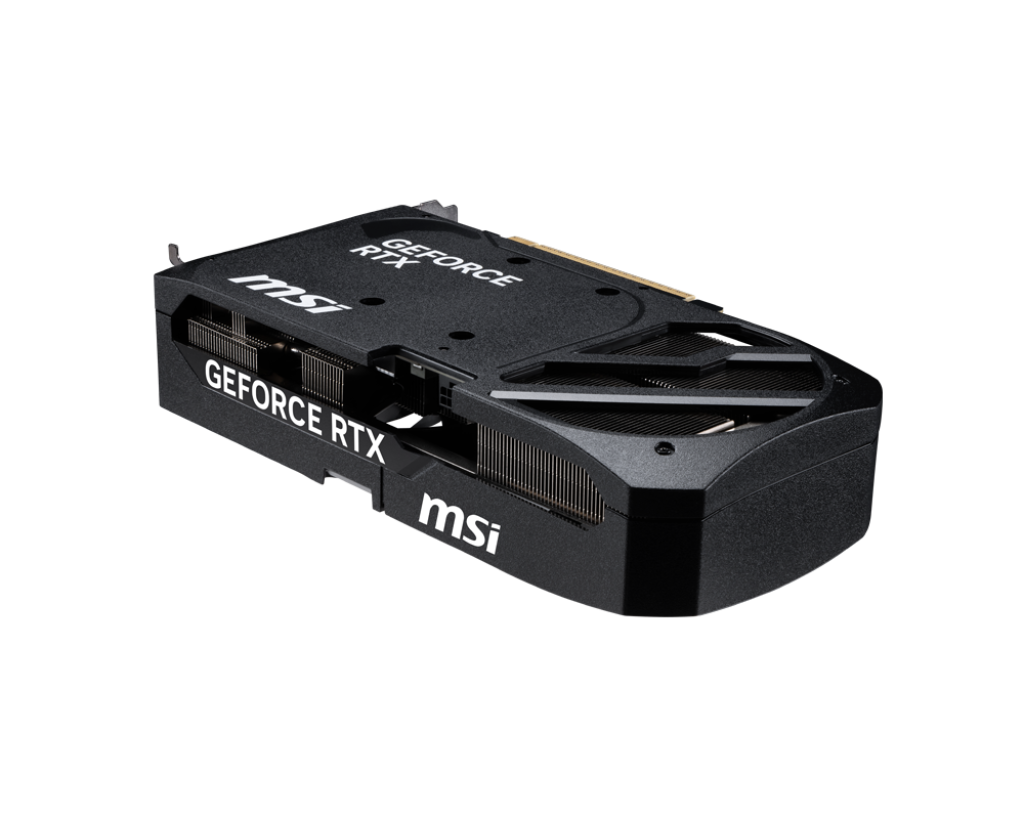

About MSI RTX 5070 OC Shadow 2X 12GB Graphics Card
| Category | Specification |
|---|---|
| Model Name / Marketing Name | MSI GeForce RTX™ 5070 12G SHADOW 2X OC (Model: G5070-12S2C) |
| GPU Architecture | NVIDIA Blackwell |
| Base / Standard Boost Clock | Boost Mode: ~ 2542 MHz – Extreme Performance (OC) Mode: ~ 2557 MHz |
| CUDA Cores | 6,144 |
| Memory Type / Speed / Bus Width | 12 GB GDDR7, 28 Gbps, 192-bit bus |
| Interface | PCI Express Gen 5 ×16 |

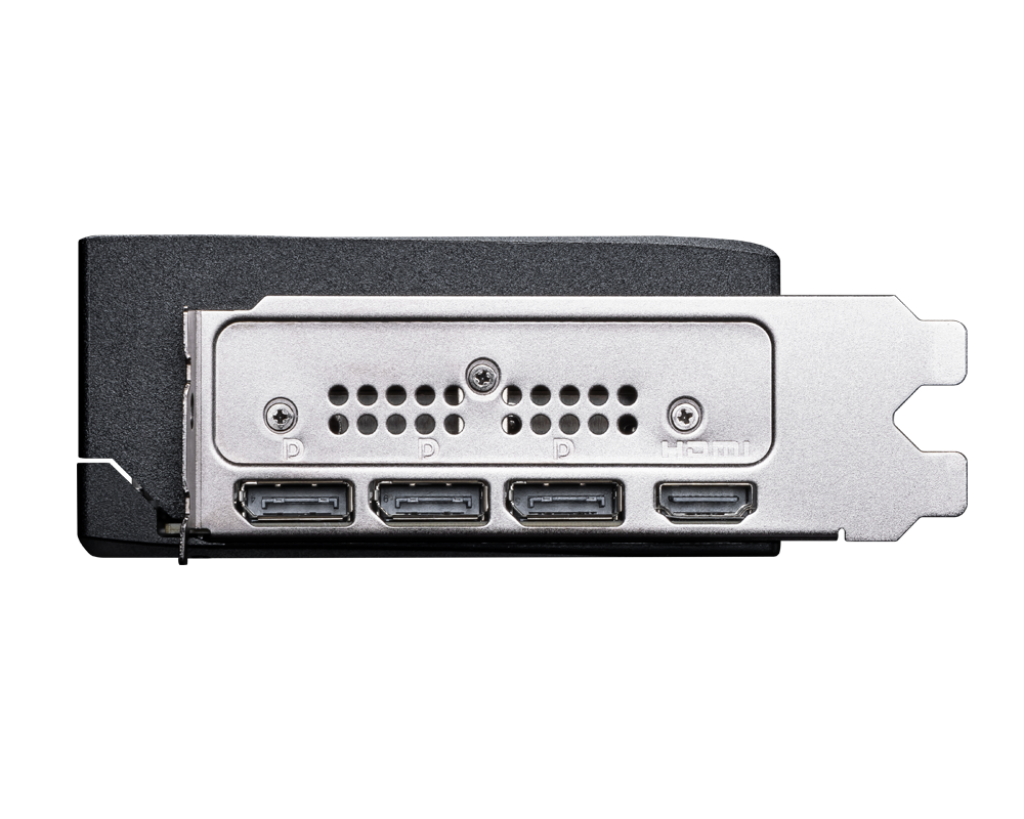

| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b (supports up to 8K@120Hz via HDMI, or up to 4K@480Hz) |
| Resolution / Maximum Displays | Digital Max Resolution 7680 × 4320; supports up to 4 displays |
| APIs Supported | DirectX 12 Ultimate; OpenGL 4.6 |

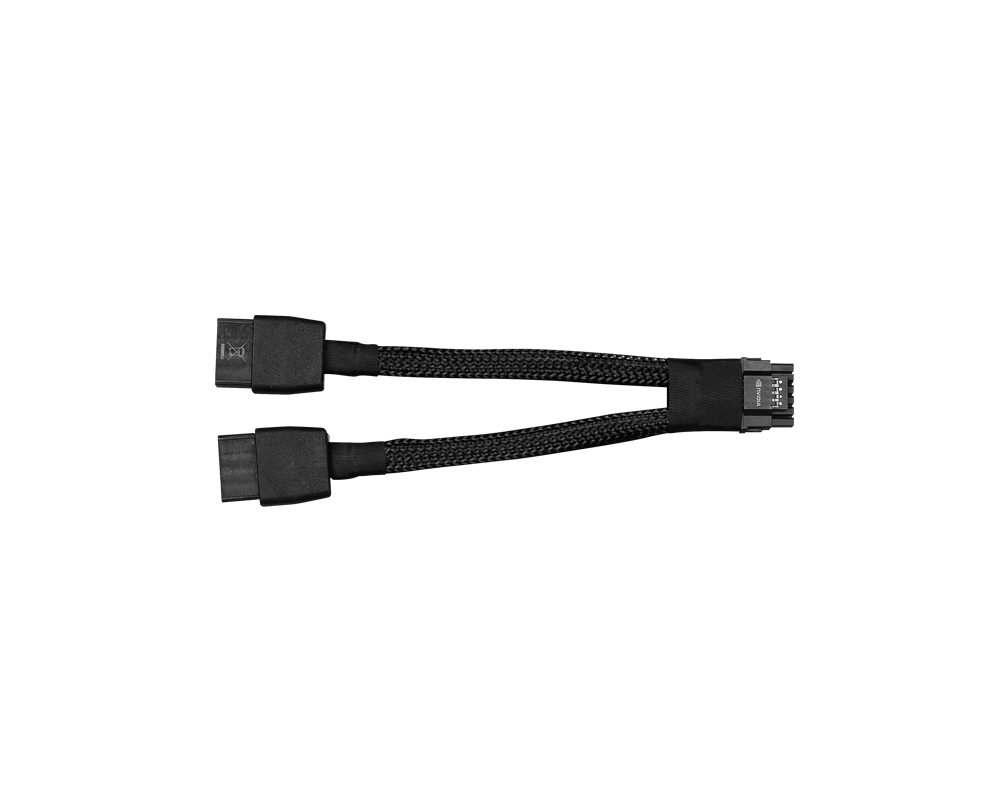

| Power & Connectors | TGP 250 W; requires a single 16-pin power connector; Recommended PSU 650 W |

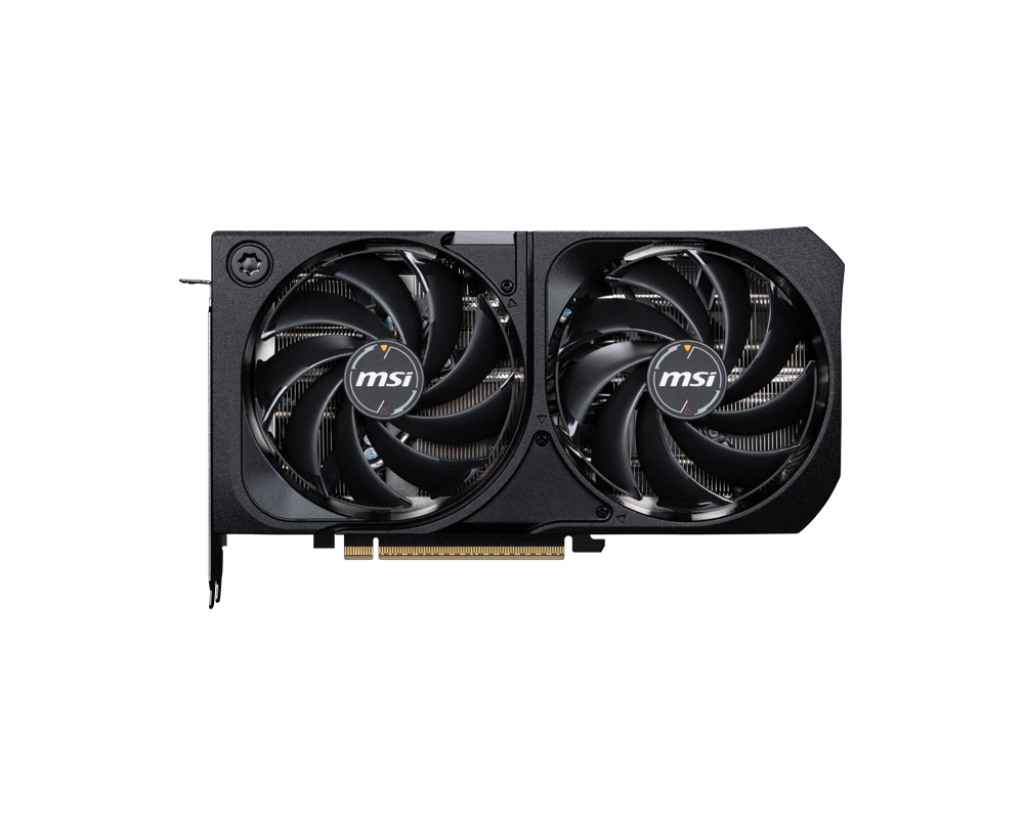

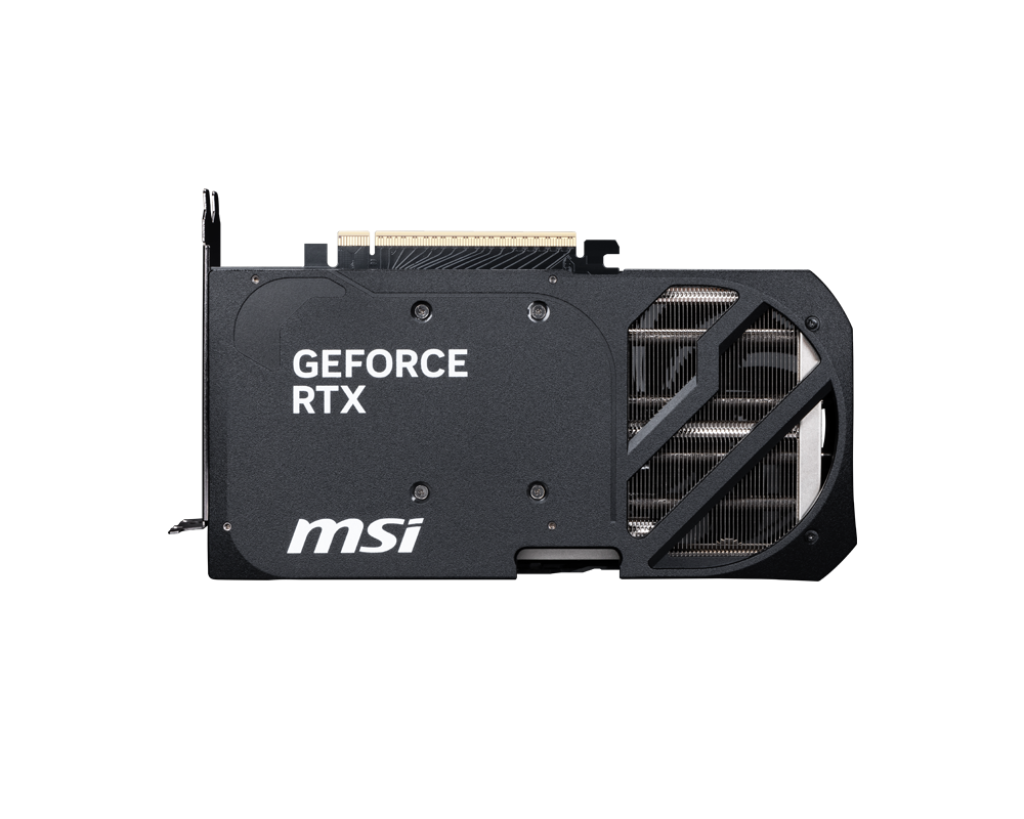

| Cooling & Physical Features | Dual-fan heatsink design; TORX Fan 5.0; nickel-plated copper baseplate; Core Pipes; reinforcing backplate; Zero Frozr (fan stop at low temperatures) |
| Physical Dimensions | 231 mm length × 126 mm width × 50 mm thickness; Weight (card) ~ 724 grams; Package ~ 1107 grams |
| Additional Features | DrMOS power stages; MSI Center for monitoring/tweaking; Afterburner support; safety fuses on the custom PCB |
