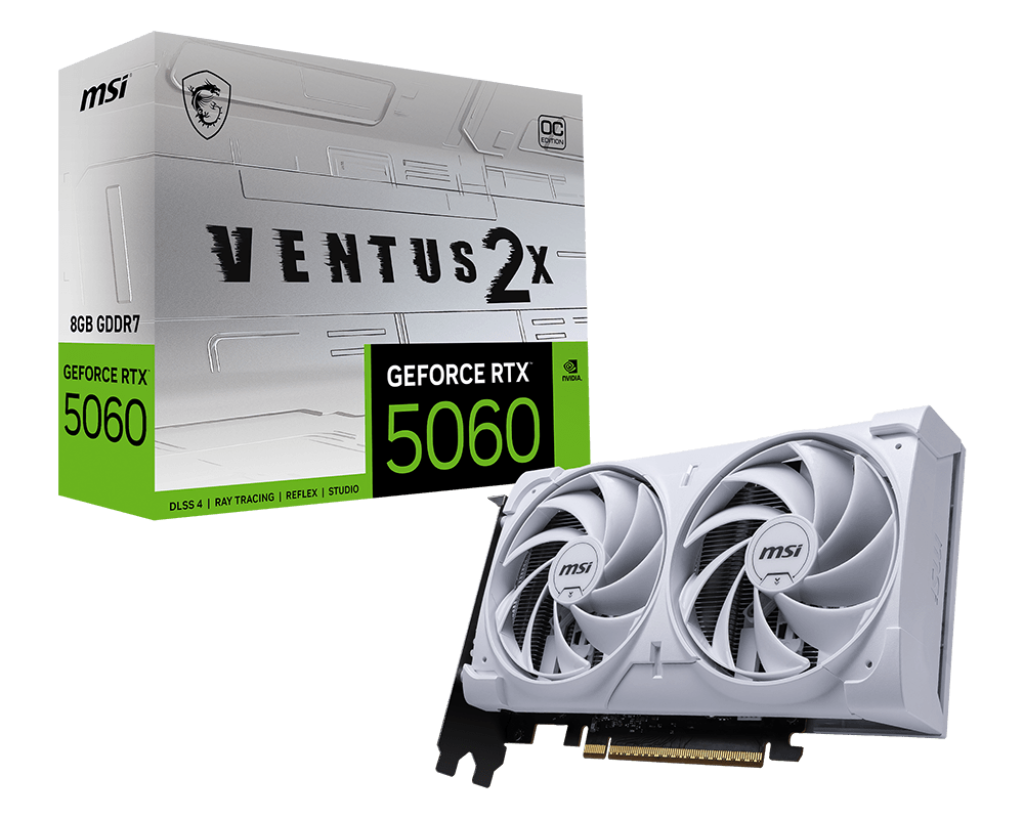

About MSI RTX 5060 Ventus 2X OC White 8GB GDDR7 Graphics Card
| Category | Specification |
|---|---|

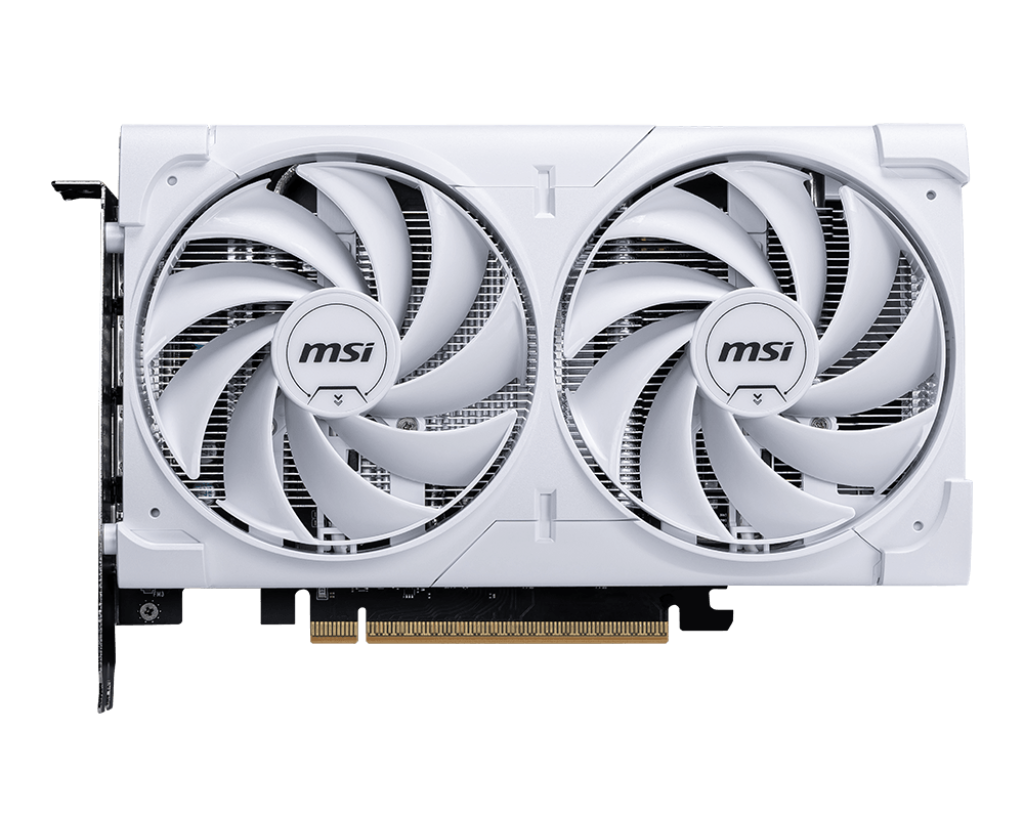

| Architecture & General Features | NVIDIA Blackwell architecture; supports DLSS 4; TORX Fan 5.0 dual-fan cooler; Full-height card; 2.5-slot width |
| Core Clocks | Boost / OC Mode up to ~2535 MHz; Regular boost around 2527-2535 MHz |
| Compute Units | 3840 CUDA cores |
| Memory | 8 GB GDDR7; memory speed ~28 Gbps; 128-bit memory interface; bandwidth ~448 GB/s |
| Interface / Expansion | PCIe 5.0 x16 slot; dual-slot/2.5-slot width design; requires 8-pin PCIe power connector |

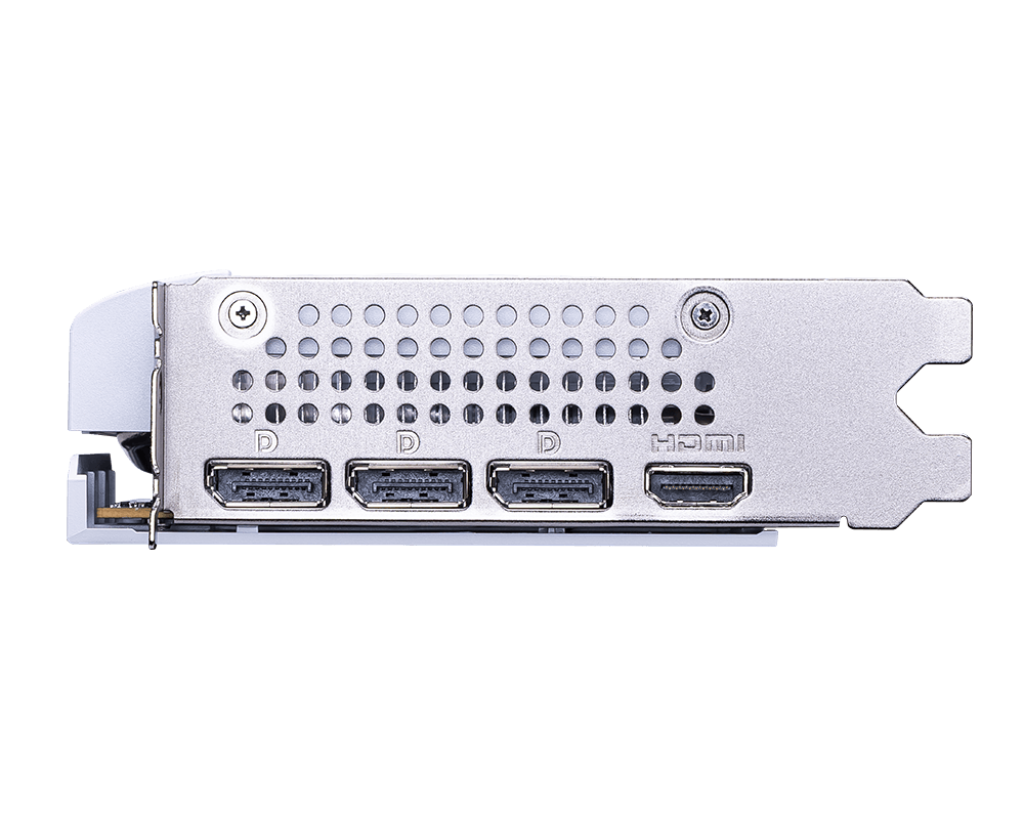

| Display Outputs | 3 × DisplayPort 2.1b; 1 × HDMI 2.1b |
| Power & PSU Recommended | Power draw ~145 W; recommended system PSU ~550 W |
| Physical Dimensions | Length 197 mm; Height 120 mm; Width 41 mm; occupies ~2.5 slots |

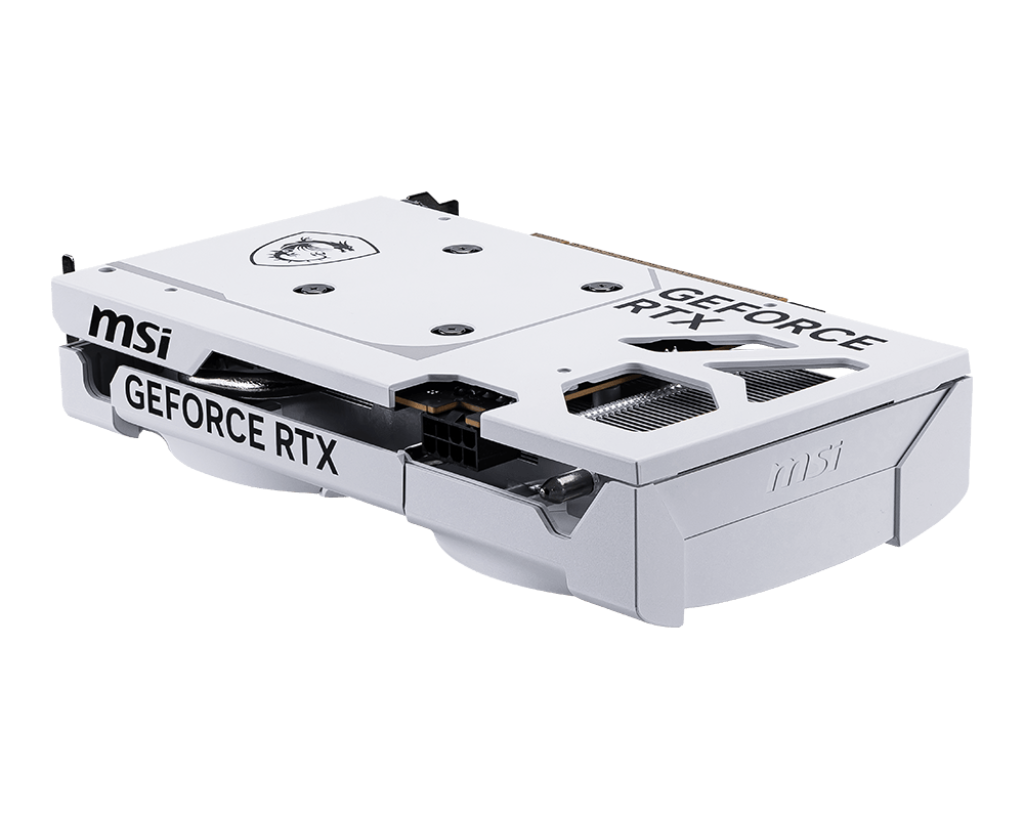

| Other Features | Reinforced backplate; improved heat pipes; zero-fan or idle fan stop under low load (if applicable); designed with neutral aesthetic white color; HDCP 2.3 support |
| OS / API Support | Windows; DirectX 12; OpenGL 4.6; support for modern display standards |
