MSI PRO B760M‑E DDR5 Micro‑ATX Motherboard LGA 1700 DDR5 | PCIe 4.0 M.2, 2.5G LAN
MSI PRO B760M‑E DDR5 Micro‑ATX Powerful micro‑ATX motherboard for Intel 12th to 14th Gen systems. Features blazing DDR5 memory speeds, PCIe 4.0 NVMe support, dual‑band Wi‑Fi 6E, Bluetooth 5.3, and 2.5G LAN—ideal for compact gaming and productivity setups.
Original price was: ₹10,275.00.₹10,033.00Current price is: ₹10,033.00.
16
People watching this product now!
Payment Methods:
Description

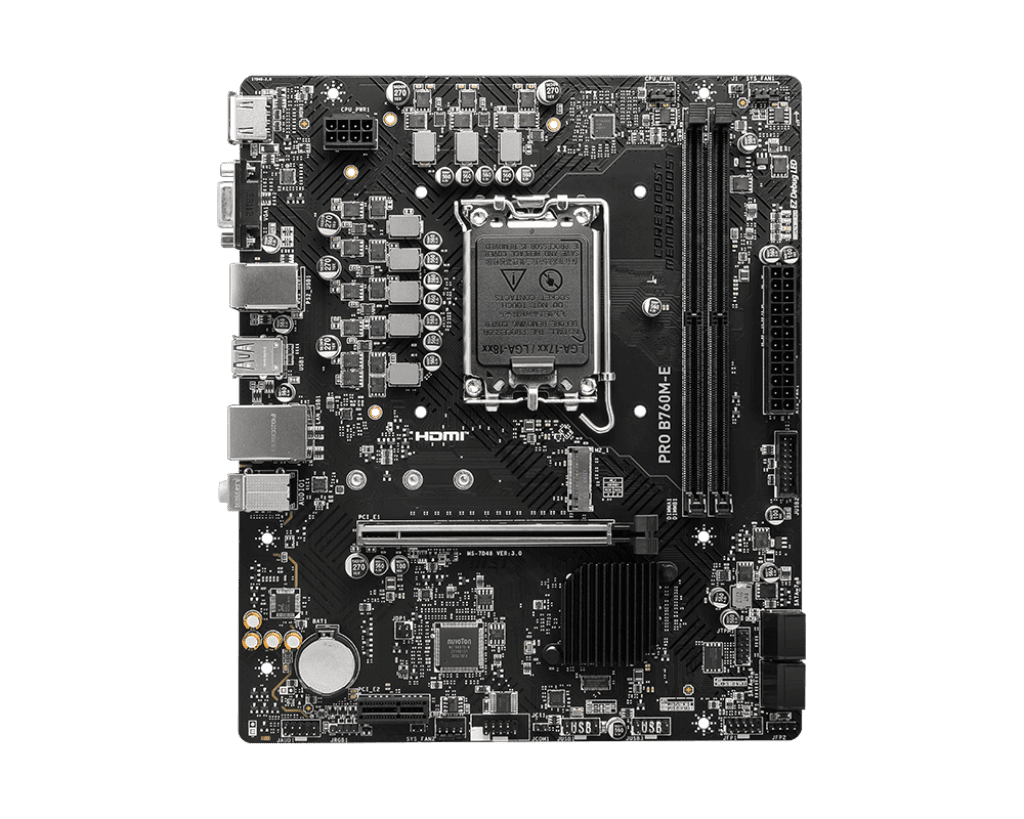

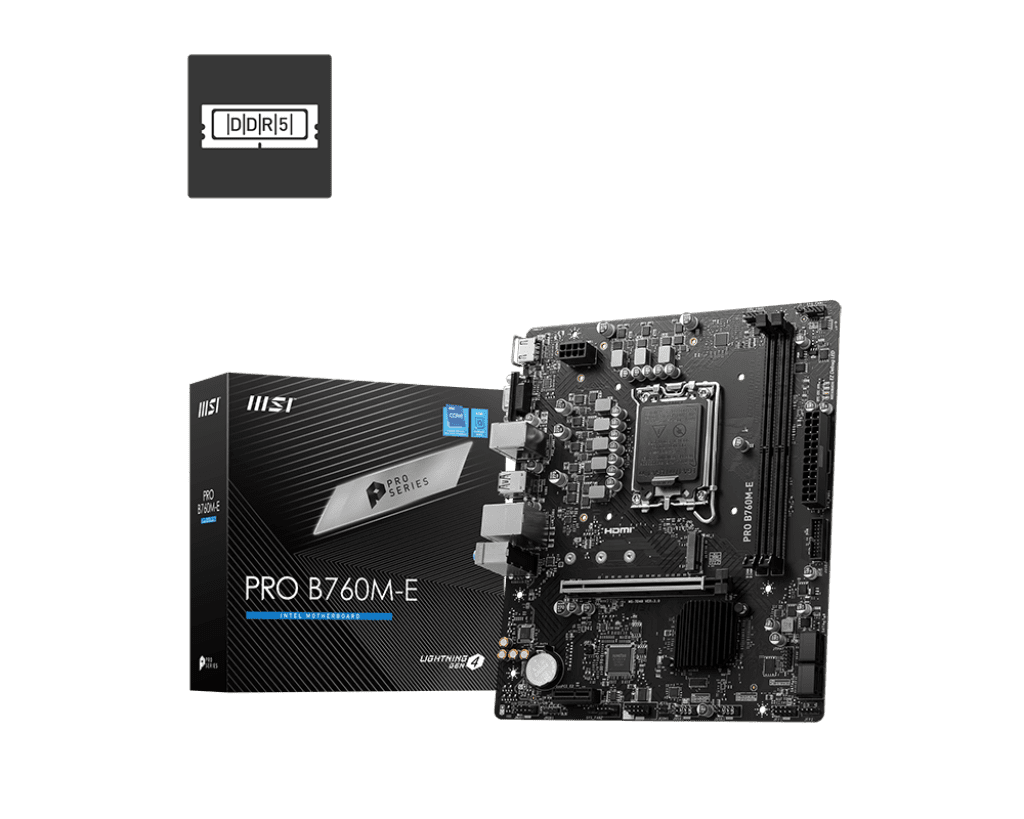

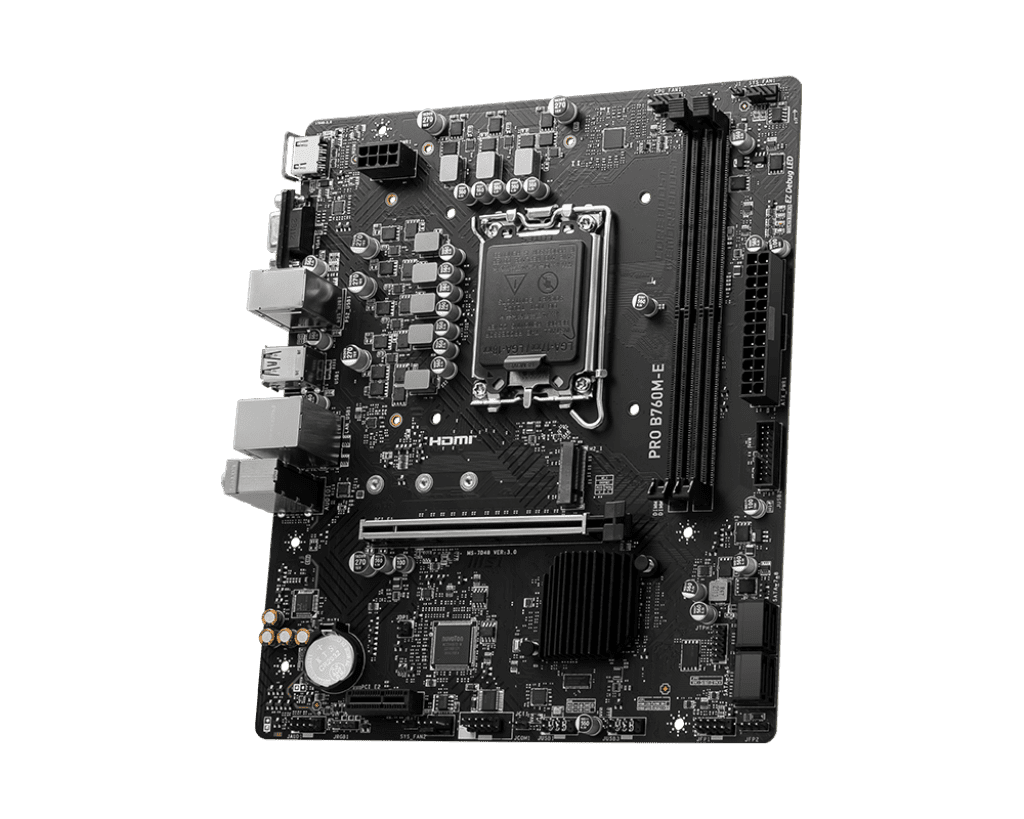

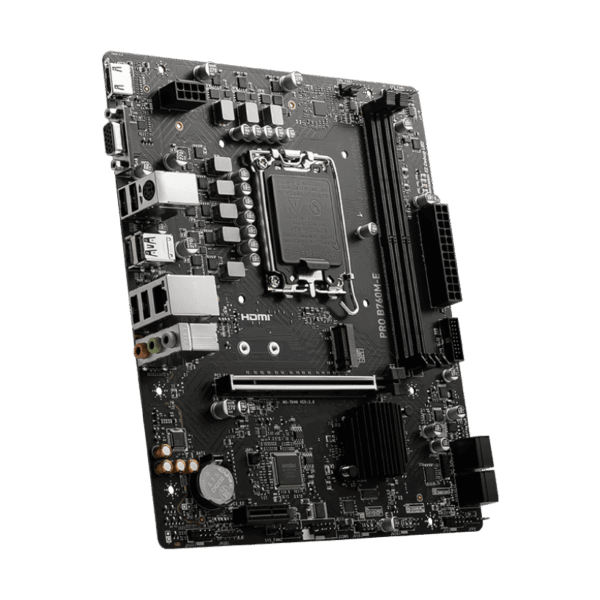

About MSI PRO B760M‑E DDR5 Micro‑ATX Motherboard
For powerful Intel systems, the MSI PRO B760M‑E DDR5 provides the ideal balance of contemporary performance and small form factor. It offers next-generation features in the flexible micro-ATX form factor, thanks to the Intel B760 chipset with support for LGA 1700.
- DDR5 Performance: Supports up to 128 GB of DDR5 RAM, with overclocking potential up to 6800 MHz, enabling fast multitasking, smooth rendering, and accelerated workflows.
- Stable Power Design: Built with a 10 1 phase VRM and strategic heatsink placement, the board ensures reliable power delivery to high-performance CPUs, even under full system load.
- GPU & Expansion: Equipped with a reinforced PCIe 4.0 x16 slot for modern graphics cards and a PCIe 3.0 x1 slot for additional cards like capture or network adapters.
- Fast Storage: Includes one PCIe 4.0 x4 M.2 slot with a heatsink for high-speed NVMe SSDs, plus four SATA 6 Gb/s ports for expanded disk storage.
- High-End Connectivity: Integrated 2.5G LAN, Wi‑Fi 6E, and Bluetooth 5.3 offer fast, reliable wired and wireless connections. Expansion includes USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, and USB 2.0.
- Display Outputs: Features standard HDMI 2.1 and DisplayPort 1.4, ensuring compatibility with most modern monitors.
- Audio: Delivers quality 7.1‑channel audio with high-definition Realtek codec and onboard shielding for clear sound.
- User‑Friendly Build: Comes with a pre-installed I/O shield, Flash BIOS button, EZ Debug LEDs, and ARGB header for lighting control and easy troubleshooting.
Features of the MSI PRO B760M‑E DDR5 Micro‑ATX Motherboard
| Feature | Details |
|---|---|
| Socket / Chipset | Intel LGA 1700 / B760 |
| Processor Support | Intel 12th–14th Gen Core / Pentium / Celeron |
| Form Factor | Micro‑ATX |
| Memory Support | 4× DDR5 DIMM, up to 128 GB, OC up to 6800 MHz |
| Power Design | 10 1 phase VRM with enhanced cooling |
| PCIe Expansion | 1× PCIe 4.0 x16 (reinforced), 1× PCIe 3.0 x1 |
| M.2 Storage | 1× PCIe 4.0 x4 with heatsink |
| SATA Ports | 4× SATA III 6 Gb/s |
| Network & Wireless | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3 |
| USB Ports | USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, USB 2.0 |
| Video Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | 7.1‑channel Realtek HD audio |
| Build Tools | I/O shield, Flash BIOS button, Debug LEDs, ARGB header |
Ideally Best For
- Compact gaming systems powered by Intel’s current CPUs
- Mini créateur PCs needing fast RAM, storage, and networking
- DIY PC enthusiasts who value easy builds and modern features
- Work-from-home setups require stability and high connectivity
- Budget-conscious performance builds leveraging DDR5 without upscaling to ATX
Buy MSI PRO B760M‑E DDR5 Micro‑ATX Motherboard LGA 1700 DDR5 | PCIe 4.0 M.2, 2.5G LAN Online Today.
