About MSI MAG X870E Tomahawk WiFi Motherboard
Category | Specification |
---|---|
CPU Support | AMD Ryzen 7000 / 8000 / 9000 desktop processors; AM5 socket |
Chipset | AMD X870E |
Form Factor & Size | ATX; 305 mm × 244 mm |
Memory | 4 DIMMs, DDR5 UDIMM; up to 256 GB; supports EXPO; speeds up to DDR5-8400+ (OC) depending on configuration |
VRM / Power Delivery | 14-Duet-Rail Power System with 80A Smart Power Stage (SPS); dual 8-pin CPU power connectors; extended heatsinks and thermal pads for MOSFETs etc. |
Storage (M.2 & SATA) | 4× M.2 slots: 2× PCIe 5.0 x4 (from CPU), 2× PCIe 4.0 x4 (from chipset); 4× SATA 6 Gb/s ports; RAID support for M.2 and SATA (RAID 0/1/10) |
PCIe / Expansion Slots | Primary PCIe 5.0 x16 for GPU; additional slots via chipset (PCIe 4.0, PCIe 3.0) |

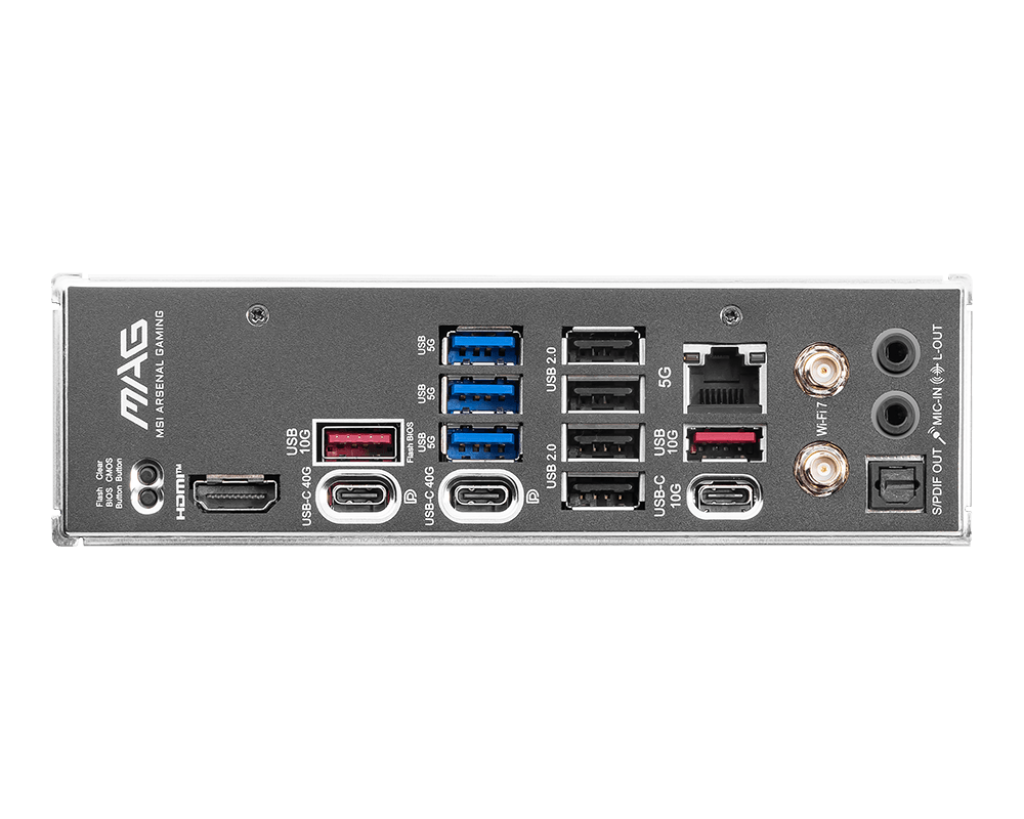

Rear I/O / USB | USB4 Type-C (40 Gbps), multiple USB 10/5 Gbps ports, HDMI 2.1, USB Type-C/Type-A etc. |
Networking & Wireless | On-board Wi-Fi 7 module (M.2 Key-E), Bluetooth 5.4; Realtek 5 GbE LAN |
Audio | Realtek ALC4080 codec; 7.1 channel USB high-performance audio; supports 32-bit/384 kHz front panel playback; S/PDIF output. |
Cooling & Thermal Features | Extended MOSFET heatsinks with 7 W/mK thermal pads, extra choke pads; double-sided M.2 Shield Frozr II; pre-mounted I/O shield etc. |
Internal Headers & Features | Multiple fan/pump headers; RGB / ARGB headers; front-panel USB-C quick charge; EZ debug LEDs; Flash BIOS & Clear CMOS buttons; upgraded connectors for ease of build. |
