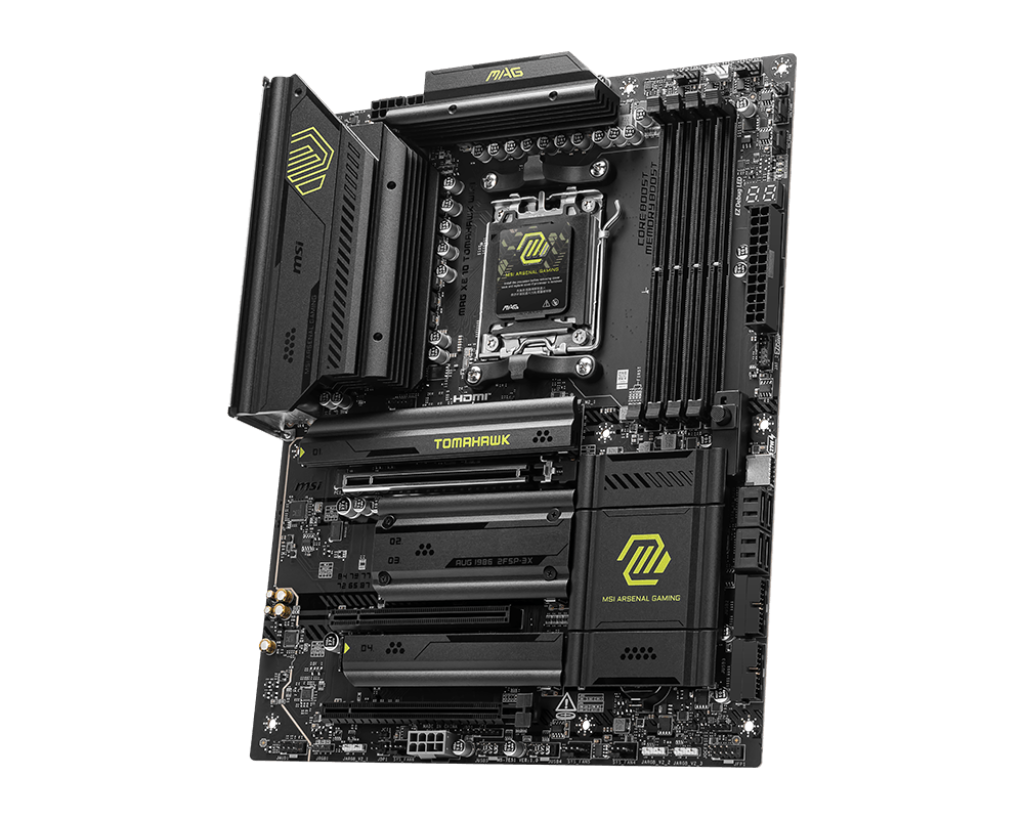

About MSI MAG X870 Tomahawk WIFI ATX Motherboard
| Category | Specification |
|---|---|
| CPU / Compatibility | Supports AMD Ryzen 7000 / 8000 / 9000 Series desktop CPUs; Socket AM5 |
| Chipset | AMD X870 |
| Memory | 4 DIMMs; DDR5; max 256 GB; supports EXPO profiles; overclocked frequencies per module |
| Expansion / PCIe Slots | Primary PCIe 5.0 ×16; additional slots from chipset (e.g. PCIe 4.0 x4 etc.) |
| Storage | 4 × M.2 slots (two Gen5 from CPU, others Gen4 from chipset), 4 × SATA 6 Gb/s; RAID support for M.2 NVMe devices |

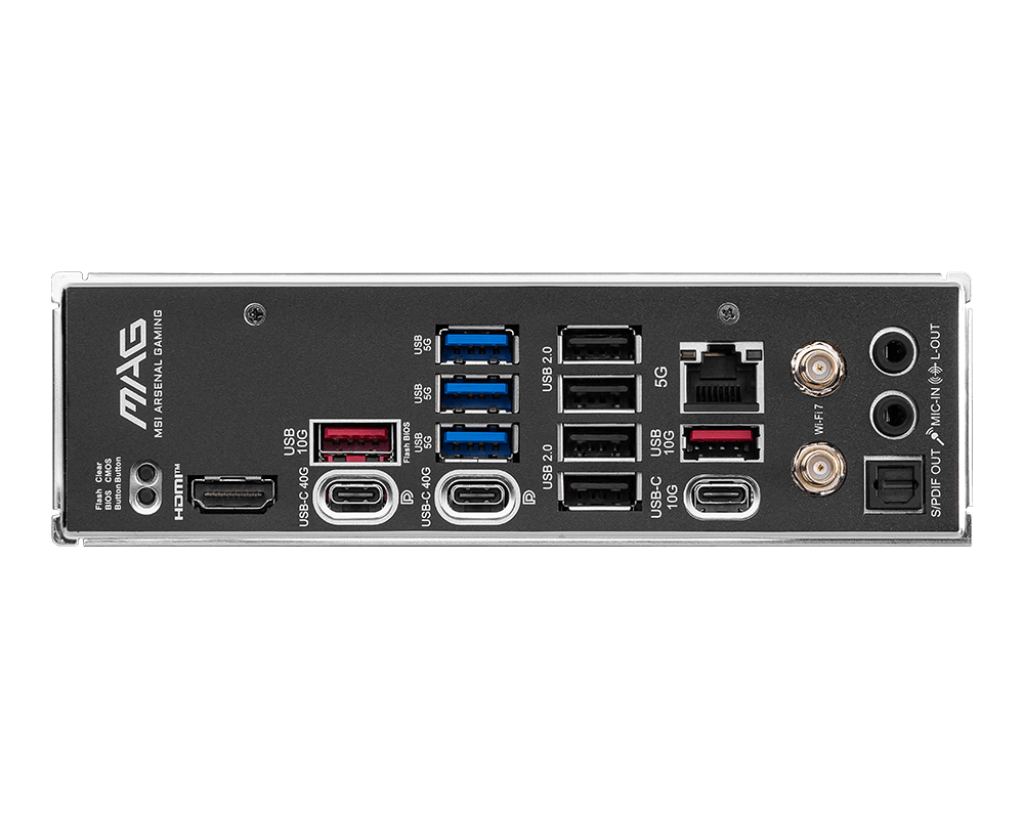

| USB / I/O | Rear and internal USB: includes USB4 / USB-C / USB 10 Gb/s etc.; front panel USB-C header with fast charge support. |
| Networking | Realtek 5Gb LAN; Wi-Fi 7 (MU-MIMO, multiple bands incl. 2.4/5/6 GHz) |
| Audio | Realtek ALC4080 codec; 7.1 channel; high resolution playback, S/PDIF output |
| Power Delivery & Cooling | Dual 8-pin +12V CPU power connectors; extended heatsinks; MOSFET thermal pads; overall robust VRM / cooling design. |
| Board & Physical Specs | ATX form, ~305 mm × 244 mm; 8-layer PCB; reinforced slots; multiple fan headers; RGB/ARGB support. |
| Special / Builder Features | EZ M.2 Shield Frozr, EZ PCIe Release, Flash BIOS / Clear CMOS buttons, pre-installed I/O shield, Debug LEDs etc. |
