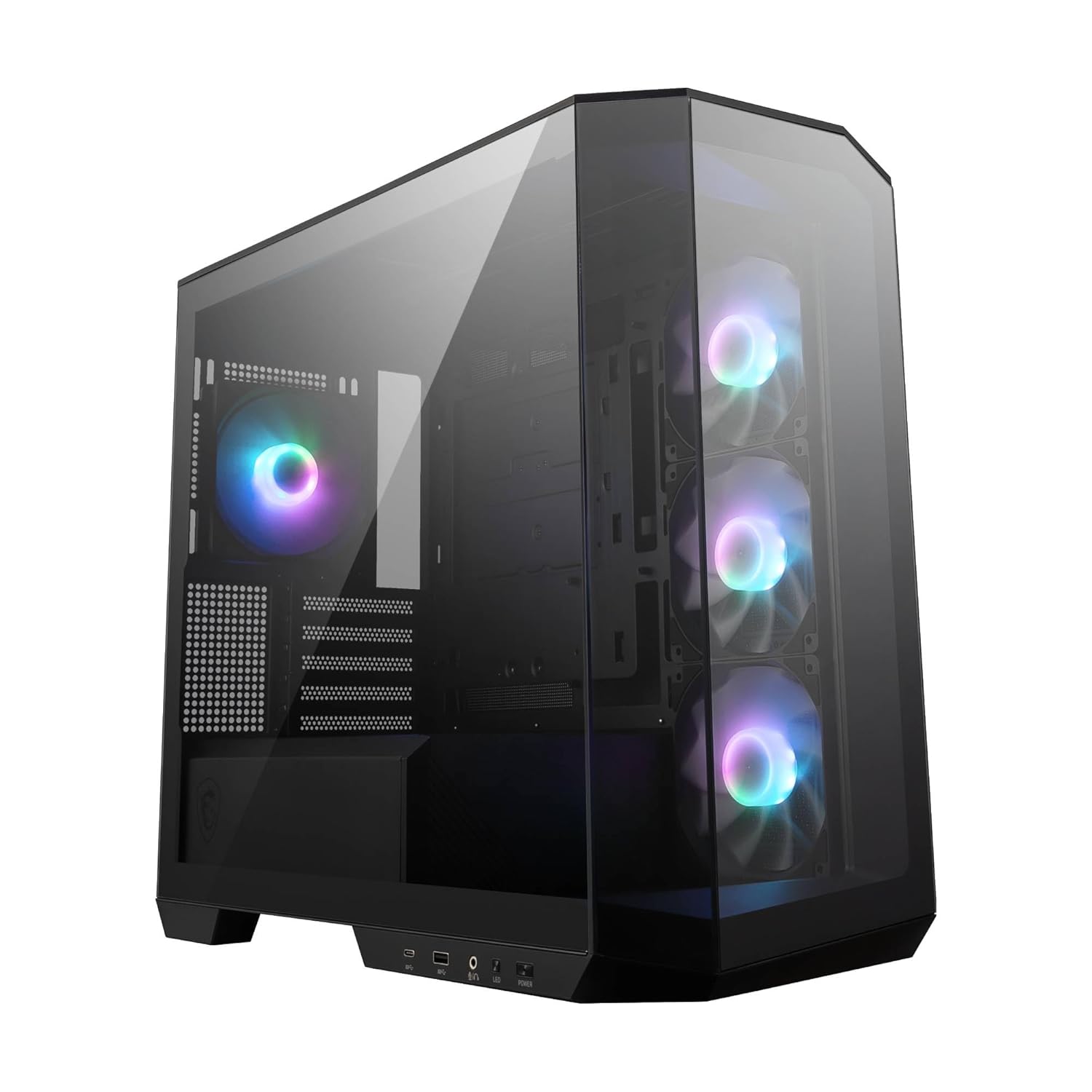

MSI MAG PANO M100R PZ – Showcase Mid-Tower Gaming Case with 270° Panoramic Glass & Back-Connect Motherboard Support

About MSI MAG Pano M100R PZ Desktop Cabinet

When you’re building a gaming PC that’s as much about looks as it is about performance, the MSI MAG Pano M100R PZ Desktop Cabinet delivers a bold statement.

Engineered for those who want clean lines, show-piece internals and smart cable management, it introduces unique design features and premium aesthetics wrapped in a functional build environment.

The MSI MAG Pano M100R PZ Desktop Cabinet is a bold and visually stunning mid-tower PC cabinet designed for builders who want maximum visual impact and modern features.

With its striking 270-degree panoramic tempered glass panel, this case transforms your system into a showcase—letting you highlight not only your high-end hardware, but also the design of your build from multiple angles.

Built around Micro-ATX and Mini-ITX motherboards (including special support for back-connect designs), the MSI MAG Pano M100R PZ Desktop Cabinet is optimized for a clean and cable-free aesthetic.

The back-connect capability allows major I/O and power cables to be routed neatly behind the motherboard tray, reducing visible clutter and enabling a sleeker presentation.

Internally, the MSI MAG Pano M100R PZ Desktop Cabinet supports large graphics cards up to 390 mm long and CPU coolers up to approximately 175 mm tall, offering compatibility with high-performance components and enthusiast-level builds.

Cooling is another strong suit.

With multiple mounting locations—including the side (3×120 mm), top (3×120 mm or 2×140 mm) and bottom (1×120 mm) fan slots—and pre-installed ARGB fans, the airflow potential is very good.

Radiator support is strong too, with top-mounted radiators up to 360 mm and a rear radiator location.

This makes the MSI MAG Pano M100R PZ Desktop Cabinet suitable not just for air-cooled rigs but also for liquid-cooling setups.

The inclusion of features like magnetic dust filters, GPU support stand (to prevent sag) and a dedicated ARGB fan/hub controller further demonstrate that build quality and user experience have been given careful consideration.

Front panel I/O caters to cutting-edge builds, featuring USB-C (USB 3.2 Gen 2×2) for high-speed data and future-proof device connectivity, alongside a USB-A port and 3.5 mm audio jack.

The overall dimensions (488 × 235 × 453 mm) and weight (~8.8 kg) place it comfortably in the mid-tower class while still delivering ample internal space and expansion flexibility.

Aesthetic versatility is part of its appeal as well—it’s offered in both white and black finishes to suit different build themes.

Whether you’re building a minimalist white setup with clean lines or a darker gaming rig with dramatic lighting, the PANO M100R PZ delivers the visual canvas and flexibility needed.

The MSI MAG Pano M100R PZ Desktop Cabinet offers an all-around premium experience: striking design, modern connectivity, generous cooling and component support, and features tailored for clean-looking builds.

If your goal is a PC that is both high performing and a showpiece, this case makes a compelling choice.

Design & Aesthetics

Right from the start, the MSI MAG Pano M100R PZ Desktop Cabinet commands attention with its 270-degree panoramic tempered-glass viewing window — wrapping from the front across the side, offering an expansive, aquarium-style glimpse into your build.

Inside, you’ll find pre-installed reverse-blade 120 mm ARGB fans on the side plus one at the rear, giving you brilliant lighting and airflow from day one.

The chassis is available in both black and white versions, letting you tailor the look to your setup.

But beyond just aesthetics, MSI has given very clean focus to what they call their “PROJECT ZERO” initiative: a design philosophy that emphasises back-connect motherboard compatibility, meaning cables (power, fan headers, IO) are routed behind the motherboard tray for a cleaner interior and easier build process.

 This is particularly appealing for those who want showcase builds with minimal visible cabling and a tidy look.

Build Support & Compatibility

While the visual style is standout, the MSI MAG Pano M100R PZ Desktop Cabinet doesn’t skimp on practical build support. Here are some of the key specifications:

• Motherboard support: micro-ATX and mini-ITX boards (including back-connect versions) — note: ATX / E-ATX boards are not supported.

• GPU length clearance: supports up to 390 mm long graphics cards.

• CPU cooler height: up to ~175 mm.

• PSU length: up to 200 mm.

• Radiator support: Top mount supports up to 360 mm radiators (or 240/120 as required); rear supports up to 140 mm radiator.

• Drive bays: Internal options include 1×2.5″/3.5″ plus combo bays allowing 2×2.5″ or 1×2.5″ + 1×3.5″.

• Expansion slots: 5 full-height PCIe slots.

With all this, the MSI MAG Pano M100R PZ Desktop Cabinet offers great flexibility for a high-end graphics card, decent cooling (air or liquid), and a build that presents beautifully.

MSI MAG Black Mid Tower Cabinet: Unique Features Worth Highlighting

• Back-Connect Motherboard Support: Many cases ignore this design innovation; the PANO M100R PZ is explicitly geared for it. This means less visible mess of cables and a more streamlined build environment.

• GPU Support Stand: The MSI MAG Pano M100R PZ Desktop Cabinet includes a built-in GPU support bracket/support stand with a magnetised base and level indicator to prevent GPU sag — both a functional and aesthetic aid.

• Full Glass Panoramic View: Thanks to the 270° glass, your internal components, ARGB lighting, and cooling rigs are spectacularly displayed — it’s ideal for a showcase build.

• Pre-installed ARGB Fans & Hub: You’re not starting from zero; the side and rear fans are included and connect to an internal ARGB hub (supports up to four ARGB fans) with LED control switch.

MSI MAG Mid Tower Cabinet: Performance & Practicality for Builds

From a real-world builder’s perspective, the MSI MAG Pano M100R PZ Desktop Cabinet offers both style and substance — but with caveats:

What works very well:

• If you’re building a compact but visually striking gaming system (micro-ATX or mini-ITX), this case serves you very well.

• If you want a tidy, minimal-cabling interior and plan to show off your components through glass, this chassis excels.

• The 390 mm GPU clearance means top-of-the-line cards fit easily.

• Liquid cooling support up to 360 mm means you can use robust AIO or custom loops (top mounted) without issue.

What to consider / possible trade-offs:

• The restriction to micro-ATX and mini-ITX boards means if you currently have or plan to use a full ATX board with more expansion slots, you’ll need a different case. Several reviewers flagged this as a limitation.

• Radiator placement is restricted mainly to the top (and the rear) — no front radiator mount means some options may be limited depending on your cooling layout.

• With the wrap-around glass and large side panel, airflow might need slightly more attention (ensuring good intake & exhaust) to keep temps optimal — though the three side fans plus many mount points help.

• If you’re less concerned about visuals and more about pure airflow or ultra-budget builds, you might get more value (or compatibility) elsewhere.

MSI MAG Pano Series Desktop Cabinet: Ideal Use-Cases

• Gaming systems with high-end GPUs: Want to show your RTX/AMD card off? This case lets you do it in style.

• Streaming / showcase rigs: For content creators who have the PC visible on camera or in a live-room, the panoramic glass and ARGB lighting are a strong visual advantage.

• Compact high-quality builds: If you’re going micro-ATX or mini-ITX and still want serious performance (big GPU + AIO cooling), this case gives a premium feel without mid-tower size constraints.

• Aesthetics-first machines: If your build is part of the room’s décor (white-themed PC, see-through components, ambient lighting), the PANO M100R PZ is built with that mindset.

Final Thoughts

The MSI MAG Pano M100R PZ Desktop Cabinet may not be for every builder due to its motherboard size restriction and some radiator placement limitations, but for those who prioritise a visually stunning build, clean internal layout, and high-end component support, it ticks a lot of boxes.

If you’re setting out to build a showpiece PC rather than just a functional workstation hidden under a desk, this MSI MAG Pano M100R PZ Desktop Cabinet is a very compelling choice.

If you’re building with micro-ATX or mini-ITX in mind, are comfortable with top-mounted cooling, and want that “wow” factor when someone glances inside your rig — then invest in this case, plan your build around its strengths (especially airflow and motherboard clearance), and it will serve beautifully.
