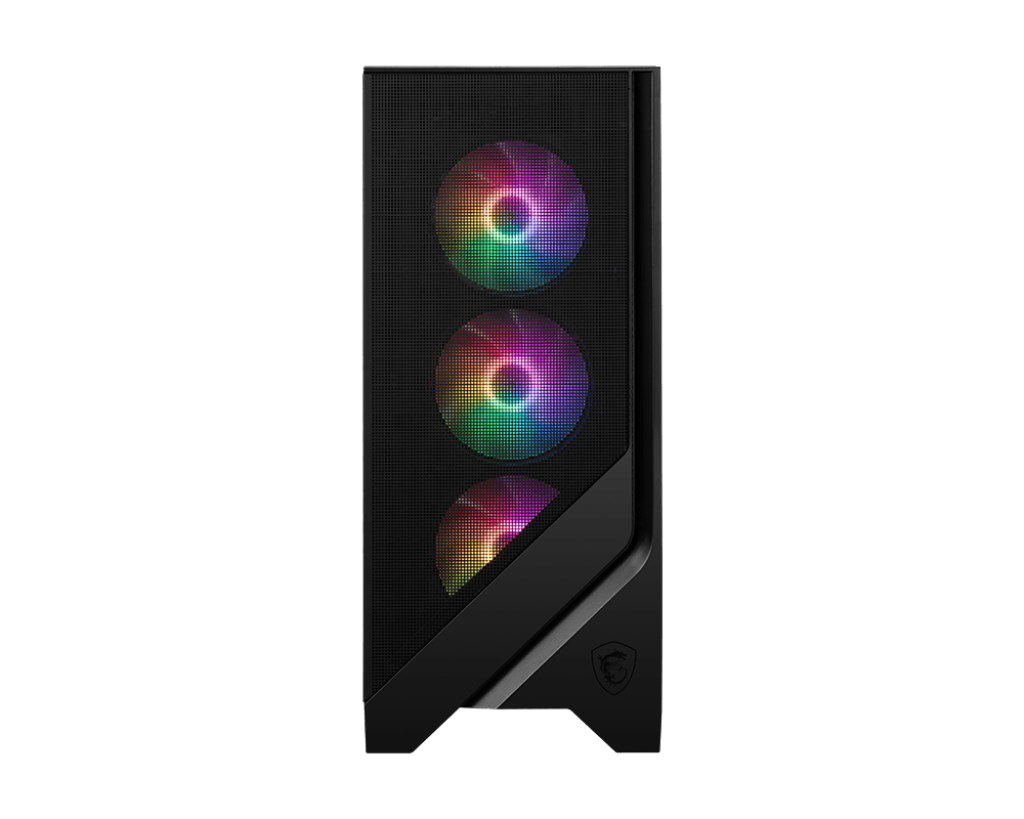

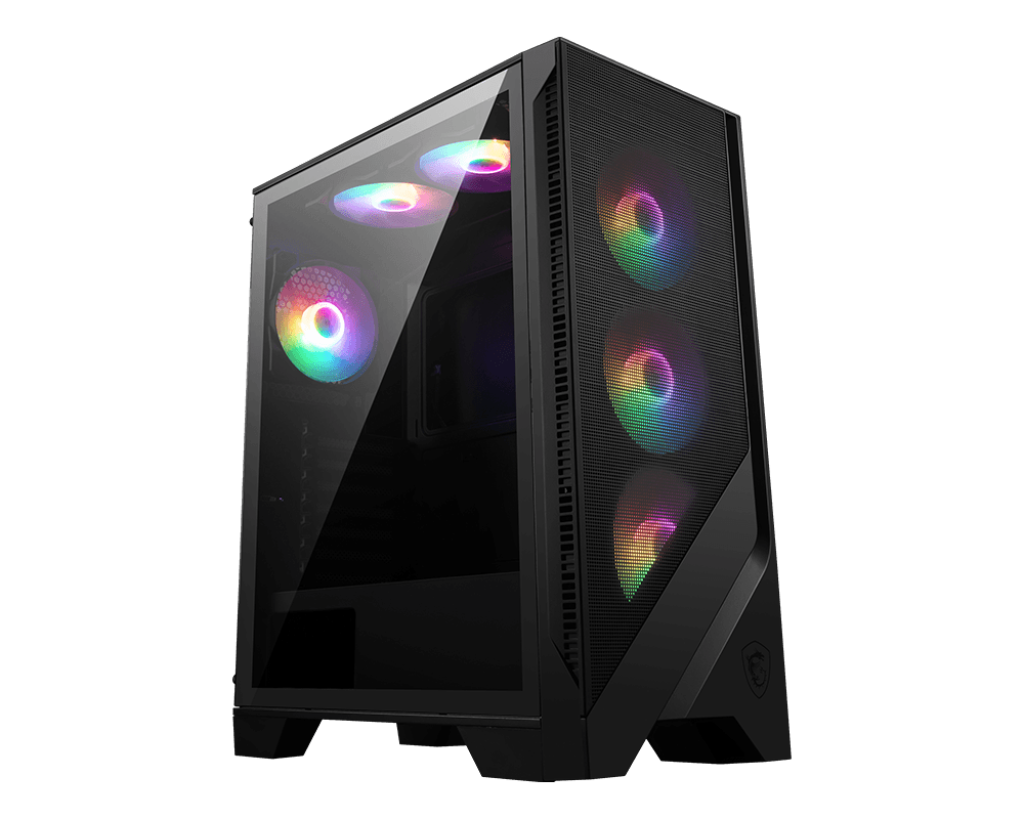

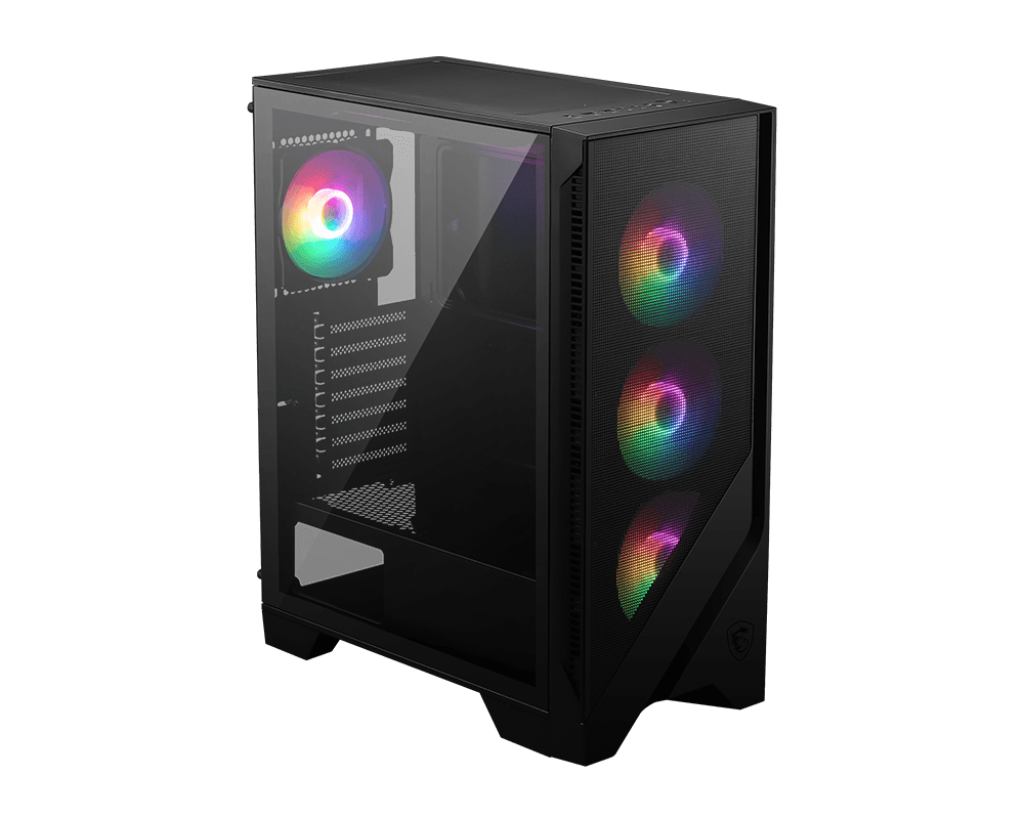

About MSI MAG Forge 120A Airflow
| Specification Category | Detailed Description |
|---|---|
| Model / Name | MAG Forge 120A Airflow |
| Case Form Factor | Mid Tower |
| Motherboard Compatibility | ATX, Micro-ATX, Mini-ITX |
| Drive Bays / Storage Support | 3 × 2.5″ Or 2 × 3.5″ + 1 × 2.5″ (combo cage) |

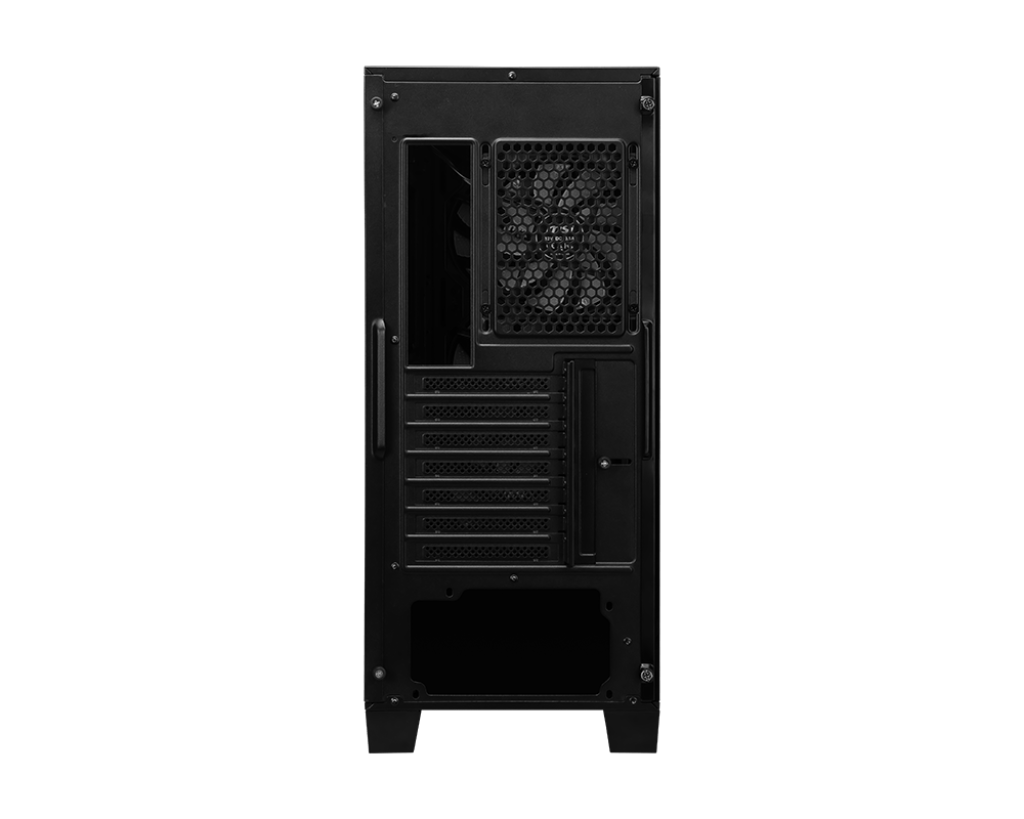

| Expansion Slots | 7 full-height slots |
| Clearance / Component Limits | GPU (maximum length): 330 mm CPU cooler (max height): 160 mm PSU (max length): 200 mm (when HDD trays not installed) |
| Fan / Cooling Support | Pre-installed: Front: 3 × 120 mm (auto-RGB) Top: 2 × 120 mm (auto-RGB) Rear: 1 × 120 mm (auto-RGB) Maximum support: Front: 3 × 120 mm or 2 × 140 mm Top: 2 × 120 mm or 2 × 140 mm Rear: 1 × 120 mm PSU shroud area: up to 2 × 120 mm |
| Radiator / Liquid Cooling Support | Front: up to 240 mm (supports 120 / 140 / 240) Top: up to 240 mm (supports 120 / 240) Rear: 120 mm |
| I/O / Front Panel Ports & Buttons | 2 × USB 3.2 Gen 1 Type-A 1 × Audio Out 1 × Mic In LED On/Off button Power button Reset button |
| Lighting / RGB | Includes “Auto-RGB” fans in all fan locations (3 + 2 + 1) LED On/Off button to toggle lighting RGB hub / controller integrated |
| Dust Filtration | Magnetic top dust filter (removable for cleaning) |

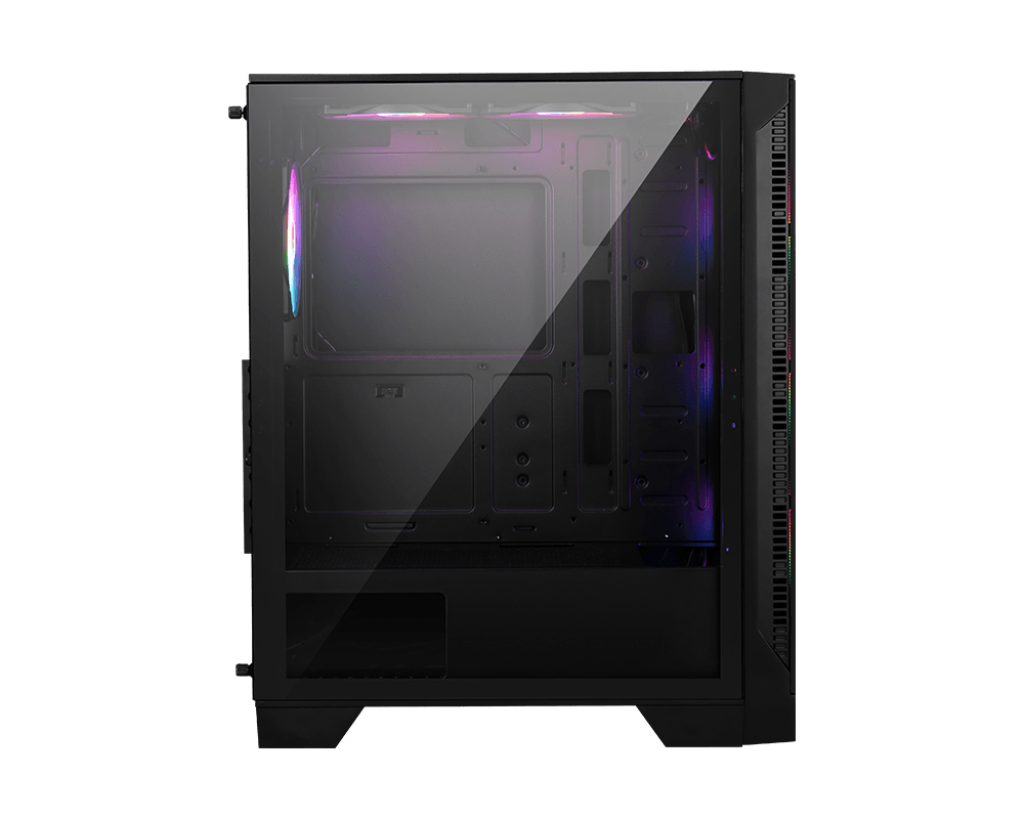

| Side Panel | Tempered glass panel (about 3 mm thick) |
| Dimensions (W × D × H) | 210 × 411.6 × 498 mm (8.26 × 16.20 × 19.60 inches) |
| Weight | Net: ~ 6.0 kg Gross (packaged): ~ 6.96 kg |
| Packaging / Shipping Weight | ~ 6.96 kg |
| Other Features | Optimized airflow design via mesh front LED On/Off button to quickly disable lighting Support for up to 8 system fans (depending on configuration) Cable management with routing channels and tie-downs Magnetic dust filters for convenient removal / cleaning |
| Notes / Remarks | Specifications subject to change Some component compatibility (lengths, radiator fits) may vary depending on selected drives or trays |
