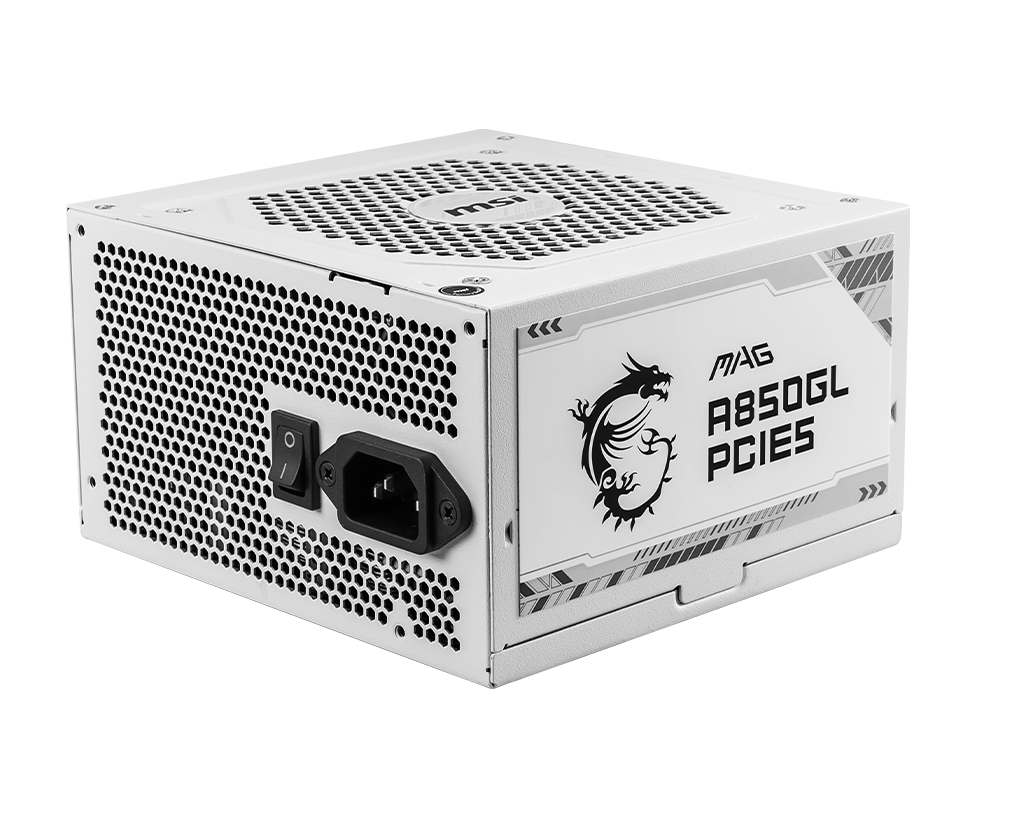

About MSI MAG A850GL PCIe5 850W White SMPS
Specification | Details |
---|---|
Wattage | 850 W power capacity |
Efficiency Certification | 80 PLUS Gold (~90 % efficiency) |

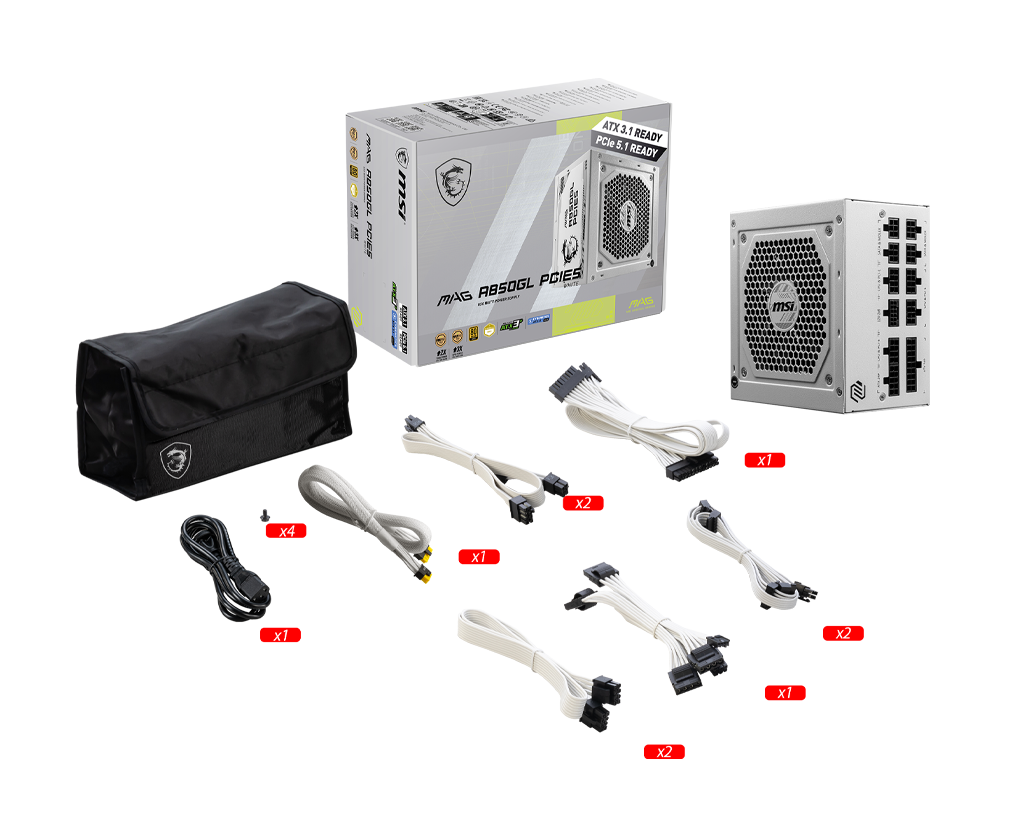

Modular Design | Fully modular with flat black cables |
ATX / PCIe Support | ATX 3.0 / ATX 3.1 compliant; native PCIe 5.0 16-pin connector (600 W) |
Protection Features | OCP, OVP, OPP, OTP, SCP, UVP included |
Topology & PFC | Full-Bridge LLC + DC-DC design; Active PFC |

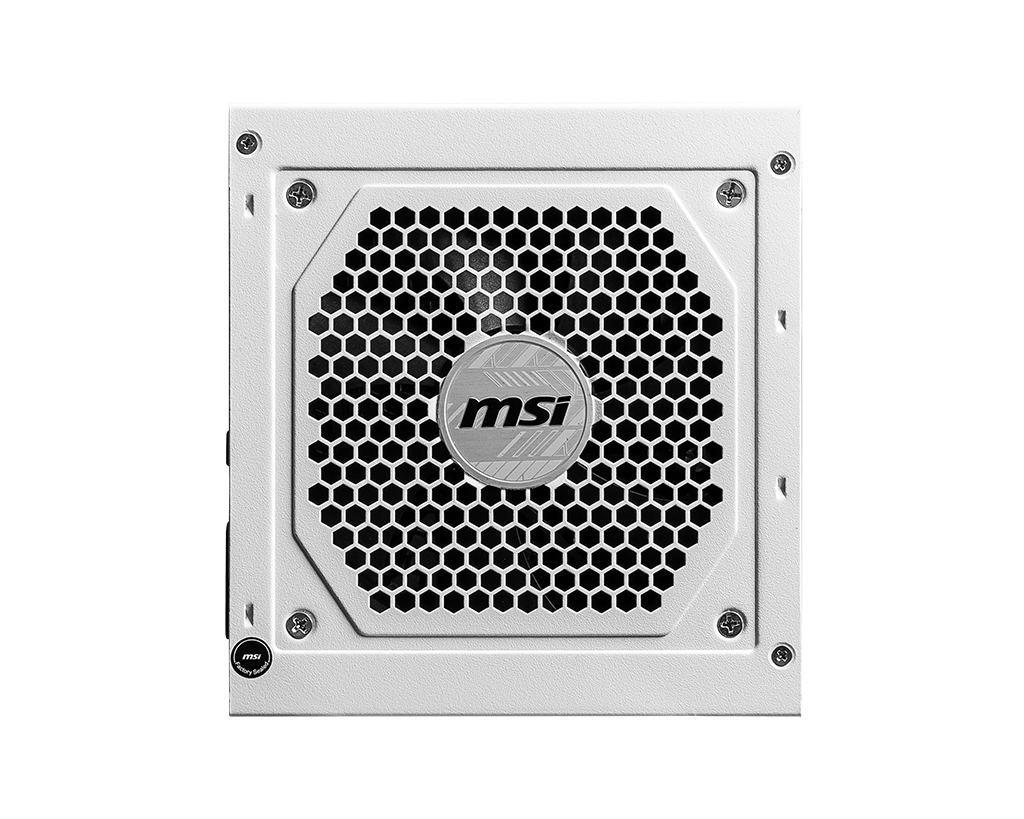

Cooling & Bearing | 120 mm Fluid-Dynamic Bearing fan |
Dimensions (DxWxH) | Compact: 140 × 150 × 86 mm |
Input Voltage / Frequency | 100–240 VAC, 47–63 Hz |
Power Excursion | Up to 1700 W (200 % for 100 μs) |

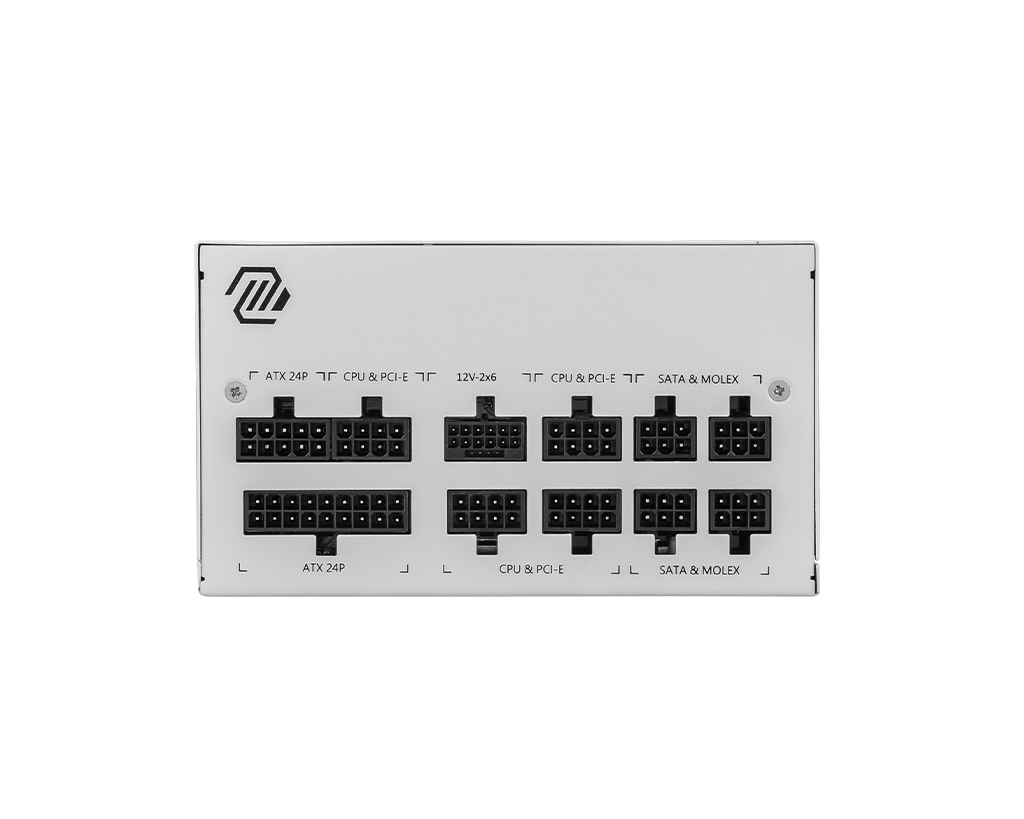

Connectors | 1 × ATX 24-pin, 2 × EPS 4+4 pin, 1 × PCIe 5.0 (16-pin), 4 × PCIe 6+2, 8 × SATA, 4 × Molex, 1 × FDD |
