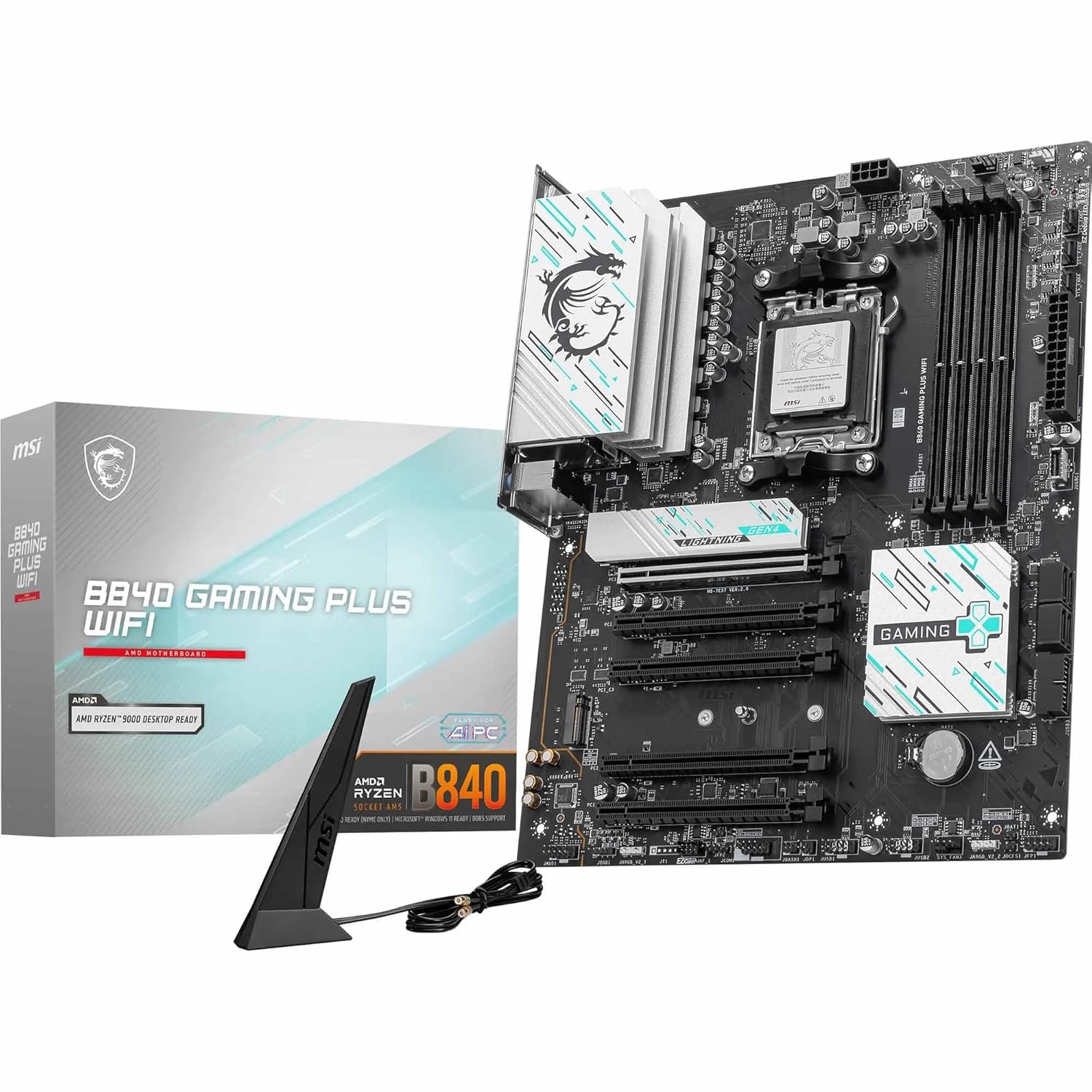

About MSI B840 GAMING PLUS WIFI Motherboard
Broad Processor Compatibility: Built on the AMD AM5 socket with the B840 chipset, this motherboard fully supports AMD Ryzen 9000, 8000, and 7000 series desktop processors. It is engineered to provide stable, consistent power for heavy multitasking and demanding gaming setups, utilizing an extended heatsink design to maintain peak performance under load.
High-Speed Memory and Fast Storage: Maximize your system capabilities with native support for the latest DDR5 memory, reaching overclocked speeds of up to 8000+ MT/s. The board features dual Lightning Gen 4 M.2 slots utilizing a PCIe 4.0 interface, drastically reducing game load times and speeding up large file transfers, alongside four traditional SATA 6Gb/s ports for bulk storage.
Stable Power and Advanced Cooling: To ensure maximum performance without thermal throttling, the motherboard utilizes a 7+2+1 Phase Direct CPU Power system. Heat is managed efficiently through an extended VRM heatsink, 7W/mK thermal pads, and MSI’s EZ M.2 Shield Frozr II covers, keeping your critical components cool during intense and prolonged gaming sessions.
Next-Generation Connectivity: Stay connected with the fastest networking options available. This motherboard includes advanced Wi-Fi 7 and Bluetooth 5.4 for ultra-low latency wireless performance, plus a dedicated Realtek 2.5G LAN port for secure and fast wired connections. It also features a variety of high-speed USB ports, including USB 10Gbps Type-C, for rapid data transfers.
Specifications MSI B840 GAMING PLUS WIFI Motherboard
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B840 GAMING PLUS WIFI |
| Form Factor | ATX |
| CPU Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000, 8000, and 7000 Series |
| Chipset | AMD B840 |
| Memory | 4× DDR5 Slots, Up to 256GB Max Capacity |
| Memory Speed | Up to 8000+ MT/s (Overclocked) |
| Expansion Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x16, 3× PCIe 3.0 x1 |
| Storage | 2× M.2 (PCIe 4.0 x4), 4× SATA 6Gb/s |
| Networking | Realtek 8125BG 2.5G LAN |
| Wireless | Wi-Fi 7 and Bluetooth 5.4 |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Power Design | 7+2+1 Phase Direct CPU Power |
| Rear I/O Ports | 1× USB 10Gbps Type-C, 1× USB 10Gbps Type-A, 2× USB 5Gbps Type-A, 4× USB 2.0, 1× HDMI 2.1, 1× 2.5G LAN, Audio Jacks, Flash BIOS Button, Wi-Fi Antenna |
