MSI B760M Gaming Plus WiFi Black DDR5 mATX Motherboard – LGA1700, DDR5 | PCIe 4.0 M.2, Wi‑Fi 6E, 2.5G LAN
MSI B760M Gaming Plus WiFi Black DDR5 is premium micro‑ATX motherboard for Intel 12th–14th Gen CPUs, loaded with DDR5 overclocking, dual PCIe 4.0 storage, Wi‑Fi 6E, Bluetooth 5.3, 2.5G LAN, and enhanced thermal features—all in an elegant black design tailored for gamers, creators, and compact PC builds.
Original price was: ₹17,981.00.₹17,557.00Current price is: ₹17,557.00.
19
People watching this product now!
Payment Methods:
Description
About MSI B760M Gaming Plus WiFi Black DDR5 mATX Motherboard

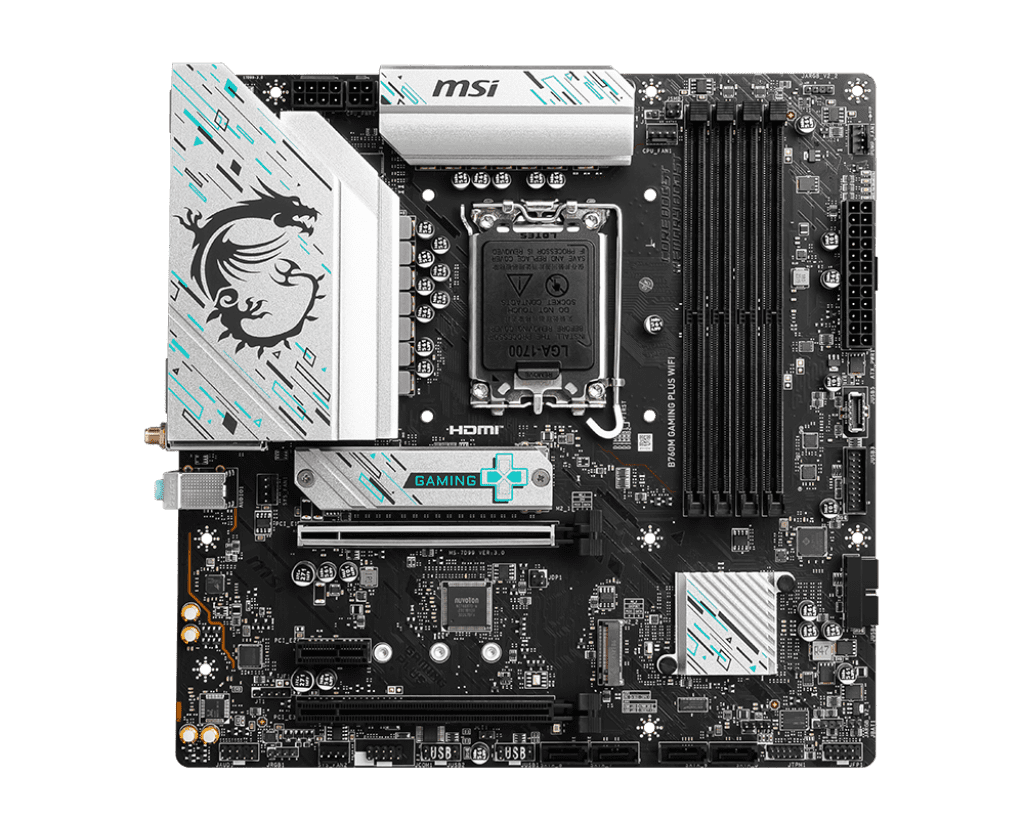

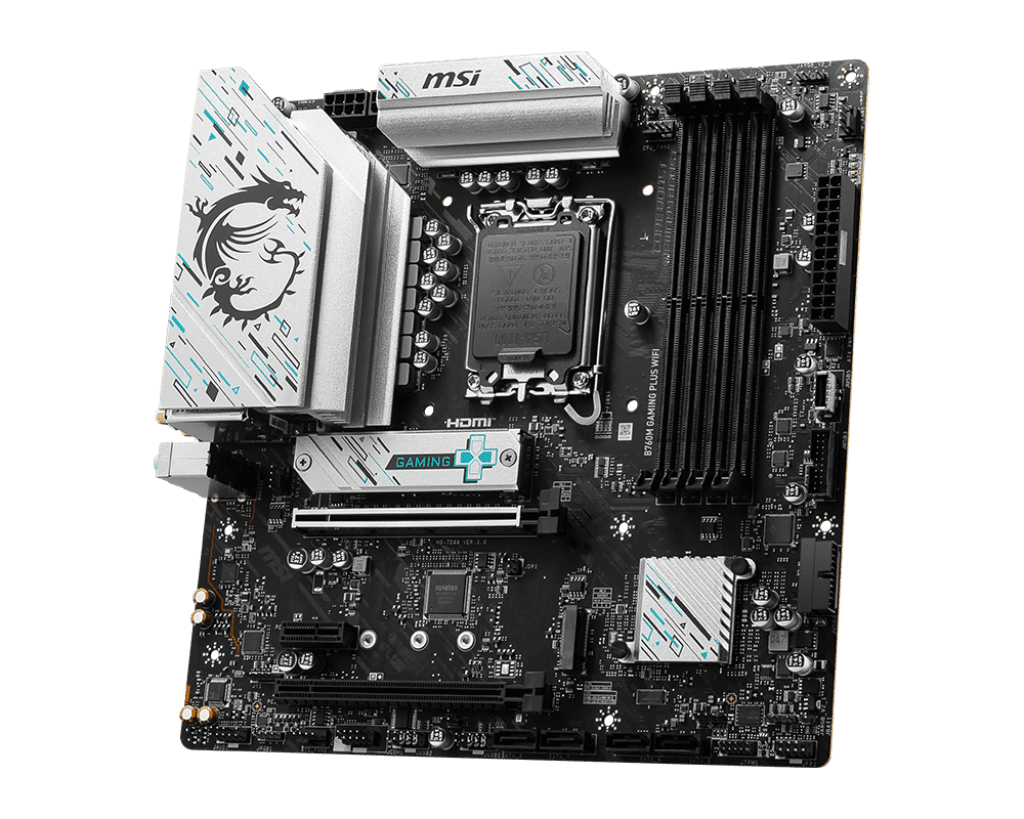

The MSI B760M Gaming Plus WiFi Black DDR5 is a small micro-ATX device that combines powerful performance with elegant design. It offers future-ready features for contemporary computing and is powered by the Intel B760 chipset and LGA1700 socket, supporting 12th, 13th, and 14th Gen Intel processors.
It can support up to 128 GB of DDR5 RAM and can overclock to 7200 MHz, which is suitable for demanding gaming, streaming, and multitasking situations. The board has four SATA 6 GB/s ports and two PCIe 4.0 x4 M.2 slots, providing legacy HDD/SSD support and quick NVMe storage. A reinforced PCIe 4.0 x16 Steel Armour slot safely accommodates graphics expansions, and extra PCIe lanes allow for even more expansion.
With features like Wi-Fi 6E, Bluetooth 5.3, and 2.5G Ethernet, connectivity is state-of-the-art and offers plenty of bandwidth for online gaming and content transfers. Multiple USB 3.2 Gen2/Gen1 ports, USB-C, HDMI 2.1, and DisplayPort 1.4 are supported by the rear I/O for integrated graphics support. Extended heatsinks, high-end thermal pads, FROZR AI cooling, and extensive fan/pump control are all examples of the cleverly designed cooling system. Stable power delivery is promised by MSI’s Core Boost VRM design, and installation and troubleshooting are made easier by the Flash BIOS Button and EZ Debug LEDs.
The MSI B760M Gaming Plus WiFi Black DDR5 motherboard is perfect for builders looking for a stylish and functional mATX foundation for mid- to high-end Intel systems because of its brilliant black colour scheme, extensive feature set, and long-lasting power design.
Features of the MSI B760M Gaming Plus WiFi Black DDR5 mATX Motherboard
| Feature | Specification |
|---|---|
| Form Factor | micro‑ATX (226 × 243.8 mm) |
| Socket / Chipset | LGA1700 / Intel B760 |
| CPU Support | 12th / 13th / 14th Gen Intel Core, Pentium, Celeron |
| Memory Support | 4× DDR5, up to 128 GB, 7200 MHz (OC) |
| Expansion Slots | 1× PCIe 4.0 x16 Steel Armor, 2× PCIe 3.0 x1 |
| M.2 Storage | 2× PCIe 4.0 x4 M.2 (NVMe SSDs) |
| SATA Ports | 4× SATA 6 Gb/s |
| Networking | 2.5G Ethernet, Wi‑Fi 6E, Bluetooth 5.3 |

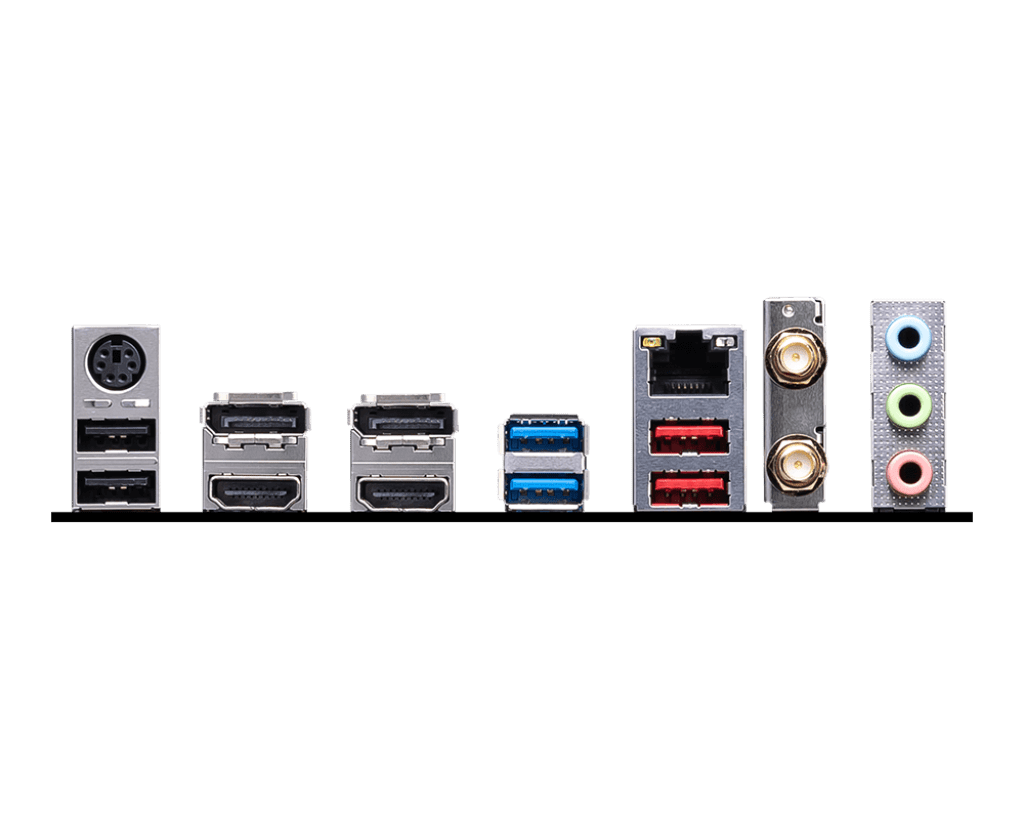

| Rear I/O Ports | USB 3.2 Gen2 Type-C & A, USB 3.2 Gen1, USB 2.0; HDMI 2.1; DisplayPort 1.4 |
| Audio | Realtek 7.1‑Channel HD Audio |
| Power & Thermal Design | Core Boost VRM, extended heatsinks, FROZR AI |
| Fan & Diagnostic Headers | Multiple fan/pump headers, EZ Debug LEDs, RGB, Flash BIOS Button |
Ideally Best For
- Compact Gaming Builds powered by Intel 12th–14th Gen CPUs
- Gamers & Creators requiring high-speed DDR5 and NVMe storage
- Overclockers exploring DDR5 frequency potential in mATX form
- Wireless Connectivity Lovers wanting Wi‑Fi 6E, Bluetooth 5.3, and 2.5G LAN
- System Builders prefer a sleek, black motherboard with strong diagnostics and cooling
Buy MSI B760M Gaming Plus WiFi Black DDR5 mATX Motherboard – LGA1700, DDR5 | PCIe 4.0 M.2, Wi‑Fi 6E, 2.5G LAN Online Today.
