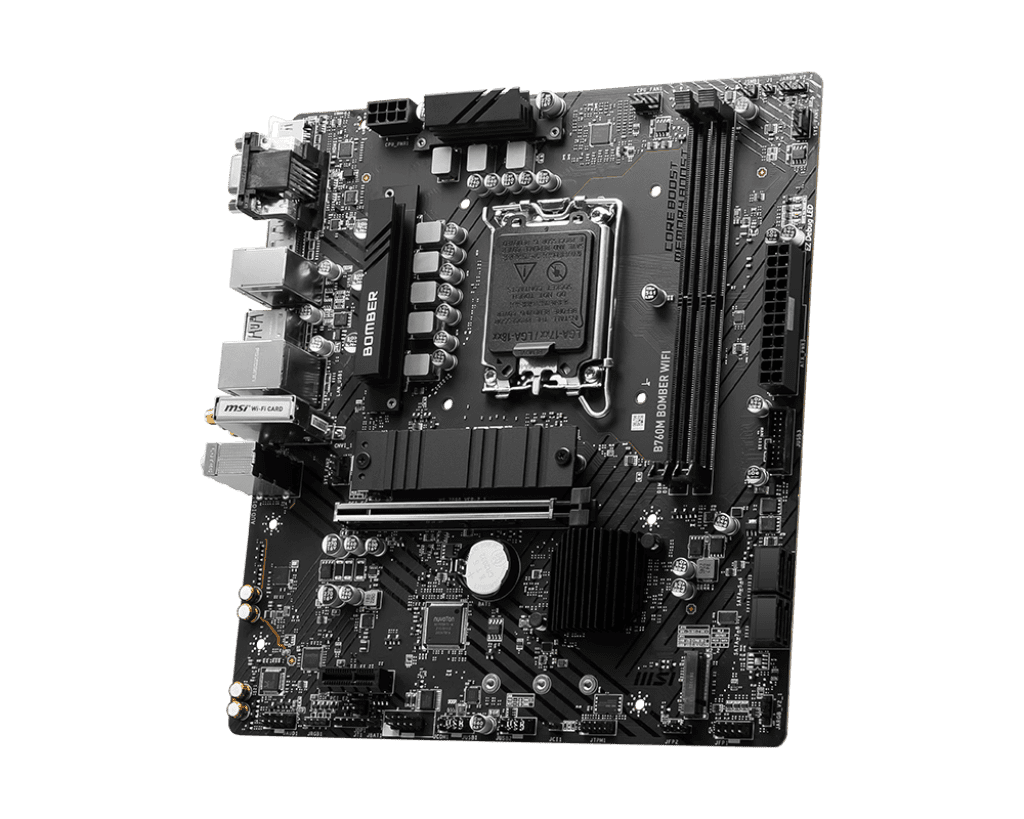

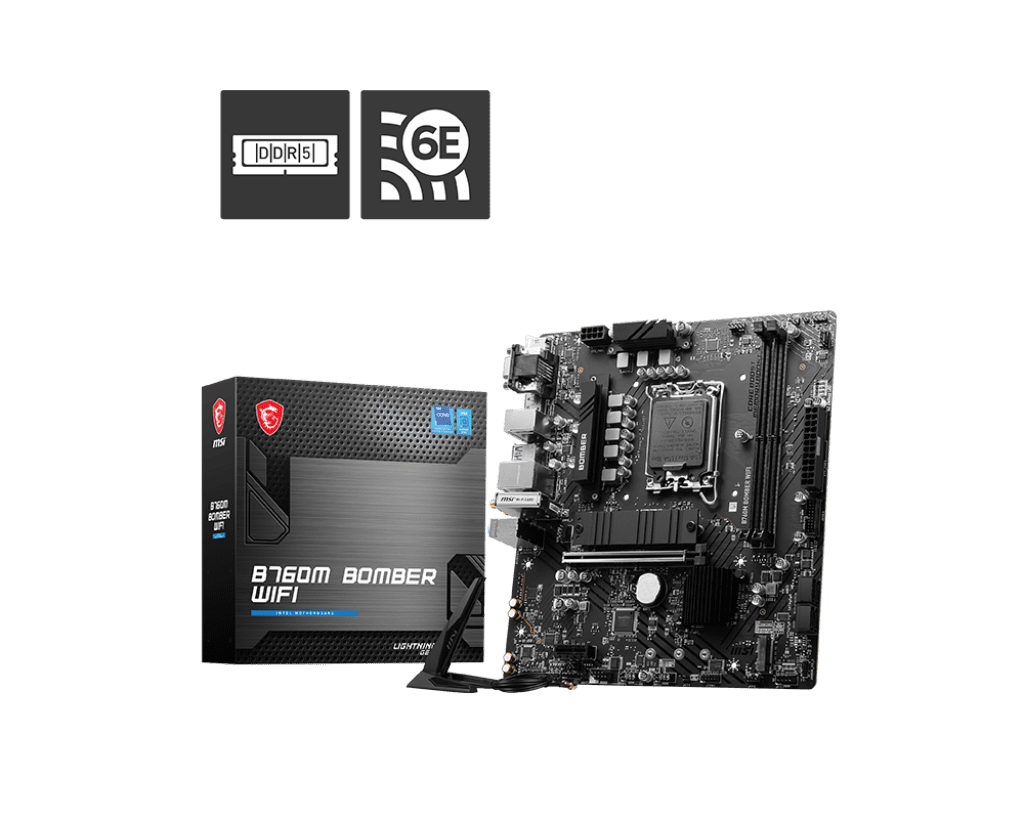

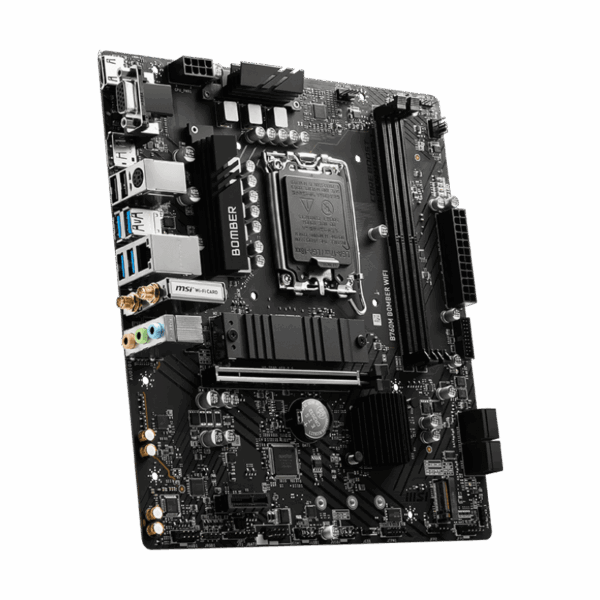

About MSI B760M Bomber WiFi mATX Motherboard
Compact PC builds can now boast flagship-level capabilities thanks to the feature-rich MSI B760M Bomber WiFi mATX board. utilising the LGA1700 socket to support Core, Pentium Gold, and Celeron CPUs from Intel’s 12th, 13th, and 14th generations. It is prepared for gaming and current computer workloads.
Up to 96 GB of total RAM is possible thanks to memory support that includes dual DDR5 DIMM slots. In single-module configurations, the overclocking speed can reach 6400 MHz; in dual-rank configurations, it is slightly lower, making it ideal for memory-intensive tasks. Four SATA 6 Gb/s ports and two PCIe 4.0 x4 M.2 slots (one CPU-sourced, one chipset-sourced) provide storage and expansion. Graphics cards fit neatly into Steel Armor PCIe 4.0 x16 slots.

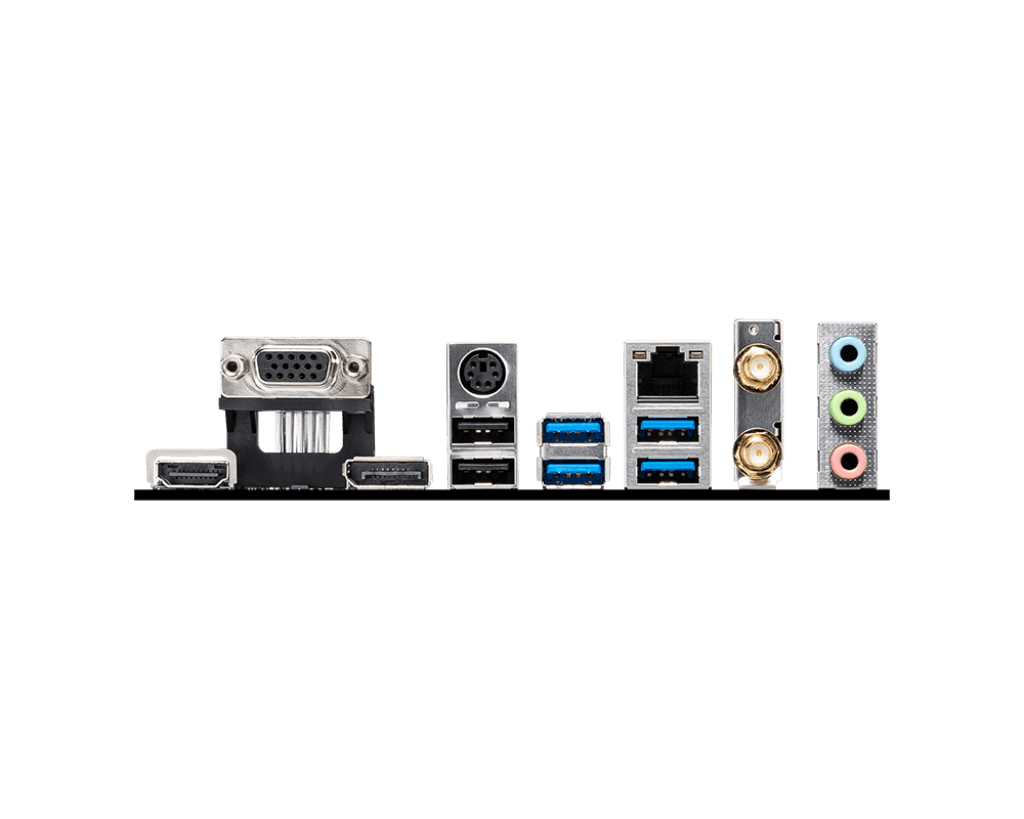

Fast wireless and wired networking is made possible by connectivity features like Intel Wi-Fi 6E with MU-MIMO, Bluetooth 5.3, and 2.5G Ethernet. In addition, there are numerous USB ports, VGA, DisplayPort 1.4, and HDMI 2.1 on the rear I/O. A Core Boost power stage layout, Memory Boost technology, extended heatsinks, and multiple fan/pump headers prioritise power and cooling. High-quality 7.1-channel sound performance is guaranteed by Audio Boost. Its usability is further enhanced by EZ Debug LEDs and a BIOS Flash button.
Features of the MSI B760M Bomber WiFi mATX Motherboard
| Feature | Specification |
|---|---|
| Form Factor | Micro‑ATX (220 × 243.8 mm) |
| Socket / Chipset | LGA1700 / Intel B760 |
| CPU Support | 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron |
| Memory | 2× DDR5, up to 96 GB, 6400 MHz OC (single-module) |
| M.2 Slots | 2× PCIe 4.0 x4 (CPU & chipset) |
| SATA Ports | 4× SATA 6 Gb/s |
| PCIe Expansion | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 4.0 x1 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4, VGA |
| Networking | 2.5G LAN (Realtek RTL8125B), Wi‑Fi 6E, Bluetooth 5.3 |
| Audio Codec | Realtek ALC897, 7.1‑Channel |
| Cooling & Power | Core Boost, Memory Boost, extended heatsinks |
| Headers & Tools | Multiple fan/pump, RGB headers, TPM support, EZ Debug LEDs |
| Warranty | 3 Years (varies by region) |
Ideally Best For
- Budget-Conscious Gamers building compact but powerful rigs
- DIY PC Builders & SFF Enthusiasts wanting AM5-level performance in mATX
- Media Creators needing fast DDR5 and storage support
- Remote Users relying on Wi‑Fi 6E and 2.5G LAN for fast connectivity
- Overclocking Beginners exploring DDR5 OC with a clean, easy setup
