MSI MPG Z790 Edge WiFi DDR5 ATX Motherboard LGA 1700 DDR5 | PCIe 5.0 x16, Dual M.2 Gen4
MSI MPG Z790 Edge WiFi DDR5 ATX Motherboard LGA 1700 DDR5 | PCIe 5.0 x16, Dual M.2 Gen4 Original price was: ₹40,368.00.Current price is: ₹39,415.00.
Back to products
MSI PRO B760M‑E DDR4 Micro‑ATX Motherboard LGA 1700 DDR4 | PCIe 4.0 M.2, 2.5G LAN
MSI PRO B760M‑E DDR4 Micro‑ATX Motherboard LGA 1700 DDR4 | PCIe 4.0 M.2, 2.5G LAN Original price was: ₹9,541.00.Current price is: ₹9,316.00.

MSI B760 Gaming Plus WiFi DDR5 ATX Motherboard – LGA1700, DDR5 | PCIe 4.0, Dual M.2, Wi‑Fi 6E, 2.5G LAN

MSI B760 Gaming Plus WiFi DDR5 ATX Motherboard is a High-performance ATX motherboard supporting Intel 12th, 13th, and 14th Gen CPUs, DDR5 memory, dual PCIe 4.0 M.2 slots, Wi‑Fi 6E, Bluetooth 5.3, and 2.5G LAN—designed for gaming, streaming, and multitasking enthusiasts.

Original price was: ₹19,572.00.Current price is: ₹19,110.00.

15 People watching this product now!

Payment Methods:

avika retails payment methods we have
  • Pick up from the Avika Retails Store

To pick up today

Free

  • Fast Express 4 Days Delivery

Express 4 Days Shipping:  200.00

4 Days

Rs. 200

  • Free Delivery

Free Delivery Above Rs. 5000 &  Normal Charge Rs. 100

7-10 Days

Description

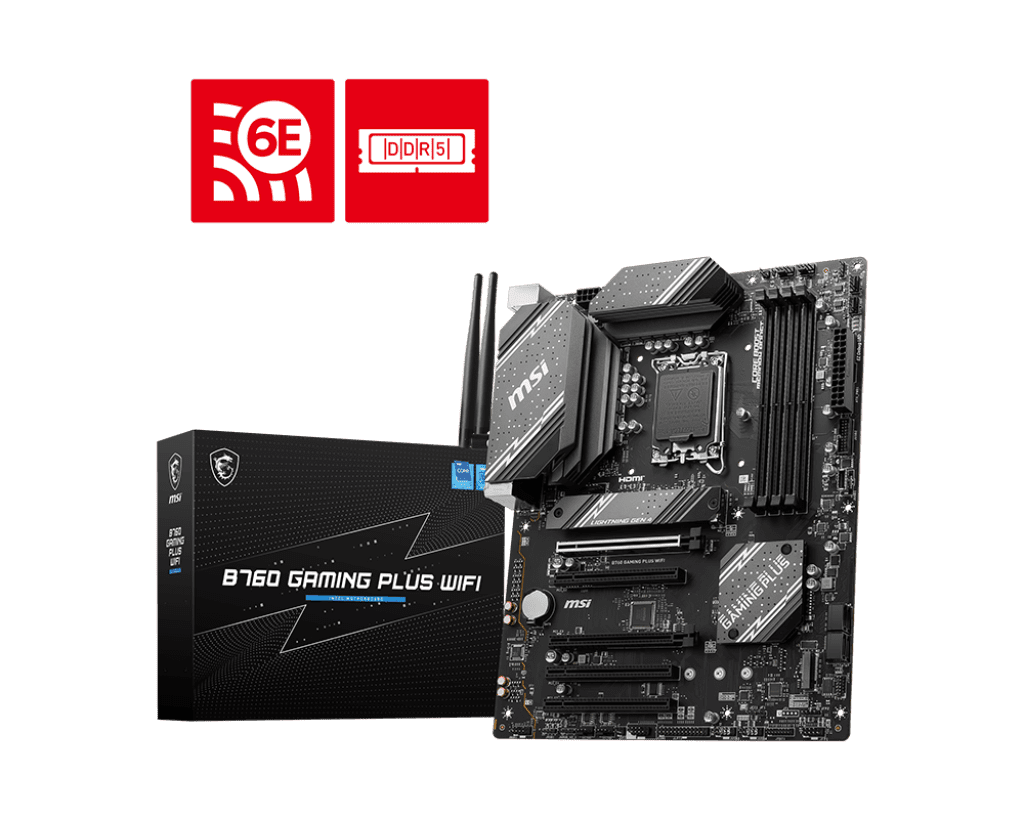

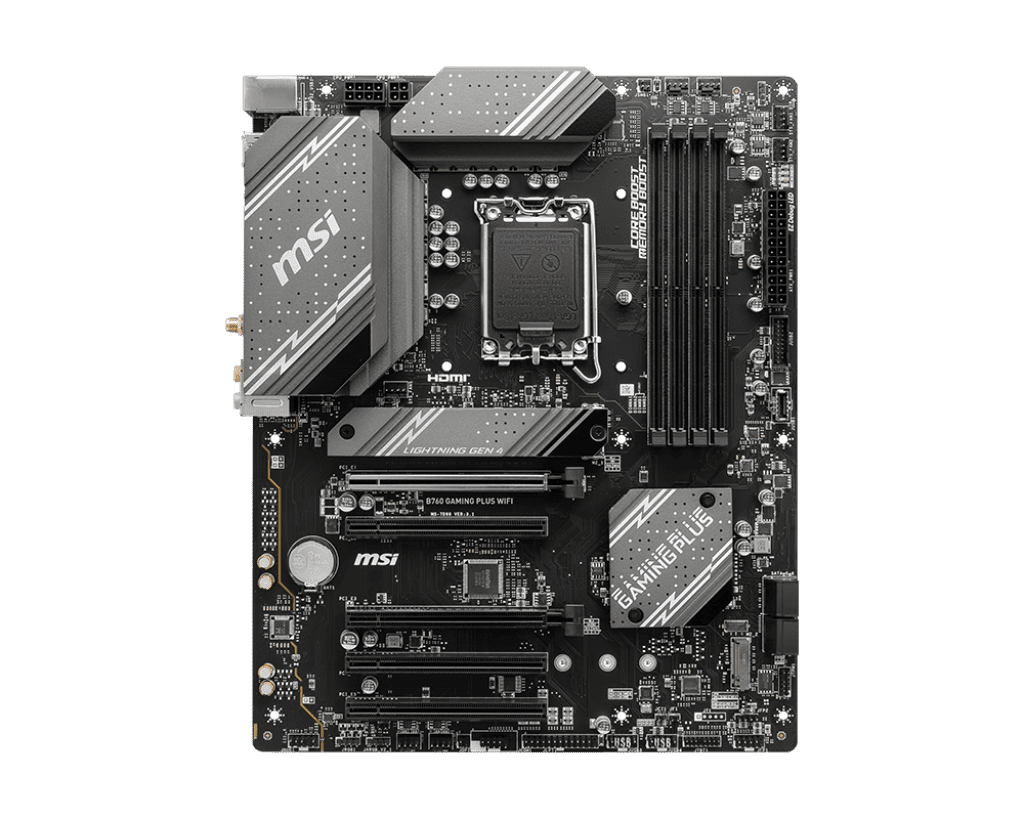

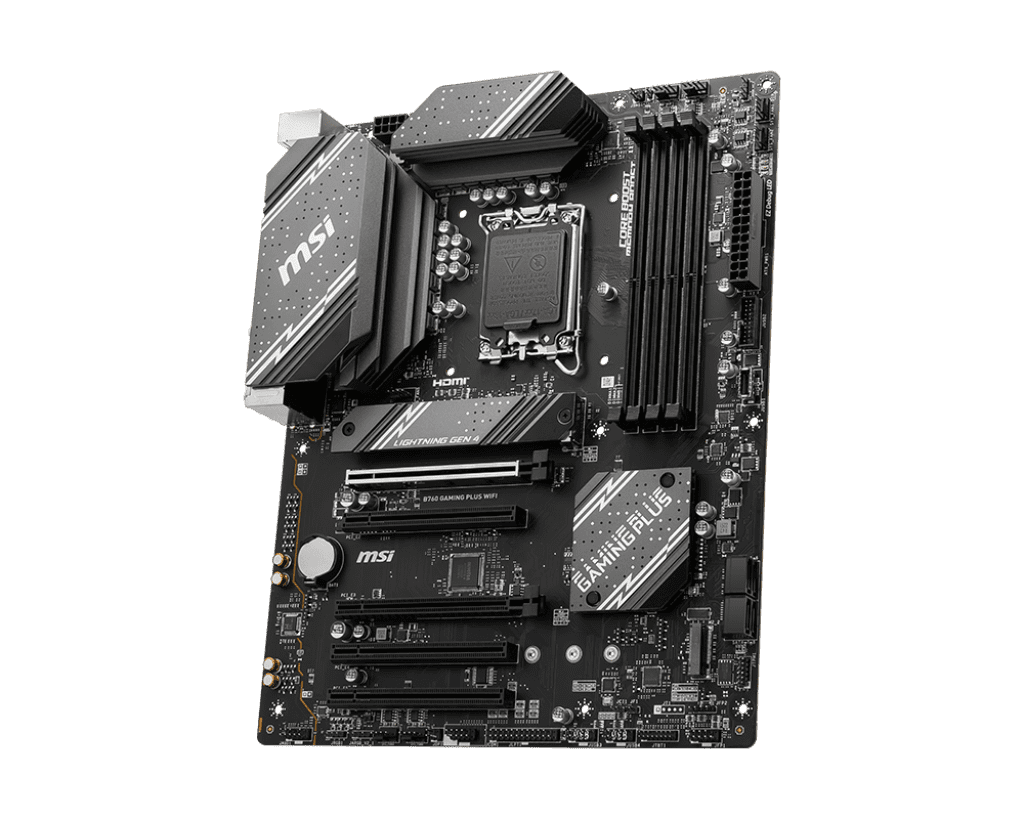

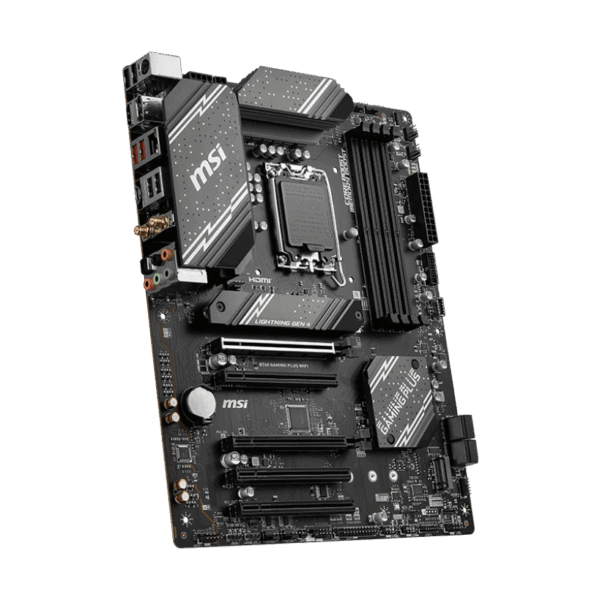

About MSI B760 Gaming Plus WiFi DDR5 ATX Motherboard

Built for Intel’s newest CPUs and LGA1700, the MSI B760 Gaming Plus WiFi DDR5 is a feature-rich ATX motherboard. Strong performance and steady power delivery are provided for both gaming and content production by its sturdy 12 1 Duet Rail power design with Core Boost and support for DDR5 memory up to 6800 MHz (OC). With four SATA 6Gb/s ports and two PCIe 4.0 M.2 slots with M.2 Shield Frozr, this board offers a variety of high-speed storage choices. A reinforced PCIe 4.0 x16 slot for GPUs is one of the expansion paths; more PCIe slots will be added for even more growth.

Modern and adaptable connectivity is provided by Realtek 2.5G LAN, Bluetooth 5.3, and Intel Wi-Fi 6E, which guarantee dependable and quick network access. Additionally, the rear I/O has USB 3.2 Gen2 Type-C, Type-A, HDMI 2.1, and DisplayPort 1.4 for peripheral and integrated graphics support.

Extended heatsinks, high-quality MOSFET thermal pads, a six-layer copper PCB, and fan headers—including a special pump header for AIO cooling systems—all contribute to thermal stability. Despite thermal and slot population considerations, community feedback indicates that DDR5 overclocking works well, particularly when BIOS updates are used.

Features of the MSI B760 Gaming Plus WiFi DDR5 ATX Motherboard

Feature Specification
Form Factor ATX (305 × 244 mm)
Socket / Chipset LGA 1700 / Intel B760
CPU Support 12th / 13th / 14th Gen Intel Core, Pentium, Celeron
Memory Support 4× DDR5 up to 192–256 GB, 6800  MHz OC, Intel XMP 3.0
Power Design 12 1 Duet Rail VRM with Core Boost
Expansion Slots 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 4.0 x4, 3× PCIe 3.0 x1
M.2 Slots 2× PCIe 4.0 x4 with Shield Frozr support
SATA Ports 4× SATA 6 Gb/s, RAID support
Networking 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3
Audio Realtek ALC897, 7.1‑Channel HD Audio
Rear I/O USB 3.2 Gen2 Type‑C & A, USB 3.2 Gen1, USB‑C front header, HDMI 2.1, DisplayPort 1.4
Thermal & PCB Extended heatsinks, 7 W/mK pads, 6‑layer 2 oz copper PCB
Diagnostics & Headers Clear CMOS, fan/pump headers, EZ Debug LEDs, TPM header

Ideally Best For

  • Mainstream & Enthusiast Gamers using Intel 12th–14th Gen CPUs and DDR5 RAM
  • Content Creators need fast storage, ample memory, and robust connectivity
  • Overclockers looking to push DDR5 performance once the BIOS is updated
  • System Integrators building AIO-cooled rigs with comprehensive fan control
  • Hybrid Users wanting both top wireless and wired network performance

Buy MSI B760 Gaming Plus WiFi DDR5 ATX Motherboard – LGA1700, DDR5 | PCIe 4.0, Dual M.2, Wi‑Fi 6E, 2.5G LAN Online Today.
