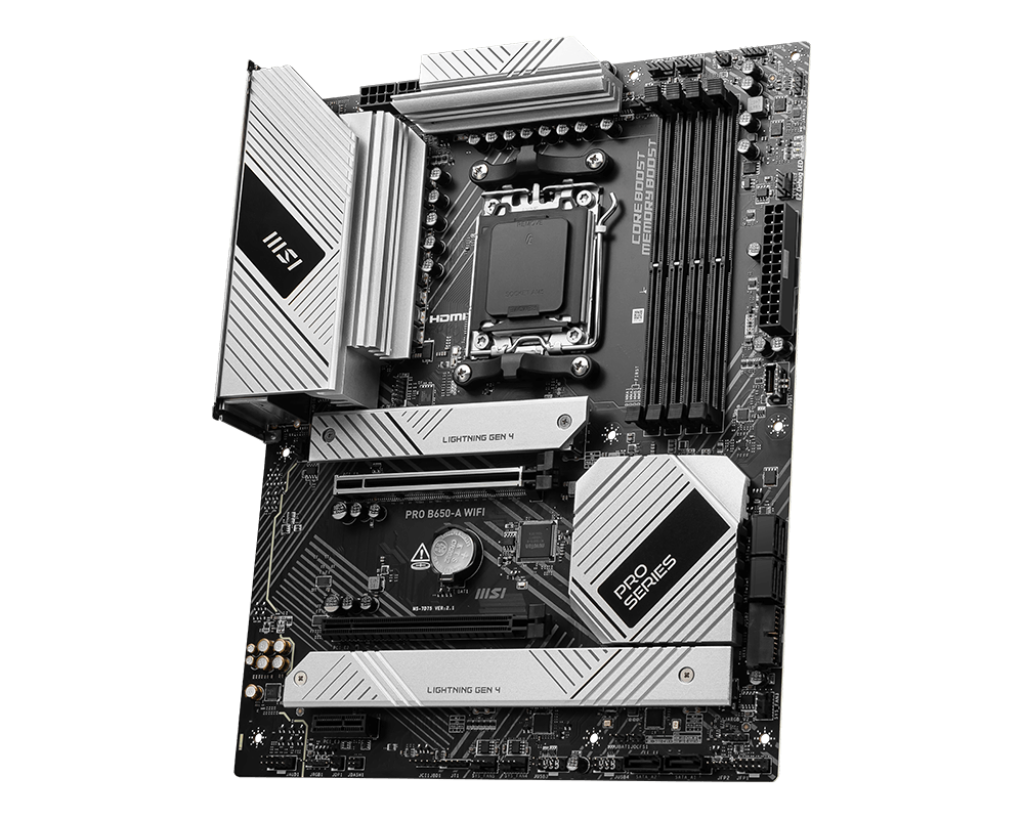

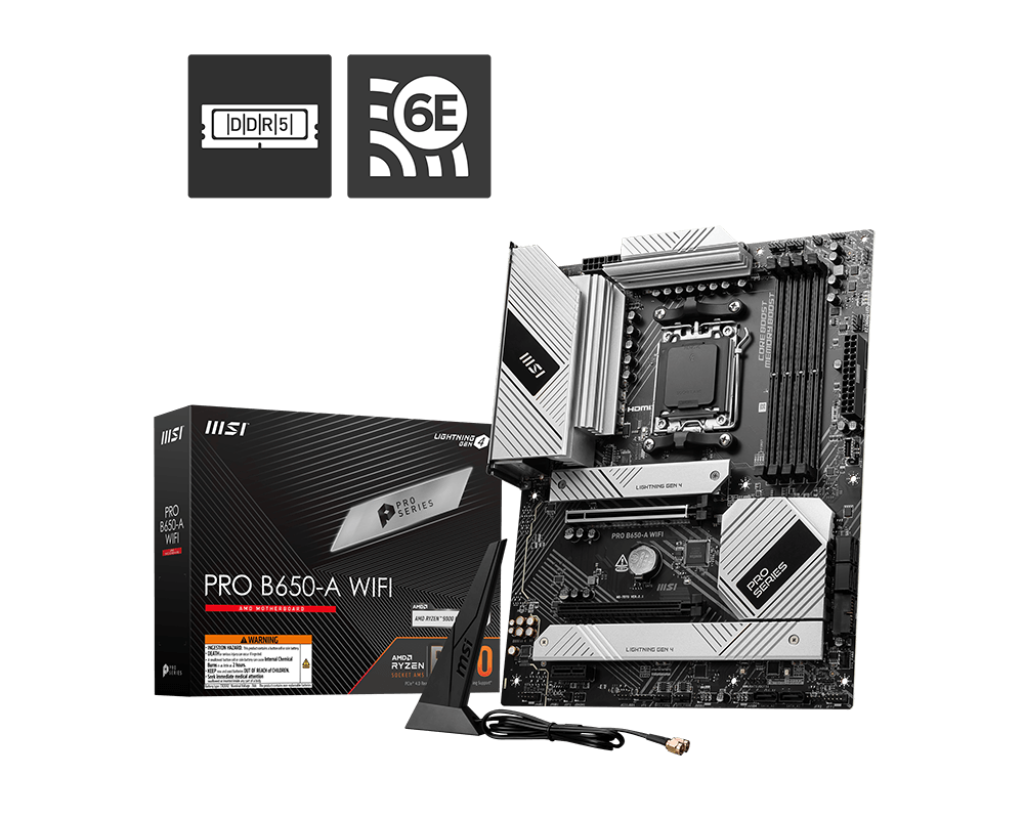

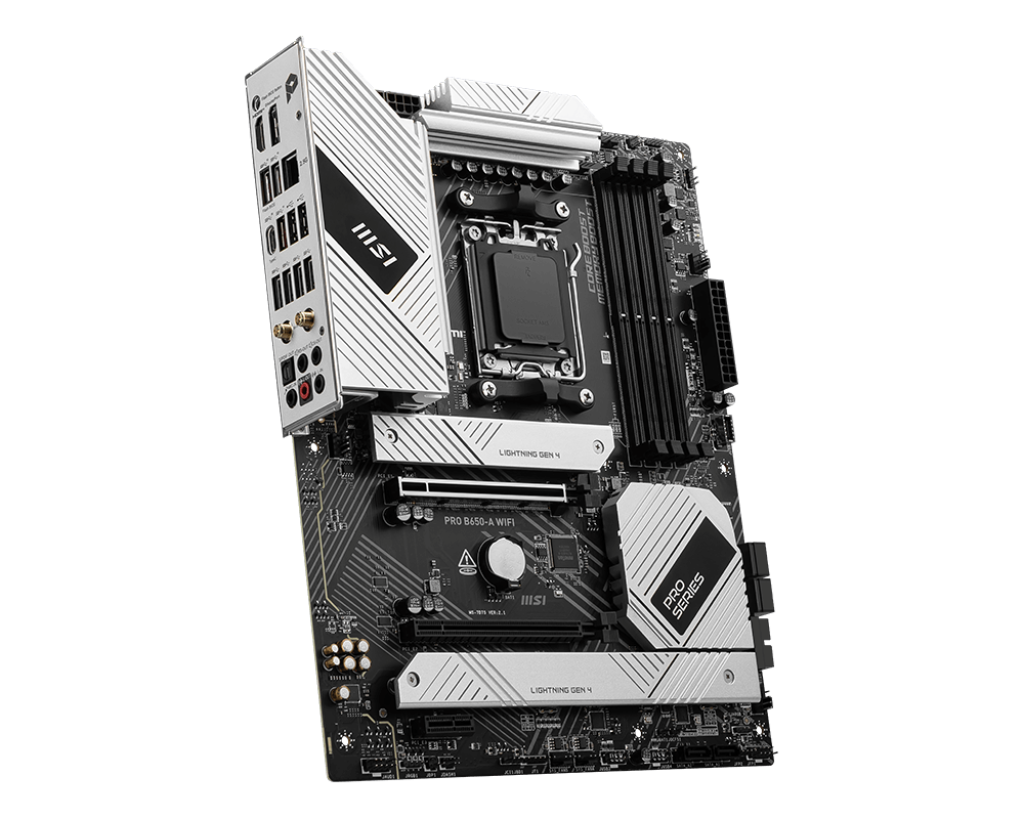

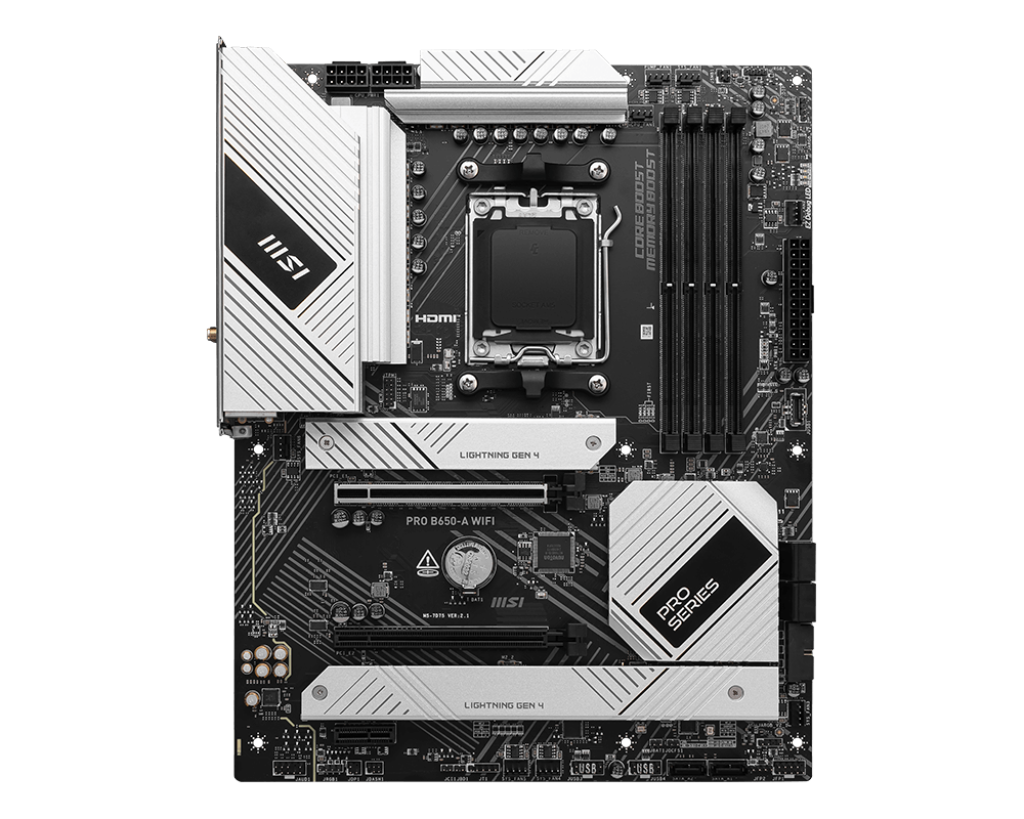

About the MSI B650-A WiFi ATX Motherboard
| Specification Category | Detailed Description |
|---|---|
| Model / Name | MSI PRO B650-A WIFI |
| Chipset / Socket | AMD B650 chipset, Socket AM5 supporting Ryzen 7000 / 8000 / 9000 series |
| Memory | 4 DIMM slots, DDR5 support Nominal + overclocked memory speeds: up to DDR5-7600+ (OC) Supports EXPO memory profiles Maximum capacity: 256 GB (dual-channel) |
| Expansion / PCIe | 2 × PCIe x16 slots – Primary slot supports up to x16 (from CPU) – Secondary x16 slot runs at x2 (shared paths) 1 × PCIe x1 (from chipset) Note: PCI_E2 & M.2_3 share bandwidth; using both reduces throughput on each |
| Storage / M.2 / SATA | 3 × M.2 slots (all PCIe 4.0 x4) – M.2_1 (from CPU): supports 22110 / 2280 – M.2_2 (from CPU): supports 2280 / 2260 – M.2_3 (from chipset): supports 2280 / 2260 6 × SATA 6Gb/s ports RAID support: RAID 0, 1, 10 for SATA; RAID 0, 1, 10 for M.2 NVMe |

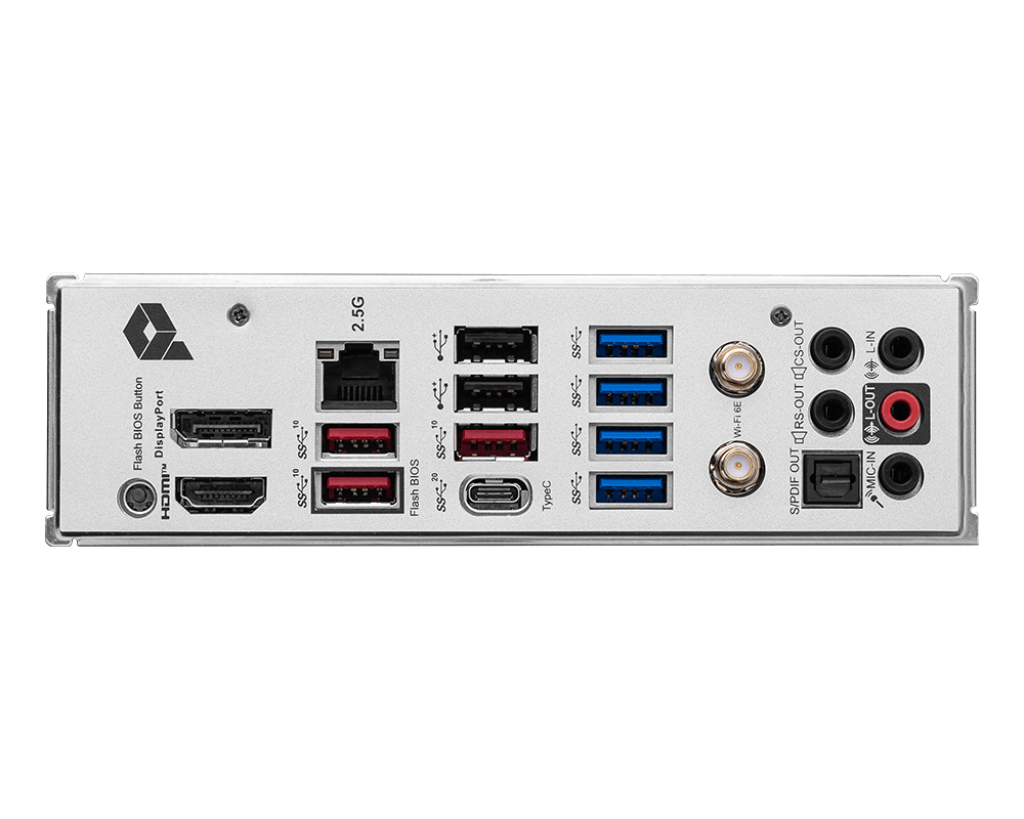

| Rear I/O & USB | 1 × USB Type-C (USB 3.2 Gen 2×2, 20 Gbps) 3 × USB Type-A (USB 3.2 Gen 2, 10 Gbps) 4 × USB Type-A (USB 3.2 Gen 1, 5 Gbps) 2 × USB 2.0 ports Audio jacks + S/PDIF HDMI 2.1 + DisplayPort 1.4 outputs (for CPUs with iGPU) Network: 2.5G Ethernet + Wi-Fi 6E + Bluetooth 5.3 |
| Power Delivery / VRM / Cooling | 14 + 2 Duet Rail power stage design Each Smart Power Stage (SPS): 80 A Dual 8-pin CPU power connectors Core Boost & Memory Boost support Heatsinks on VRM with thermal pads (7 W/mK) Extended heatsinks and thermal pads on chokes & VRMs M.2 Shield Frozr for SSD thermal management |
| Audio | Realtek ALC4080 codec 7.1-channel high performance audio Supports up to 32-bit / 384 kHz on front panel S/PDIF output support |
| Networking | 2.5G LAN (Realtek controller) Wi-Fi 6E (tri-band, MU-MIMO) Bluetooth 5.3 |
| Form Factor & Physical | ATX form factor Dimensions standard ATX (~305 × 244 mm) Mounting, PCB: 6-layer with 2 oz thickened copper for reliability |
| Features / Extras | PCIe Steel Armor for reinforcement Clear CMOS / BIOS flashback features EZ M.2 Clip for easy SSD installation Support for RGB / LED headers Firmware / BIOS with EXPO, optimizing memory settings Bandwidth sharing between PCI_E2 and M.2_3 Supports non-ECC, unbuffered memory |
The MSI B650-A WIFI ATX Motherboard is a premium choice for gamers, professionals, and PC enthusiasts who want next-level performance powered by the latest AMD Ryzen 7000 Series processors. Built on the advanced AMD B650 chipset, this motherboard combines exceptional speed, cooling, and connectivity — making it one of the best DDR5 AM5 motherboards available in its class.
⚙️ Next-Gen Performance with AMD AM5 & DDR5 Support
Equipped with the AMD AM5 socket, the MSI B650-A WIFI ensures compatibility with Ryzen 7000 CPUs. Its DDR5 memory support provides blazing speeds up to 6400+ MHz (OC), delivering faster load times, improved efficiency, and smoother multitasking. Paired with PCIe 4.0, users can enjoy enhanced graphics bandwidth and ultra-fast NVMe SSD performance — ideal for gamers, creators, and power users.
🌡️ Superior Thermal Design for Stable Operation
MSI’s award-winning cooling technology ensures optimal system stability. The extended heatsinks, 7W/mK thermal pad, and M.2 Shield Frozr keep temperatures low even under extreme workloads. The 6-layer PCB with 2oz thickened copper ensures better heat dissipation, improved power delivery, and long-term durability — giving you a stable foundation for high-performance computing.
🌐 Fast Networking & Seamless Connectivity
Stay connected with the latest networking standards. The Wi-Fi 6E module provides ultra-low latency and faster wireless throughput on the new 6GHz band, perfect for competitive gaming and smooth streaming. For wired connections, the 2.5G LAN ensures maximum network speed and reliability. Additionally, Bluetooth 5.3 supports wireless peripherals and headsets with stronger and more stable connections.
💾 High-Speed Storage & Expansion Options
The B650-A WIFI is built for expandability. It includes multiple M.2 slots (Gen4 x4) and SATA 6Gb/s ports, offering flexible storage solutions for gamers and professionals who demand speed and capacity. The reinforced PCIe 4.0 x16 slot ensures secure installation for the latest GPUs, while additional PCIe slots allow for future upgrades.
🔊 Immersive Audio & Rich I/O Ports
Experience crystal-clear sound with 7.1 Channel High Definition Audio, enhanced by premium capacitors for lifelike in-game soundscapes. The I/O panel includes a wide selection of ports — including USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2, HDMI, DisplayPort, and audio jacks — ensuring broad compatibility for peripherals and displays.
🎨 Elegant Design & RGB Customization
The MSI B650-A WIFI boasts a sleek black-and-silver design with subtle RGB support, allowing users to personalize their build. It fits perfectly in both professional and gaming setups, offering style without compromise.
🧩 User-Friendly BIOS & Control Software
MSI’s Click BIOS 5 makes overclocking, tuning, and monitoring easy for beginners and advanced users alike. The MSI Center software provides real-time system optimization, RGB control, fan tuning, and hardware monitoring — giving you full control over your system performance.
🔑 Key Specifications:
-
Chipset: AMD B650
-
Socket: AM5 (Supports Ryzen 7000 Series)
-
Form Factor: ATX
-
Memory: 4x DDR5 DIMMs, up to 192GB (OC)
-
Storage: 2x M.2 Gen4, 4x SATA 6Gb/s
-
Networking: Wi-Fi 6E, 2.5G LAN, Bluetooth 5.3
-
Expansion: PCIe 4.0 x16, PCIe x1 slots
-
USB Ports: USB 3.2 Gen 2×2 Type-C, Gen 2, and Gen 1 support
-
Audio: 7.1 Channel HD Audio
-
Cooling: Extended heatsinks, M.2 Shield Frozr
-
Software: MSI Center, Click BIOS 5
🏁 Conclusion:
The MSI B650-A WIFI Motherboard is a powerhouse built to deliver next-generation speed, connectivity, and reliability. Whether you’re assembling a high-end gaming PC or a professional workstation, this motherboard ensures superior performance with DDR5 memory, PCIe 4.0, and Wi-Fi 6E. Designed for the future, it’s the perfect choice for builders who demand cutting-edge technology and long-lasting quality.
