MSI PRO H610M‑G WiFi DDR4 Micro‑ATX Motherboard LGA 1700 DDR4 | PCIe 4.0 x16, M.2 + SATA
Original price was: ₹8,562.00.₹7,999.00Current price is: ₹7,999.00.
MSI B550M PRO‑VDH WiFi AM4 mATX Motherboard with DDR4 OC, PCIe 4.0, Dual M.2, Wi‑Fi & Bluetooth
Original price was: ₹10,397.00.₹9,399.00Current price is: ₹9,399.00.
-2%

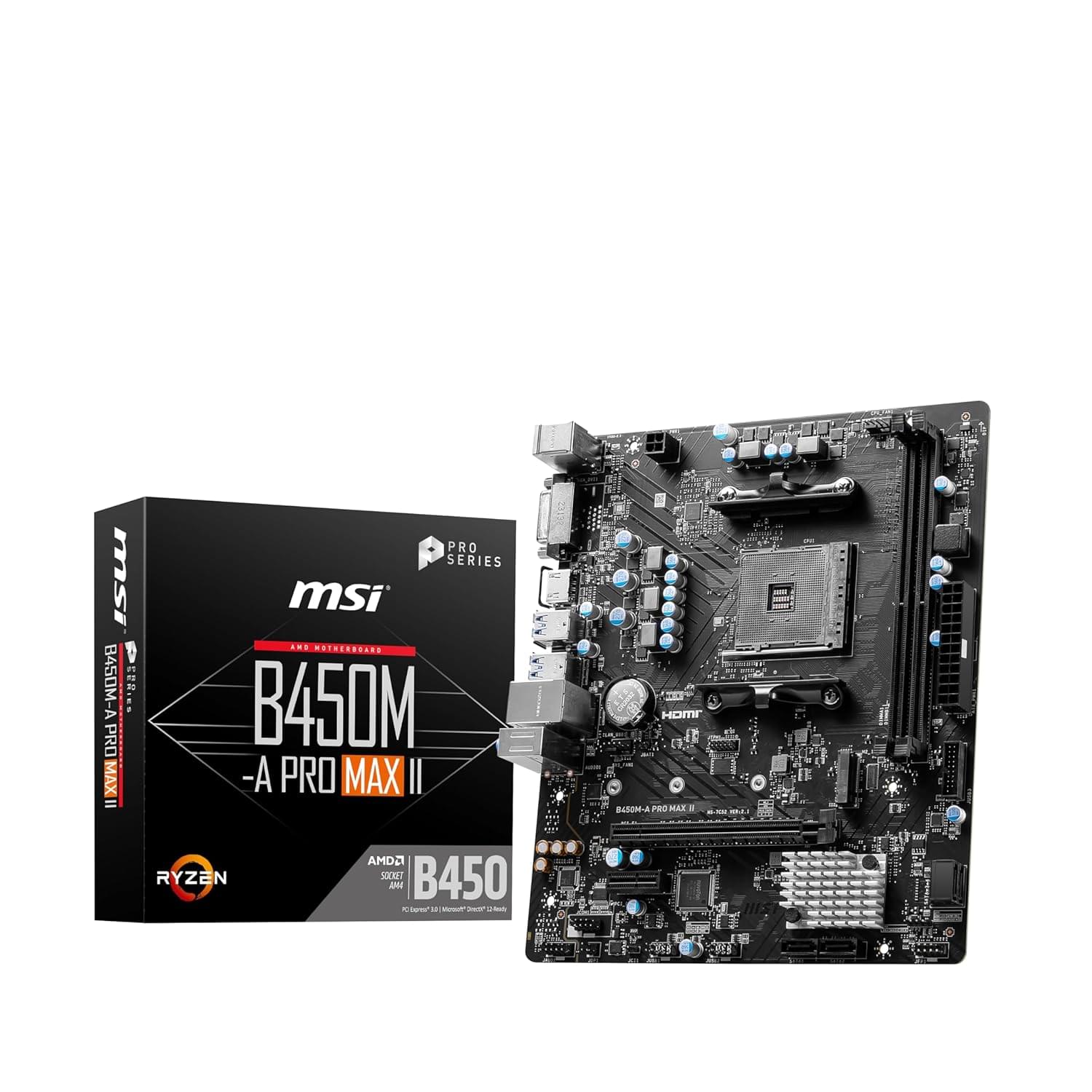

MSI B450M‑A PRO MAX AM4 mATX Motherboard with DDR4 OC, M.2 NVMe & Legacy Display Outputs
MSI B450M‑A PRO MAX AM4 is a reliable micro‑ATX motherboard supporting AMD Ryzen 1st–3rd Gen CPUs (including Ryzen 5000 series via BIOS). It offers DDR4 overclocking up to 4133 MHz, a PCIe 3.0 M.2 slot, 4× SATA ports, VGA/DVI/HDMI outputs, Gigabit LAN, and essential MSI features for budget gaming and office systems.
Original price was: ₹4,560.00.₹4,452.00Current price is: ₹4,452.00.
17
People watching this product now!
Payment Methods:
Description

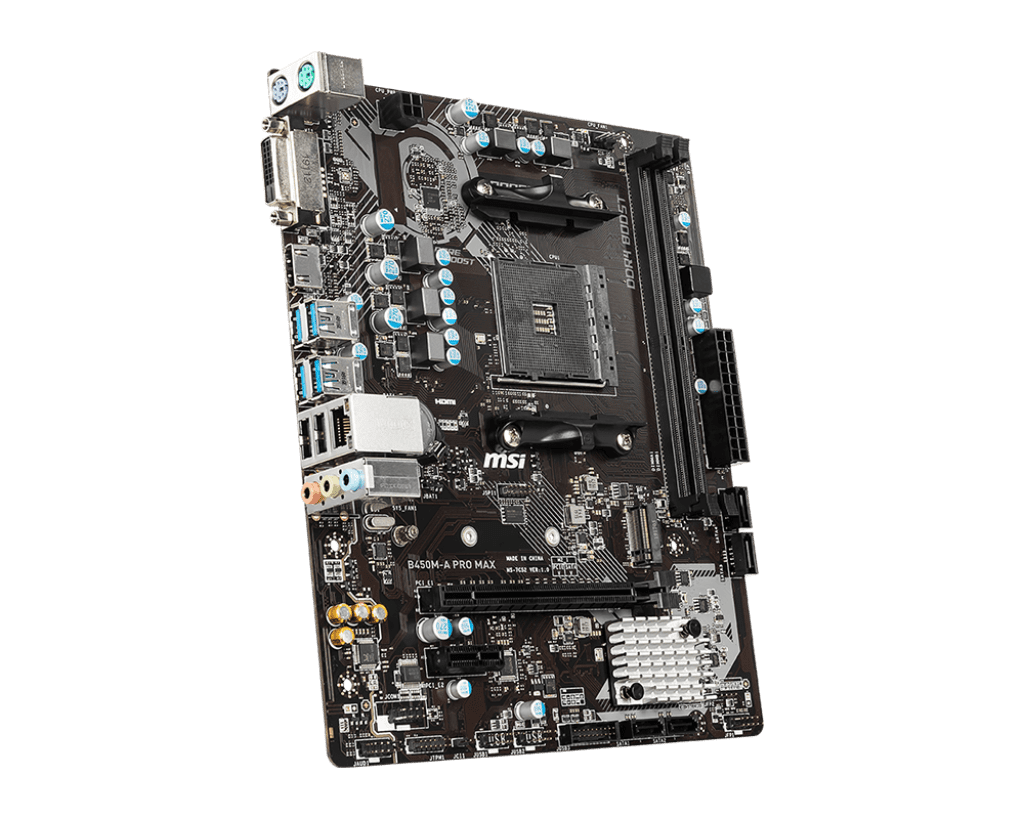

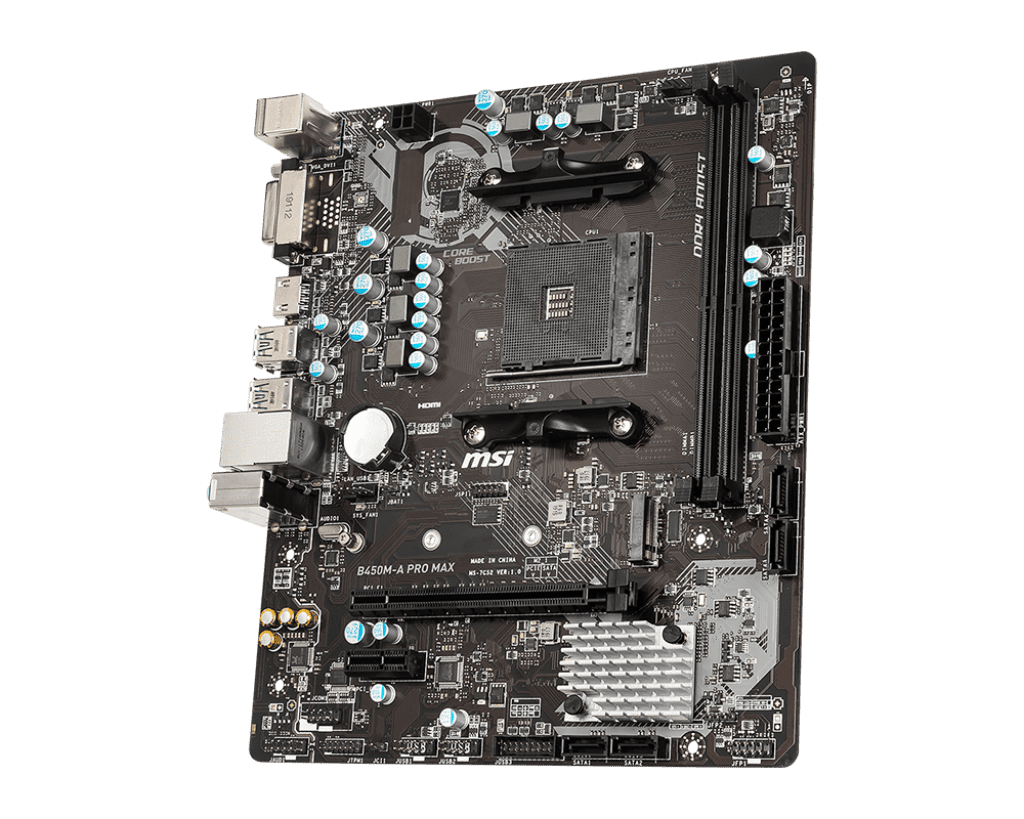

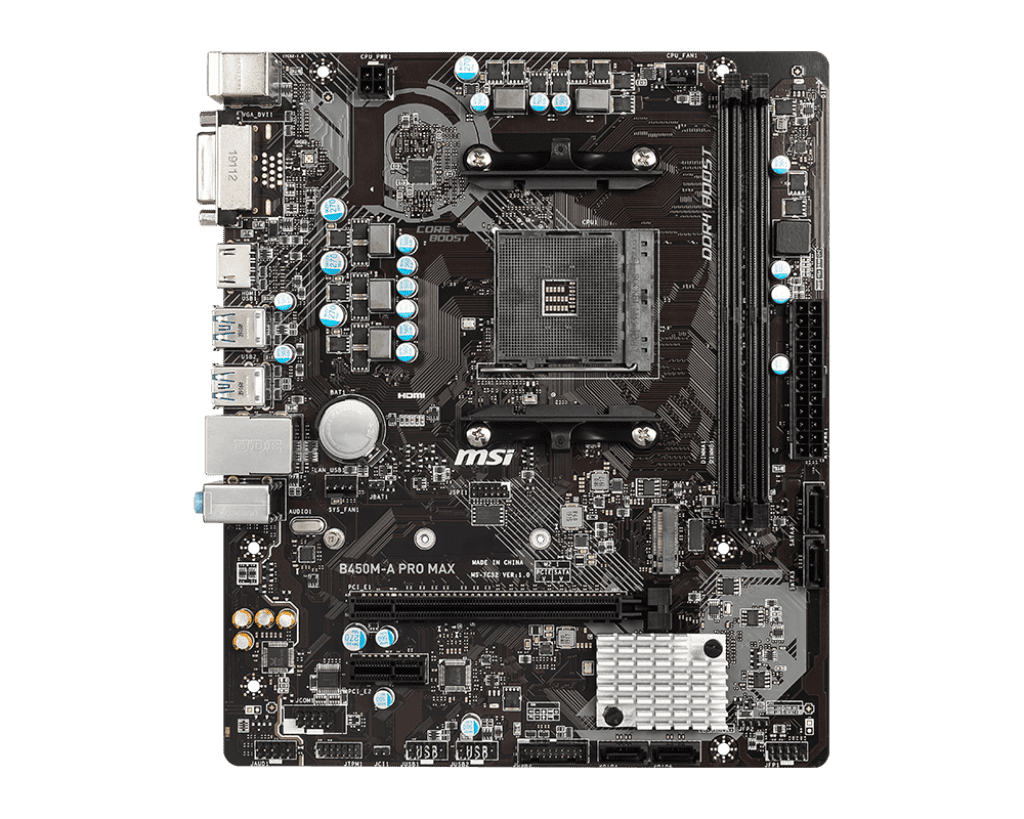

About MSI B450M‑A PRO MAX AM4 mATX Motherboard
The AMD B450 chipset with AM4 compatibility is the foundation of the MSI B450M‑A PRO MAX motherboard, which has been updated in the “MAX” and “MAX II” SKUs. It offers strong performance at a reasonable cost and supports the Ryzen 5000 series straight out of the box. Its 4× dual-channel DDR4 DIMM slots and overclocking capabilities allow it to reach speeds of up to 4133 MHz, making it perfect for everyday users and low-budget gamers.
The board has four SATA III ports and a Turbo M.2 PCIe 3.0 x4 slot for quick NVMe storage. GPU stability is guaranteed by a steel-armoured PCIe 3.0 x16 slot. HDMI 1.4, DVI-D, and VGA outputs are available for integrated graphics, especially with Ryzen APUs. Realtek Gigabit LAN handles networking, and Realtek ALC892 codec handles audio.
Core Boost (stable power phases), DDR4 Boost, Audio Boost, EZ Debug LED, Turbo M.2, and X-Boost are among MSI’s build enhancements that improve stability and responsiveness for daily use.
Features of MSI B450M‑A PRO MAX AM4 mATX Motherboard
| Feature | Specification |
|---|---|
| CPU Socket | AM4 (Ryzen 1000–5000 series, BIOS update for 5000) |
| Chipset | AMD B450 |
| Form Factor | Micro‑ATX (244 × 244 mm) |
| Memory Support | 4× DDR4 DIMMs, up to 64 GB, 4133 MHz (OC) |
| Expansion Slots | 1× PCIe 3.0 x16 (steel-armored), 2× PCIe 2.0 x1 |
| Storage | 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s |

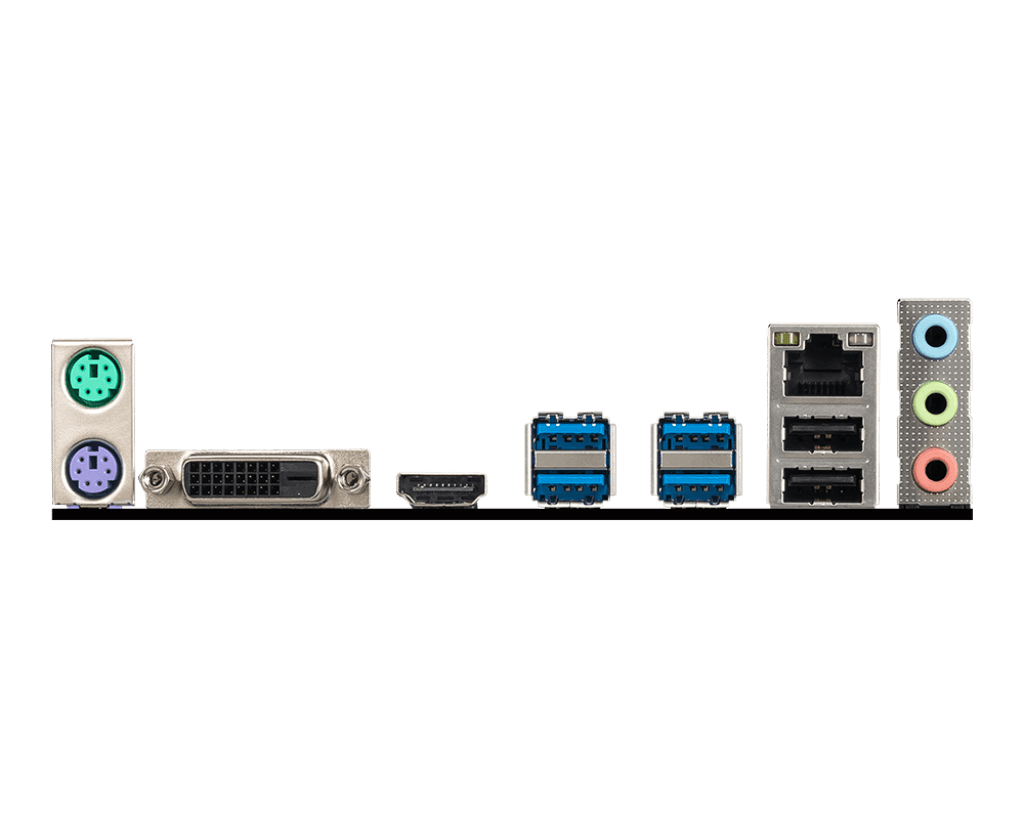

| Display Outputs | VGA, DVI‑D, HDMI 1.4 |
| USB Ports | 4× USB 3.2 Gen 1 (rear), 4× USB 2.0; internal headers |
| Audio Codec | Realtek ALC892 7.1-channel |
| LAN | Realtek 8111H Gigabit |
| MSI Enhancements | DDR4 Boost, Core Boost, Audio Boost, Turbo M.2, X-Boost |
| BIOS | UEFI with EZ Debug LED & Flash capabilities |
| Warranty | 3 years |
Ideally Best For
- Budget DIY Ryzen Builds: Affordable entry for Ryzen 3/5/7 systems with overclocking capability.
- Office or Home PCs: Ideal for productivity tasks and media playback with its versatile display outputs.
- Compact mATX Setups: Space-efficient design with necessary modern features.
- First-Time Builders: Clear BIOS options, debug LED, and robust build simplify setup.
Buy MSI B450M‑A PRO MAX AM4 mATX Motherboard with DDR4 OC, M.2 NVMe & Legacy Display Outputs Online Today.
