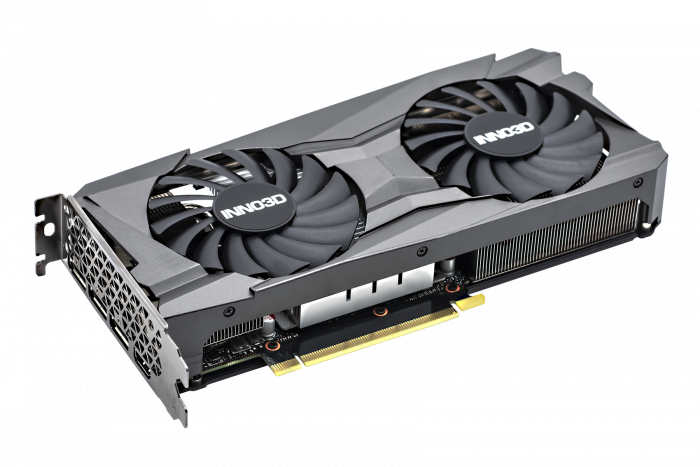

About INNO3D GeForce RTX 3060 Twin X2 Graphics Card
Specification Category | Details |
---|---|
GPU Engine | Ampere-based NVIDIA GA106‑300 chip, 3,584 CUDA cores |
Clock Speeds | Base ~1,320 MHz; Boost ~1,777 MHz (factory OC editions up to ~1,792 MHz) |
Memory Configuration | 12 GB GDDR6, 192‑bit bus, 15 Gbps (effective), 360 GB/s throughput |
Power & Thermal Specs | TDP ~170 W; requires at least 550 W PSU + 1× 8‑pin connector |
Cooling System | Dual ~90 mm axial fans with scythe-style blades; solid heatsink and fixed backplate |
Display Outputs | 1 × HDMI 2.1, 3 × DisplayPort 1.4a; supports up to 7680×4320 resolution |
API & Feature Support | DirectX 12 Ultimate, OpenGL 4.6, Vulkan; NVIDIA DLSS, Reflex, Broadcast, Ansel, ShadowPlay, VR‑Ready, G‑SYNC‑Ready; 7th‑gen NVENC, 5th‑gen NVDEC codecs; HDCP 2.3 support |
Interface & Form-Factor | PCIe 4.0 ×16 bus; dual‑slot, ~240 mm × 120 mm length & height |
Software Compatibility | Supported on Windows 10+, Linux and FreeBSD x86; GeForce Experience and Studio Drivers available |
Warranty & Support | Typically 2–3 year warranty, regional dealer dependent |
Noted Community Feedback | Some users report higher temperatures (~80–85 °C) under load; average temps 65–70 °C was noted by others |
