About Corsair iCUE Link Titan 420 RX RGB AIO CPU Cooler
| Attribute | Specification |
|---|---|
| Model / SKU | CW-9061019-WW |
| Radiator Size / Material | 420 mm, Aluminum radiator |
| Radiator Dimensions | ~ 457 × 140 × 27 mm |
| Number of Fans | 3 (iCUE LINK RX140 RGB) |
| Fan Dimensions | 140 × 140 × 25 mm per fan |
| Fan Speed (RPM) | 300 – 1700 RPM ±10% |
| Fan Airflow | 17.9 – 94.7 CFM |
| Fan Static Pressure | 0.15 – 3.75 mm-H₂O |
| Noise Level | ~ 10 – 36 dBA (depending on fan speed) |
| Cold Plate Material | Copper |
| Tubing Material & Length | Black sleeved low-permeation rubber, 450 mm length |
| Pump Technology | FlowDrive three-phase motor pump |
| RGB Lighting | Yes — ARGB on pump (20 LEDs) + RGB on each fan (8 LEDs per fan) |
| Compatibility (CPU Sockets) | Intel: LGA 1851, 1700; AMD: AM5, AM4 |
| Weight (full assembly) | ~ 2.92 – 2.93 kg |
| Warranty | 6 years |

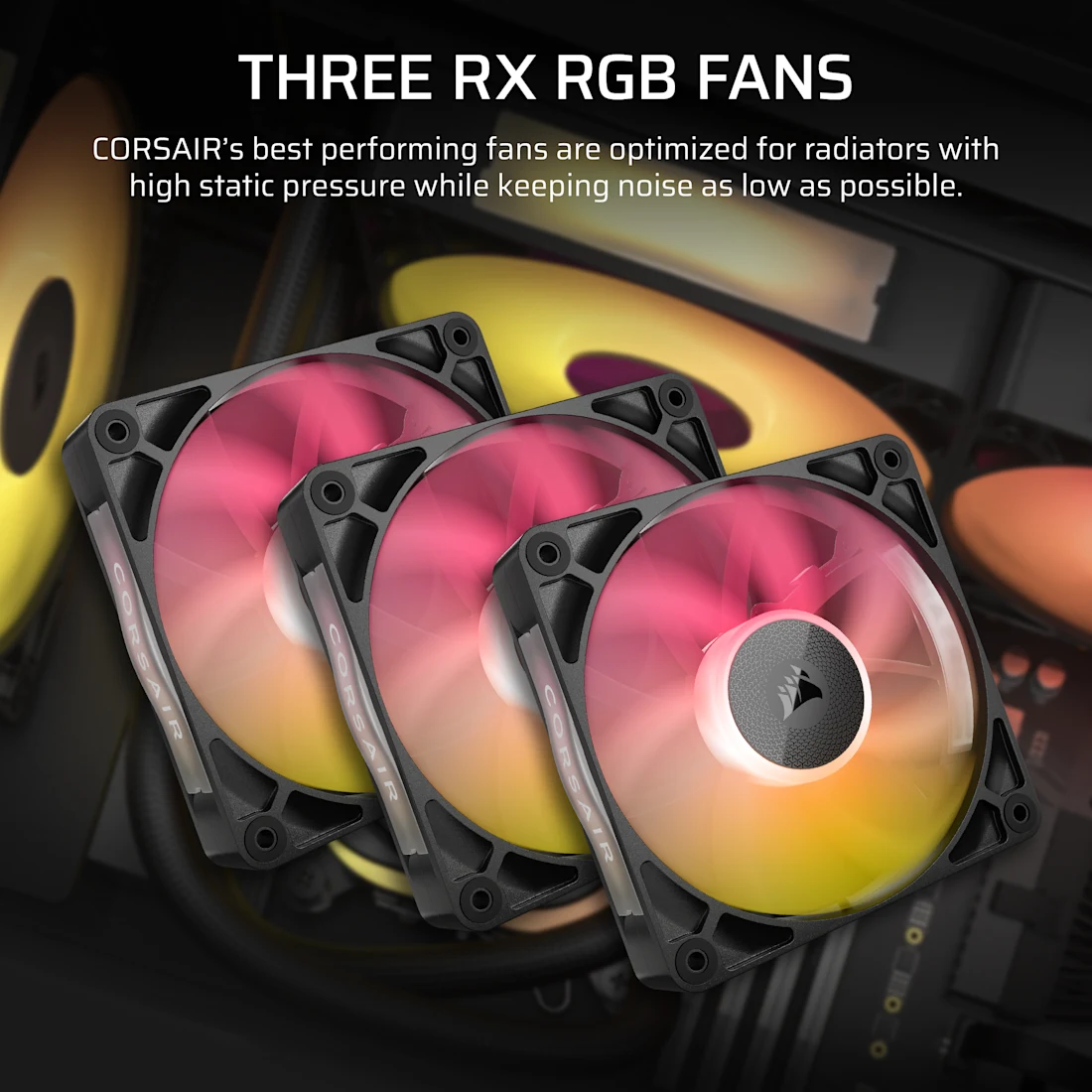

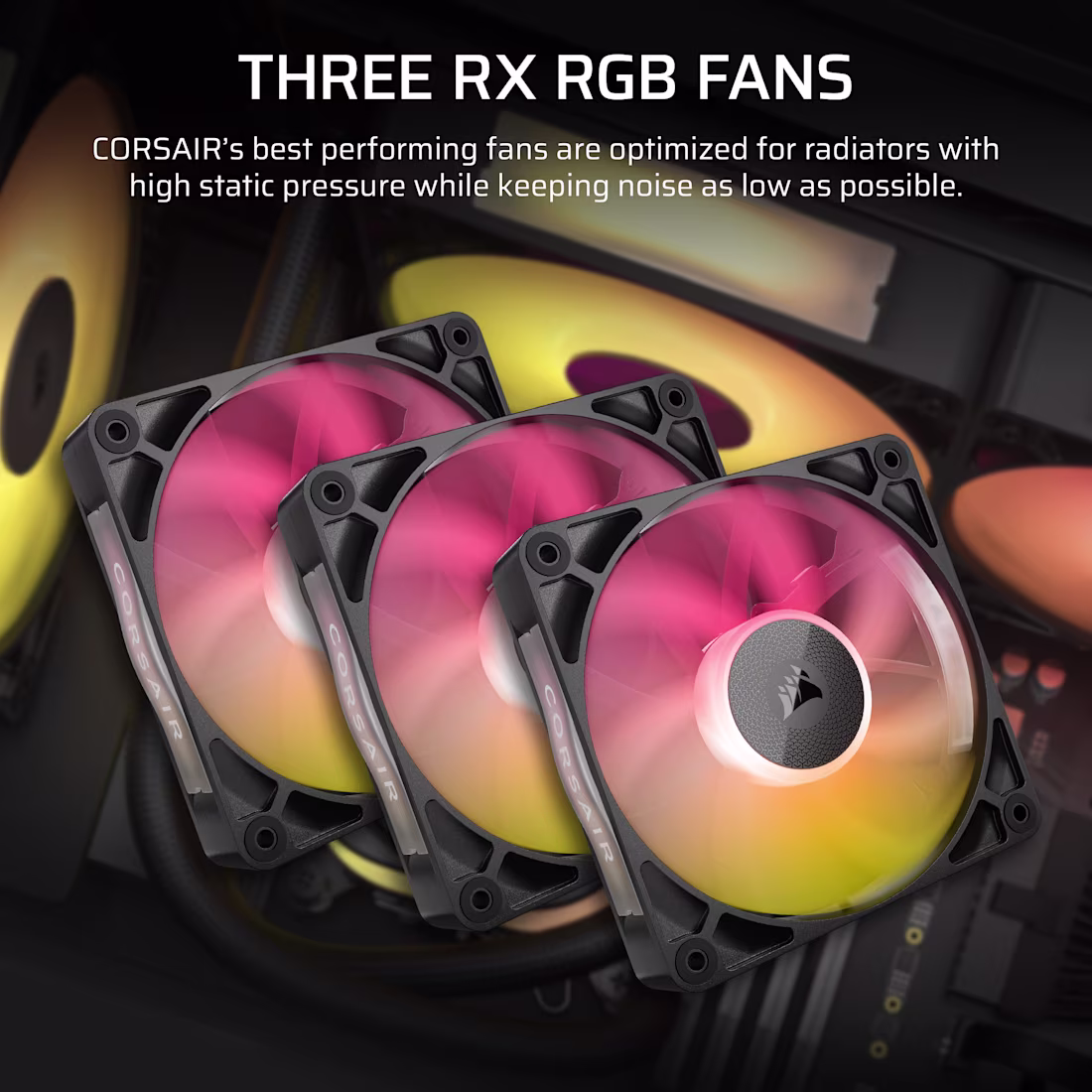

Built around a substantial 420 mm aluminum radiator, it uses three high-performance 140 mm RX140 RGB fans to push coolant heat away from your CPU with strength and consistency — ideal for high-TDP chips, overclocking, rendering workloads, or long gaming sessions.

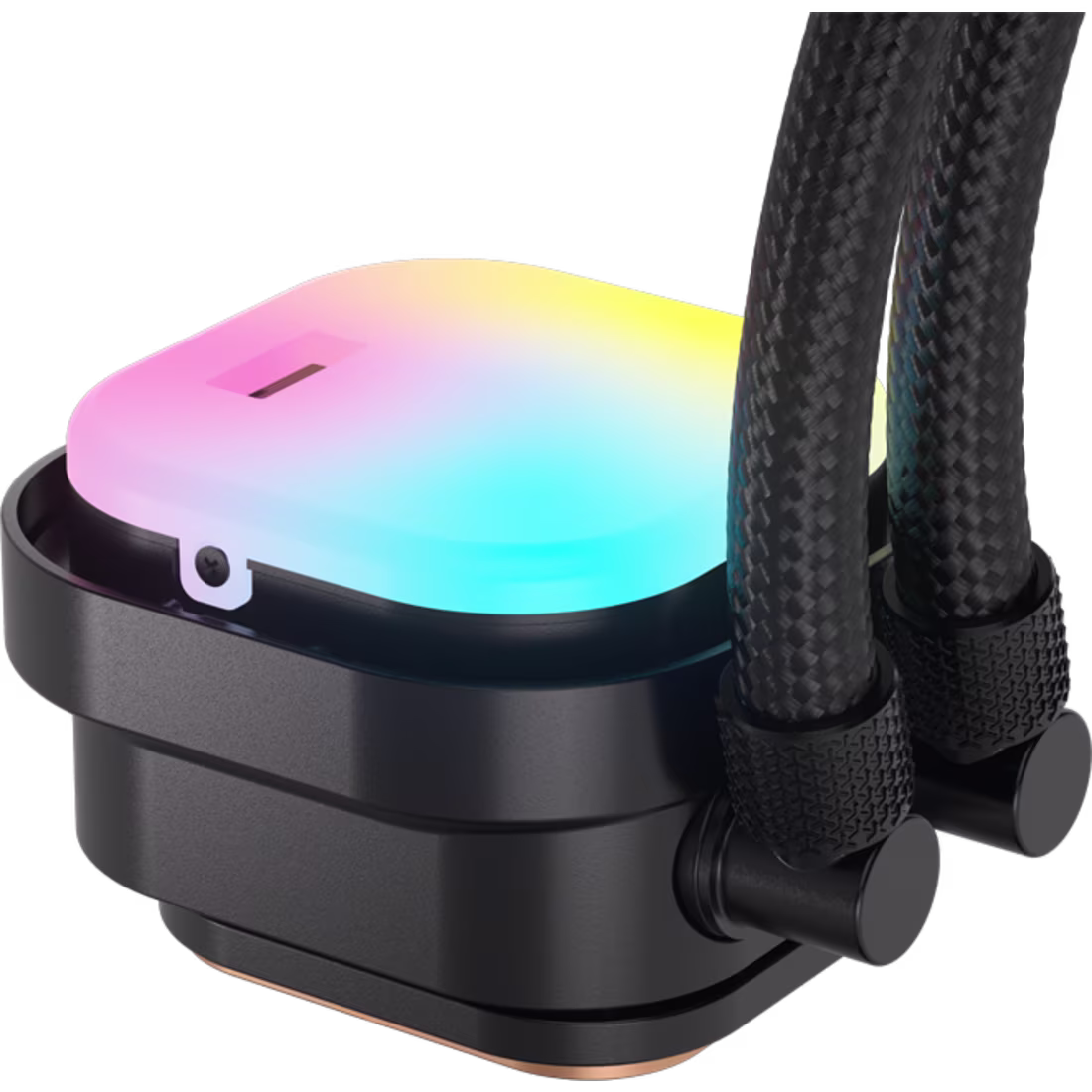

At its core, the cooler features the reliable FlowDrive pump, powered by a three-phase motor for smooth and efficient coolant circulation. This ensures your processor gets stable cooling even under intense, sustained load. The cold plate — made from copper for excellent thermal conductivity — enhances heat transfer from the CPU to the coolant. Sleeved low-permeation rubber tubing (450 mm long) provides flexibility for mounting even in larger or more complex cases.
Installation is straightforward and covers a wide range of modern platforms. Whether your system uses Intel’s latest LGA 1851 or 1700 sockets — or AMD’s AM5 / AM4 — the Titan 420 RX supports them all. Mounting hardware and pre-applied thermal paste help speed up the setup process.
Beyond performance, this cooler brings strong aesthetic appeal and customization: the pump cap is surrounded by 20 individually addressable RGB LEDs, while each of the three fans carries 8 RGB LEDs — all controllable through the manufacturer’s software. With the iCUE LINK ecosystem, you can synchronize lighting across compatible components, giving your build a unified look.
For users who care about noise, the Titan 420 RX strikes a balance: fans operate in the 300–1700 RPM range (± 10%), giving airflow from 17.9 to 94.7 CFM and appropriate static pressure, while noise remains between ~10 and ~36 dBA depending on load and fan speed. This means quiet idling under light load, yet strong cooling under load.

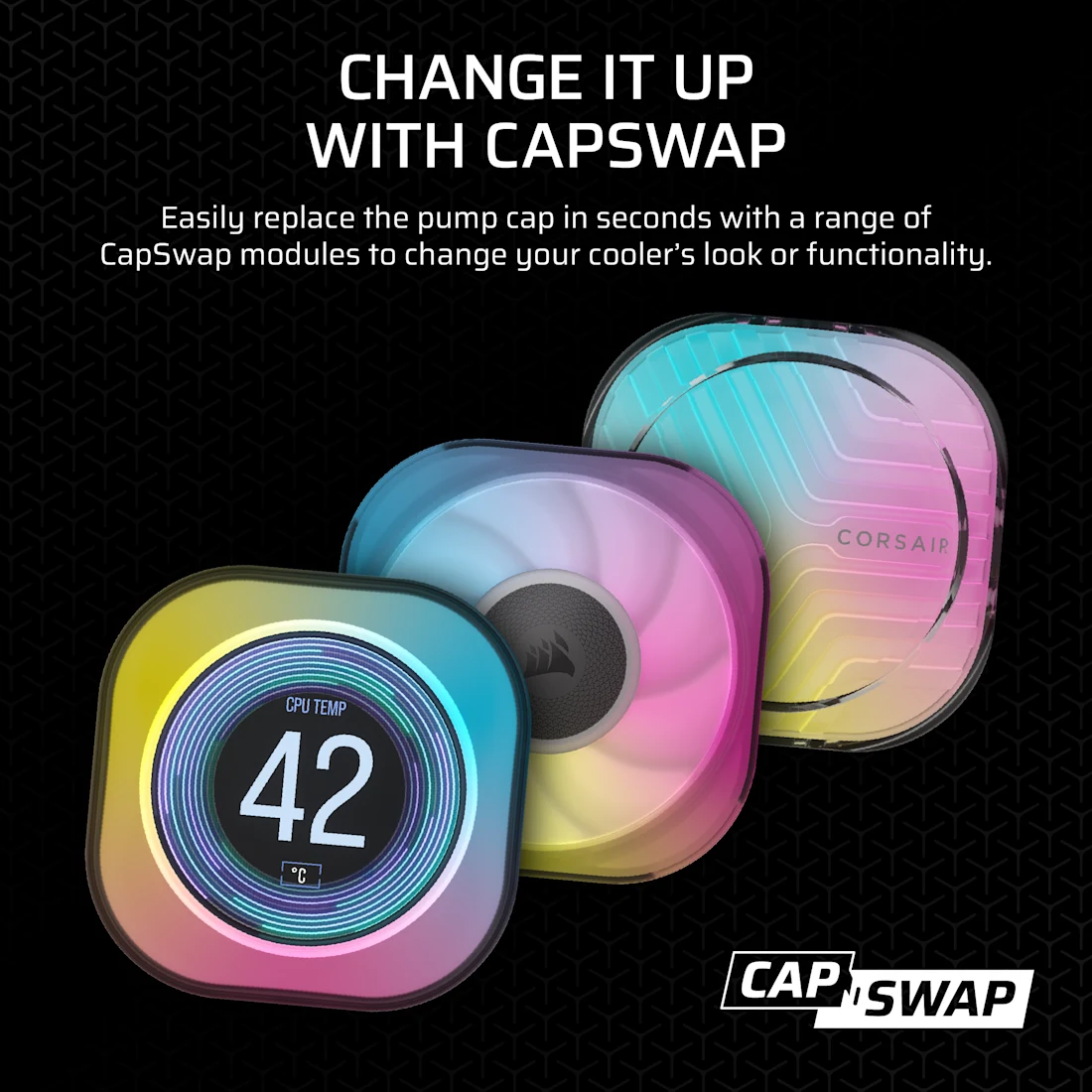

Moreover, the design supports future-proofing and customization. Thanks to the modular iCUE LINK system and support for CapSwap pump caps (sold separately), you can update or customize the pump head later — e.g. for a different look or functionality — without replacing the entire cooler.
Physically, the radiator measures about 457 × 140 × 27 mm; the assembled cooler weighs ~ 2.92–2.93 kg, making it robust yet manageable for most mid-tower and full-tower PC cases that support 420 mm radiators. The 140 mm fans provide good clearance for RAM and other motherboard components compared to dense 120 mm setups.
In summary: whether you’re building a high-performance gaming rig, a workstation for creative workloads, or an overclocked enthusiast PC, the iCUE LINK TITAN 420 RX RGB AIO Cooler offers top-tier cooling performance, wide CPU compatibility, customizable lighting, modular future-ready design, and quiet operation — a strong package for anyone looking for a powerful, stylish, and long-term cooling solution.
