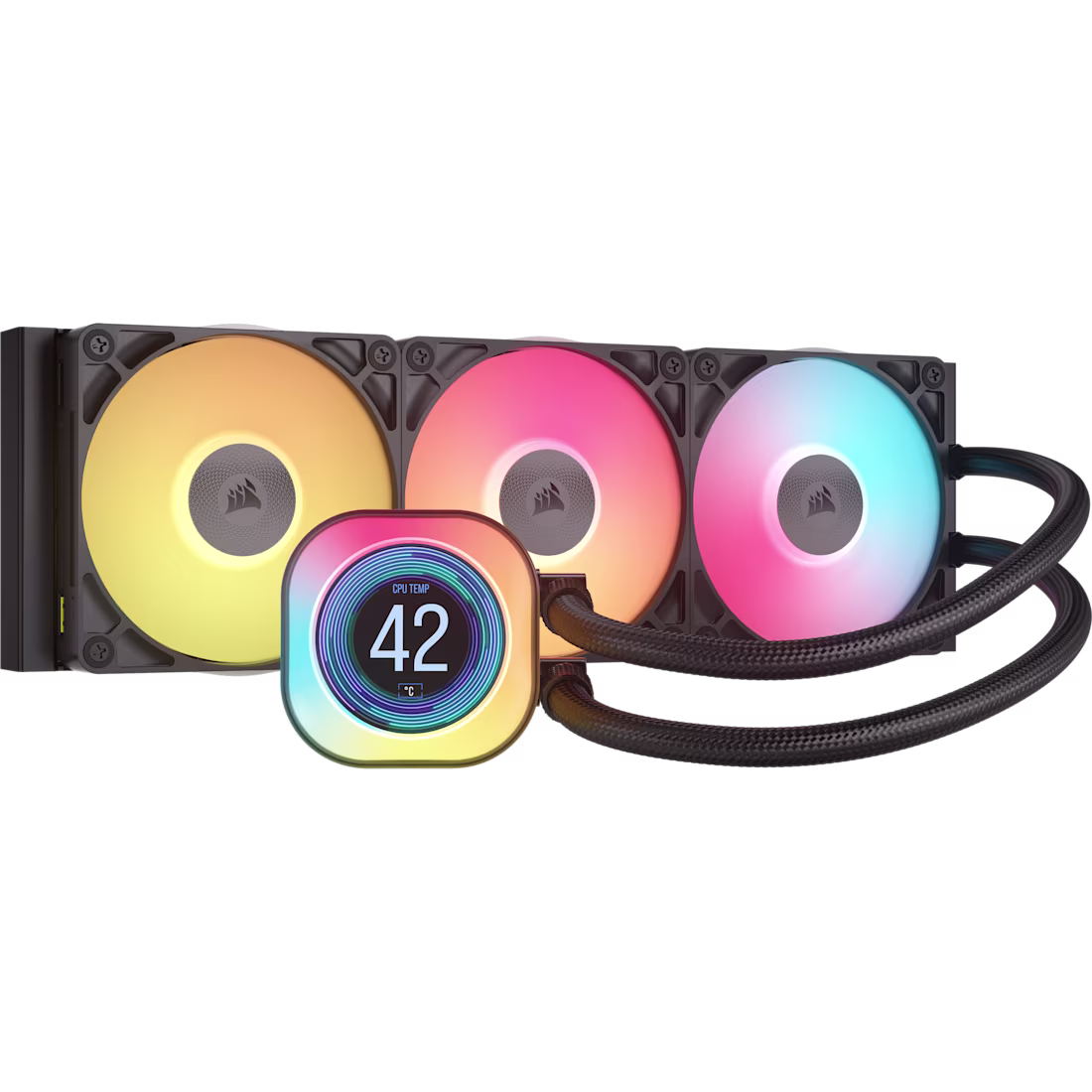

About Corsair iCUE Link Titan 360 RX Black LCD Cooler
| Attribute | Specification |
|---|---|
| Model / SKU | CW-9061023-WW |
| Radiator Size / Material | 360 mm, aluminum radiator |
| Radiator Dimensions | 396 mm × 120 mm × 27 mm |
| Number of Fans | 3 (iCUE LINK RX120 RGB) |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Speed (RPM) | 300 – 2100 RPM (±10%) |
| Fan Airflow | 10.4 – 73.5 CFM |
| Fan Static Pressure | 0.12 – 4.33 mm-H₂O |
| Noise Level | 10 – 36 dBA |
| Cold Plate Material | Copper |
| Tubing Length / Material | 450 mm, black sleeved low-permeation rubber tubing |
| Lighting / RGB | Yes — RGB on pump and fans; pump includes 44 addressable LEDs, each fan has 8 addressable LEDs |
| LCD Display on Pump-Head | 2.1″ IPS LCD, 480×480 px — supports custom images, animated GIFs, system stats |
| Compatibility (CPU Sockets) | Intel: LGA 1851, 1700; AMD: AM5, AM4 |
| Tubing / Connection System | iCUE LINK modular system for easier cable management and chaining components |
| Warranty | 6 years |
| Weight (approx) | ~ 2.59 kg (full cooler assembly) |

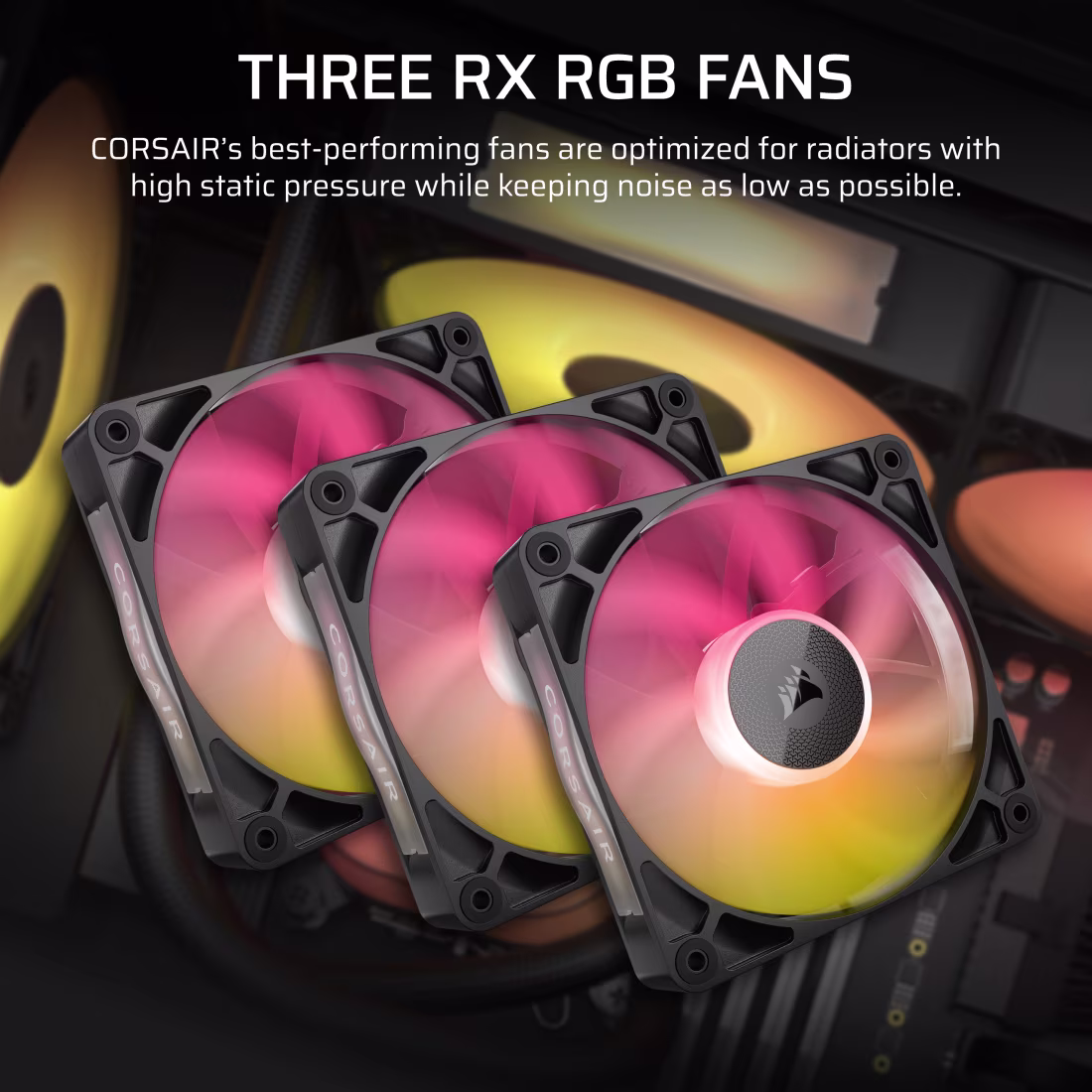

At the heart of the Corsair iCUE Link Titan Series CPU Cooler lies a 360 mm aluminum radiator paired with three RX120 RGB fans, engineered to deliver high airflow and static pressure across a broad speed range (300 – 2100 RPM).
This design ensures efficient heat dissipation even under heavy CPU loads, whether you’re gaming, rendering, streaming, or multitasking.

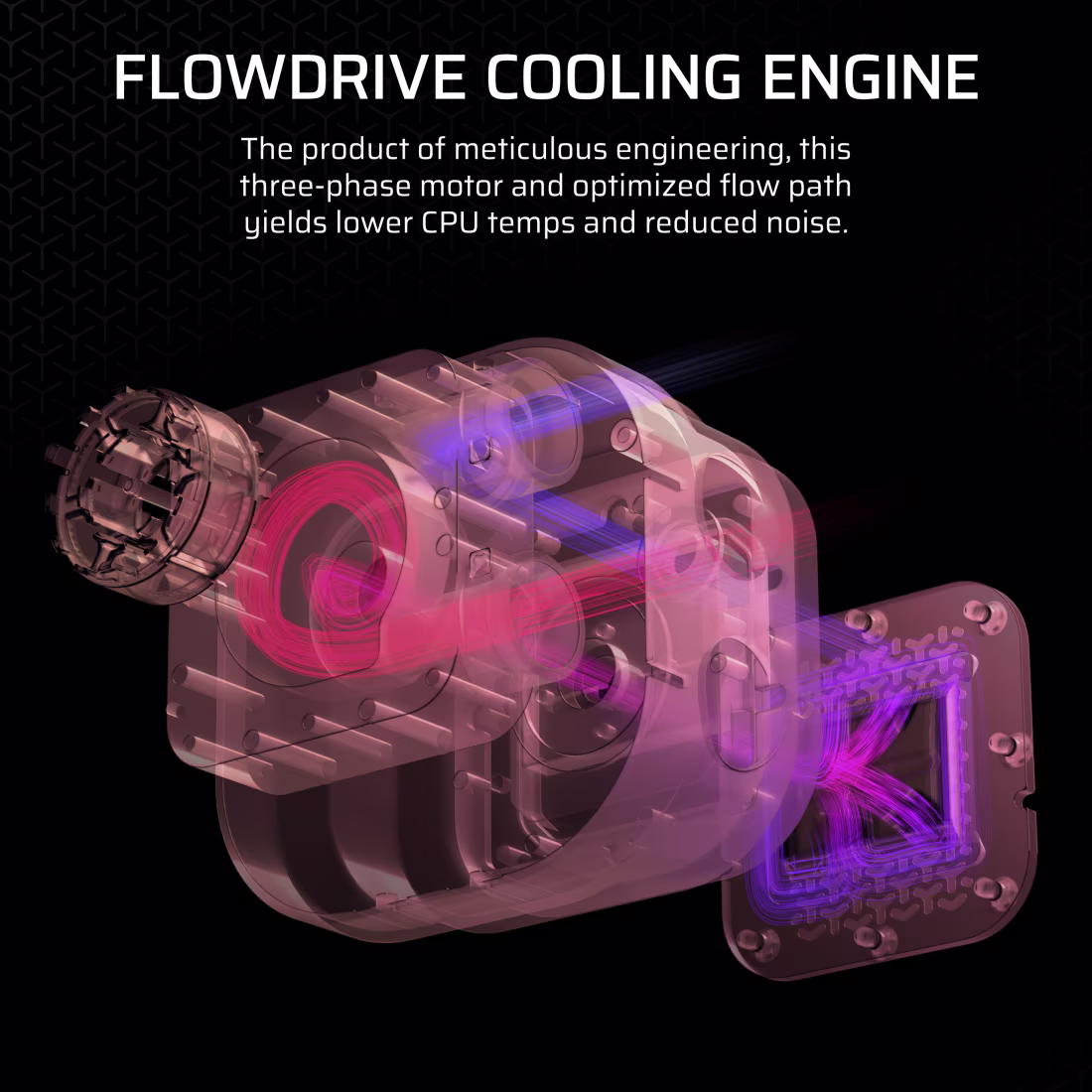

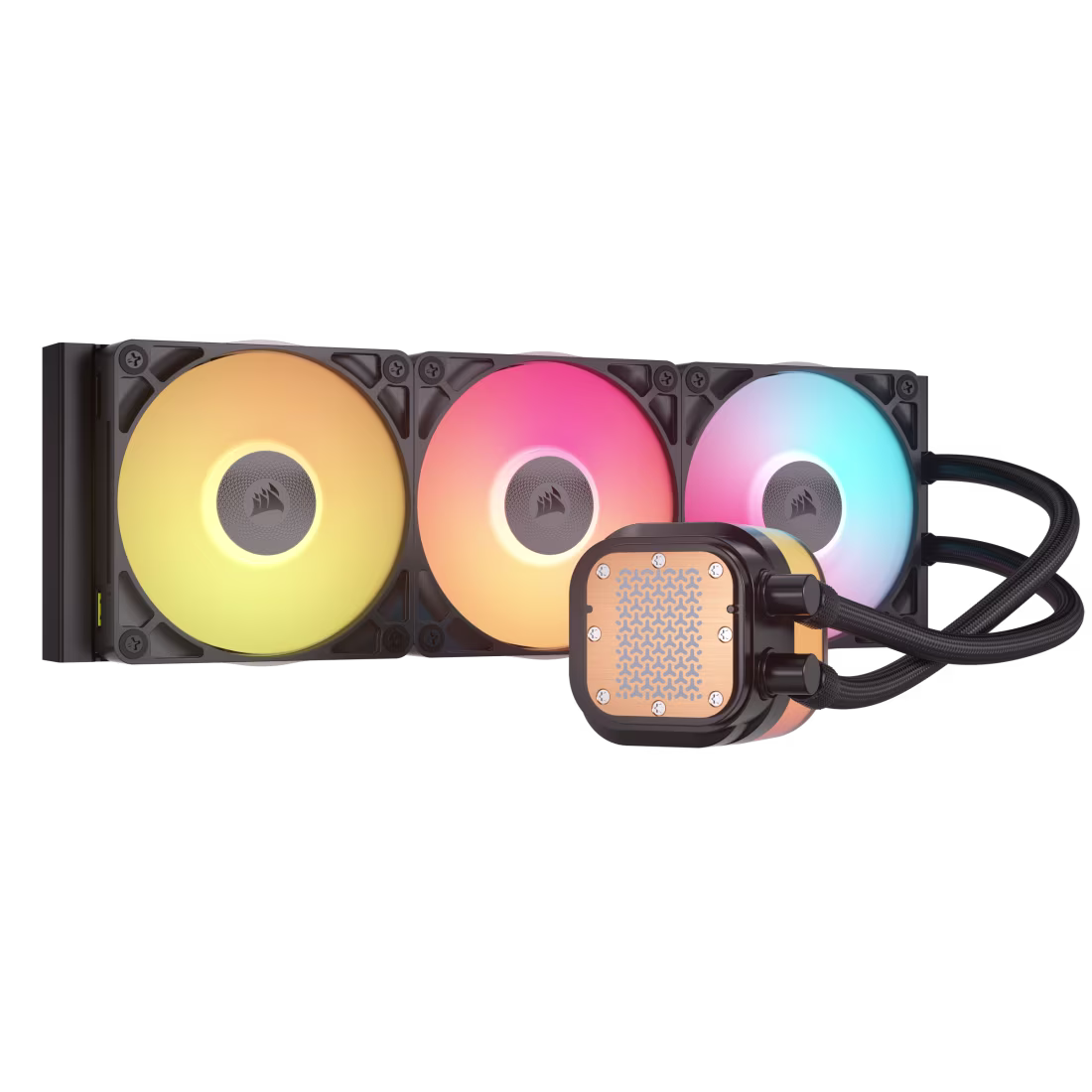

The copper cold plate, refined for maximum contact with your CPU’s integrated heat spreader (IHS), works together with Corsair’s proprietary FlowDrive pump, driven by a three-phase motor — resulting in improved coolant circulation, stable thermal performance, and reduced noise levels.

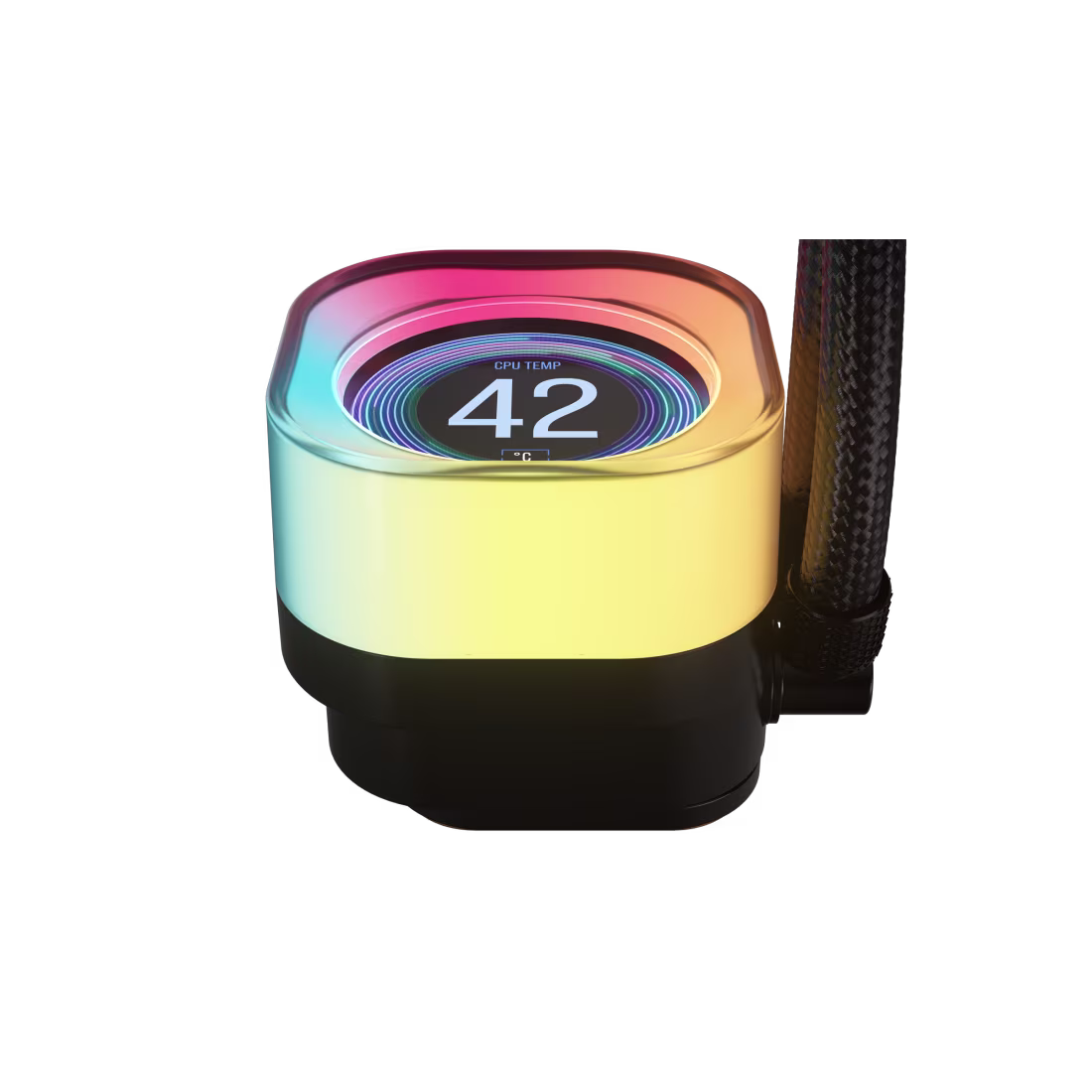

A standout feature is the 2.1-inch IPS LCD display mounted on the pump head.
Through Corsair’s iCUE software, you can customize the display to show real-time CPU temperature, fan speeds, system statistics — or go for a more personal touch by uploading your own images, GIFs, or logos.
This capability not only adds a functional flair to your build but elevates the aesthetic, letting your PC reflect your style.
Lighting doesn’t stop at the display.
The Corsair iCUE Link Titan 360 RX Black LCD Cooler brings extensive RGB illumination: 44 individually addressable LEDs on the pump/cap and an additional 8 addressable LEDs on each of the three fans.

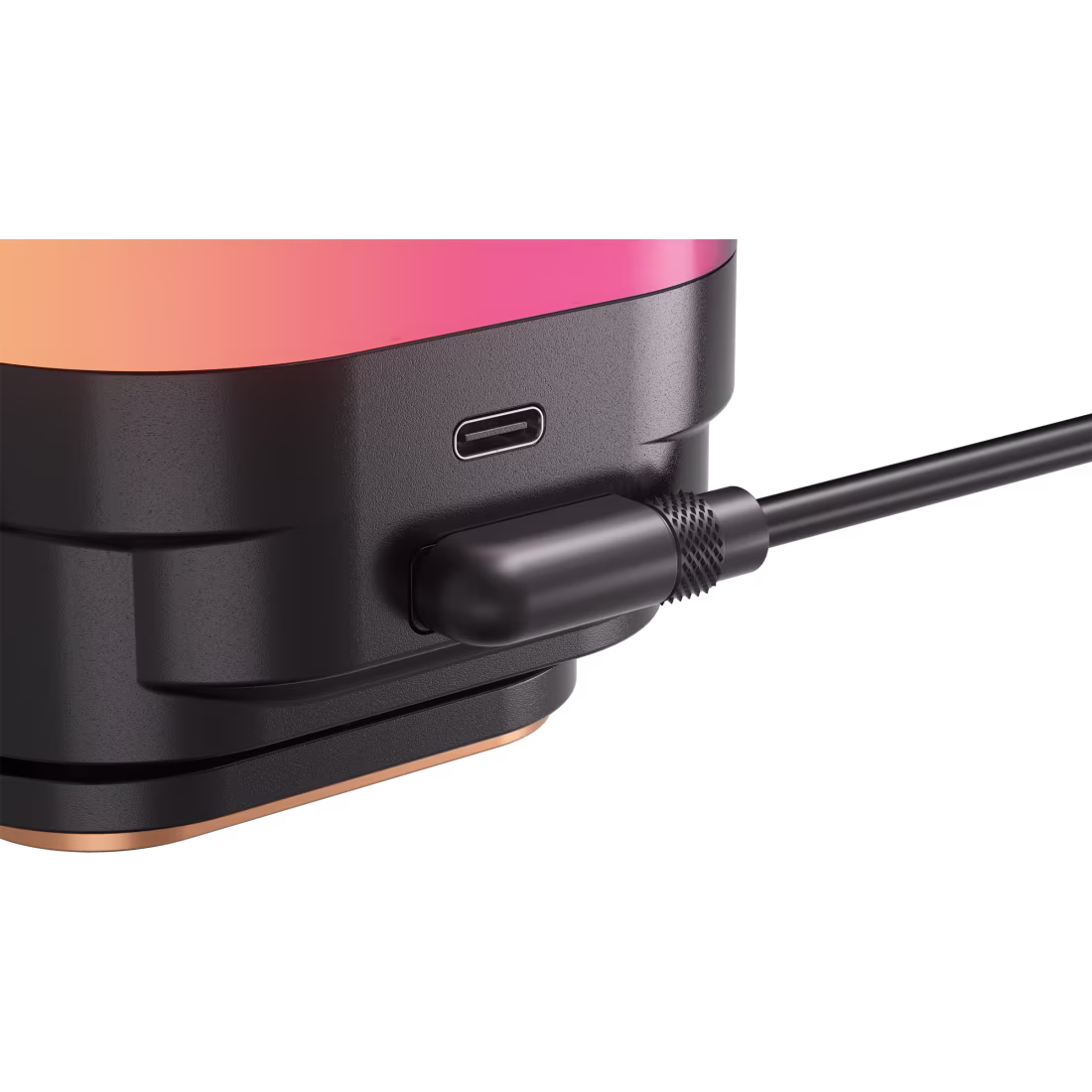

Through iCUE LINK — Corsair’s modular connection ecosystem — you can link multiple components (fans, coolers, peripherals) using a single universal connector, reducing cable clutter and simplifying build management.
The modular design also supports CapSwap functionality: should you want to change the pump cap down the line — for a new look, upgraded functionality, or simple refresh — you can swap it out without tools in seconds.
Cooling performance meets versatility through wide socket support.
The Corsair 360mm Black LCD Liquid Cooler is compatible with the latest Intel platforms (LGA 1851, LGA 1700) as well as modern AMD platforms (AM5, AM4), making it a future-proof solution for upcoming CPU generations.
With 450 mm of sleeved low-permeation tubing, you get flexibility for routing, even in large or non-standard cases.

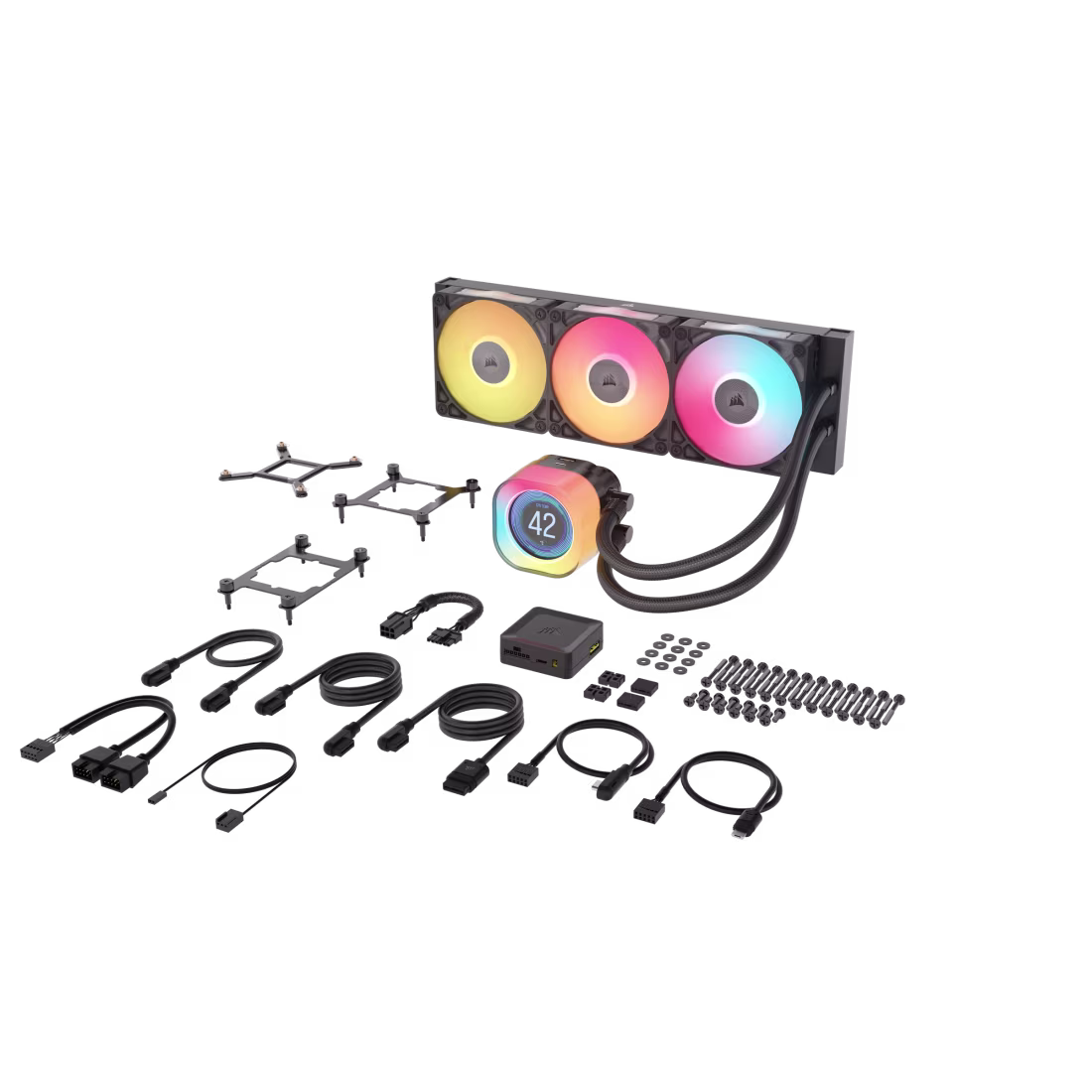

Installation is straightforward, thanks to included mounting hardware and support for major CPU sockets.
Once set up, the Corsair 360mm RGB Black LCD CPU Cooler remains quiet under typical loads — fans operate from ~10 dBA at low speeds up to ~36 dBA at full RPM, offering a balance between performance and acoustic comfort depending on your needs.
Durability and reliability are backed by a six-year warranty, giving peace of mind for long-term builds and high-end rigs.
Whether you prioritize maximum thermal performance, silent operation, or aesthetic customization — or all three — the Corsair iCUE Link Titan 360 RX Black LCD Cooler stands out as a flagship AIO cooler.
The Corsair iCUE Link Titan 360 RX Black LCD Cooler is more than just a CPU cooler — it’s a customizable cooling hub and statement piece.
iCUE Link Titan 360 RX Black LCD Cooler brings together powerful liquid cooling, smart modular design, and visual flair to meet the demands of modern builds.
