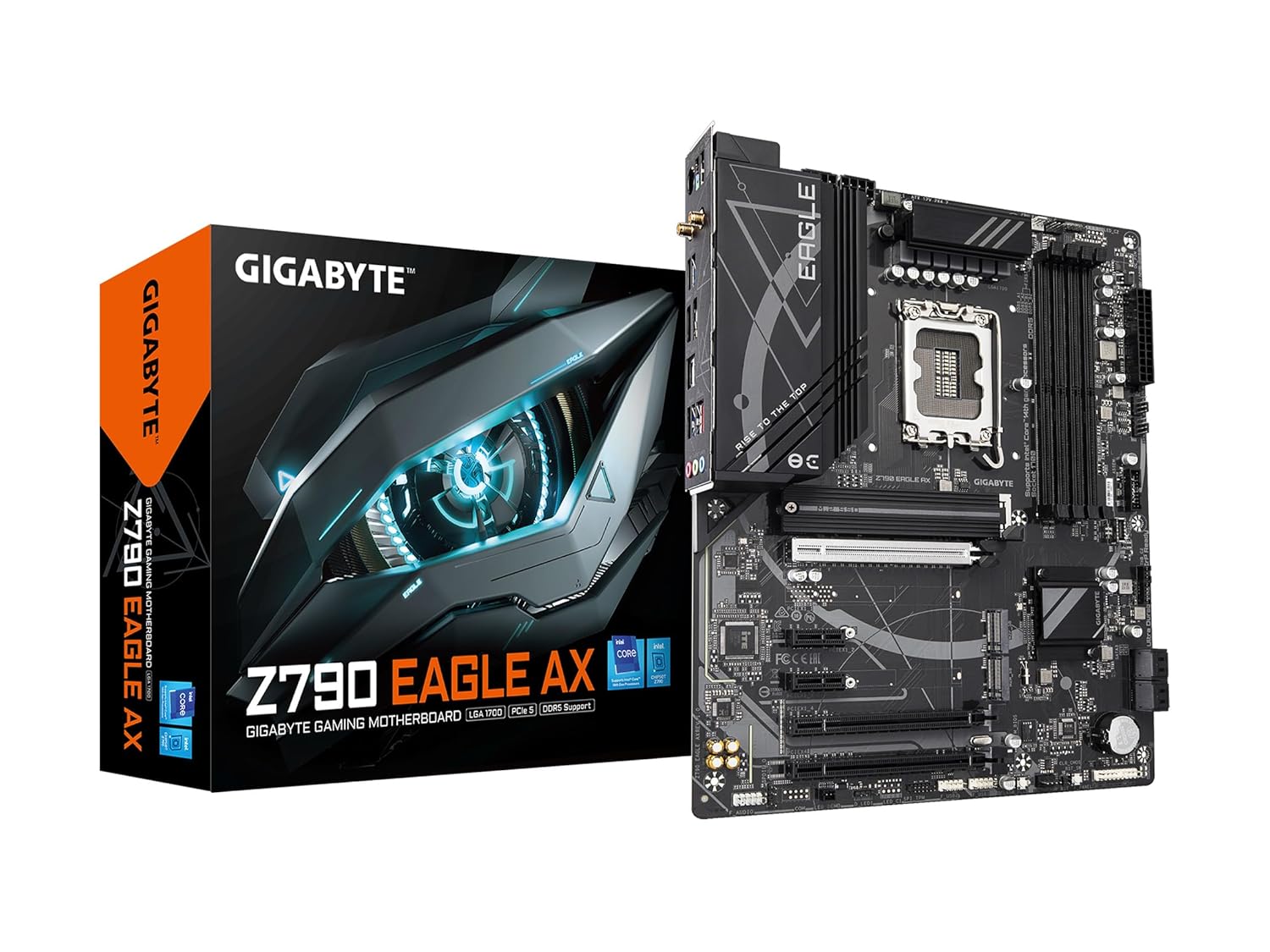

About Gigabyte Z790 Eagle AX Wi-Fi DDR5 Motherboard
Specification Category | Details |
---|---|
Motherboard / Form Factor | ATX, 305 × 244 mm |
CPU Socket & Compatibility | LGA-1700; supports Intel 14th / 13th / 12th Gen Core processors |
Chipset | Intel Z790 |
Power Delivery / VRM | “Twin 12+1+1 Phases Digital VRM Solution”; also described in “6+6 phases parallel power design” |
PCB / Build Enhancements | 6-layer PCB; 2× copper layers; enlarged MOSFET heatsink; M.2 Thermal Guard |
Memory Support | 4 × DDR5 DIMMs; dual-channel; XMP 3.0 support; overclockable up to ~7600 MT/s (depending on configuration) |
Storage / M.2 / SATA Ports | 3 × M.2 slots (PCIe 4.0 x4) with thermal guard; SATA III ports (4) |
Expansion Slots (PCIe) | 1 × PCIe 5.0 x16 (for GPU); additional PCIe 4.0/3.0 slots for other devices |
Rear & Internal I/O | Rear: HDMI, DisplayPort; USB C (10 Gbps), USB A Gen-2; front USB headers; many fan / pump headers; LED headers |
Networking & Wireless | 2.5 Gigabit Ethernet; Wi-Fi 6E (802.11ax) plus Bluetooth support |
Audio | Hi-Fi audio capacitors; Noise-Guard / shielded analog paths |
Cooling / Thermal Features | Enlarged MOSFET heatsinks; thermal guards over M.2; Smart Fan 6 support; multiple temperature sensors and hybrid fan/pump headers with fan stop feature |
Special / Convenience Features | PCIe EZ-Latch for easier GPU removal; Q-Flash Plus (BIOS update without CPU/GPU/Memory); Clear-CMOS, RGB/LED headers; BIOS and usability enhancements |
