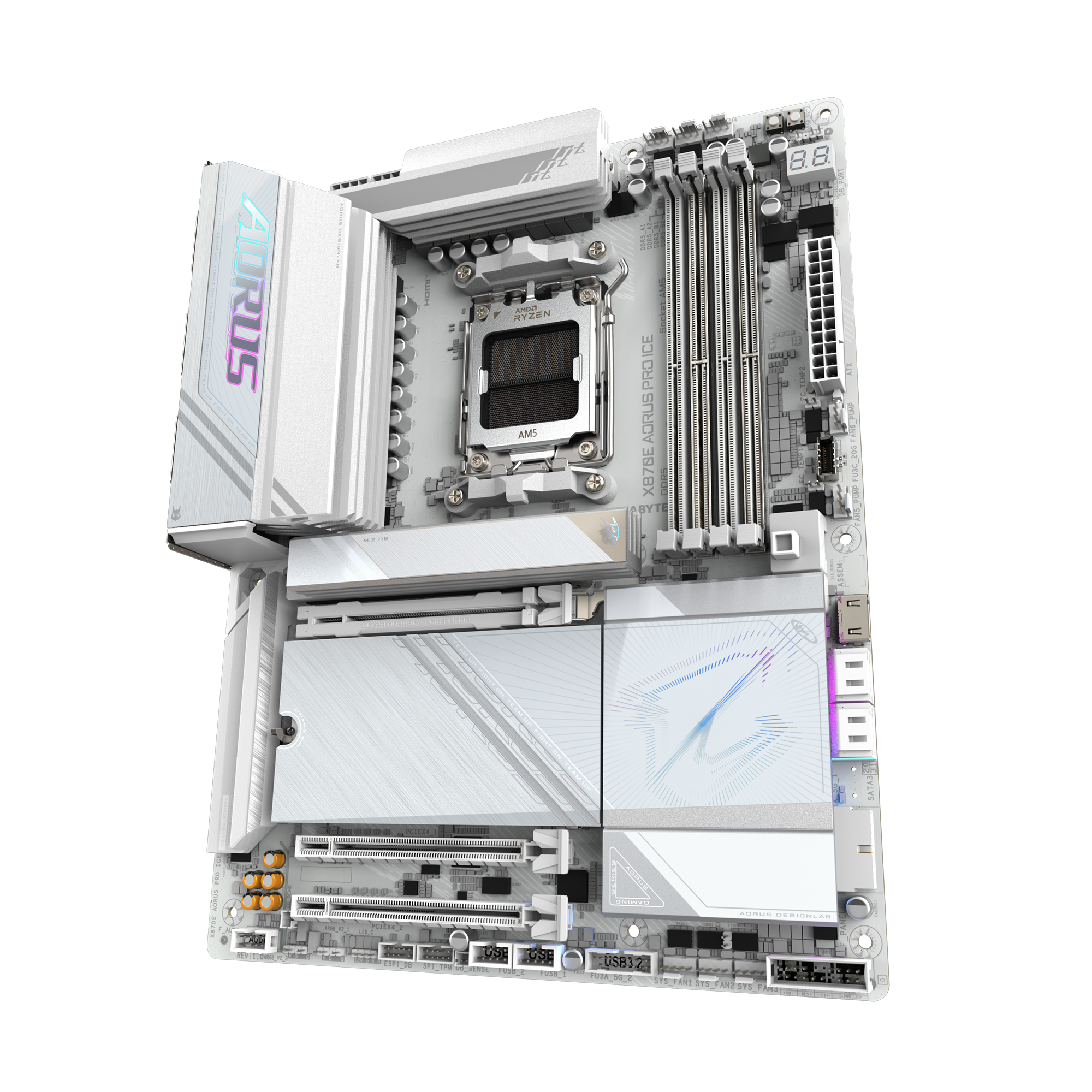

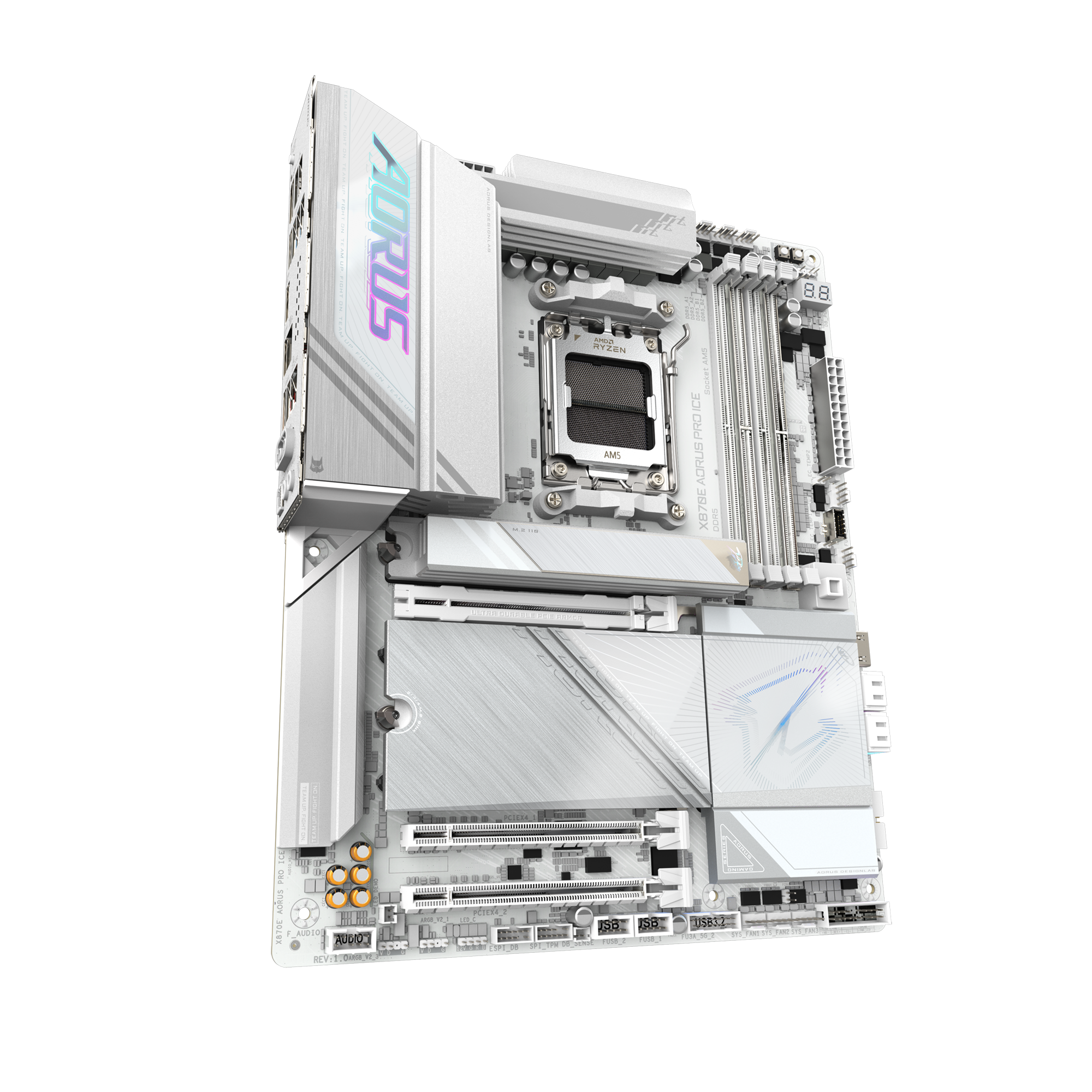

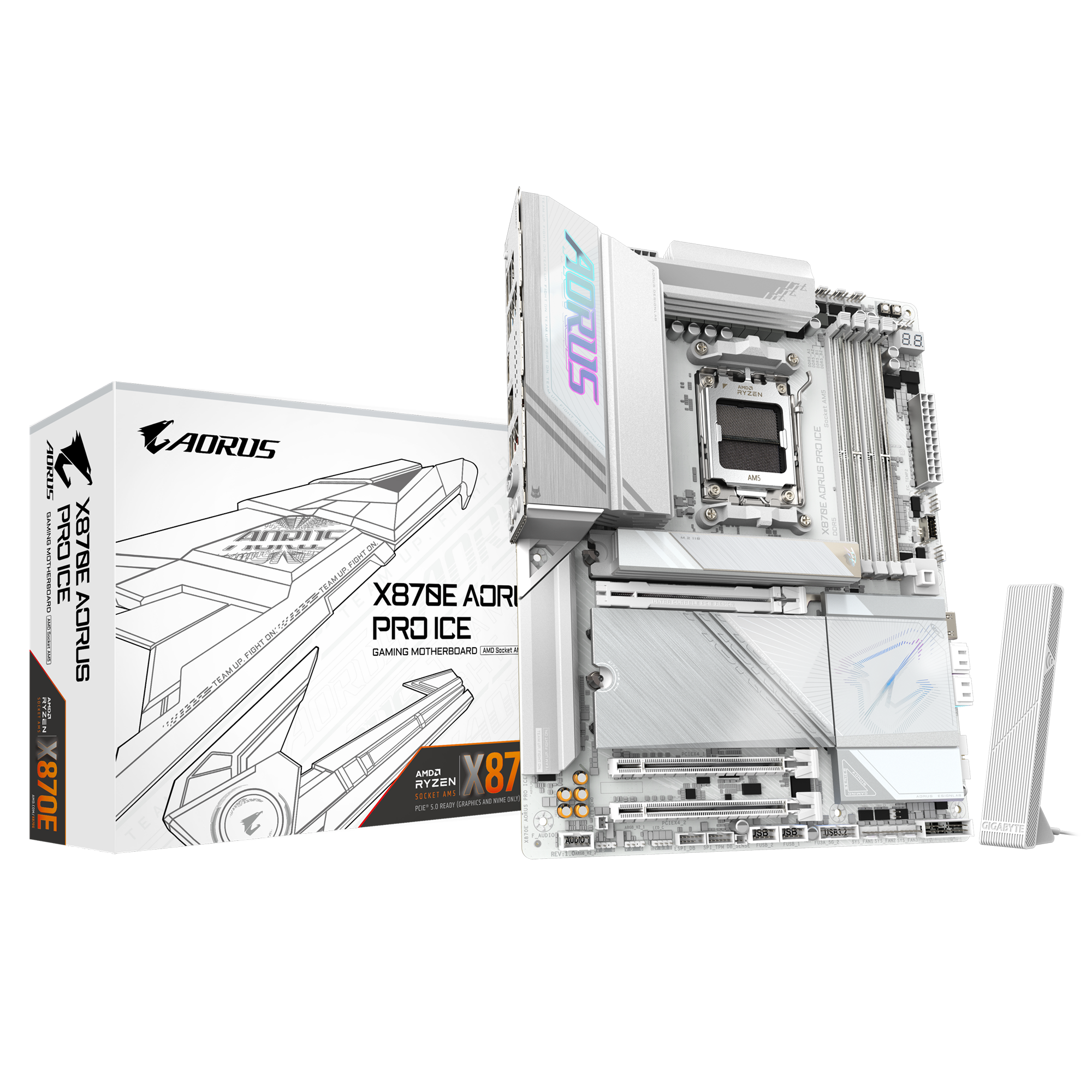

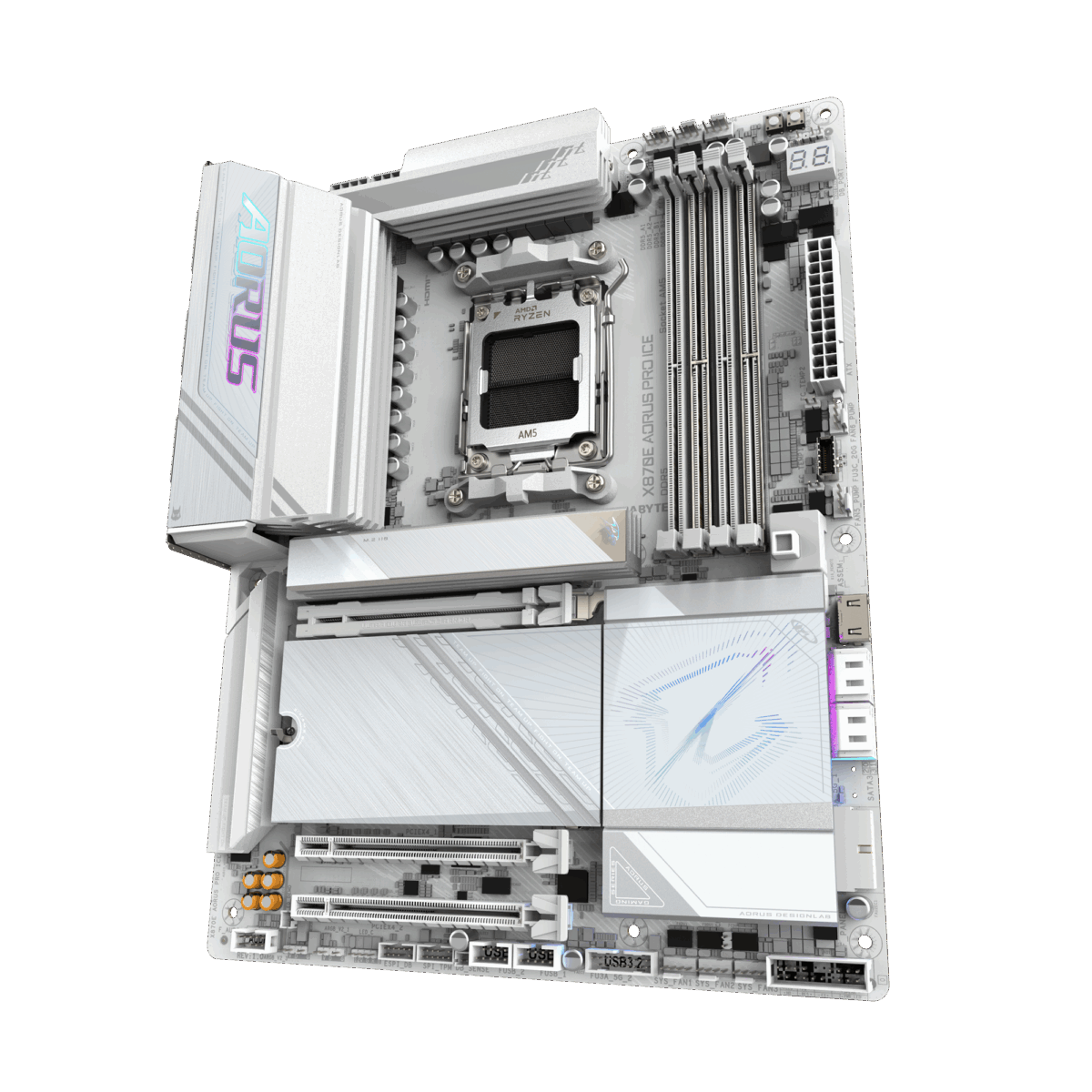

About Gigabyte X870E Aorus Pro ICE Motherboard
Spec Category | Full Details |
---|---|
CPU / Socket Support | AMD Socket AM5; supports Ryzen 9000 / 8000 / 7000 series CPUs |
Power Delivery (VRM) | Digital twin 16+2+2 phase VRM solution; 80A Smart Power Stages; 6-layer PCB; 2× copper; premium chokes & capacitors |
Memory | 4 DIMMs; DDR5; supports AMD EXPO memory modules |
Storage / Expansion | 4 M.2 slots (three PCIe 5.0 ×4, one PCIe 4.0); full-length PCIe 5.0 x16 slot (“UD Slot X”); other PCIe slots (PCIe 4.0 / 3.0) for expansion |
Thermal & Build Features | VRM Thermal Armor Advanced; M.2 Thermal Guard L; M.2 Thermal Guard Extended; Integrated I/O shield; EZ-Latch plus / click designs for M.2 & PCIe (tool-less / screwless where possible) |

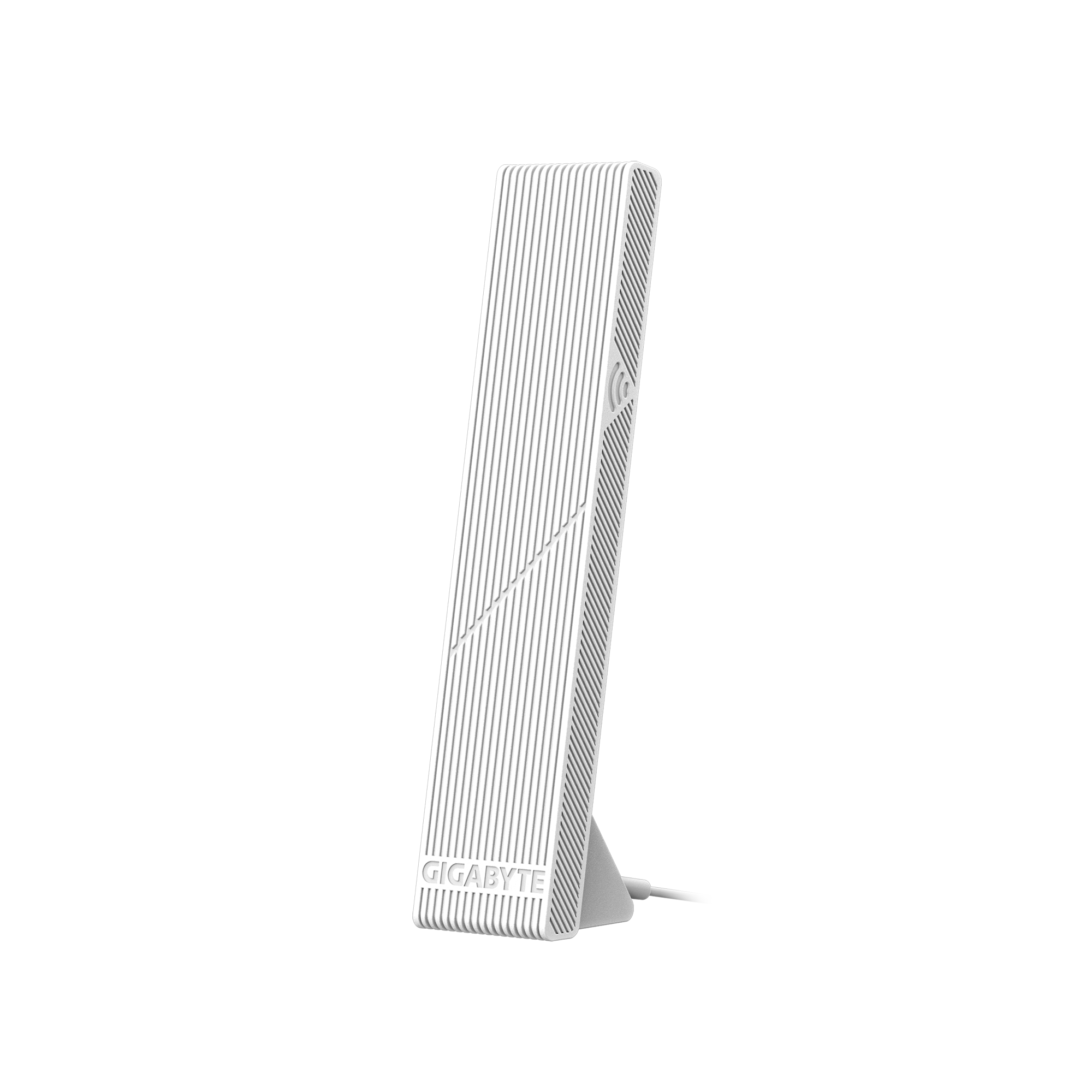

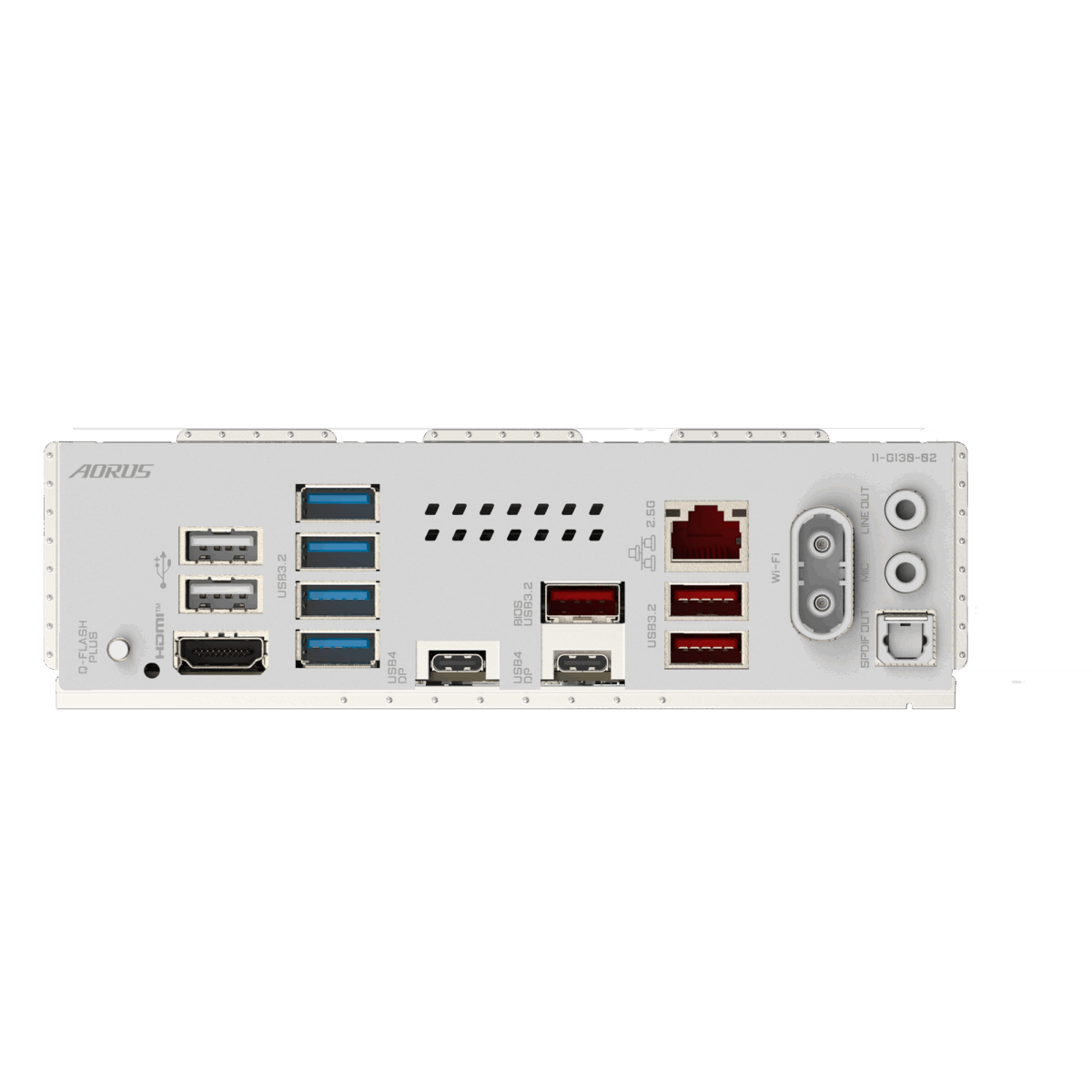

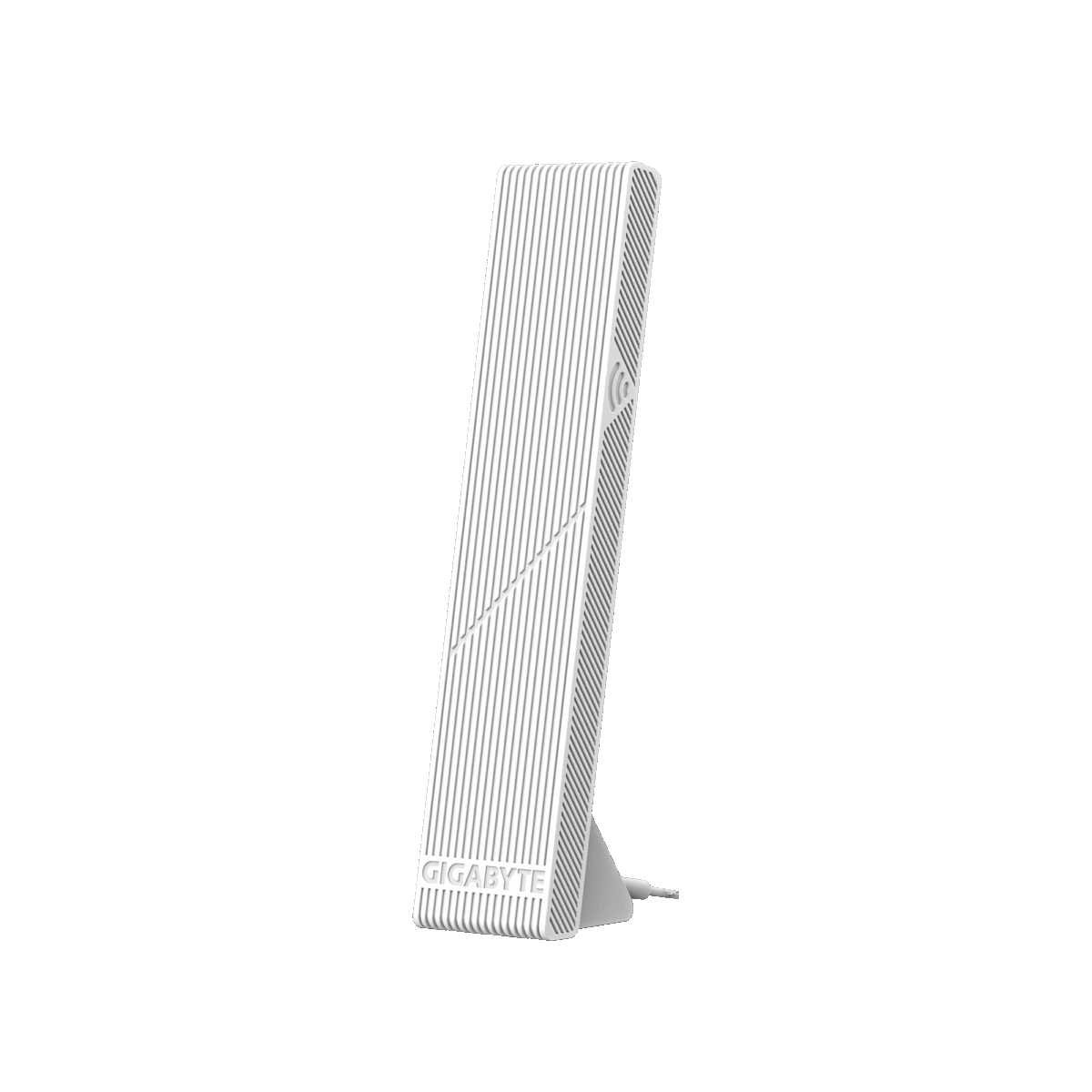

Connectivity / I/O | Dual USB4 Type-C with DisplayPort Alt, HDMI, multiple USB3.2 Gen1 & Gen2 ports, USB2.0, front USB-C 20Gb/s header, Wi-Fi 7 with high gain antenna, 2.5GbE LAN |
Audio | Realtek ALC1220 HD audio codec; audiophile grade capacitors |
Durability / Extras | Ultra durable PCIe Armor for the PCIe x16 slot; sensor panel link (onboard video port for front panel/chassis panel setup); extended connectivity; friendly BIOS / UI with multi-theme, Q-Flash / firmware auto-scan; hardware-power phase real-time monitoring via HWInfo support |
