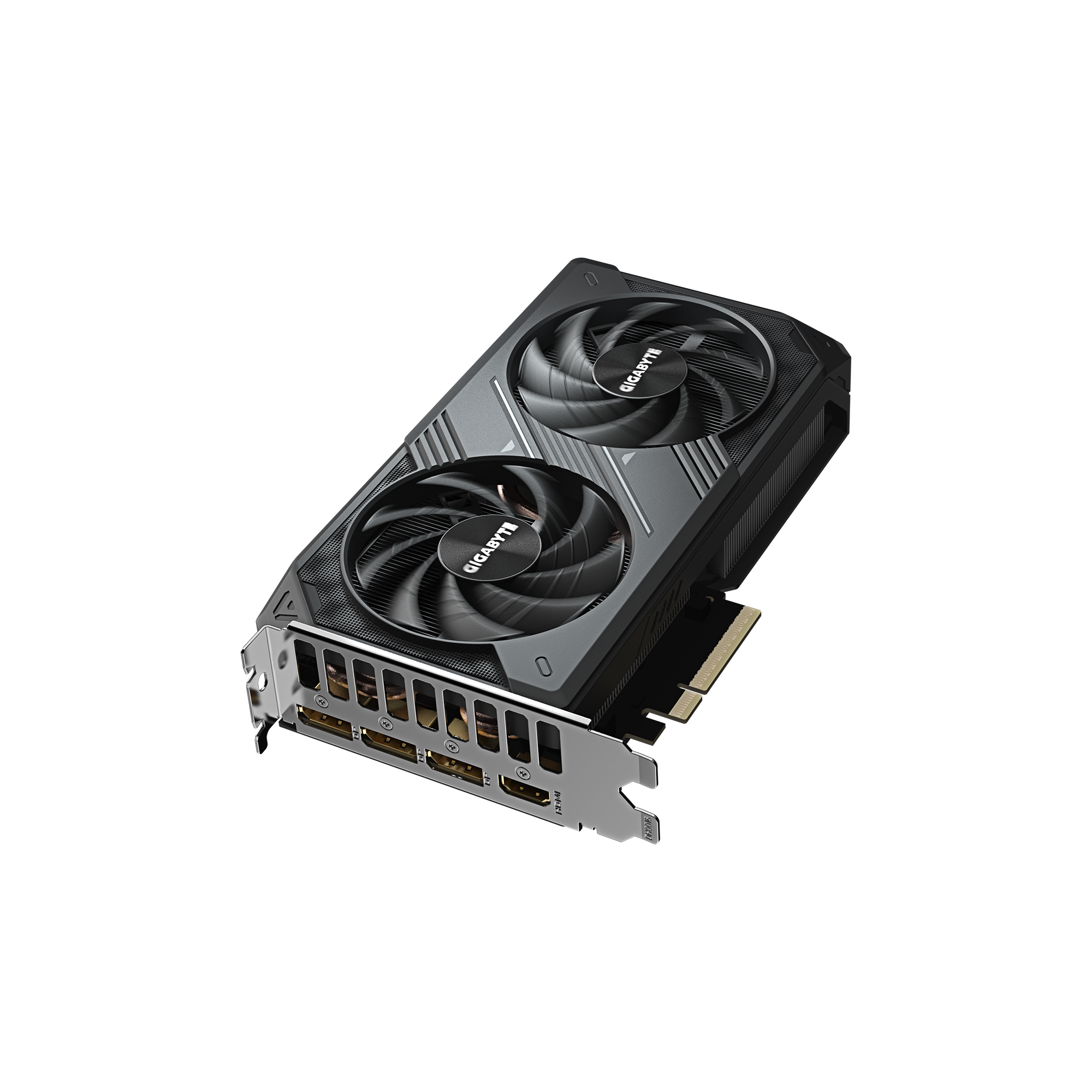

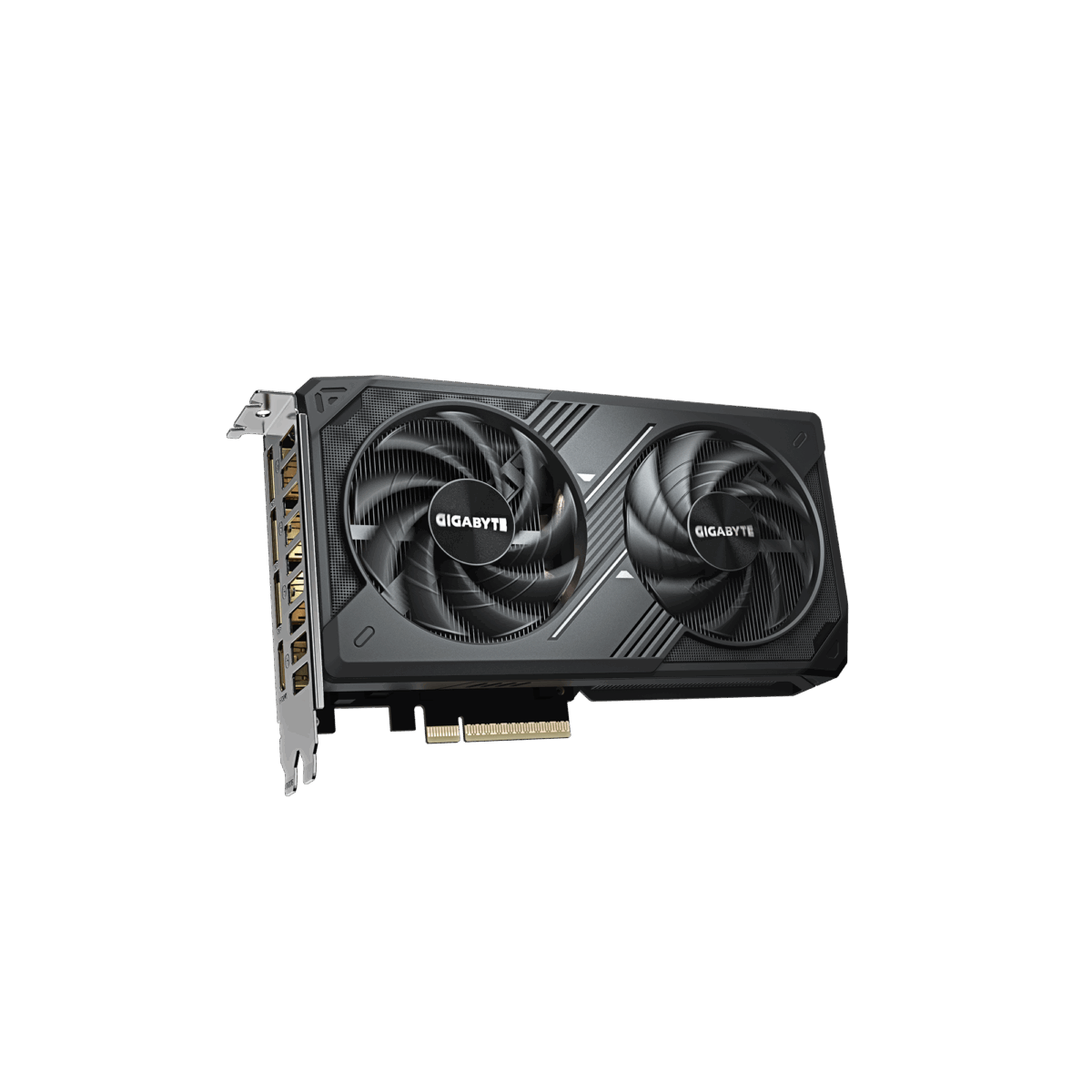

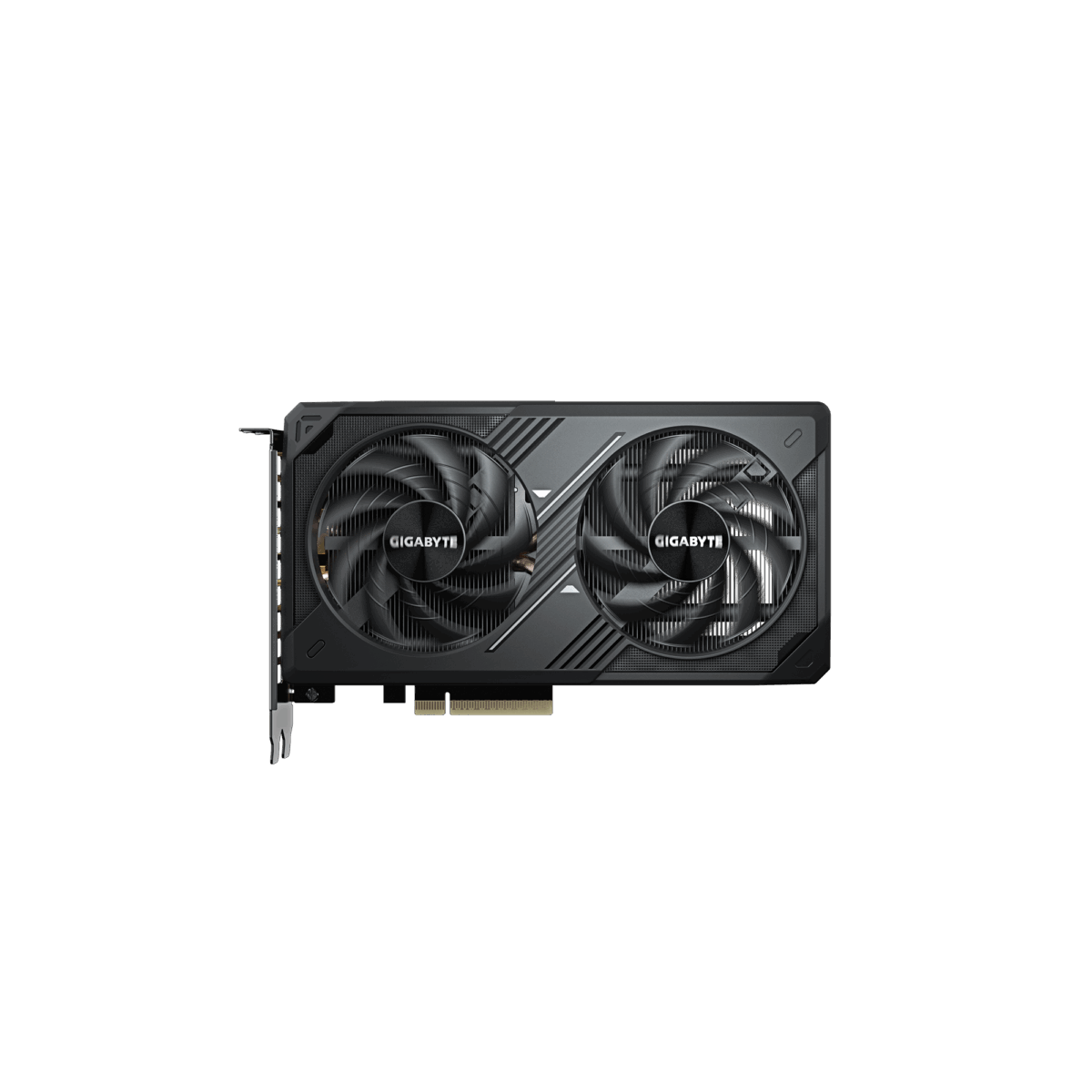

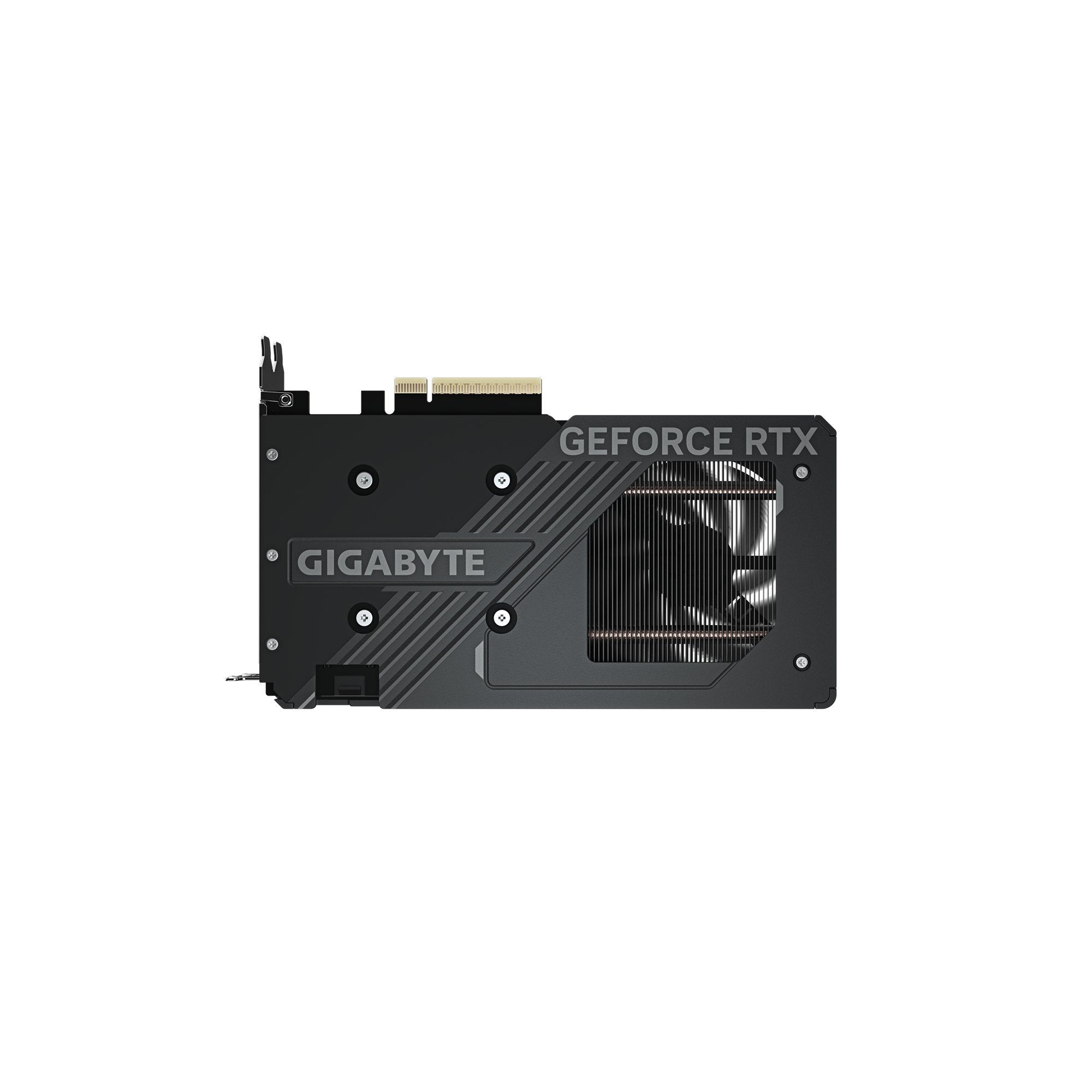

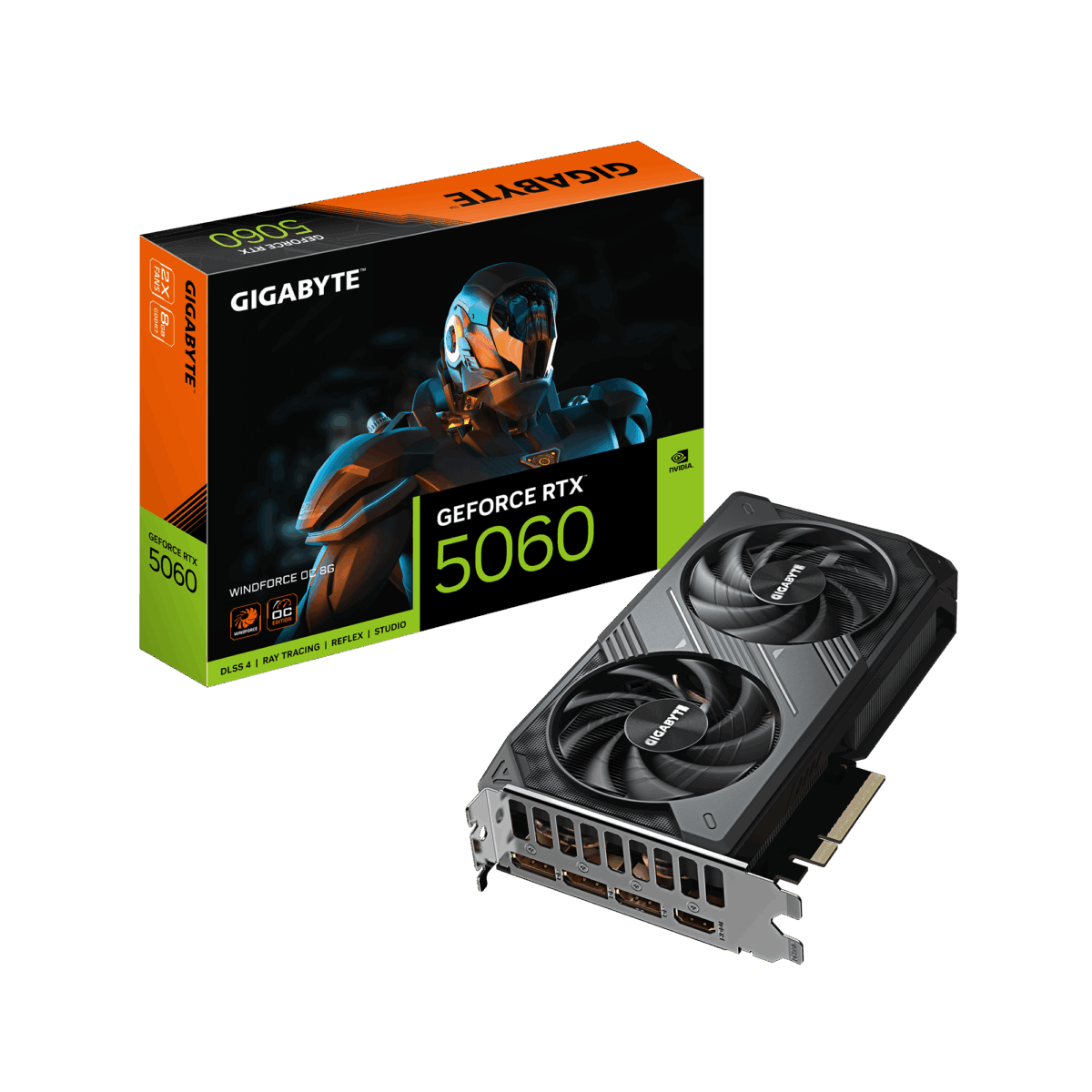

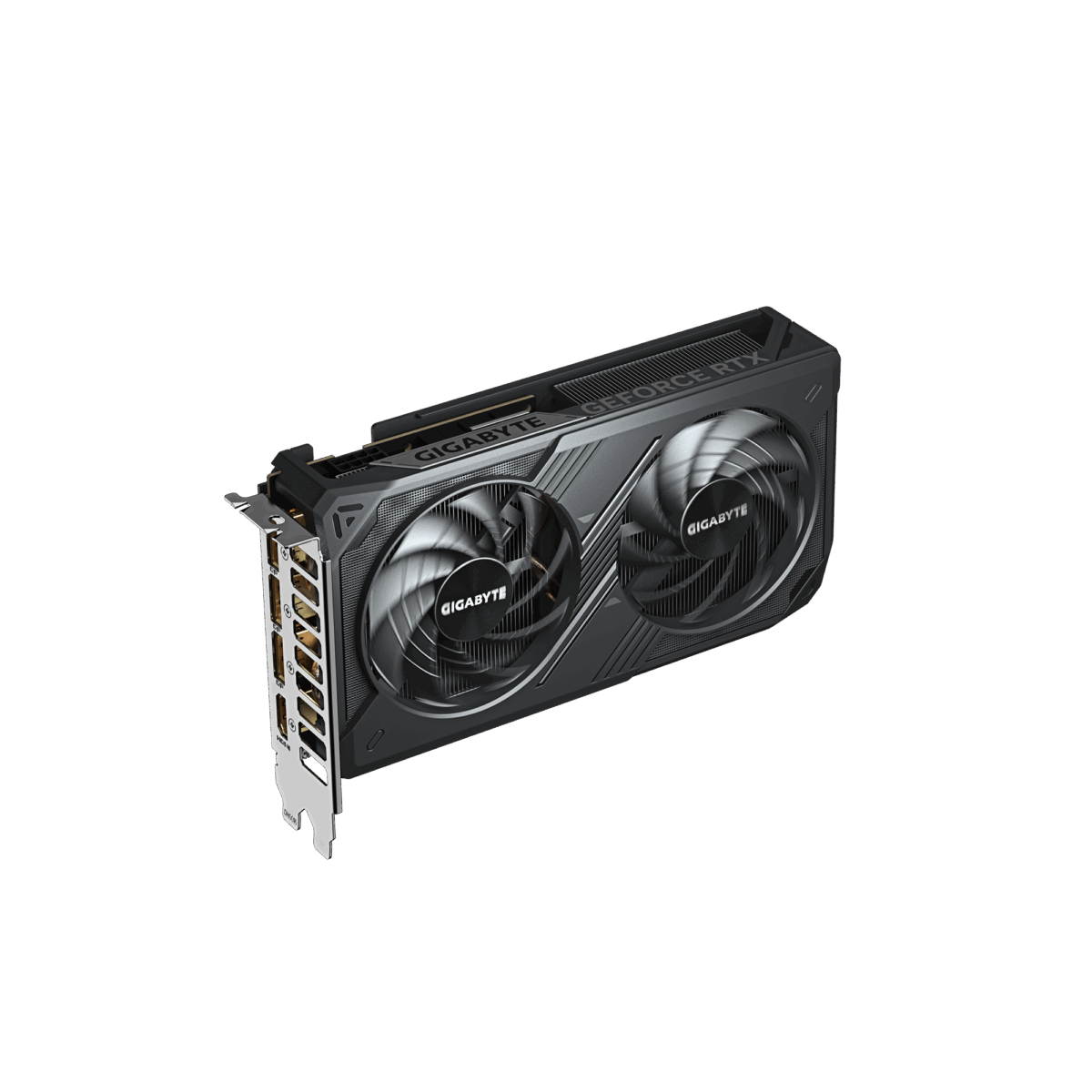

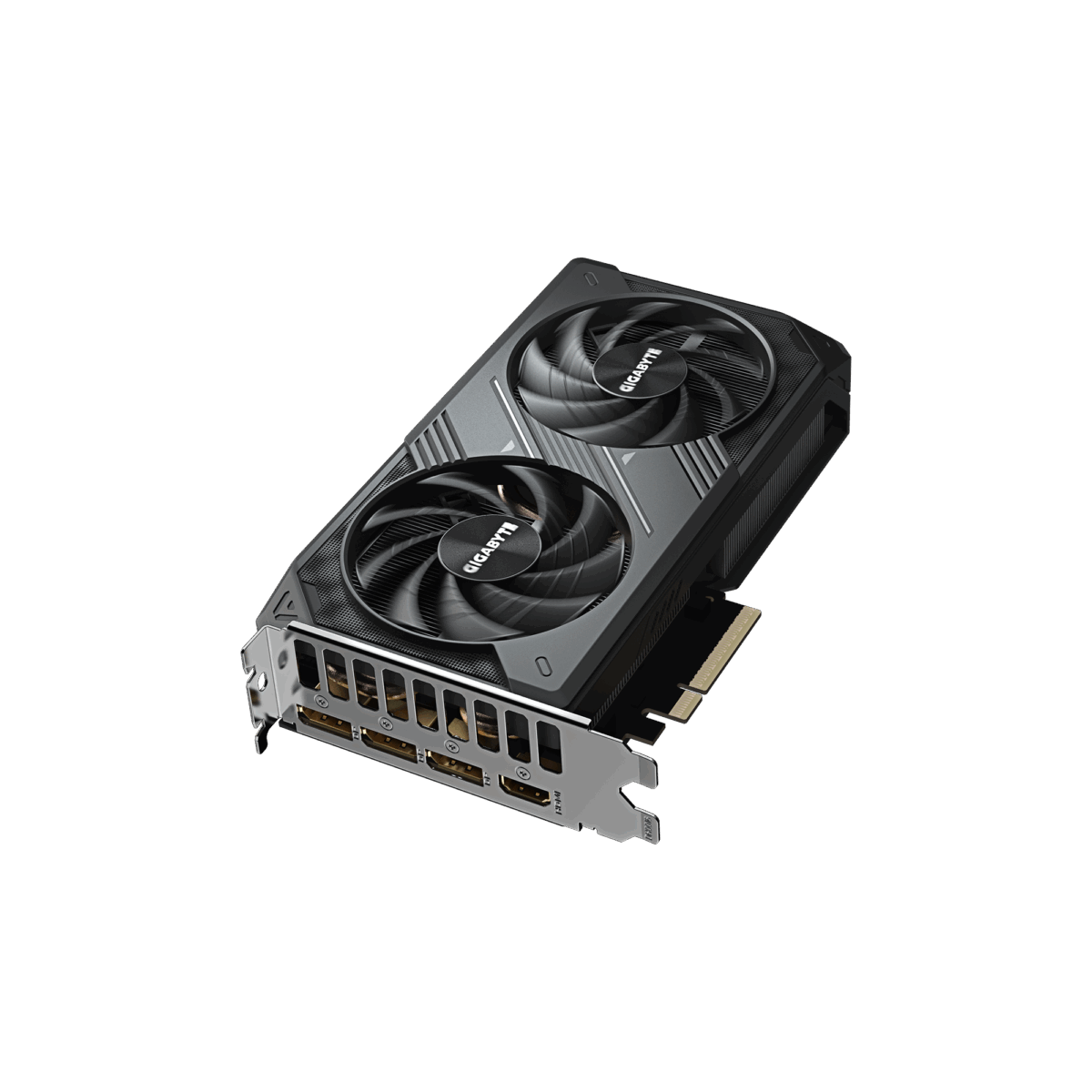

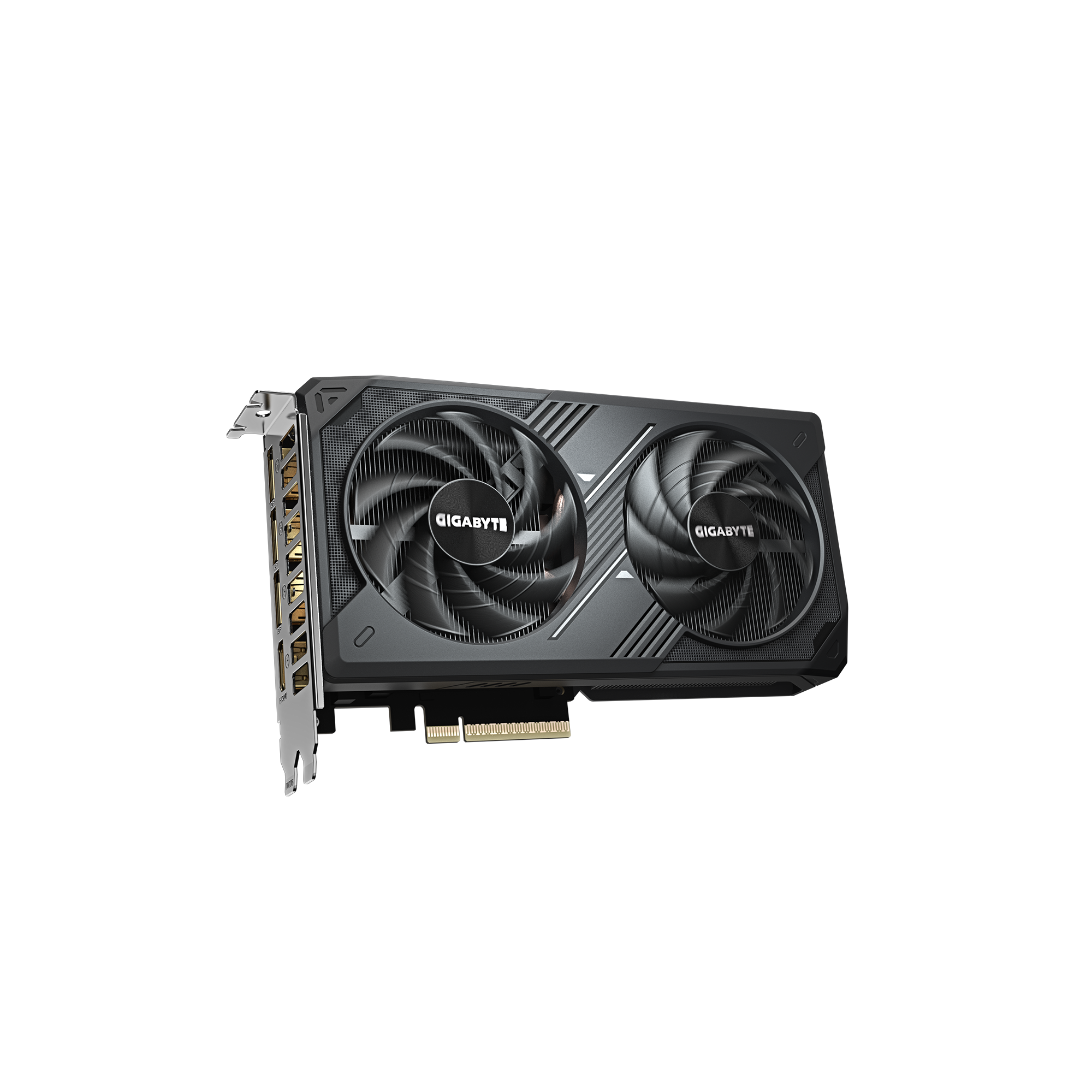

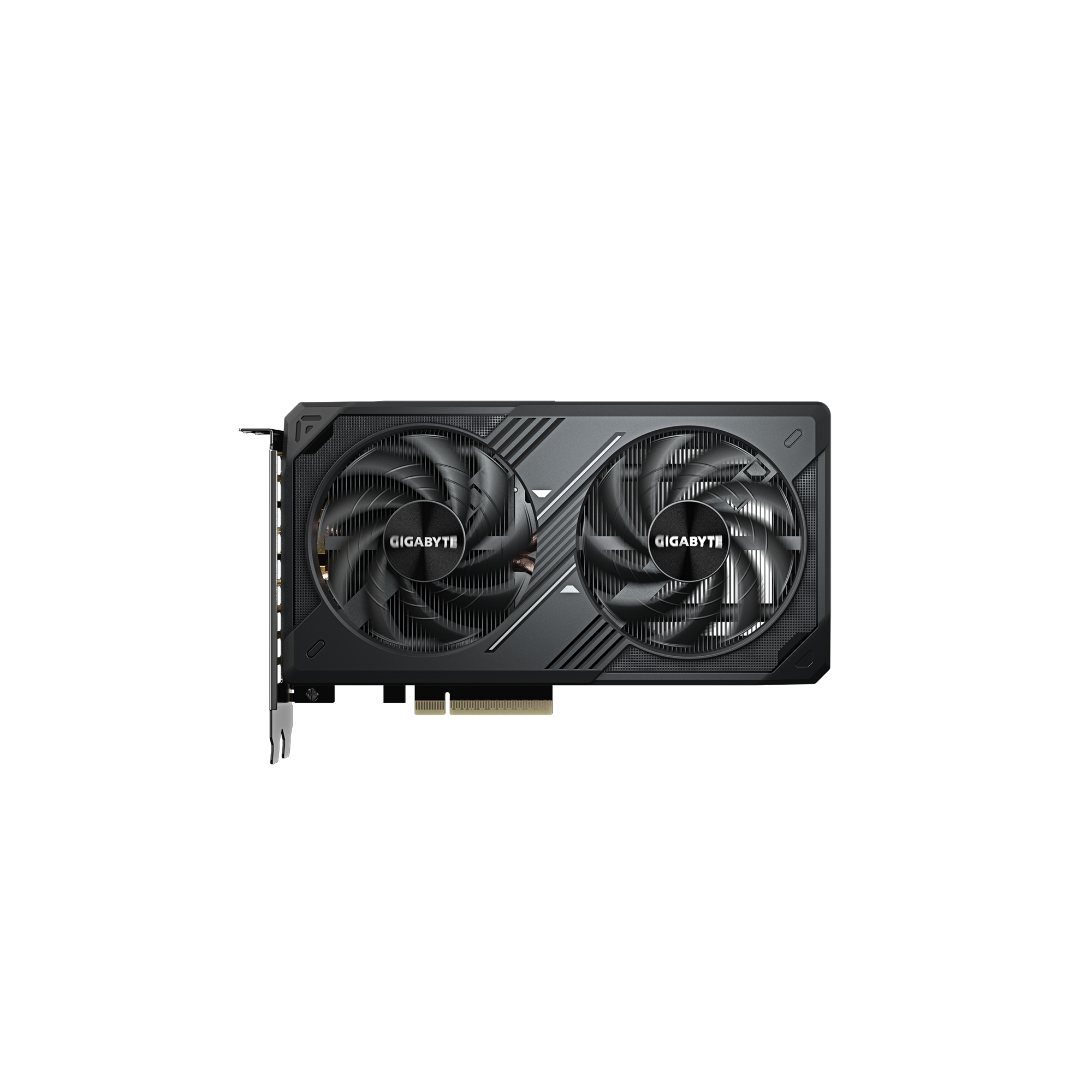

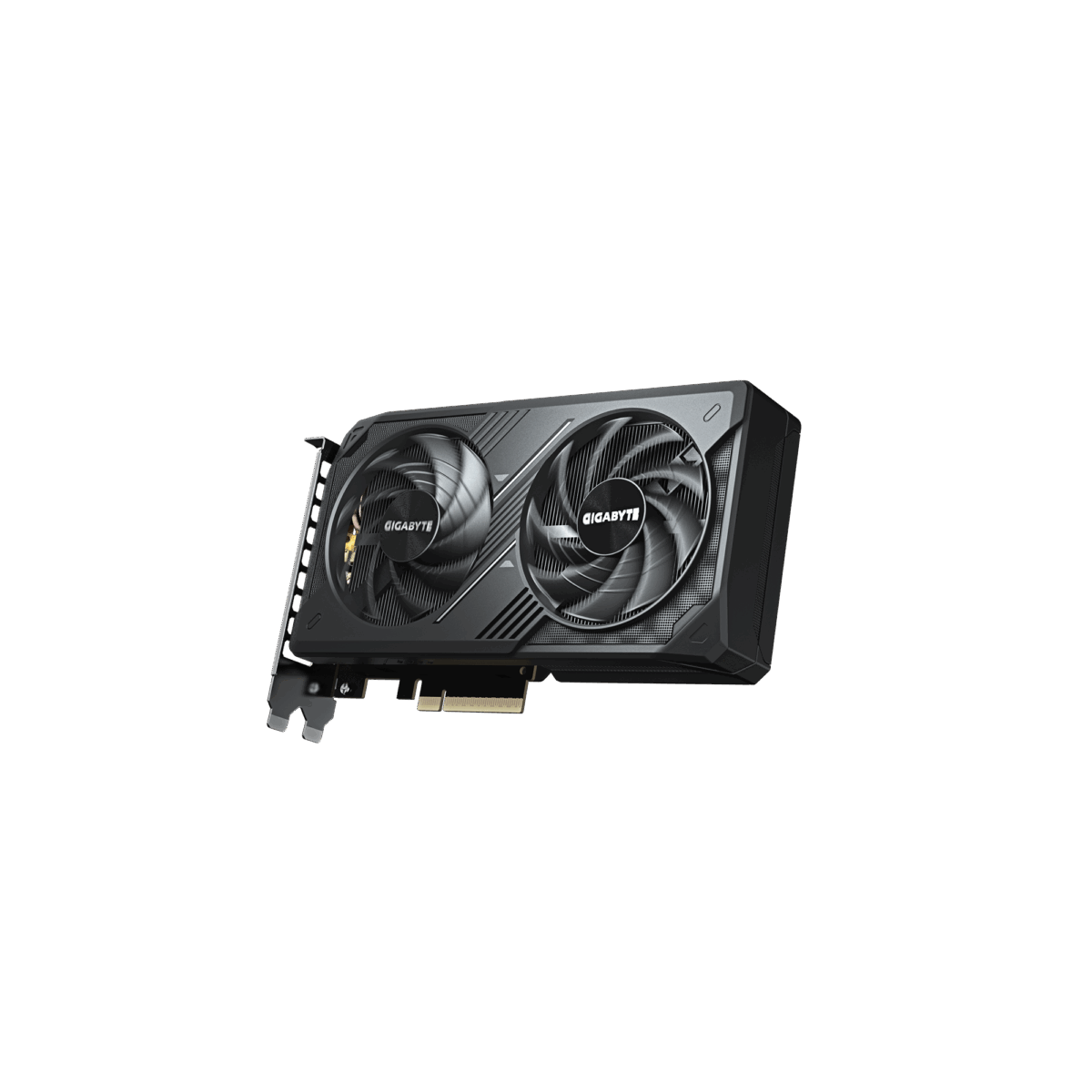

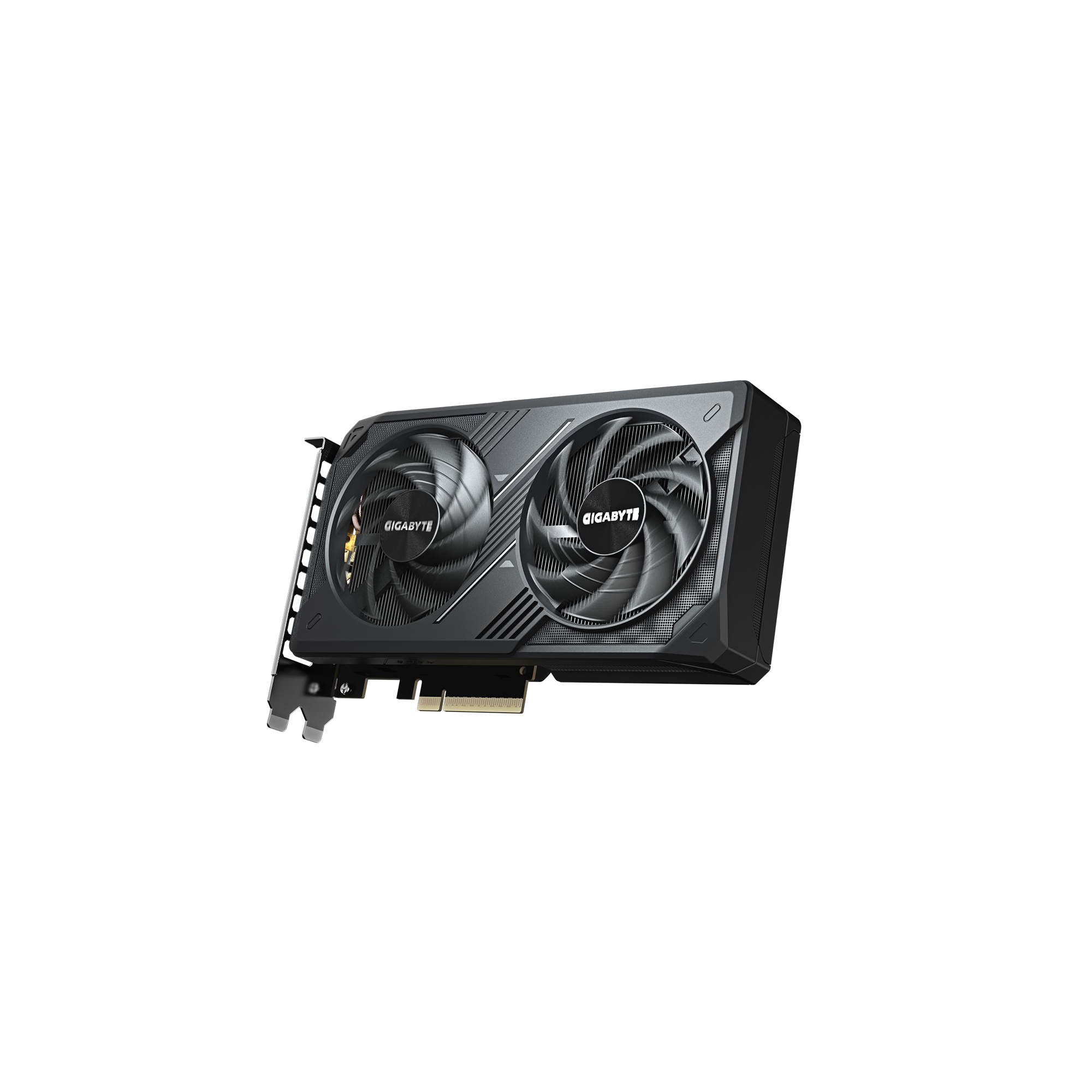

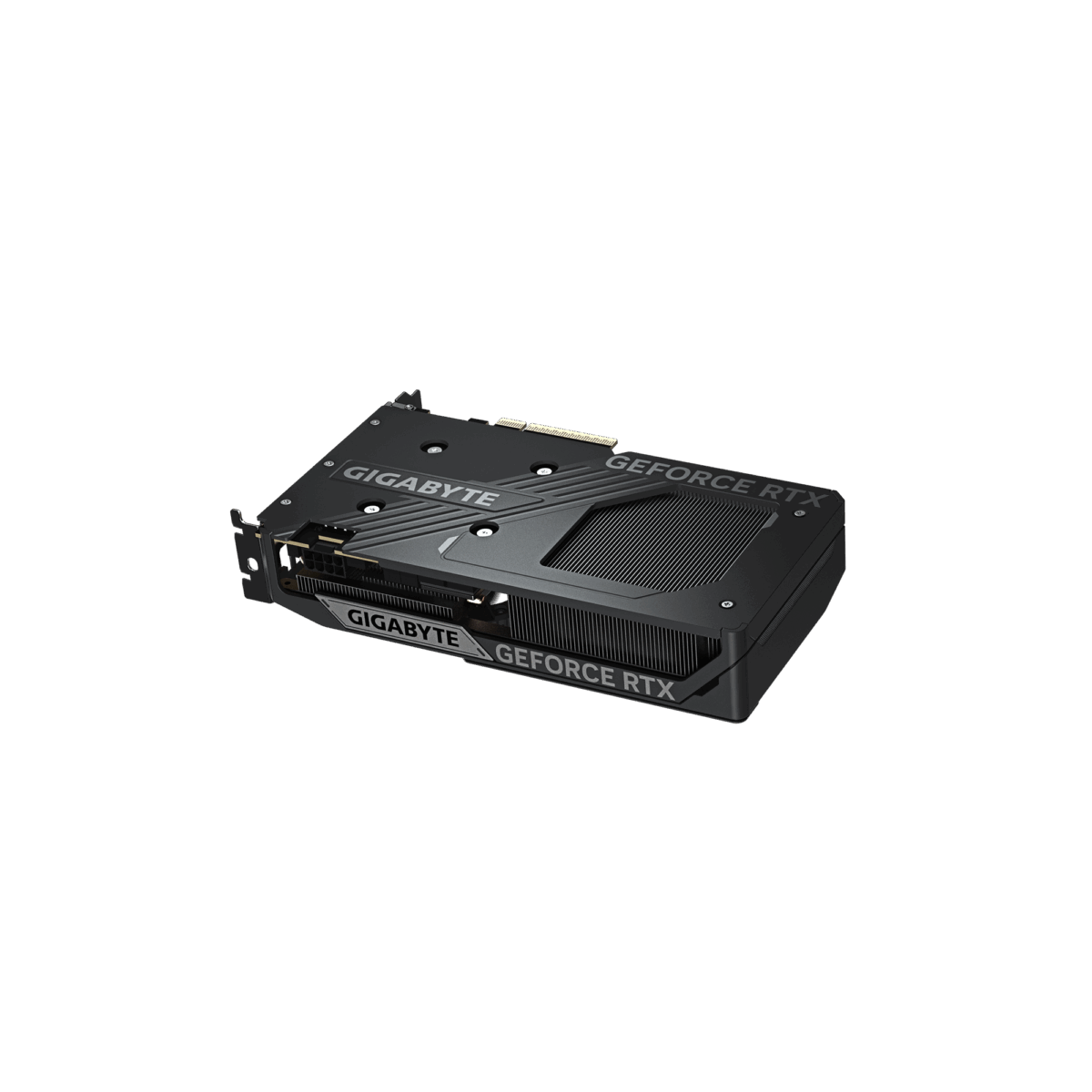

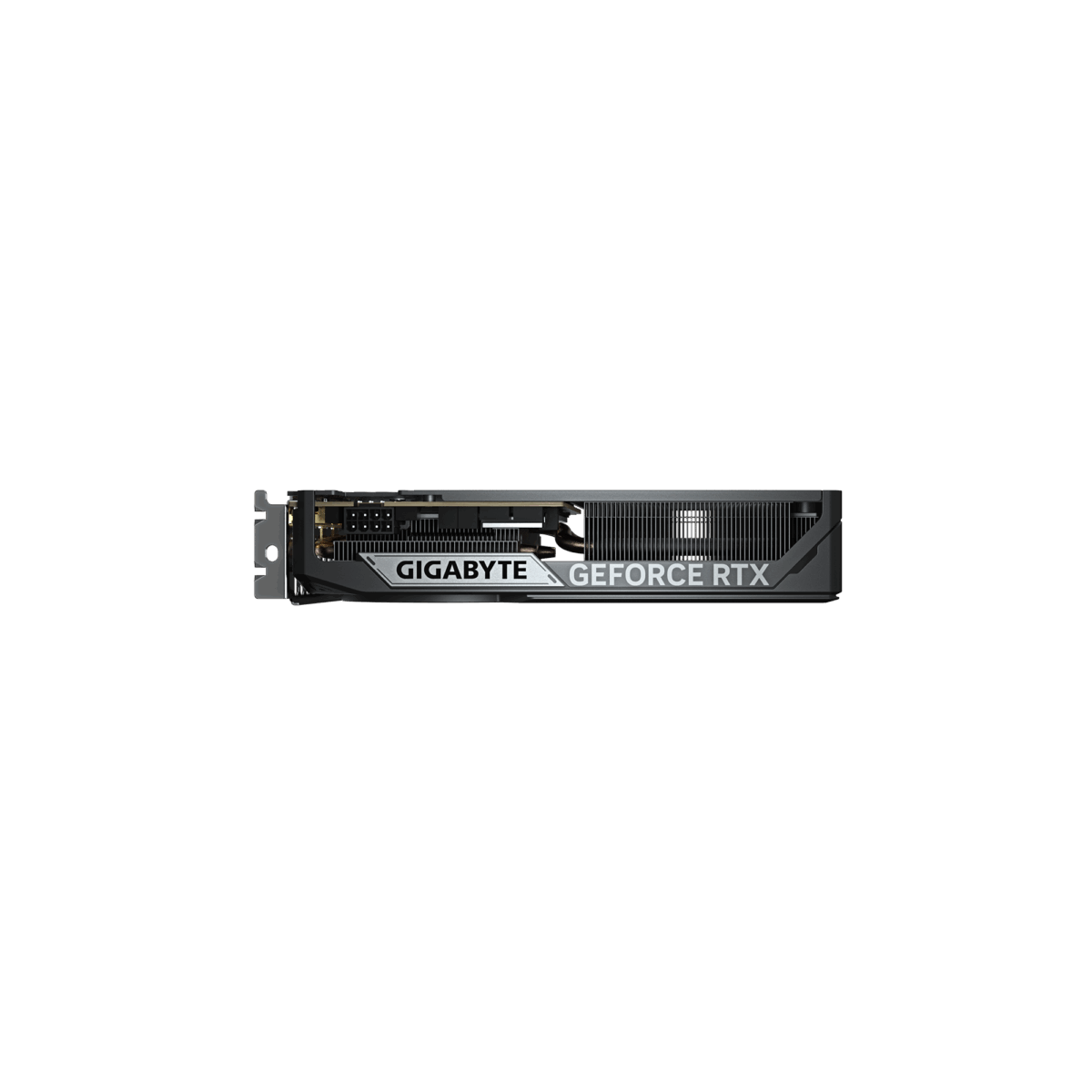

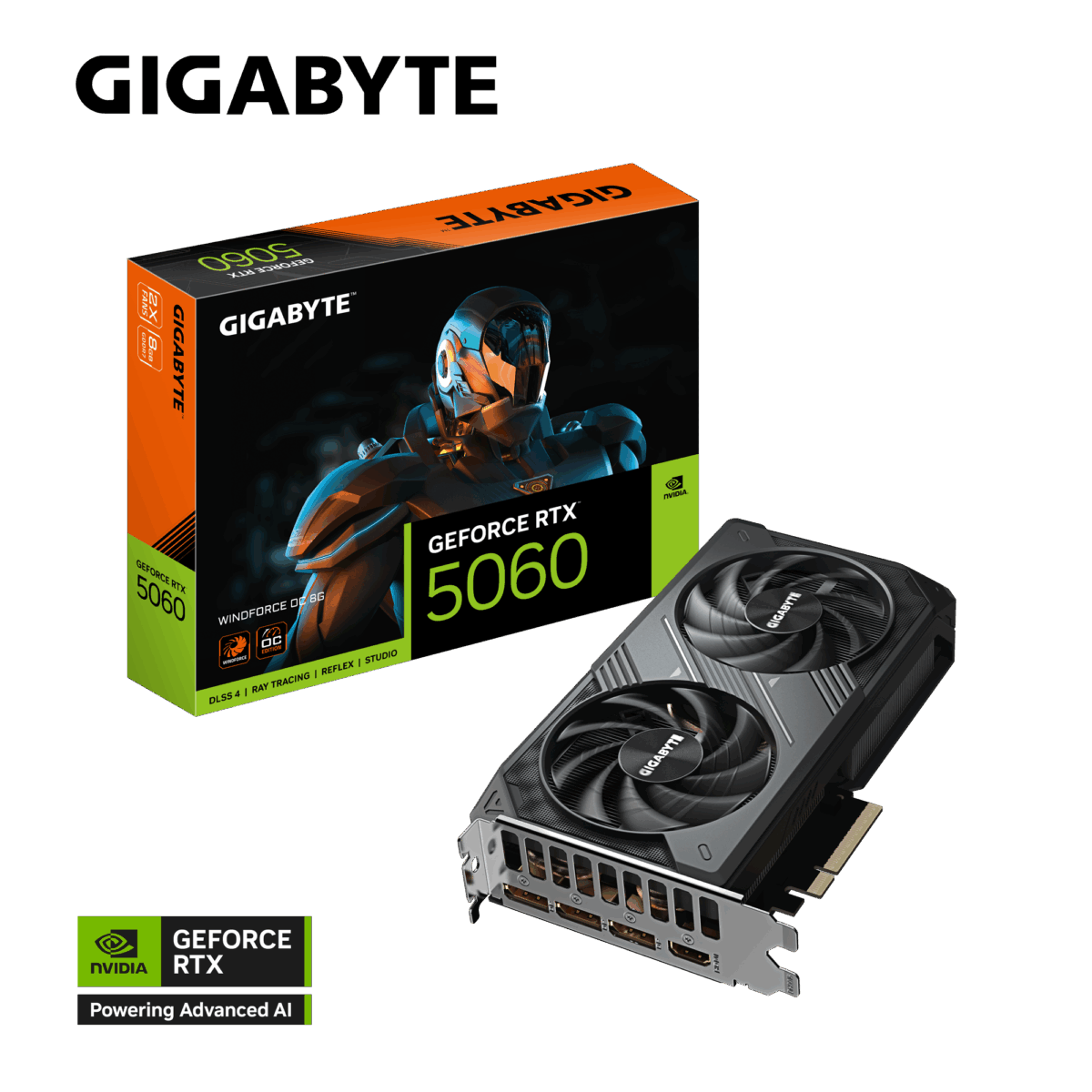

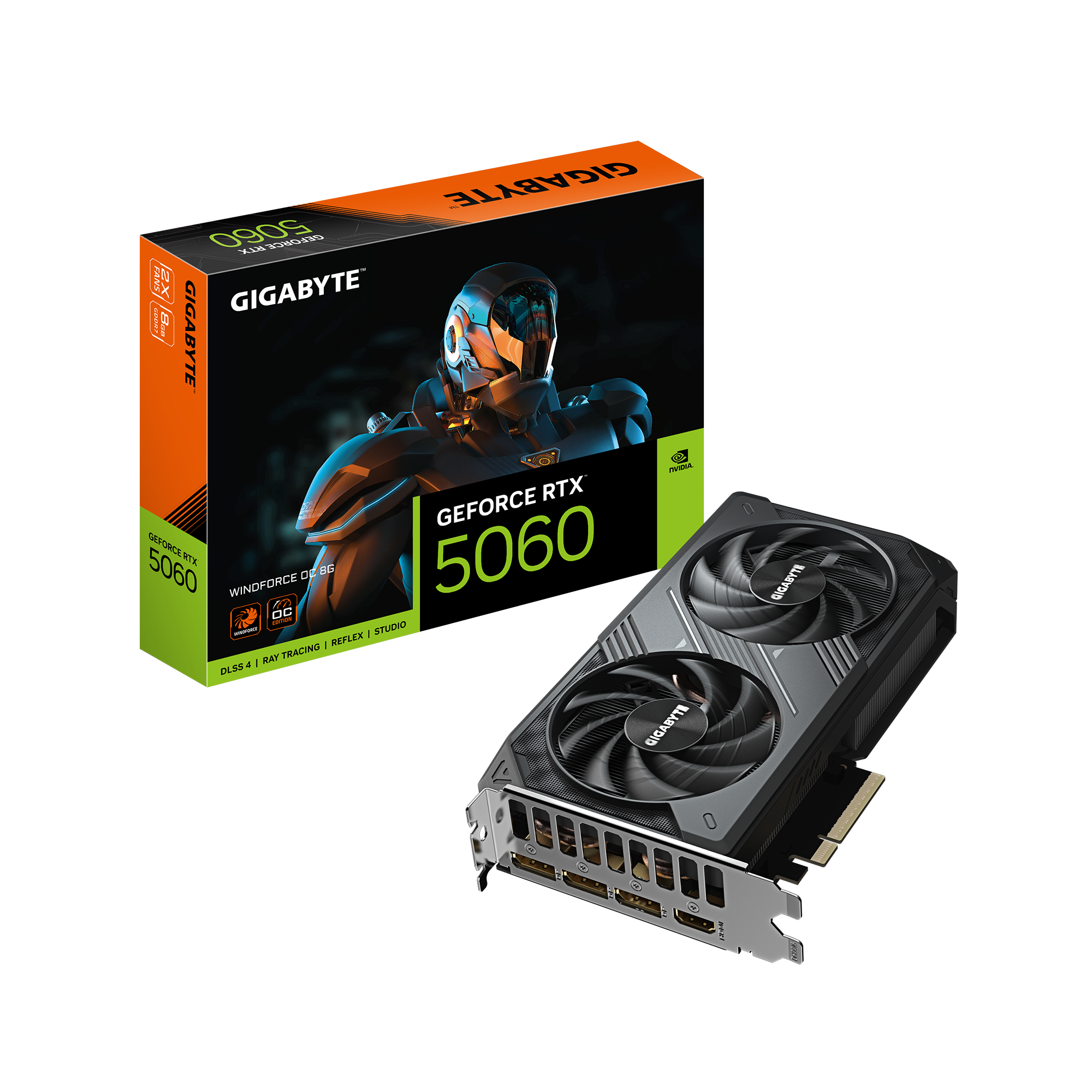

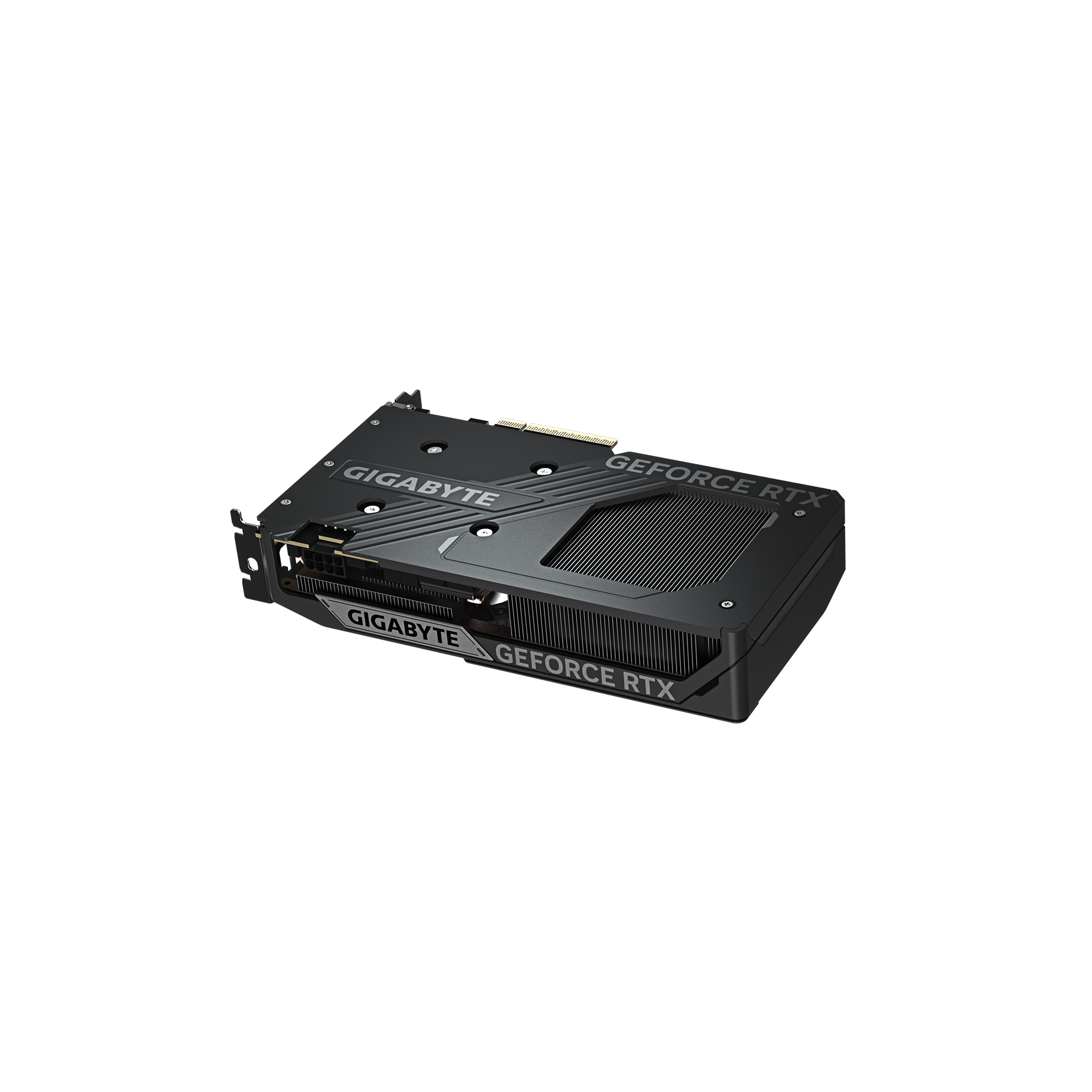

About Gigabyte RTX 5060 Windforce OC 8GB Graphics Card
Category | Specification |
---|---|
Architecture & Features | NVIDIA Blackwell architecture; DLSS 4 support; 5th-Gen Tensor Cores; 4th-Gen RT Cores; WINDFORCE cooling with Hawk fan; server-grade thermal conductive gel; reinforced structure |
Clock Speeds | Factory boost clock: 2512 MHz; base clock around 2497 MHz |
Memory Subsystem | 8 GB GDDR7; 128-bit interface; memory speed ~28 Gbps |
Interface / Bus | PCI Express 5.0 x8 |

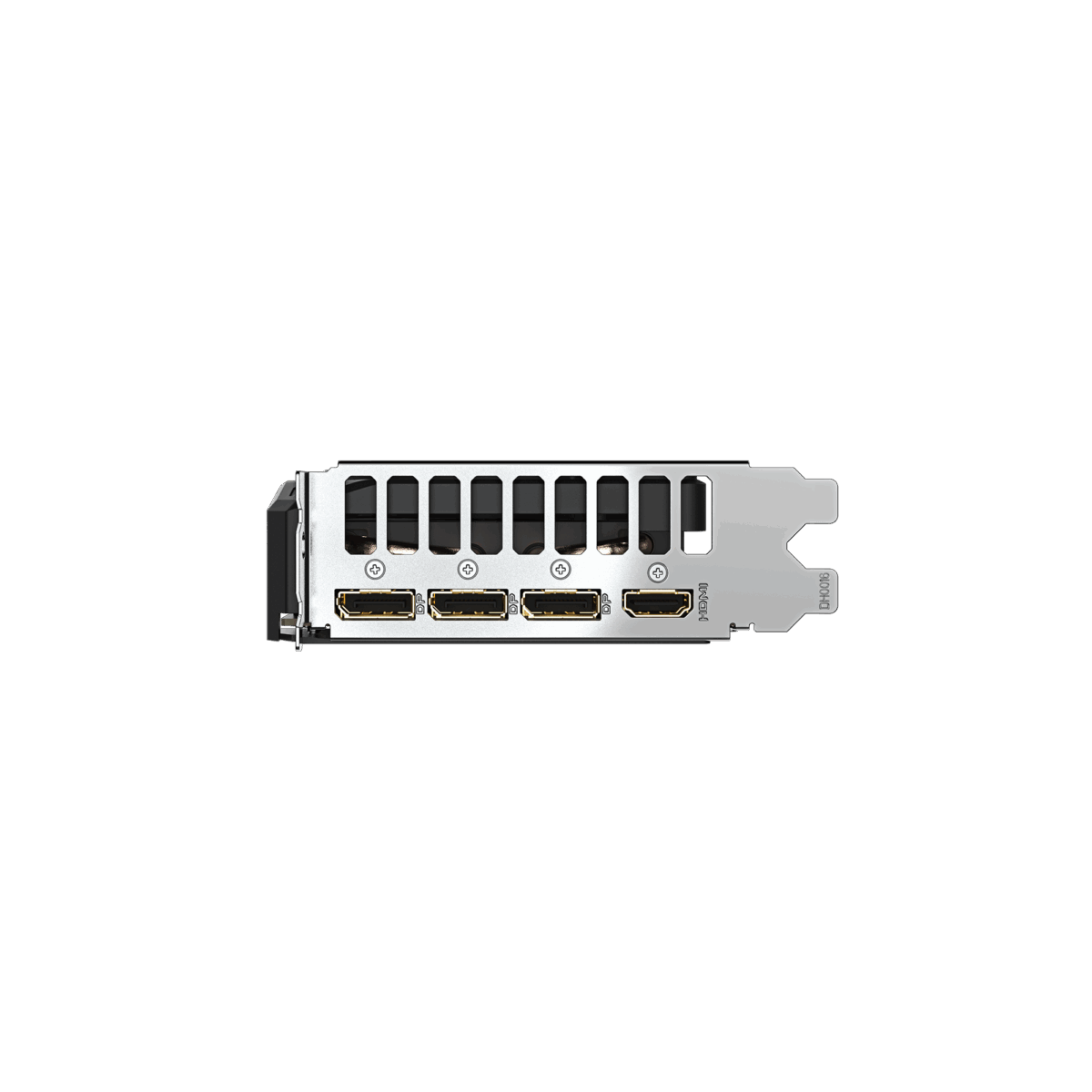

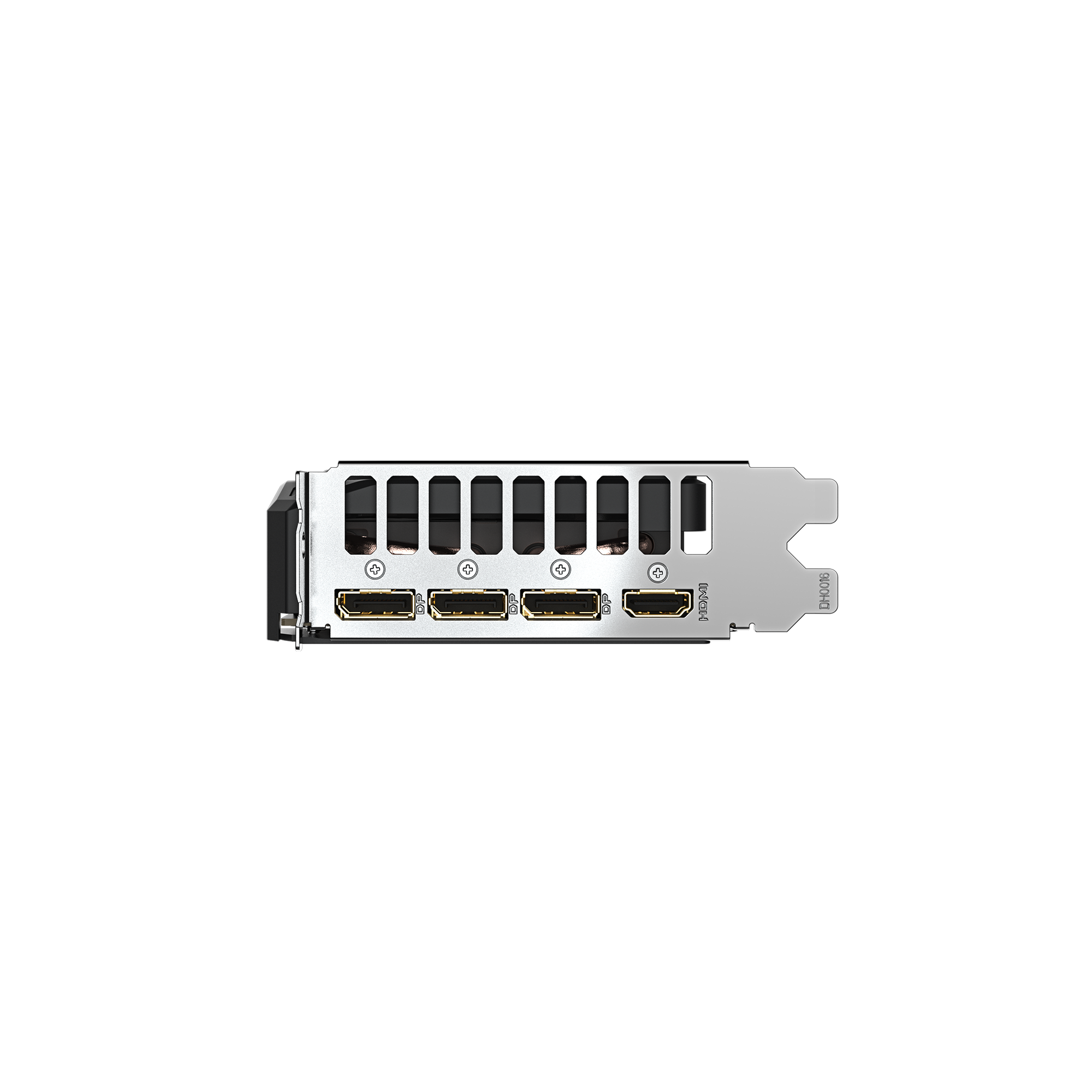

Display Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |

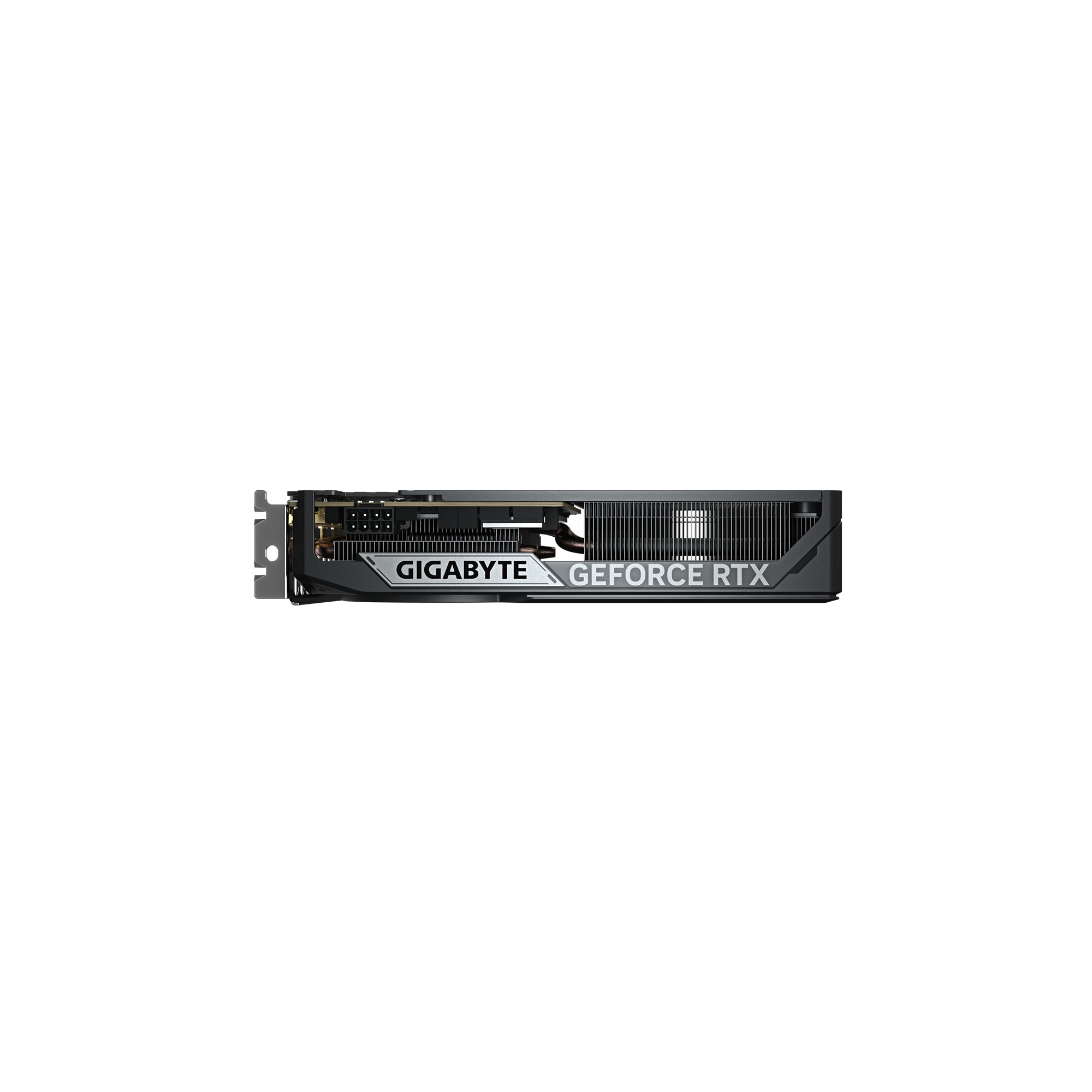

Power & PSU Requirement | Single 8-pin PCIe power connector; recommended system power ~450 W |
Physical Dimensions | Length ~199 mm; Height ~116 mm; Width ~40-mm / 2.5-slot design |
Cooling System Details | Dual-fan WINDFORCE cooler with alternate-spinning Hawk fans; fans stop under low load; graphene nano lubricant; composite copper heat pipes; screen cooling fin design for airflow |
API / OS Support | Windows; supports modern APIs like DirectX 12, OpenGL etc. |
