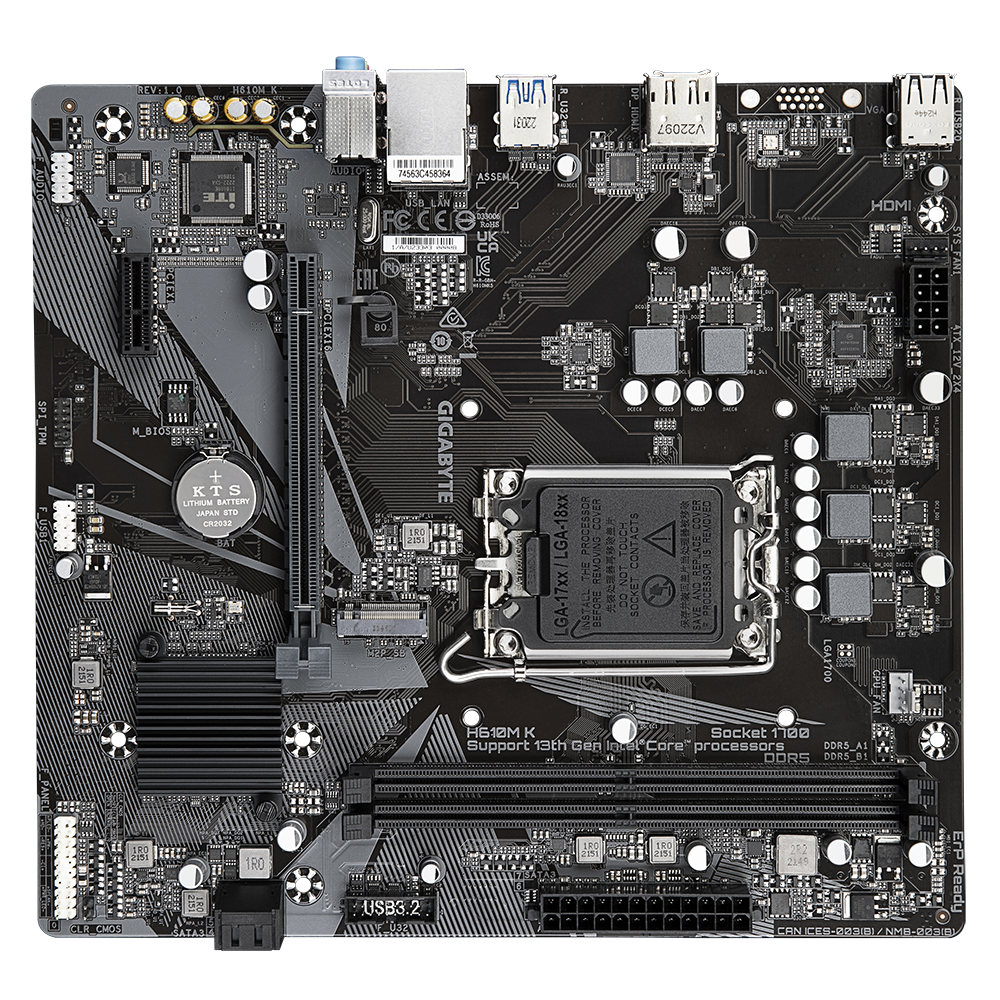

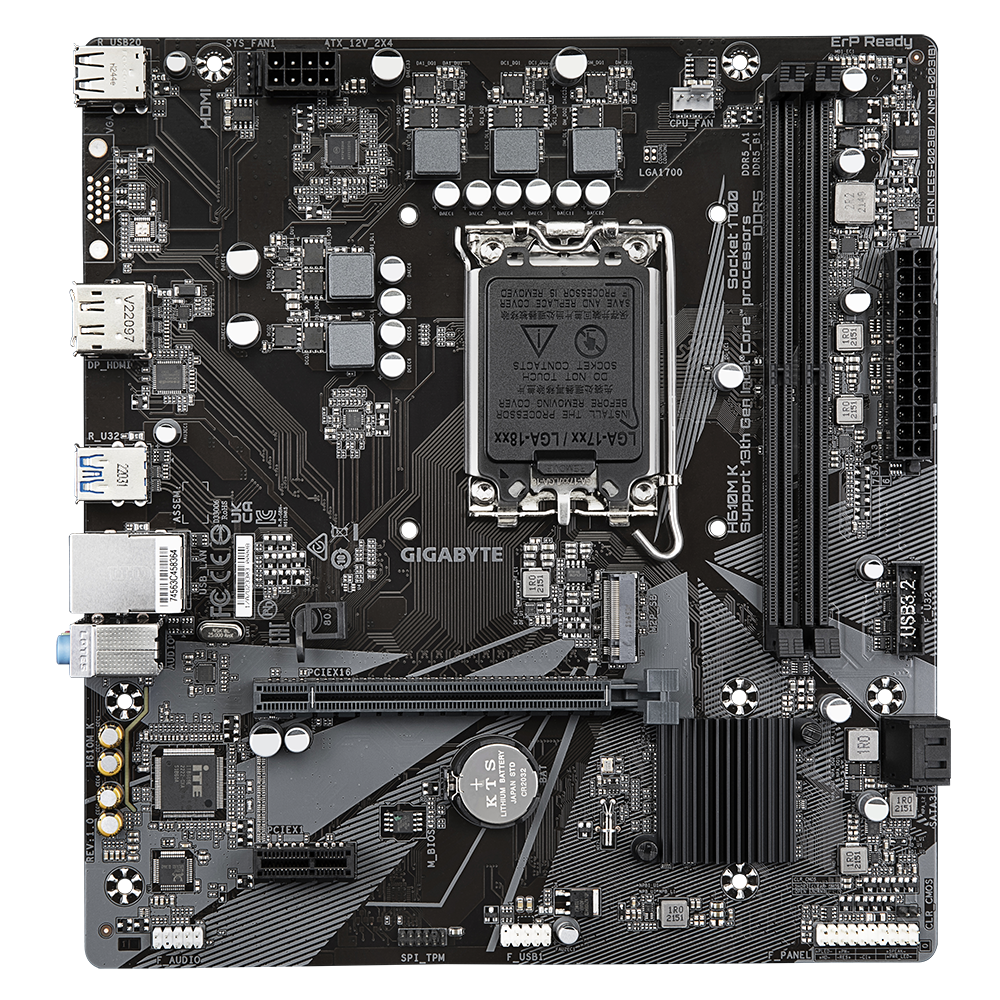

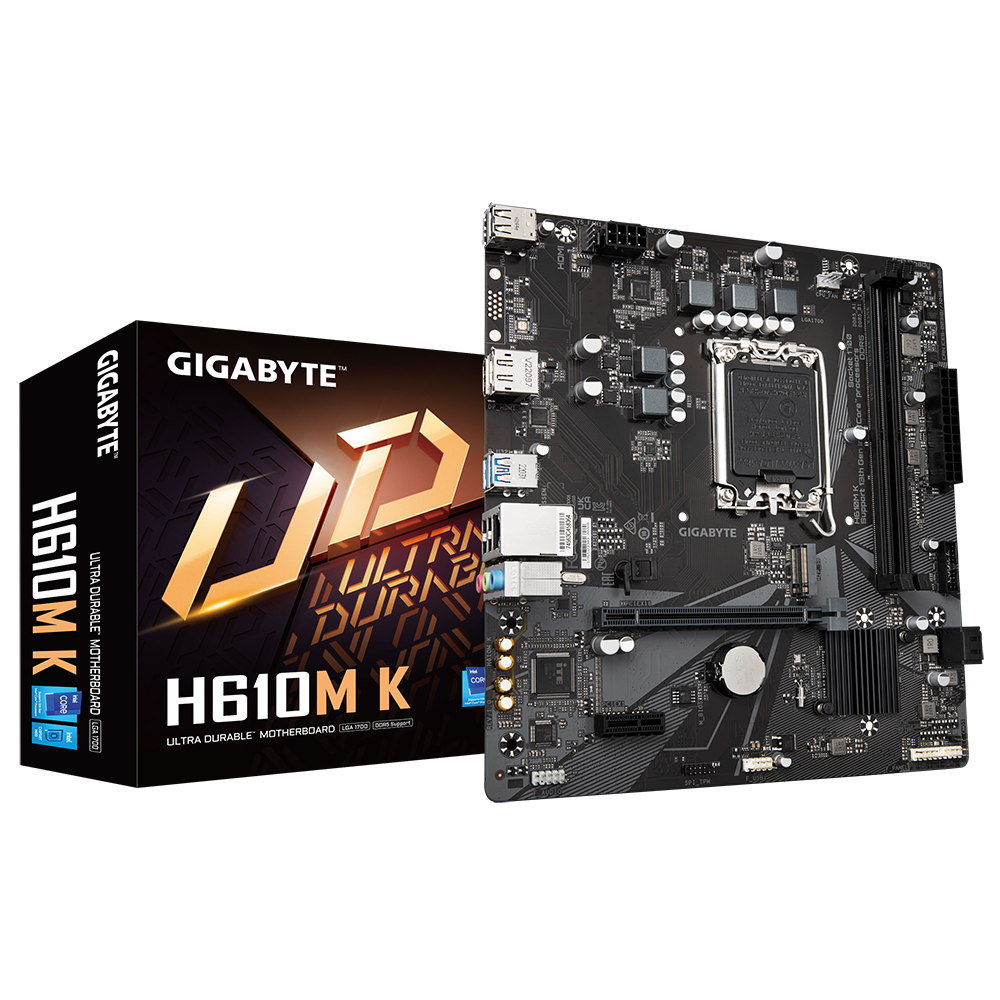

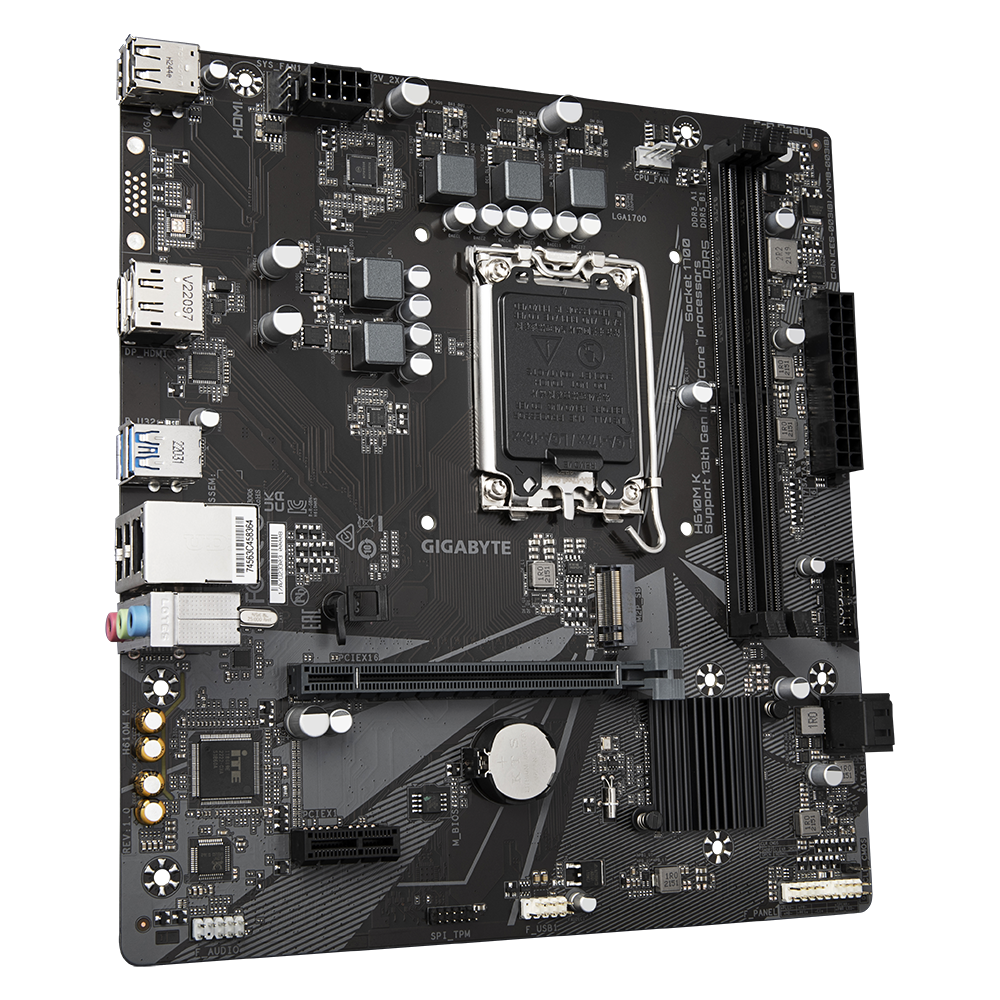

About Gigabyte H610M-K DDR5 Motherboard
Specification Category | Details |
---|---|
CPU / Compatibility | Supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors with LGA1700 socket. |
Chipset / Platform | Intel H610 ; Micro-ATX form factor. |
Memory | 2 × DDR5 DIMMs, dual-channel; up to 128 GB total (64 GB per slot). Supported speeds ~ 4400-5600 MT/s (with some overclock / OC ranges) depending on CPU |
Graphics / Expansion Slots | 1 × PCIe 4.0 x16 slot for GPU; 1 × PCIe 3.0 x1 for additional expansion. Integrated graphics via CPU outputs. |
Storage Interfaces | 1 × M.2 connector supporting PCIe 3.0 x4 / x2 NVMe SSD; plus 2 × SATA 6 Gb/s ports. |
Display Outputs | 1 × HDMI (HDCP support), 1 × DisplayPort. |

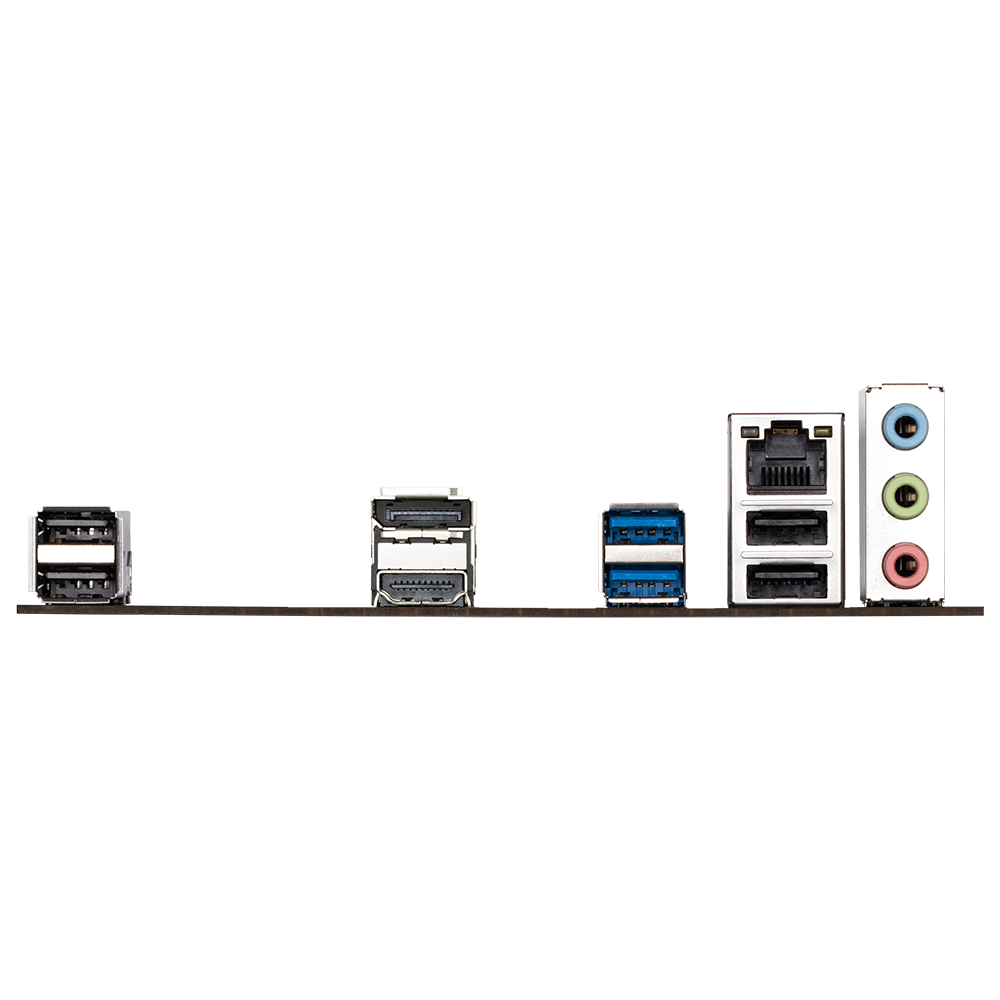

USB & I/O | USB 3.2 Gen1 ports, USB 2.0 ports; rear and internal headers. |
LAN / Networking | Realtek Gigabit Ethernet LAN. |
Audio | Realtek high-definition audio codec; audio capacitors; Audio Noise Guard. |
Power Connectors & Cooling | Standard 24-pin ATX main power; 8-pin ATX 12V CPU power; fan headers for CPU + system; Smart Fan features. |
Form Factor & Physical | Micro-ATX motherboard; compact size suitable for mATX cases. |
Other Features | Supports XMP; Anti-Sulfur resistors; Smart Fan 6 with hybrid fan headers, multiple temperature sensors, fan stop functionality. |
