Gigabyte GP-UD1300GM PG5 1300W 80 Plus Gold Certified Fully Modular Power Supply
Avail the all-new Gigabyte GP-UD1300GM PG5 SMPS from Avika Retails at the best price. Best in-class features includes:
| Spec | Value |
|---|---|
| Output Power | 1300 W |
| Efficiency Rating | 80 PLUS Gold |
| Form Factor / Standard | ATX 3.0 / supports Intel ATX-PSDG |
| Rail Design | Single +12V rail delivering full output |

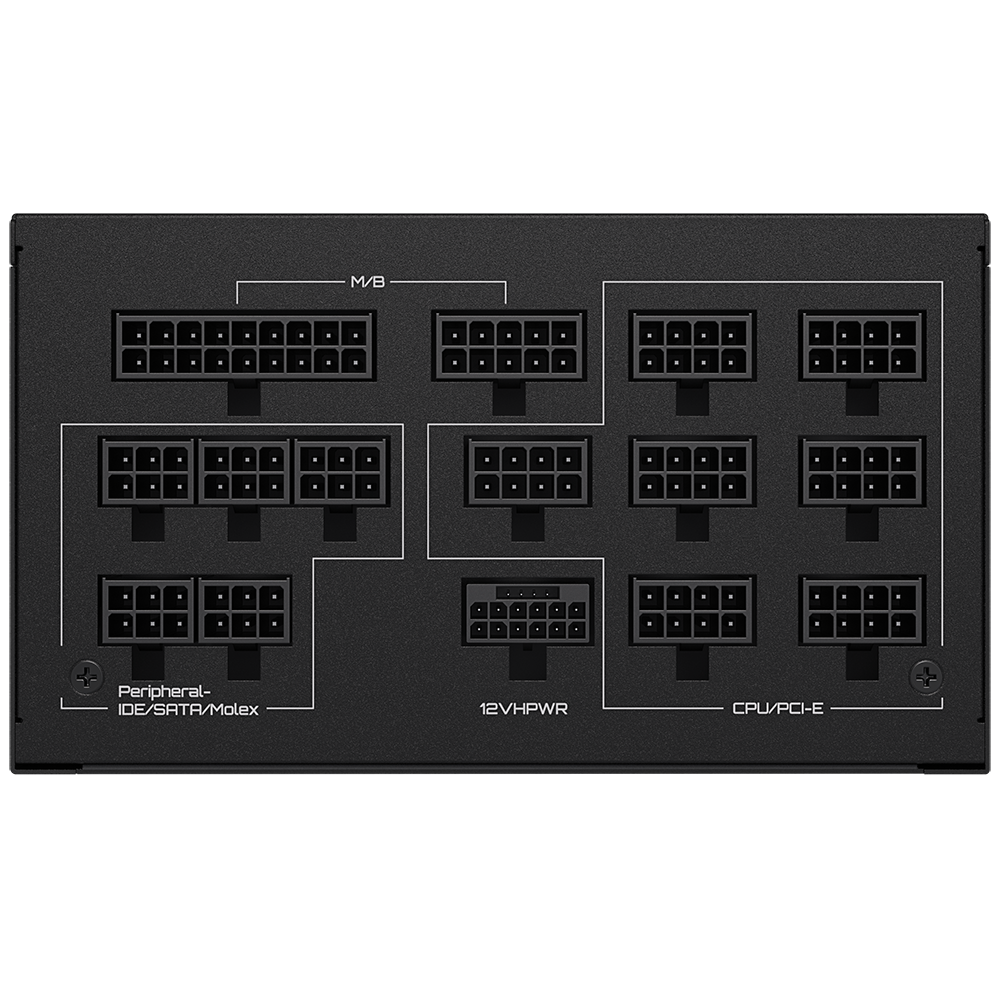

| Modularity | Fully modular design |
About the item:
-
PCIe Gen 5.0 GPU Ready — It includes a native 16-pin +12VHPWR connector and is designed to sustain GPU power excursions (up to ~600 W to the GPU) which is useful for the latest high-end graphics cards.
-
ATX 3.0 & PSDG Compliance — Meets modern power supply design standards, supporting total power excursions and better behavior under transient loads.
-
High Reliability Components — Uses Japanese main capacitors; enhanced thermal solutions; protection circuitry; double-ball bearing fan; all contribute to stability and longevity.
-
Fully Modular, Compact Design — All modular cables reduce cable clutter; with a 160 mm length, it’s compact for a 1300 W PSU, helping with case compatibility and airflow.
-
80 PLUS Gold Efficiency — High efficiency lowers wasted energy, reduces heat, and usually results in quieter operation at moderate loads. Plus several protections to safeguard component lifespan.
₹20,500.00
19
People watching this product now!
Payment Methods:
Description
About Gigabyte GP-UD1300GM PG5 SMPS
| Category | Specification |
|---|---|
| Model & Revision | Gigabyte GP-UD1300GM PG5, rev. 1.1 |
| Total Power Output | 1300 W |
| +12V Rail | Single +12V rail (approx. 108.3 A) giving full power capabilities on 12V |
| Efficiency | 80 PLUS Gold certification – ~90% efficiency at 50% load, decent efficiency also at lower/higher loads |
| Input / Standard Compliance | Supports ATX 3.0 / Intel Power Supply Design Guide (PSDG) standard, with power excursion support (~2× total excursion) |
| GPU / Connector Support | Has native 16-pin PCIe Gen 5.0 (+12VHPWR) connector capable of supplying up to 600 W to a Gen5 graphics card; many 6+2-pin PCIe, etc. |

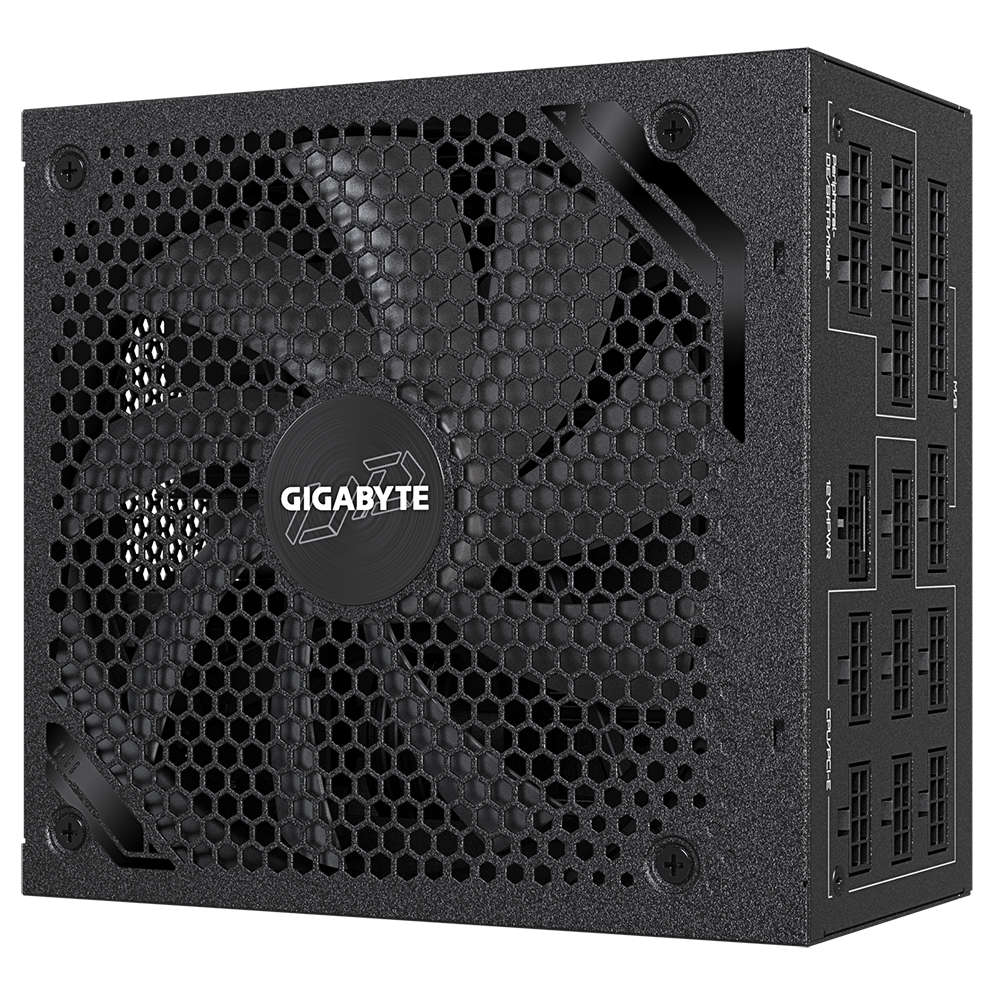

| Cooling / Fan | 140 mm double-ball bearing fan; fan stops under low load; enhanced thermal solutions, enlarged heat sink, optimized airflow |
| Protection Features | Includes OVP (over-voltage), OPP (over-power), SCP (short-circuit), UVP (under-voltage), OCP (over-current), OTP (over-temperature) protections |
| Physical / Dimensions | Length ~ 160 mm; fully modular cables; compact design for its wattage class |
| Warranty | 10 years warranty (region dependent) |
