About Gigabyte GP-UD1000GM PG5 1000W SMPS
| Specification Category | Details |
|---|---|
| Model / Series | GP-UD1000GM PG5 (rev. 1.0 / rev. 2.0) |
| Output Power | 1000 W |
| Efficiency / Certification | 80 PLUS Gold |
| Form Factor / Standard | ATX12V, compatible with modern standards; supports Intel ATX 3.0 power excursion specs (in rev. 2.0) |
| Input Voltage / Current / Frequency | 100–240 V AC, 50/60 Hz |

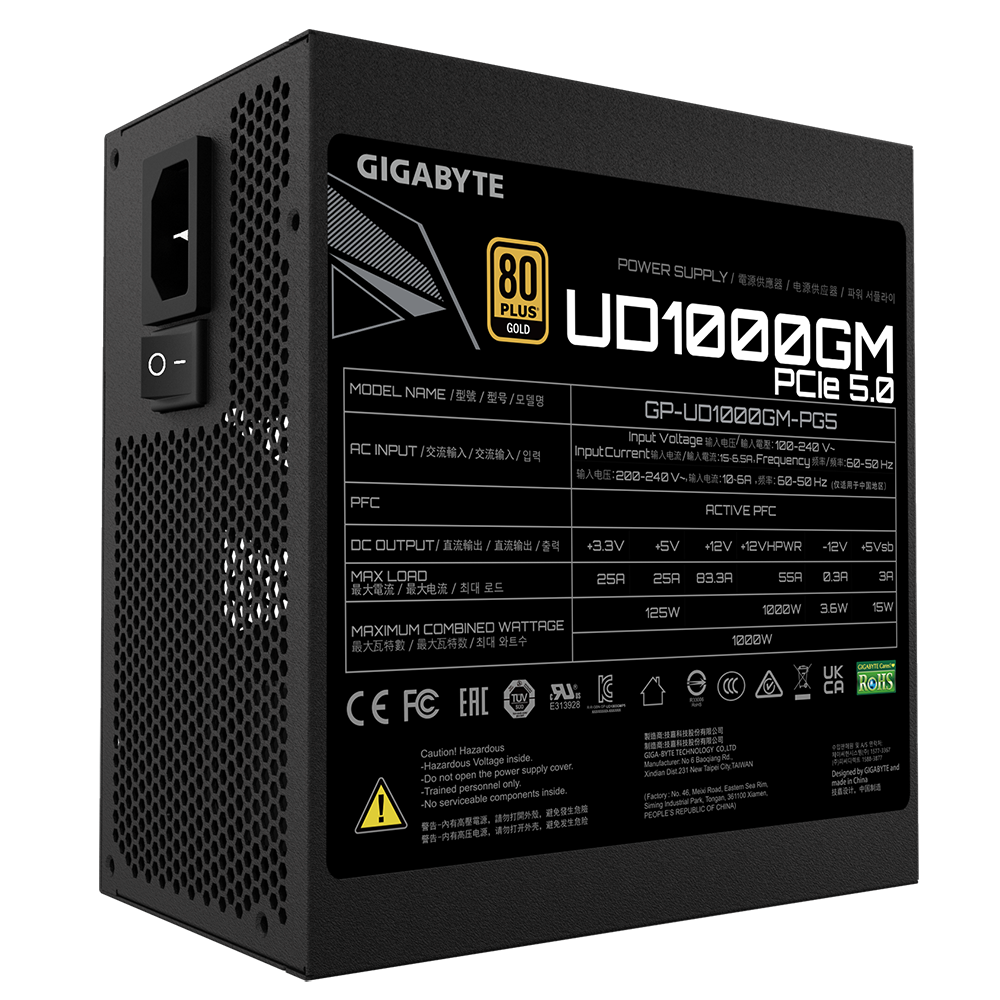

| +12V Rail & Minor Rails | Single +12V rail, ~83.3 A (~999.6 W) +3.3V & +5V combined: ~125 W +5VSB: 3 A –12V: 0.3 A |
| Protection / Safety Features | OVP (Over Voltage), OPP (Over Power), SCP (Short Circuit), UVP (Under Voltage), OCP (Over Current), OTP (Over Temperature) |

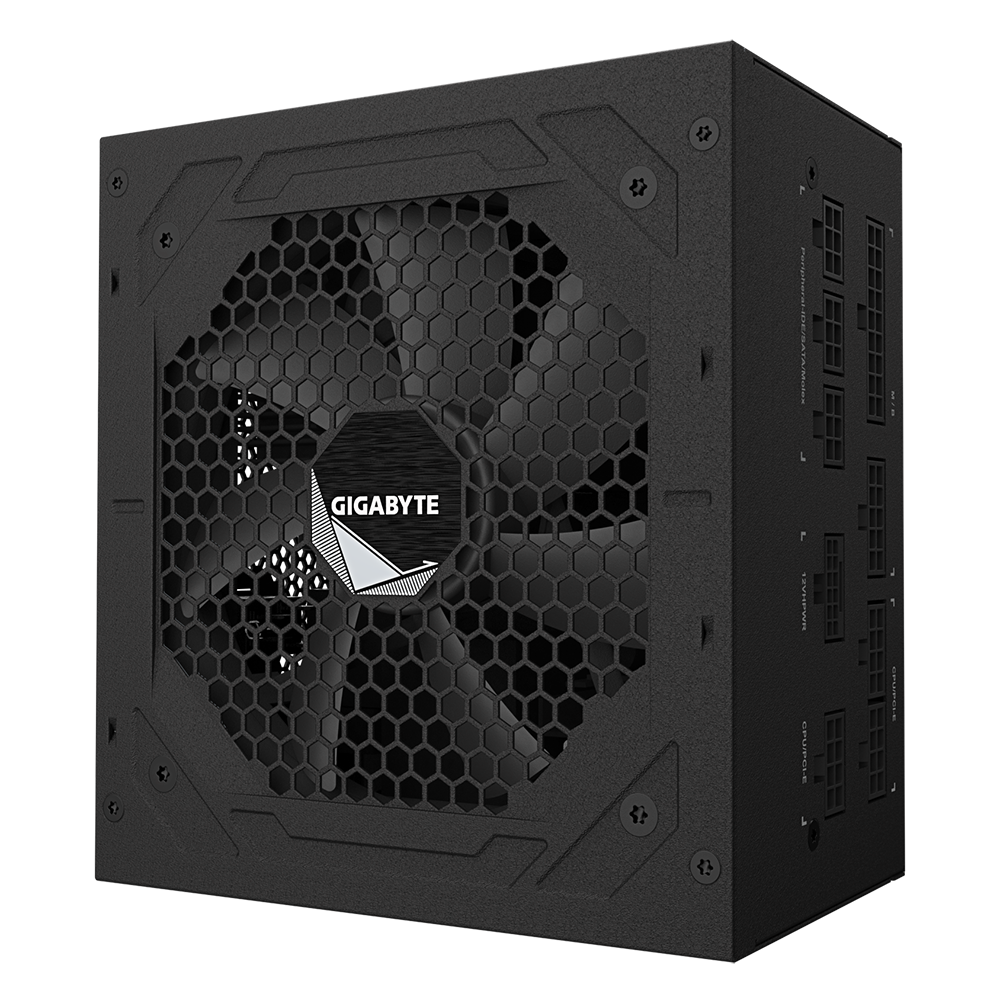

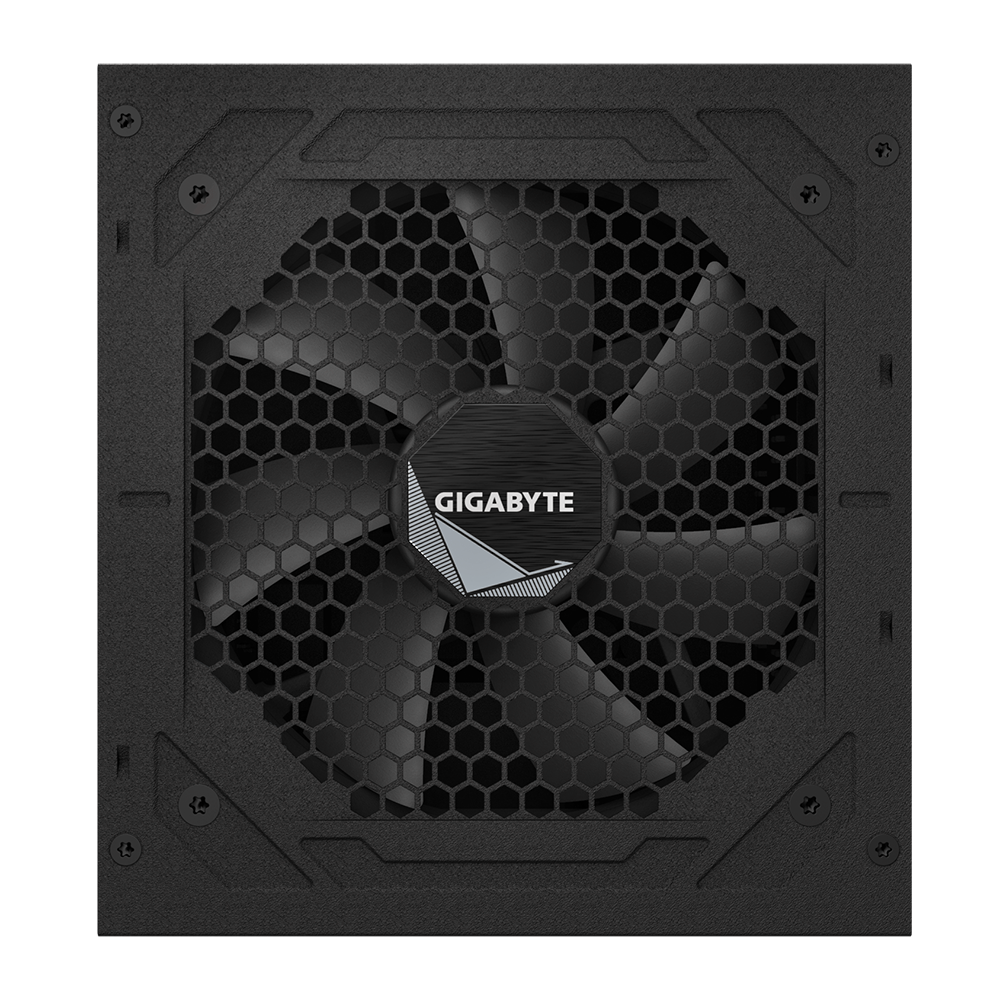

| Cooling & Fan | 120 mm hydraulic bearing (HYB) fan, smart speed control, semi-passive mode (fan stops at low load < ~20 %) |
| Dimensions | 150 mm (width) × 140 mm (depth) × 86 mm (height) |

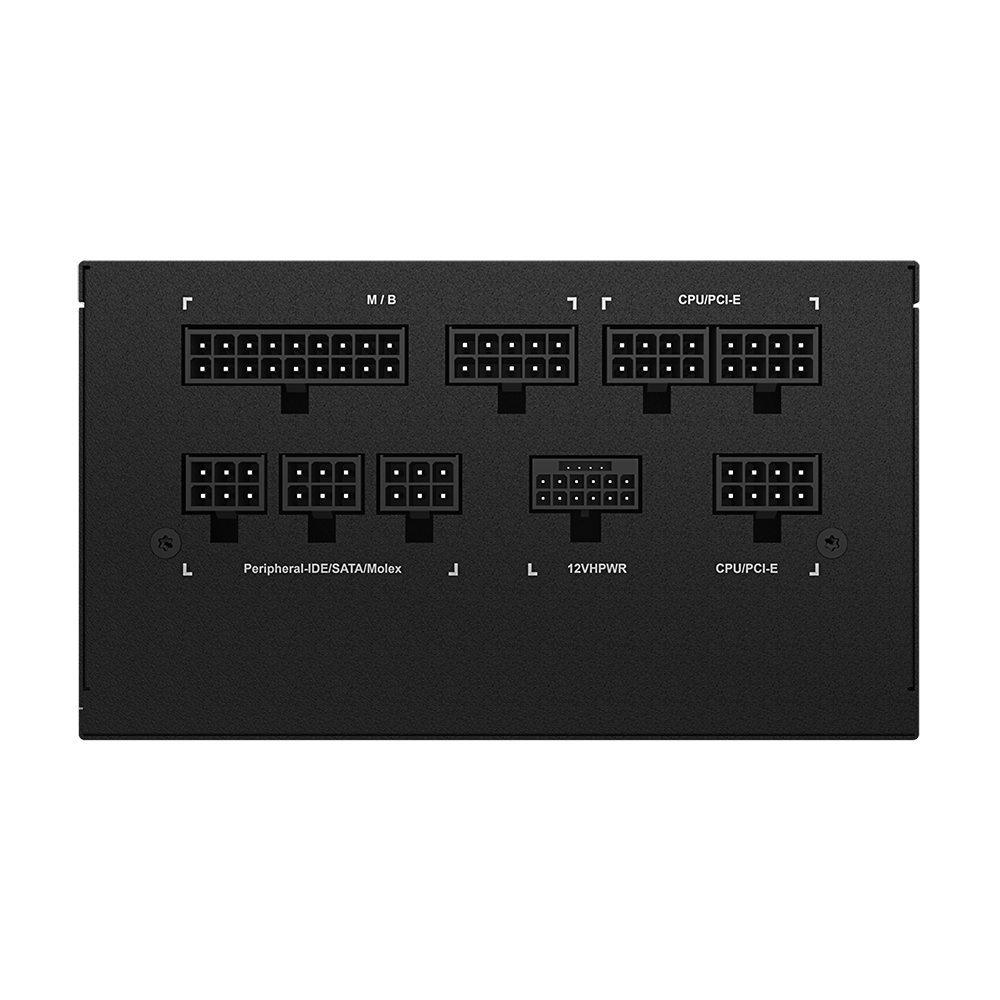

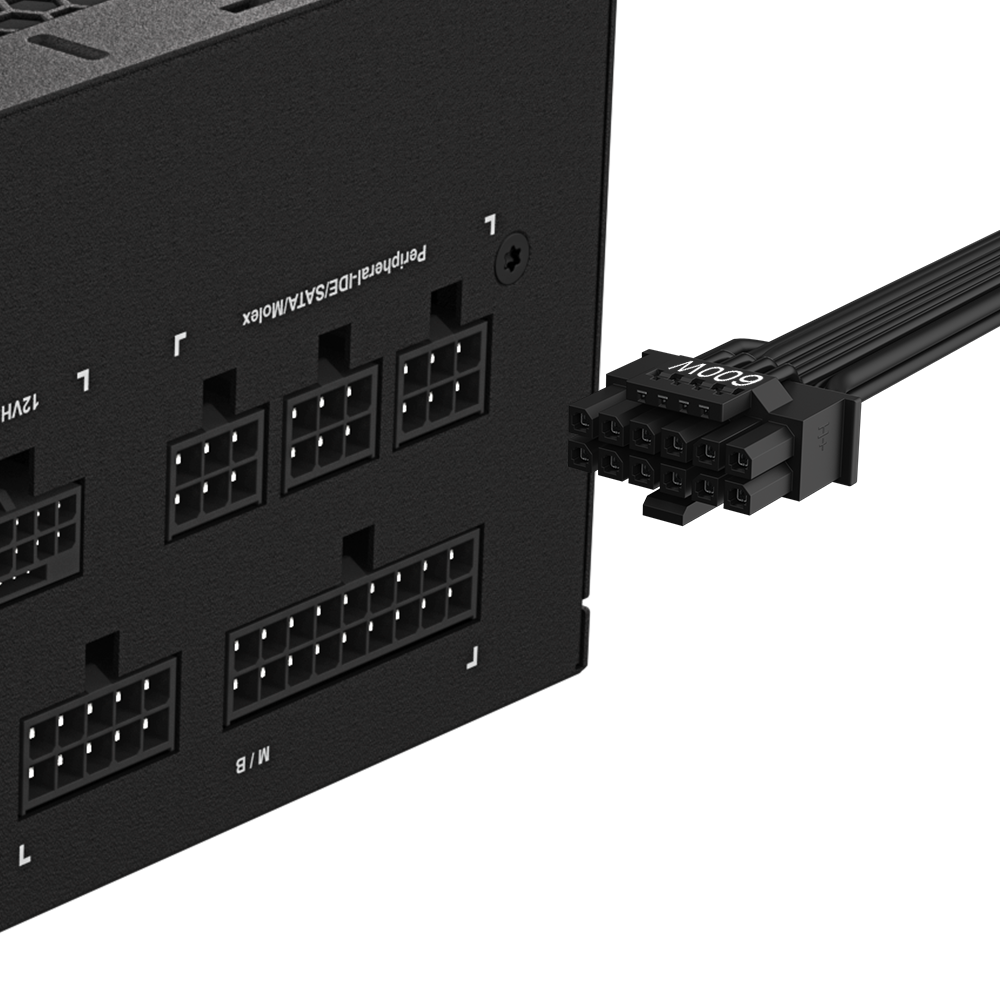

| Cabling / Connectors | Fully modular, flat cables. • 1 × ATX 20+4 pin • 2 × EPS / 4+4 pin • 1 × 16-pin (12VHPWR) native cable (supports up to 600 W to GPU) • 4 × 6+2 pin PCIe • 8 × SATA • 3 × Molex / 1 × FDD (some minor connectors) |
| Thermal / Heatsink Design | Heatsink area enhanced (≈200% enlargement vs standard) for better heat dissipation, airflow optimized |
| Power Excursion Support (rev. 2.0) | Supports up to 3× GPU power excursions and 2× total power excursions per ATX 3.0 specs |
| MTBF / Reliability | > 100,000 hours |
| Warranty | 10 years (region dependent) |
