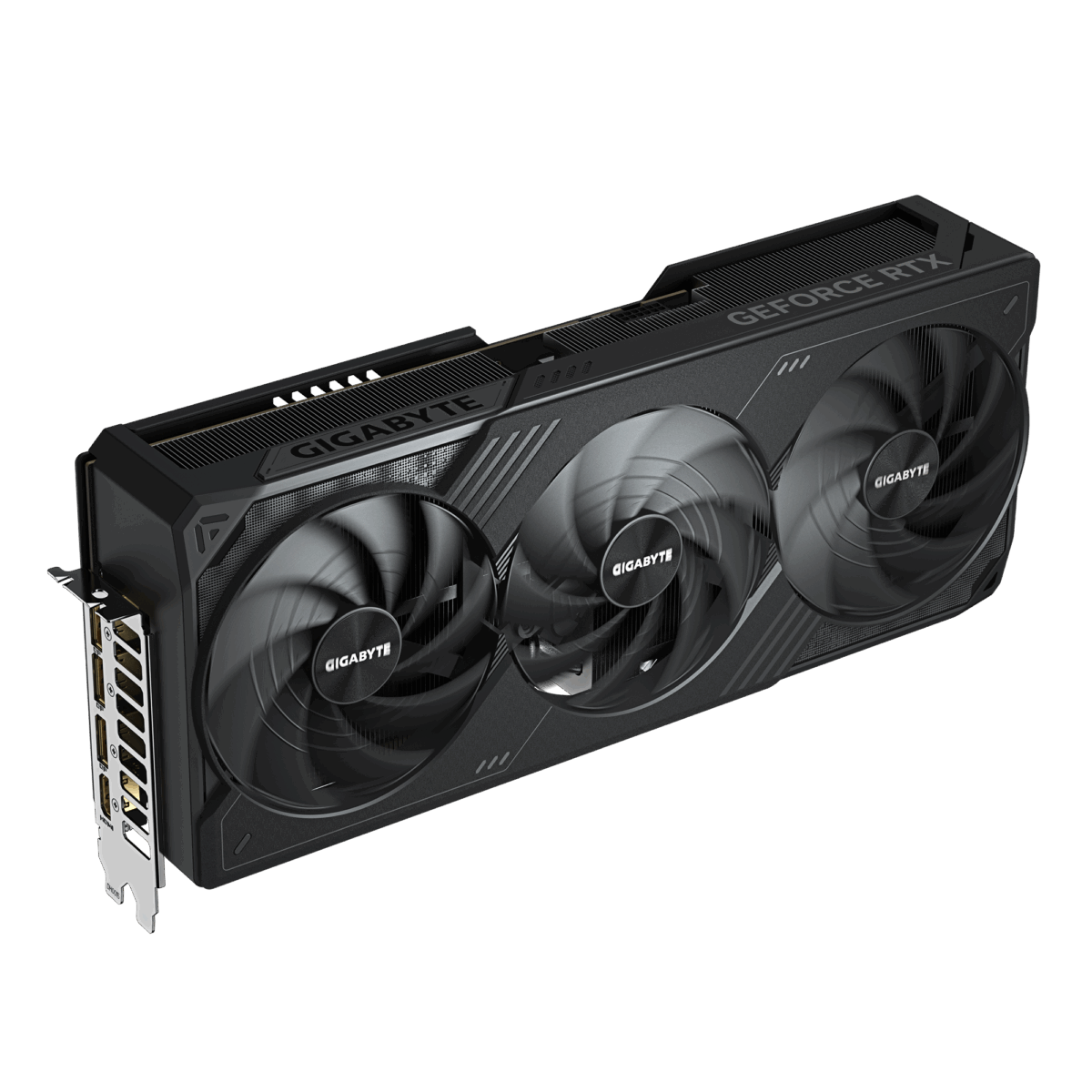

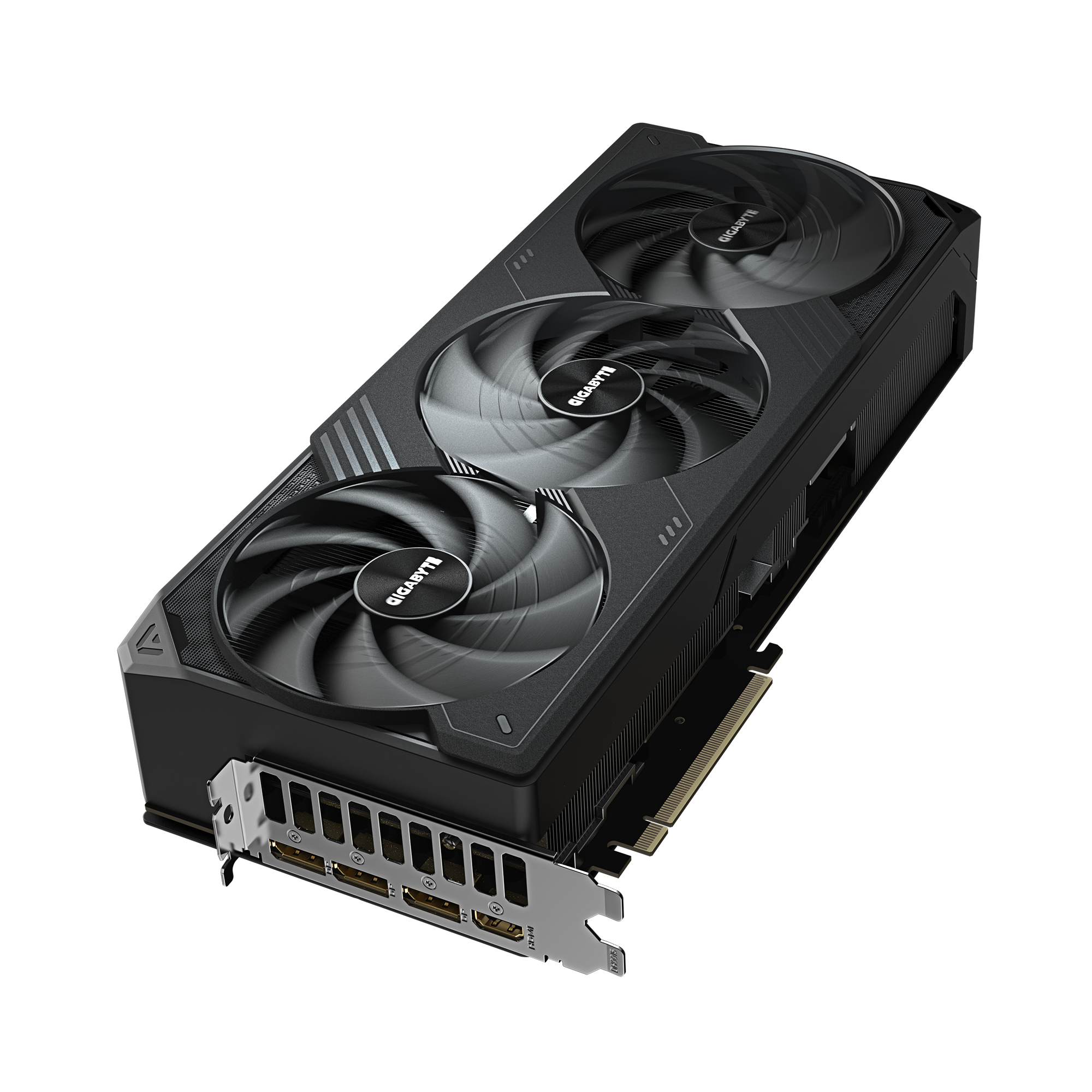

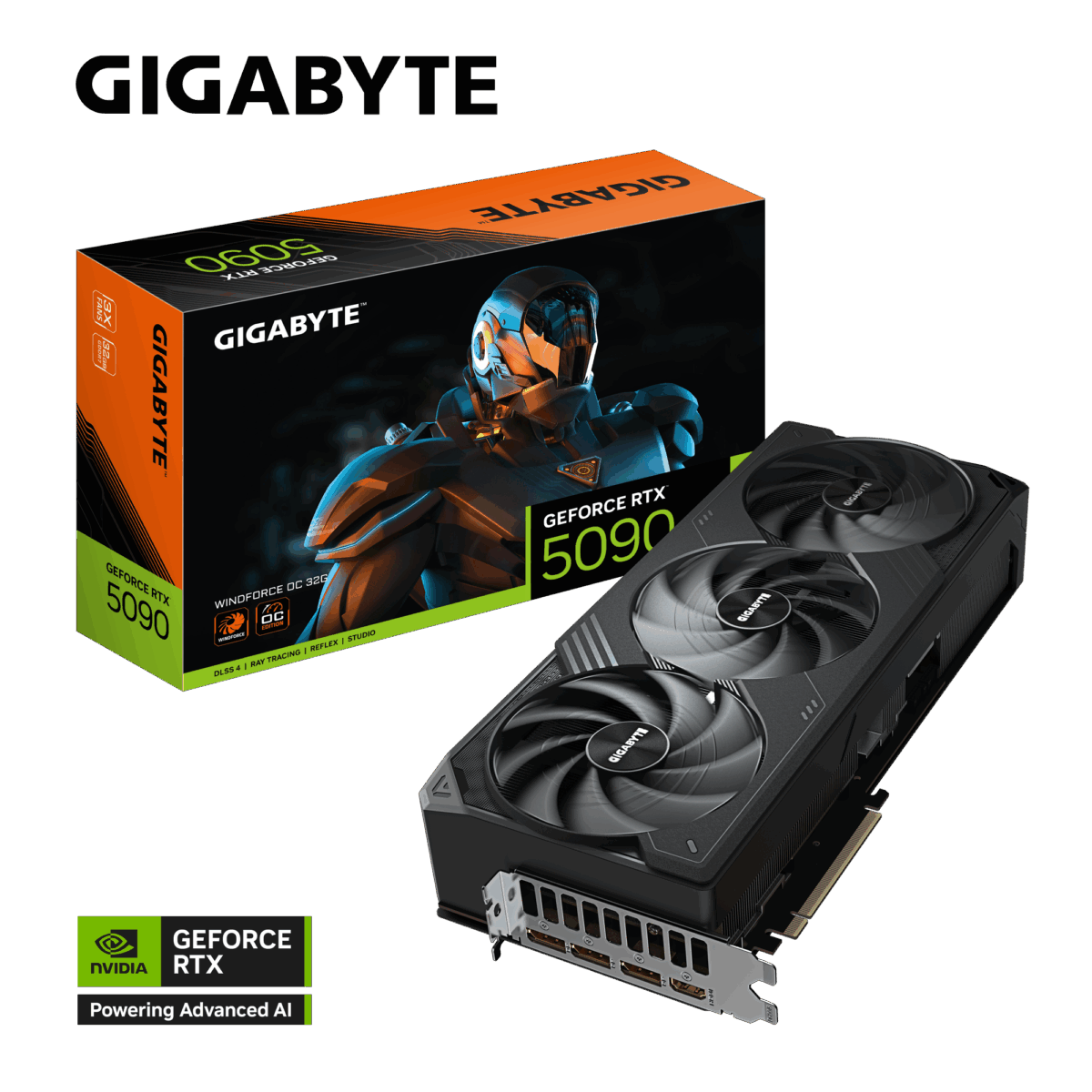

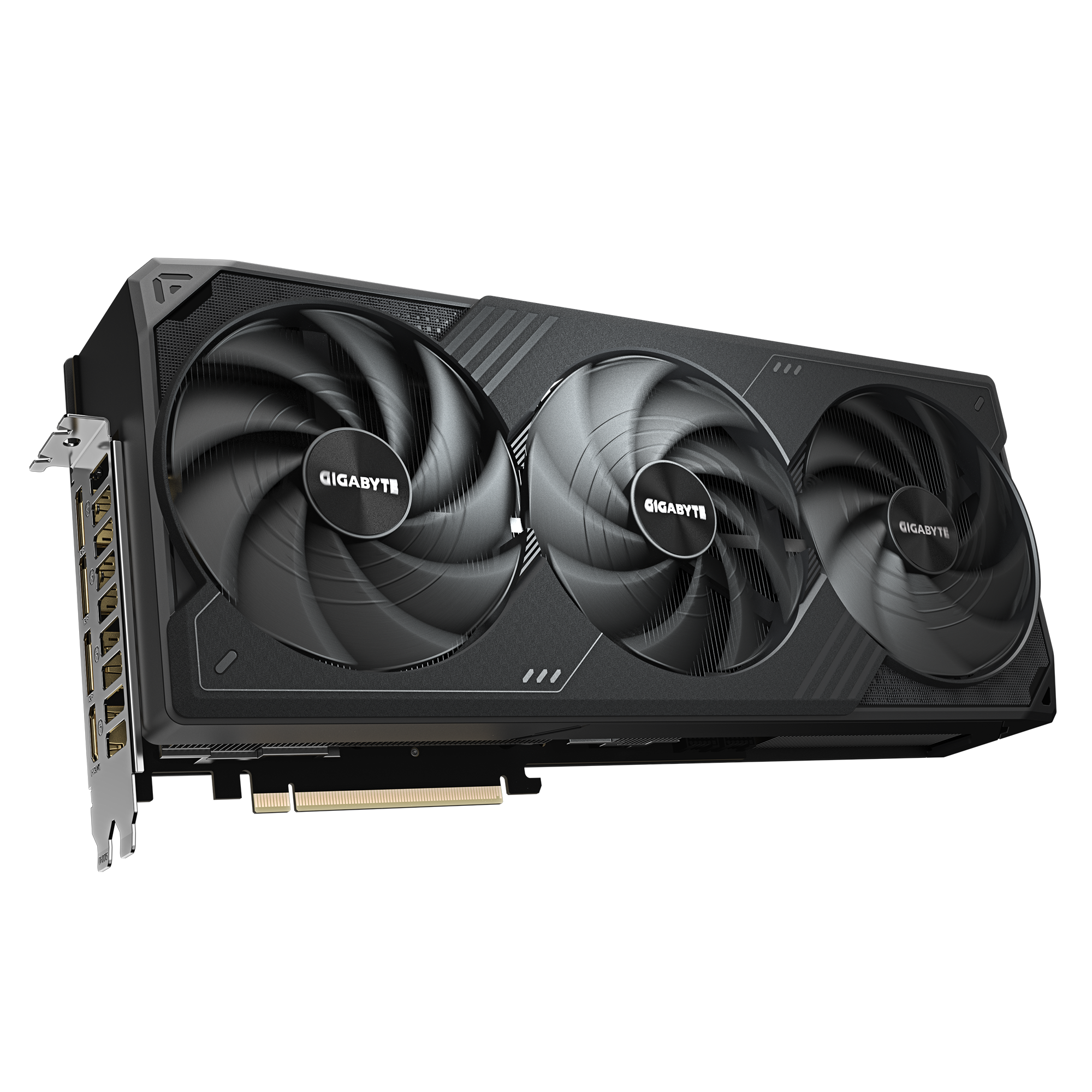

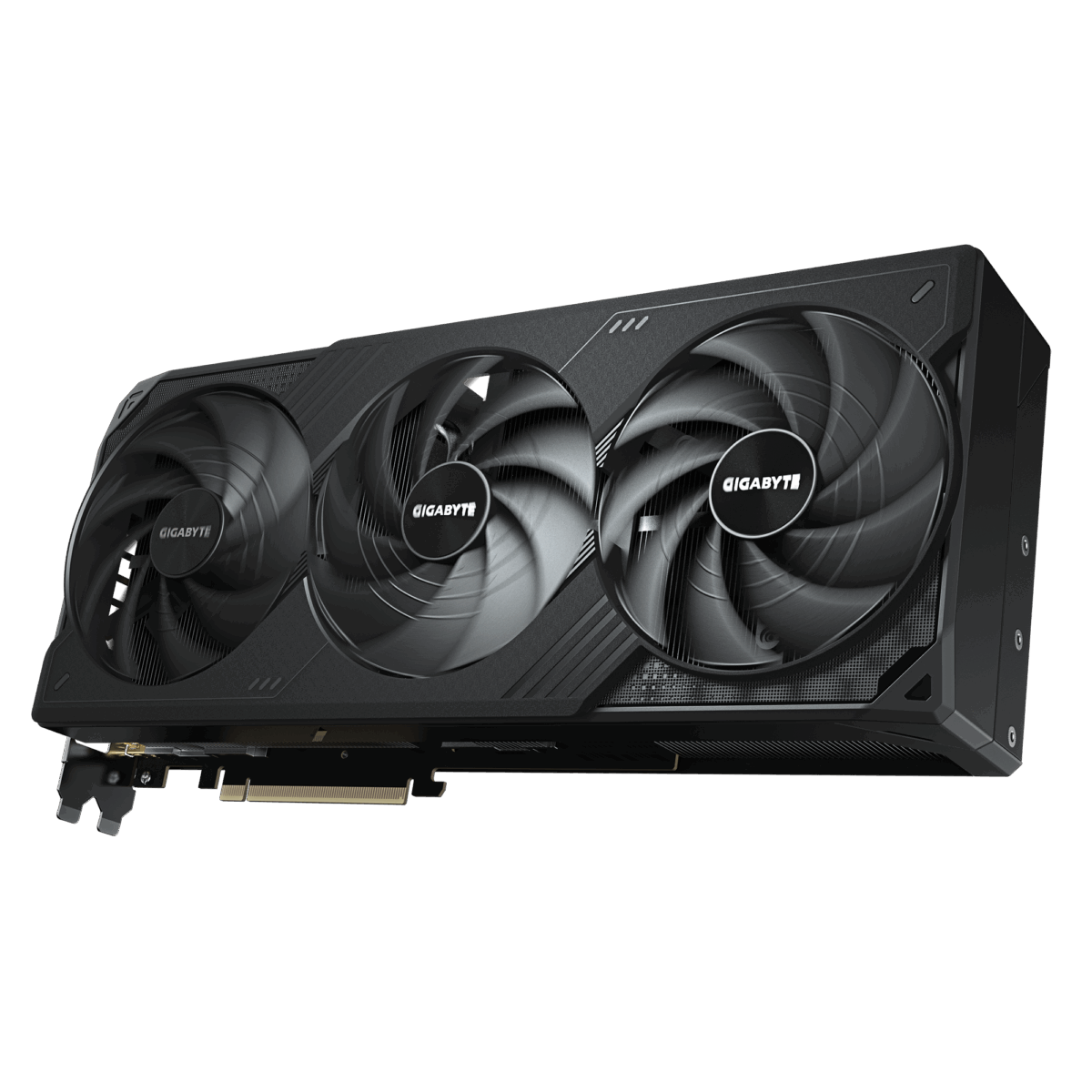

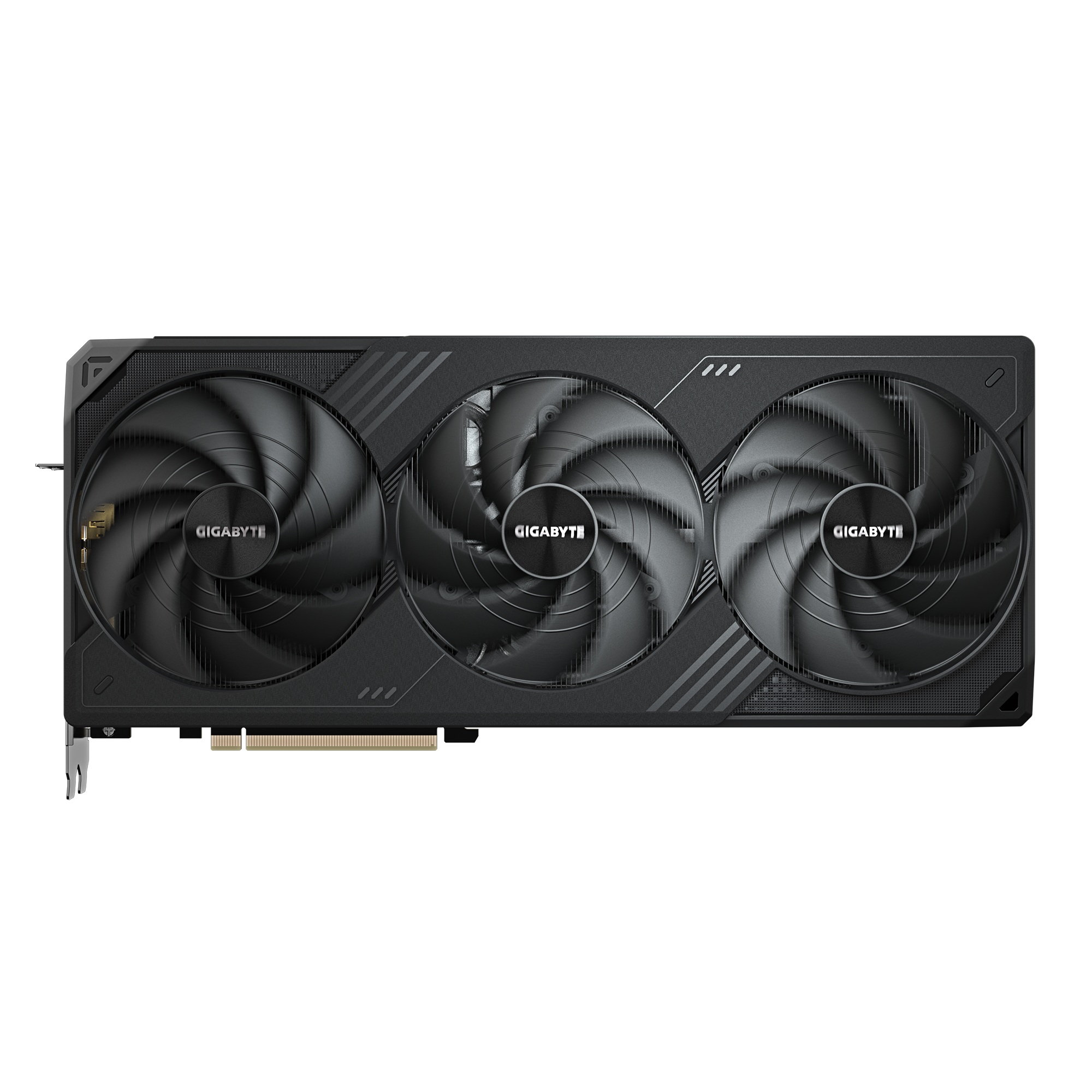

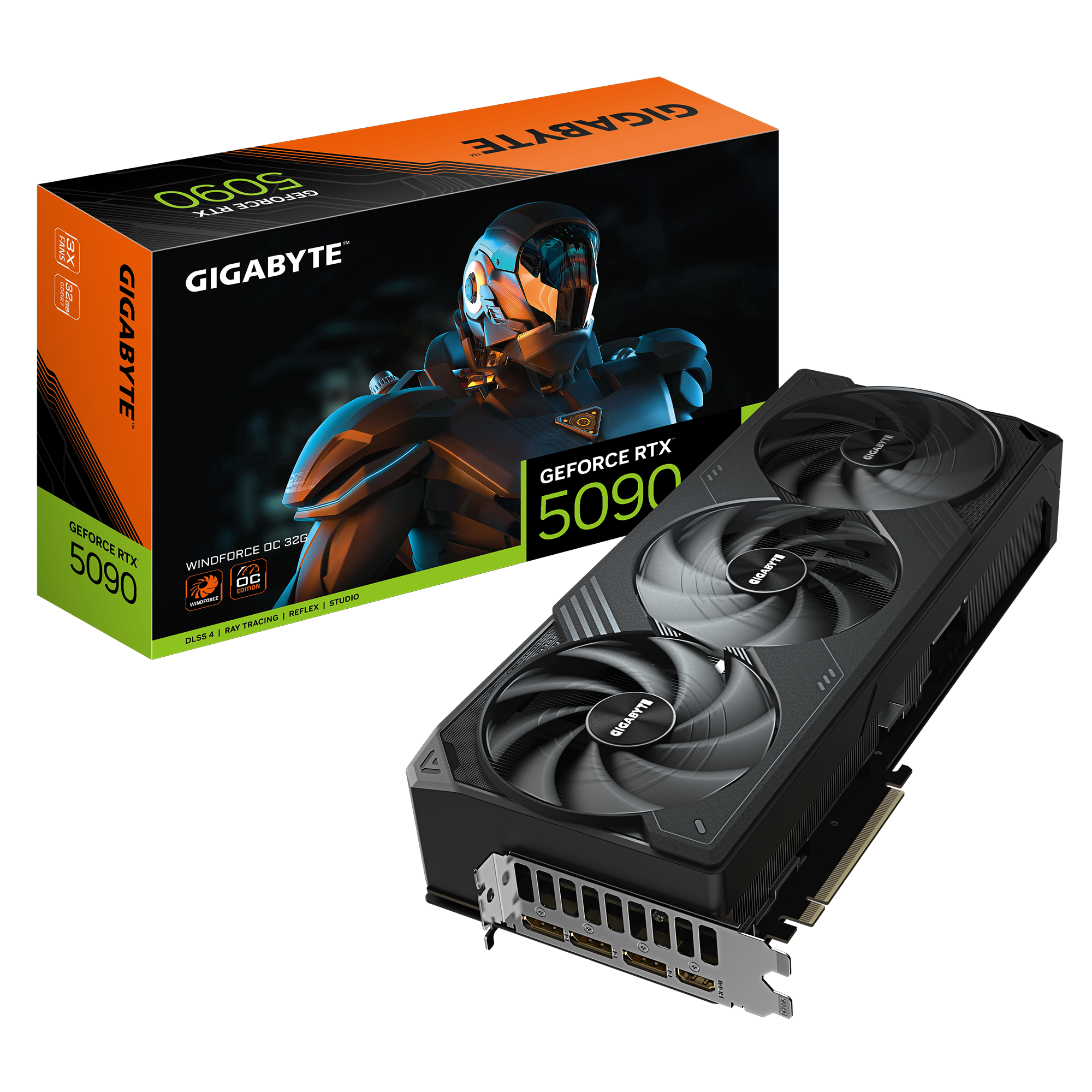

About Gigabyte GeForce RTX 5090 Windforce OC 32G Graphics Card
Specification | Details |
---|---|
GPU | NVIDIA GeForce RTX 5090 (Blackwell architecture) |
Memory | 32 GB GDDR7, 512-bit memory interface |
Boost Clock | 2,467 MHz (versus reference 2,407 MHz) |

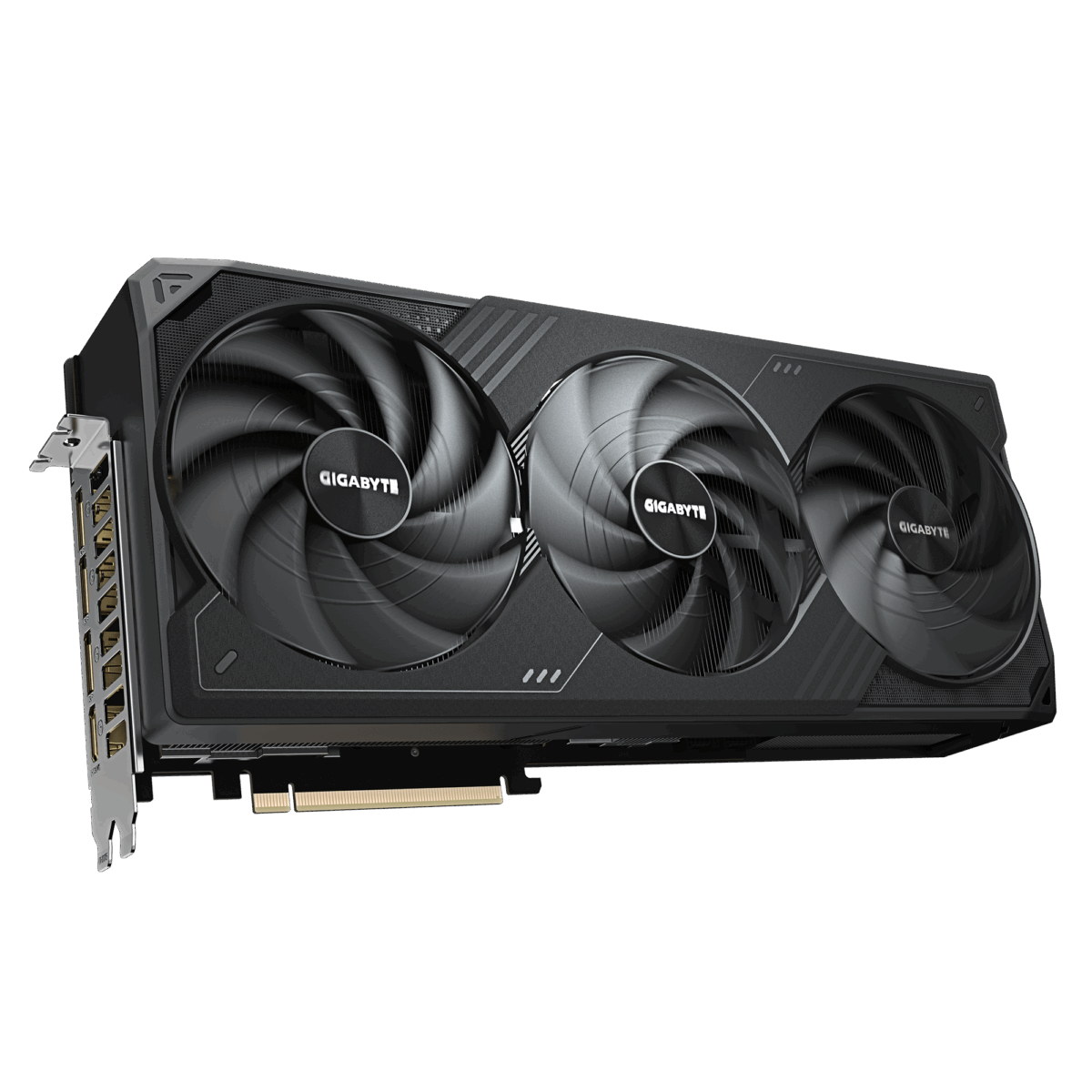

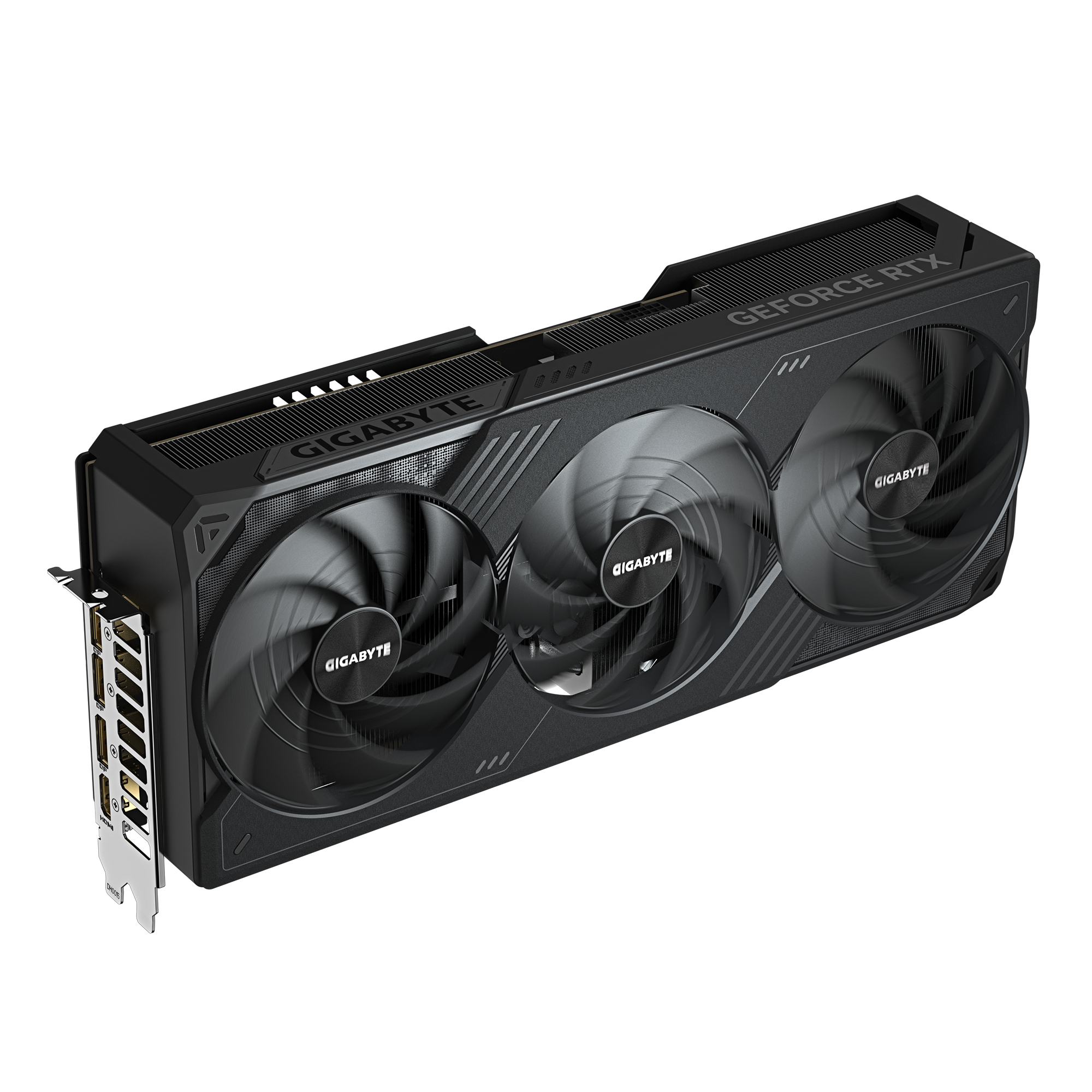

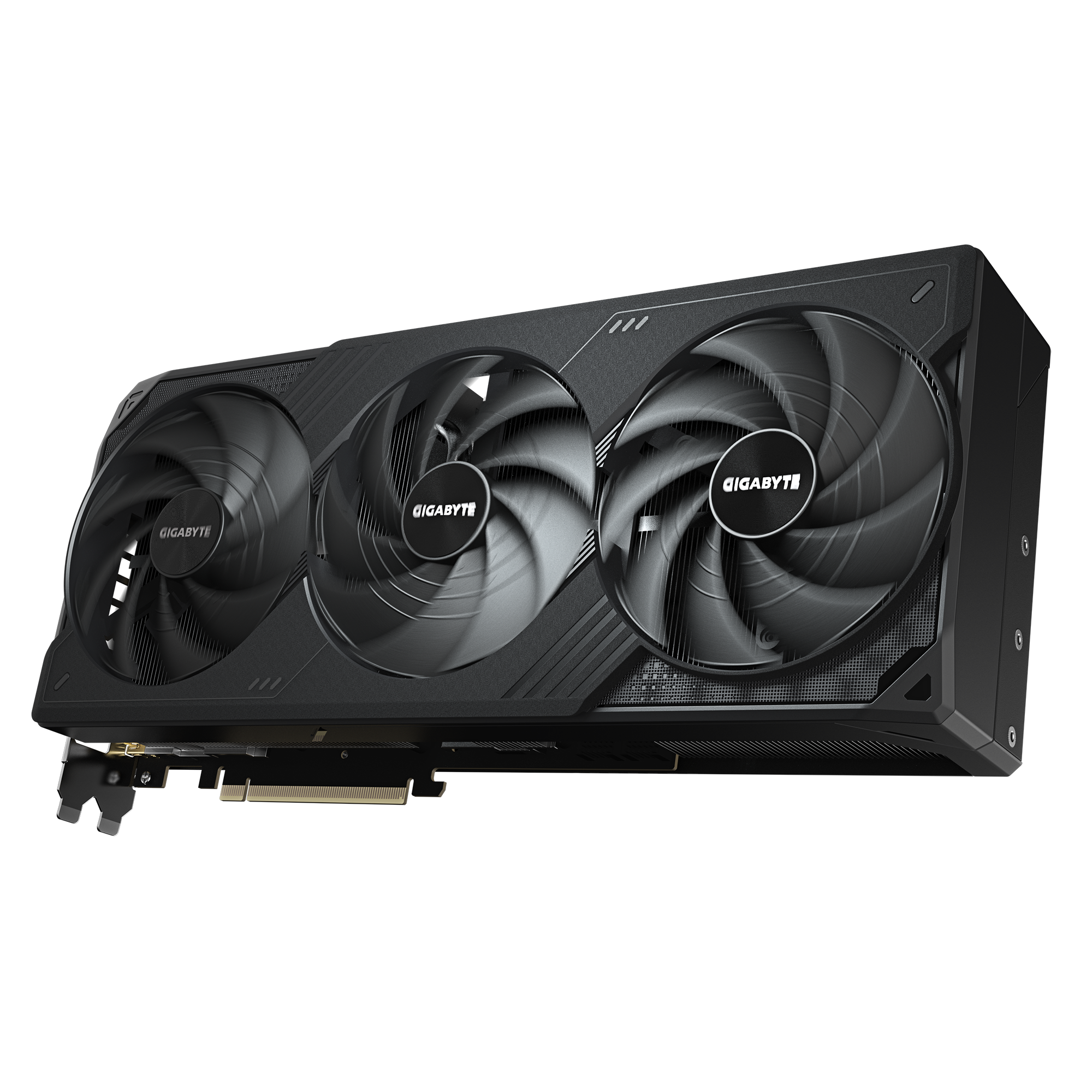

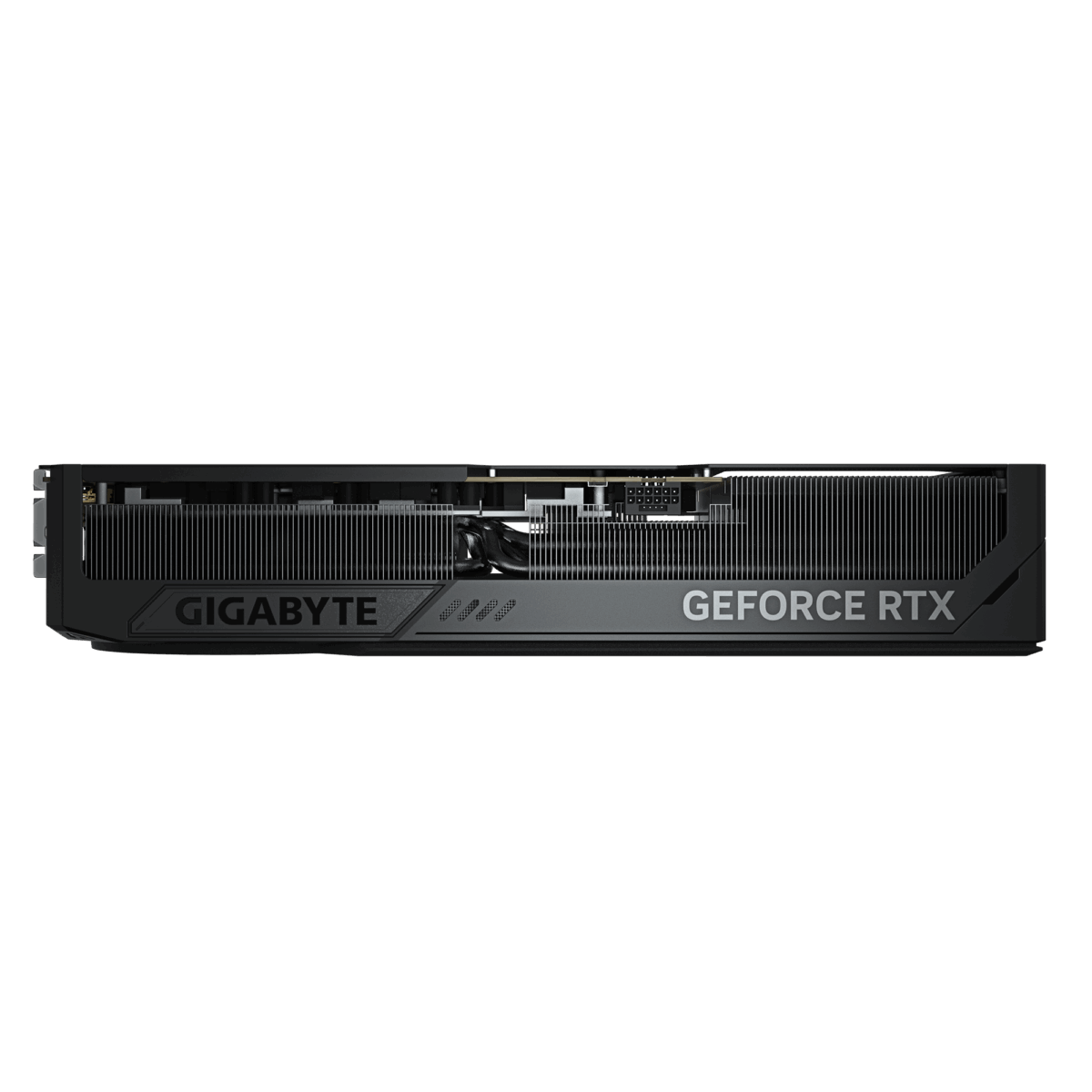

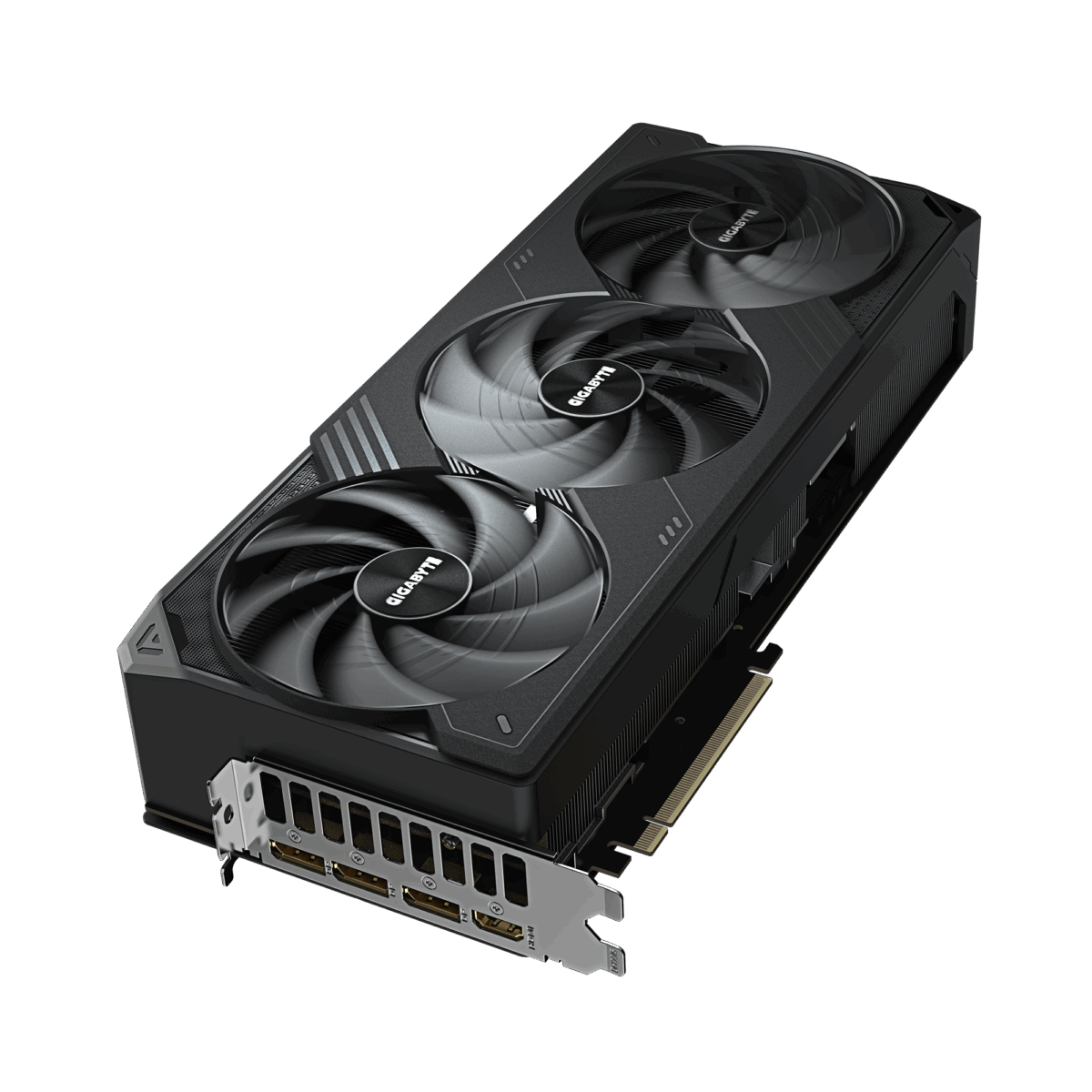

Cooling System | WINDFORCE triple-fan with Hawk fans, server-grade thermal conductive gel, composite copper heat pipes, large vapor chamber, 3D active cooling |

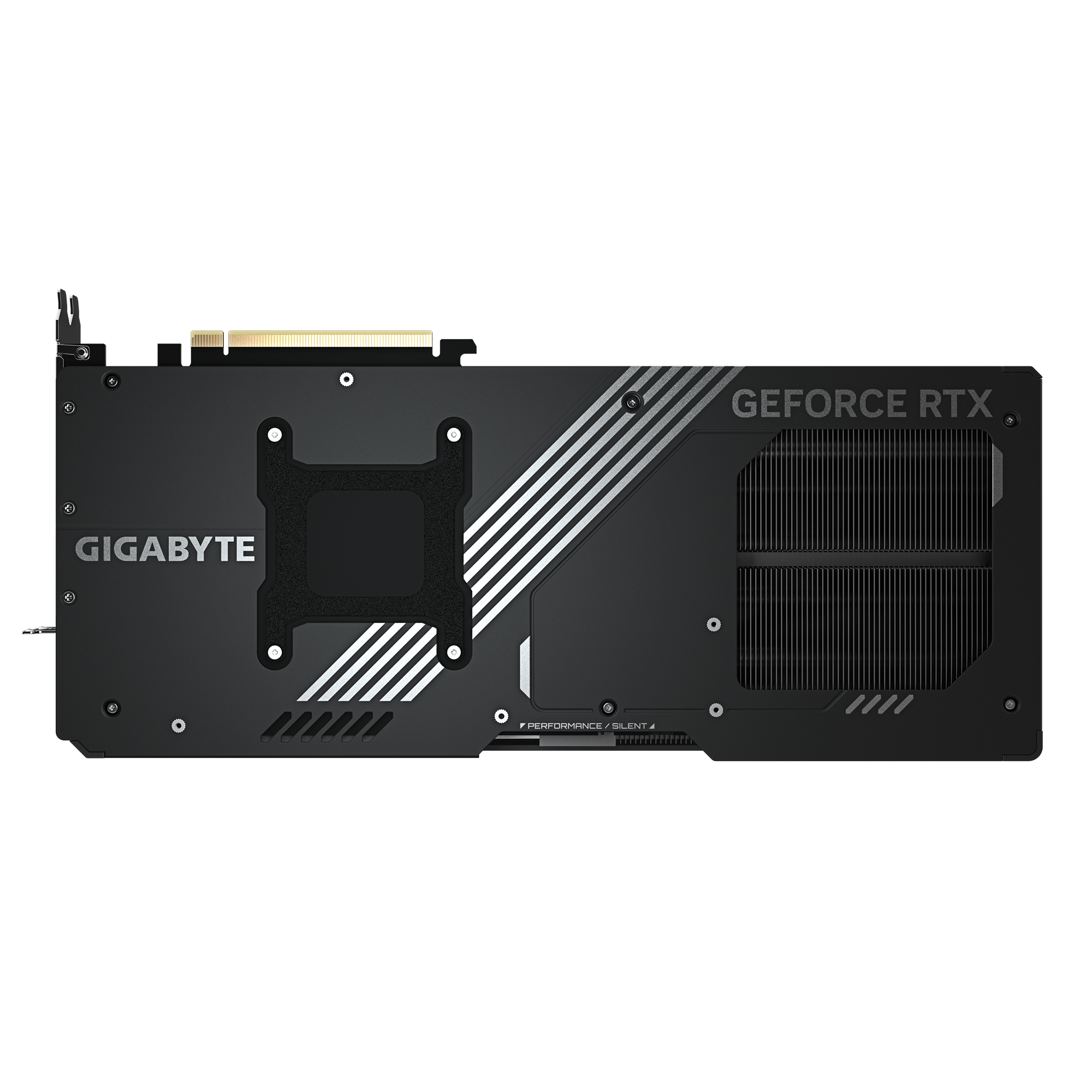

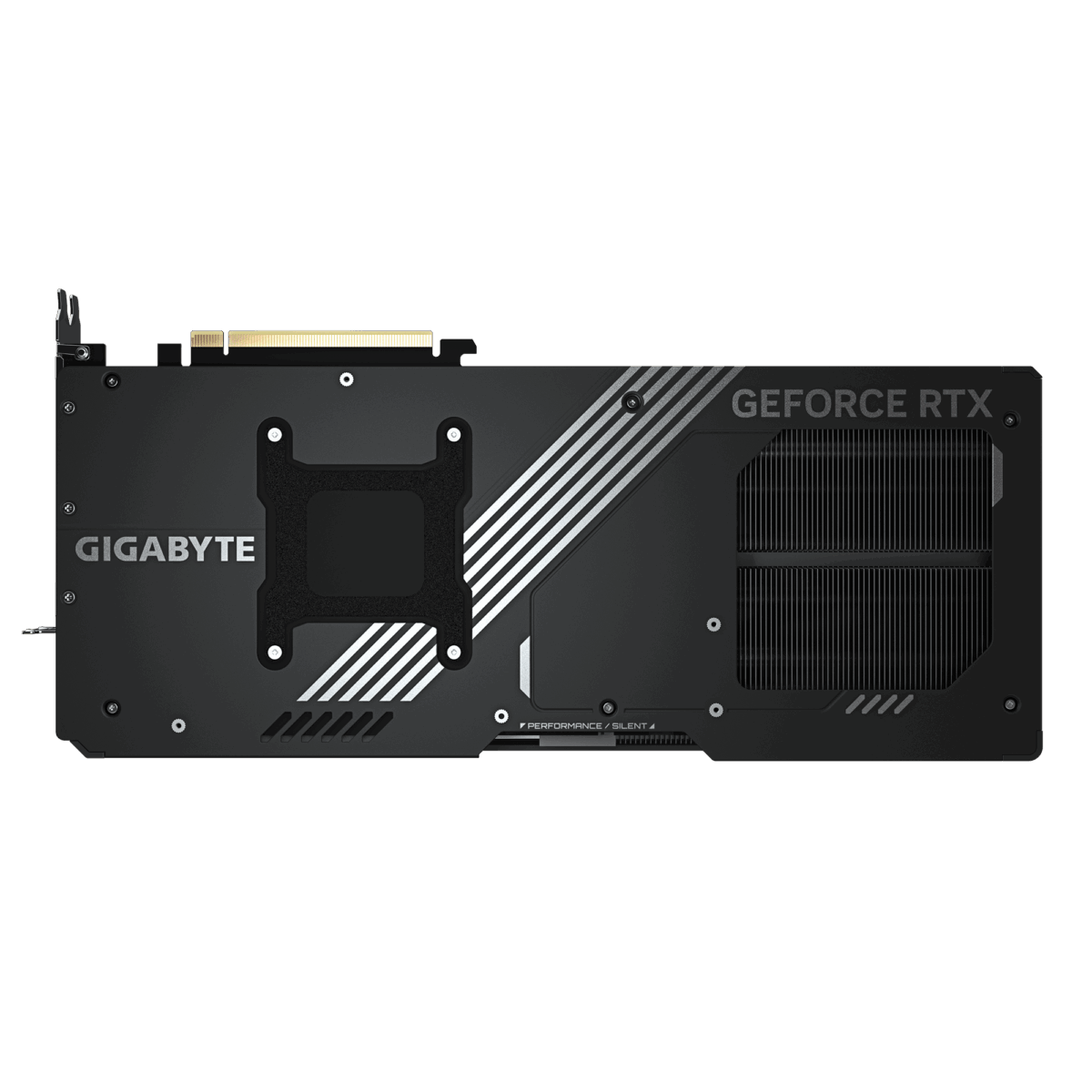

BIOS Modes | Dual BIOS: Performance and Silent modes |
PCIe Interface | PCIe 5.0 x16 |

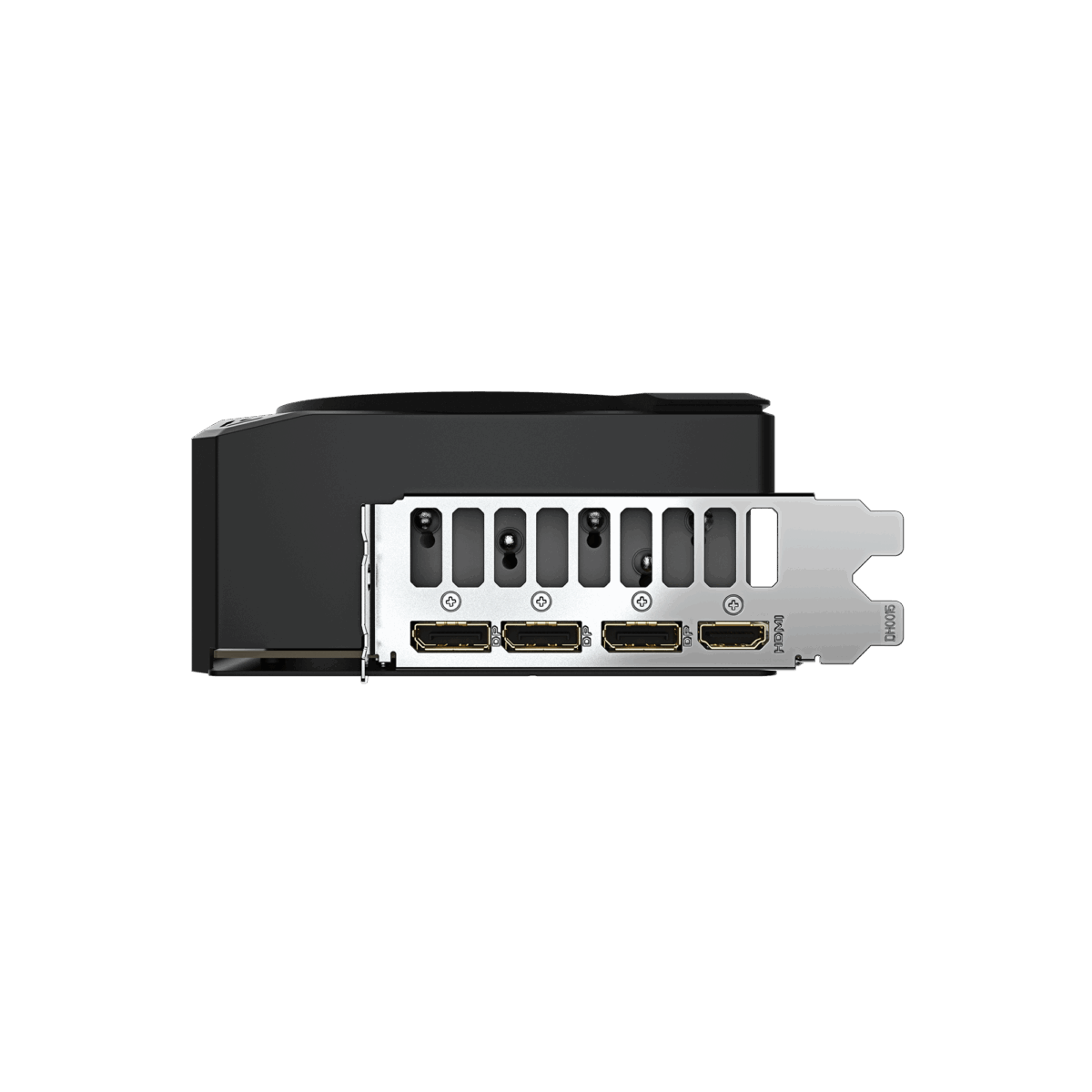

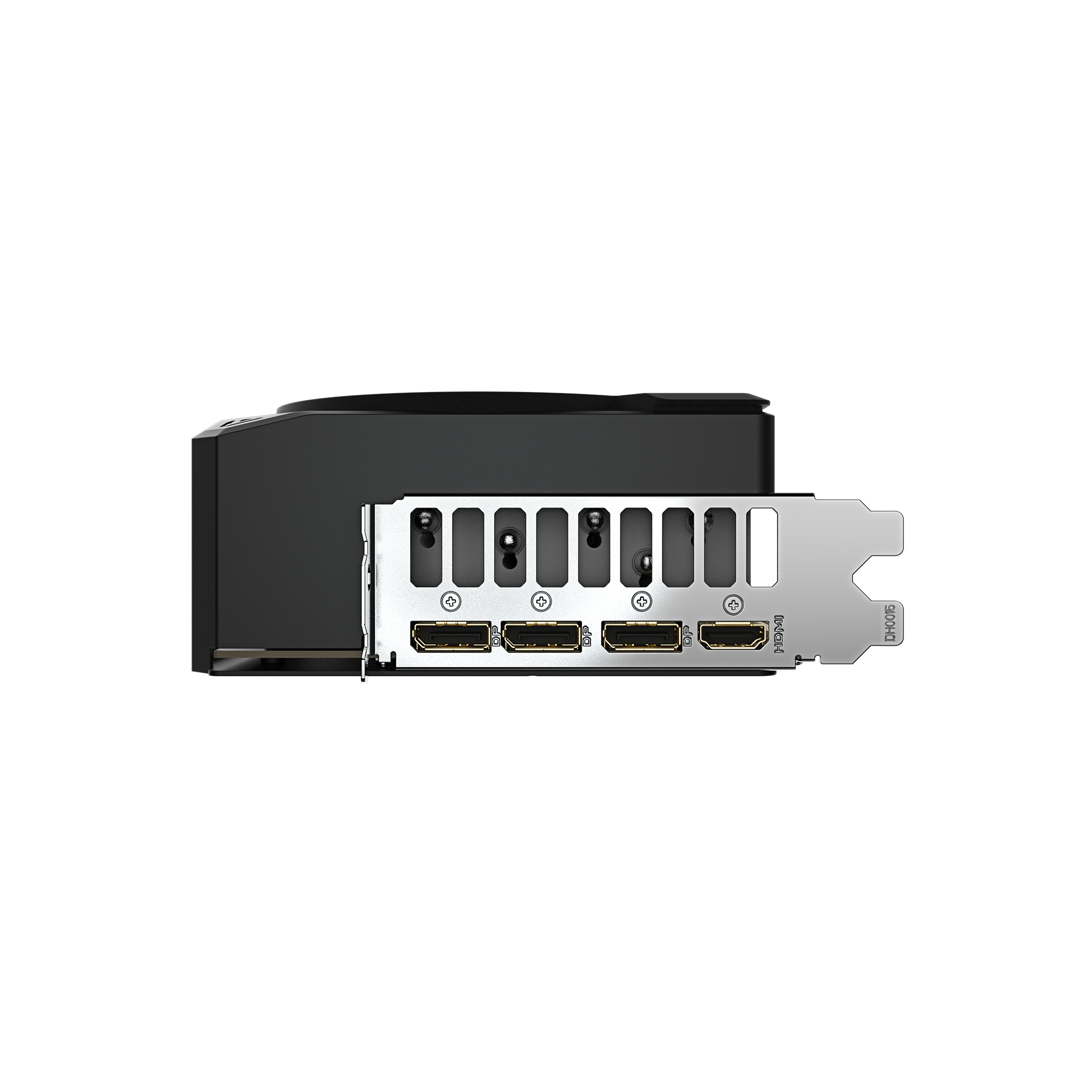

Video Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
Slot Size | ~3.5-slot width (quad-slot form factor) |
Dimensions | Length: 342 mm; Width: ~65 mm; Height: ~150 mm |
Supported Displays | Up to 4 displays; max resolution: 8K (4320p) |
Advanced Features | DLSS 4, Ray Tracing, NVIDIA Reflex 2, ACE, NVIDIA Studio tools, NVIDIA Broadcast, 9th-gen NVENC, G-SYNC |
Review Notes | Some users report actual boost clocks reaching 2.8–2.9 GHz under load, with peak temperatures around 70–75 °C in Performance mode |
