About Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16GB GDDR7 Graphics Card
SFF-Ready “Eagle” Design The EAGLE series is known for its distinct, modern aesthetic featuring cosmic blue-grey accents and transparent elements. This “SFF” edition is built to strict dimensions—304mm in length and 50mm in thickness—ensuring it meets NVIDIA’s “SFF-Ready Enthusiast” standard. This allows builders to fit a powerful 300W card into smaller Micro-ATX and Mini-ITX cases that were previously limited to mid-range GPUs.
WINDFORCE Cooling Efficiency: To maintain optimal boost clocks, Gigabyte employs the WINDFORCE cooling system. It features three unique blade Hawk fans with alternate spinning technology (the center fan spins in reverse) to reduce turbulence and increase static pressure. A large copper plate makes direct contact with the GPU and VRAM, transferring heat to composite copper heat pipes, while Screen Cooling allows air to pass through the rear of the heatsink for enhanced dissipation.
Blackwell Power & GDDR7 Powered by the NVIDIA Blackwell architecture, this card takes a massive leap forward with 16GB of GDDR7 memory. The switch to GDDR7 provides significantly higher bandwidth (28 Gbps) than the GDDR6/6X used in previous generations, ensuring smooth performance in high-fidelity 4K gaming and creative applications. It fully supports DLSS 4, enabling AI Multi-Frame Generation for unparalleled frame rates.
Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 (Note: 50-series uses GDDR7) |
| Memory Interface | 256-bit |
| Core Clock | 2542 MHz (Reference: 2452 MHz) |
| CUDA Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Cooling System | WINDFORCE Cooling System (Triple Hawk Fans) |

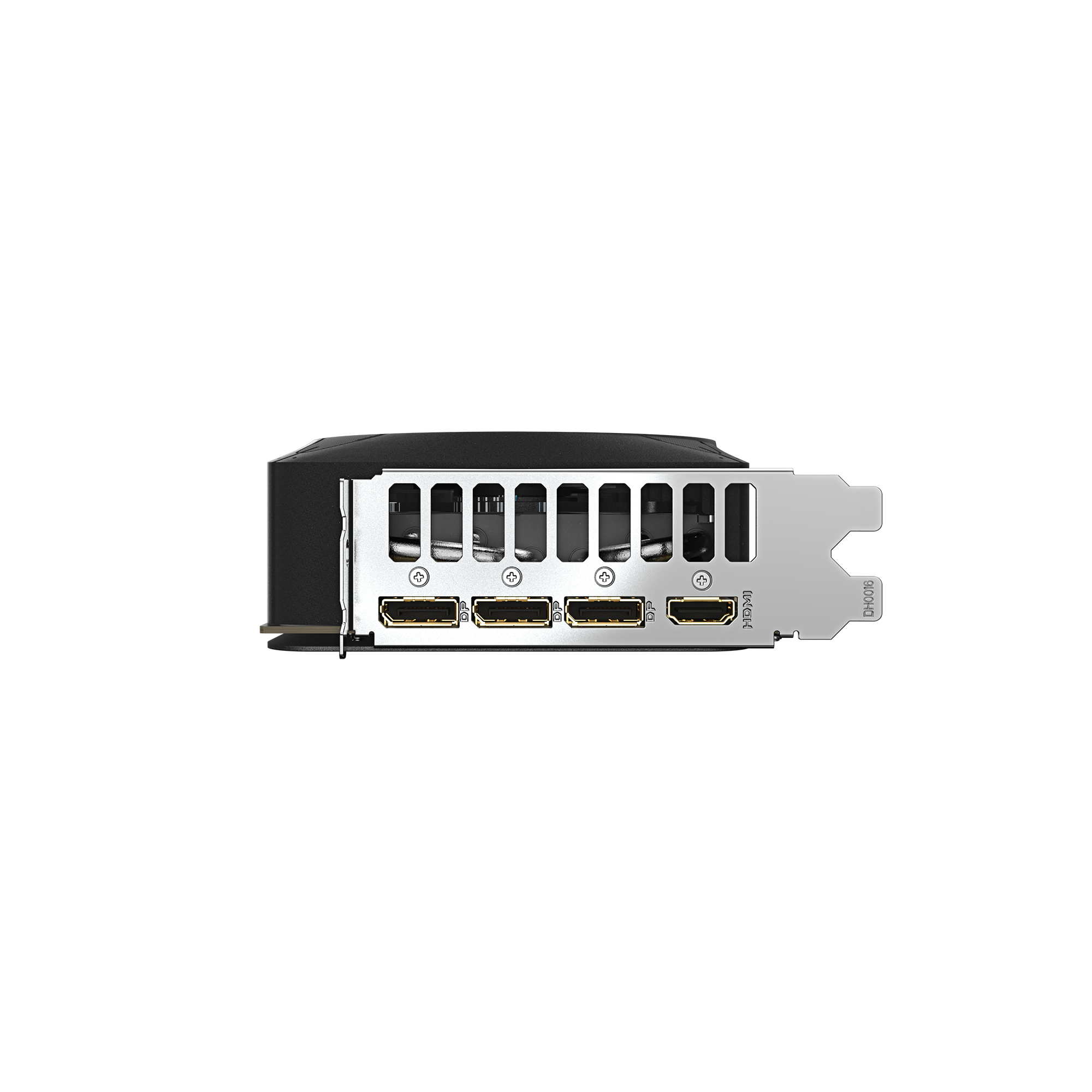

| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 750W |
| TDP | 300W |
| Card Dimensions | 304 x 126 x 50 mm (SFF-Ready Enthusiast) |
| Feature Support | DLSS 4, RGB Fusion, Dual BIOS |
Key Features
-
16GB GDDR7 Memory: High-speed 28 Gbps memory for next-gen gaming.
-
SFF-Ready Certified: Fits 99% of “SFF-Ready” cases (304mm length).
-
WINDFORCE Cooling: Triple fans with alternate spinning technology.
-
Factory Overclock: Boost clock tuned to 2542 MHz for extra speed.
-
RGB Fusion: Customizable lighting on the side logo.
