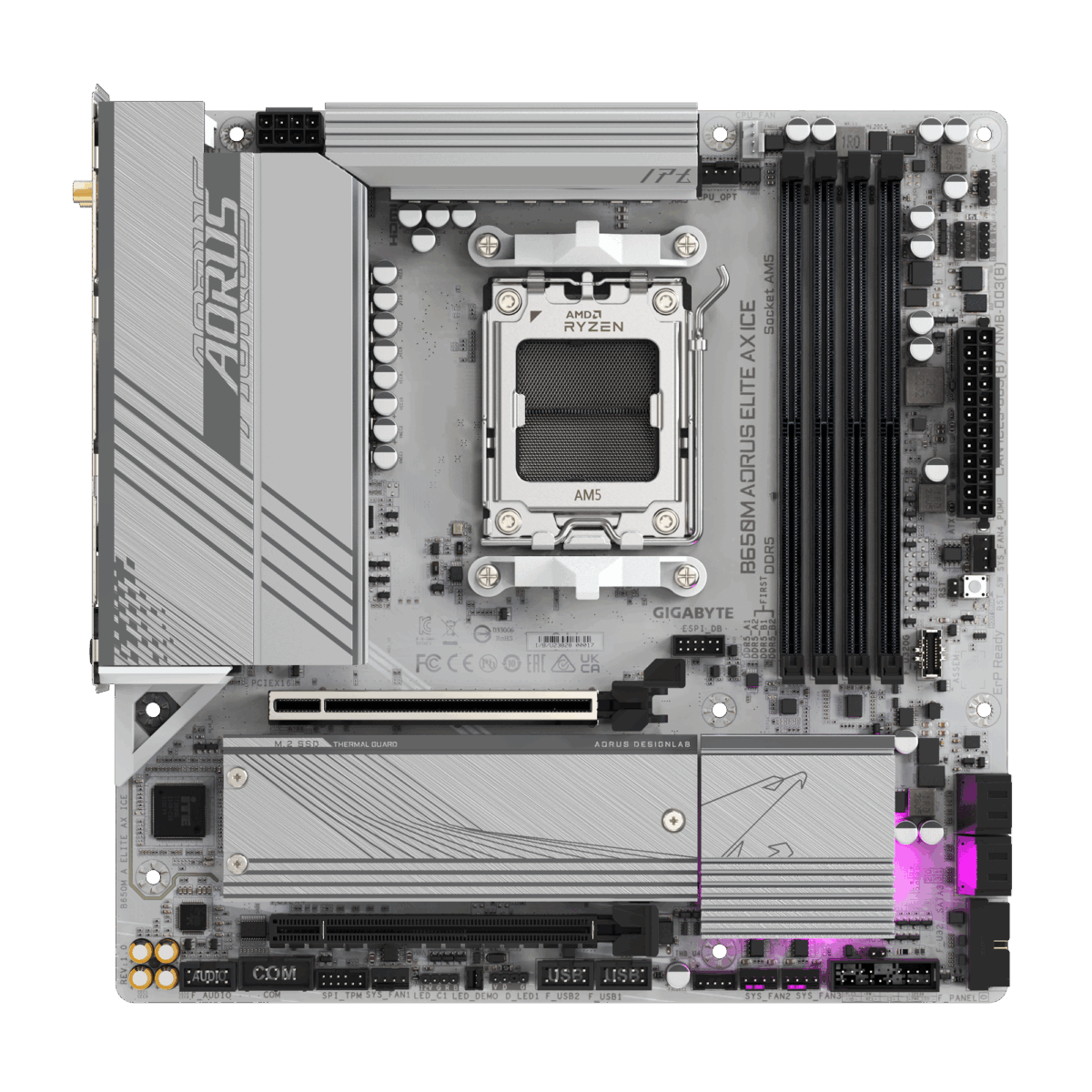

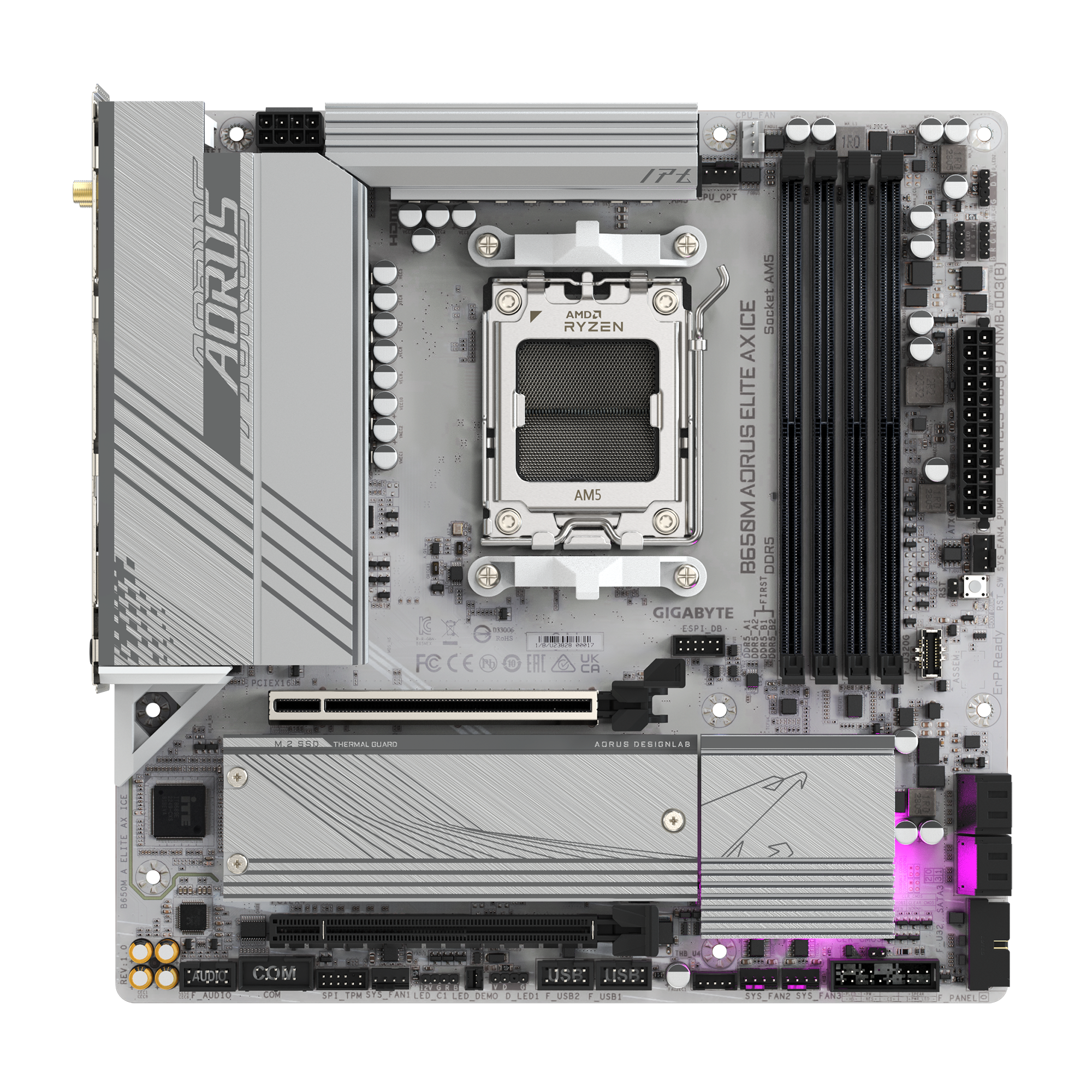

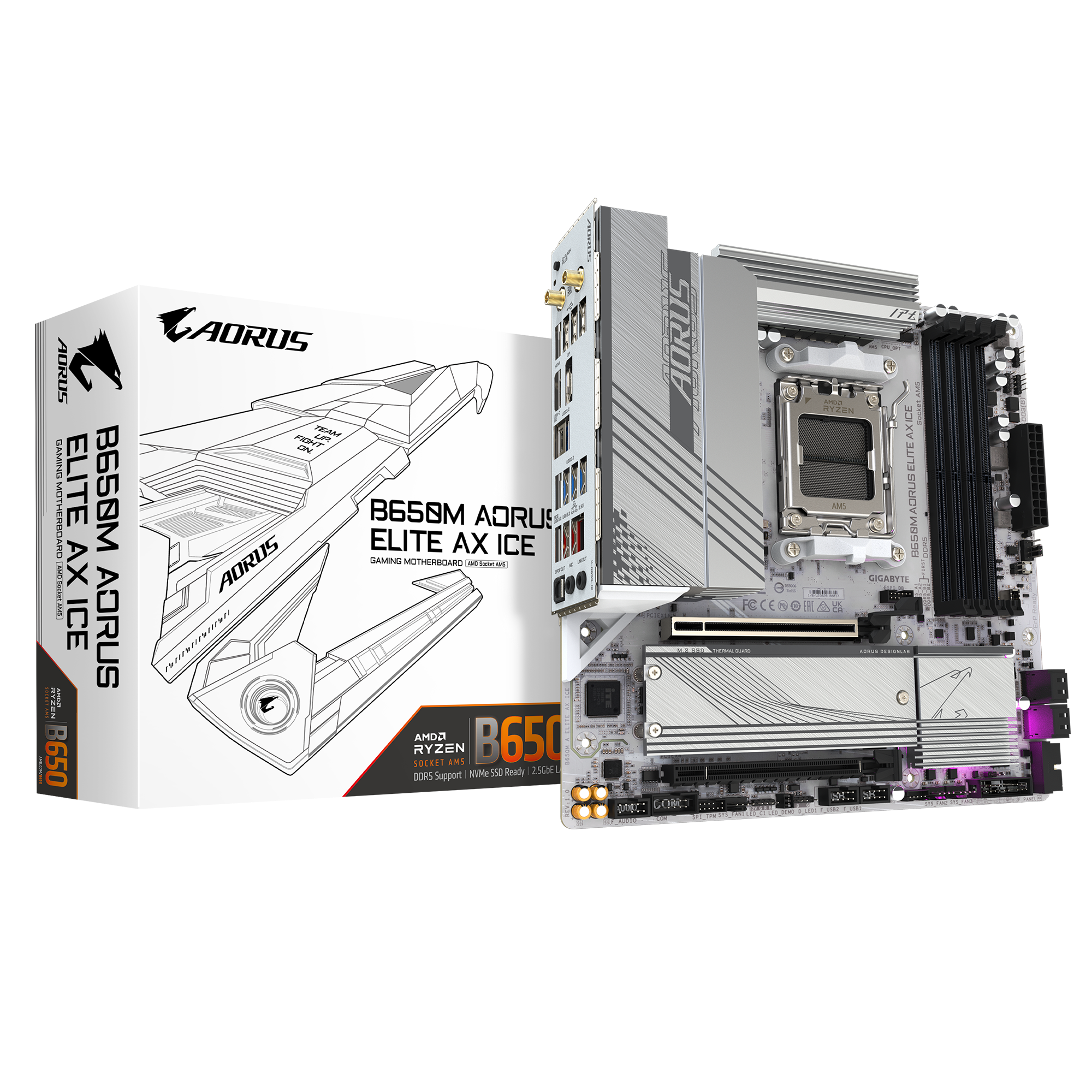

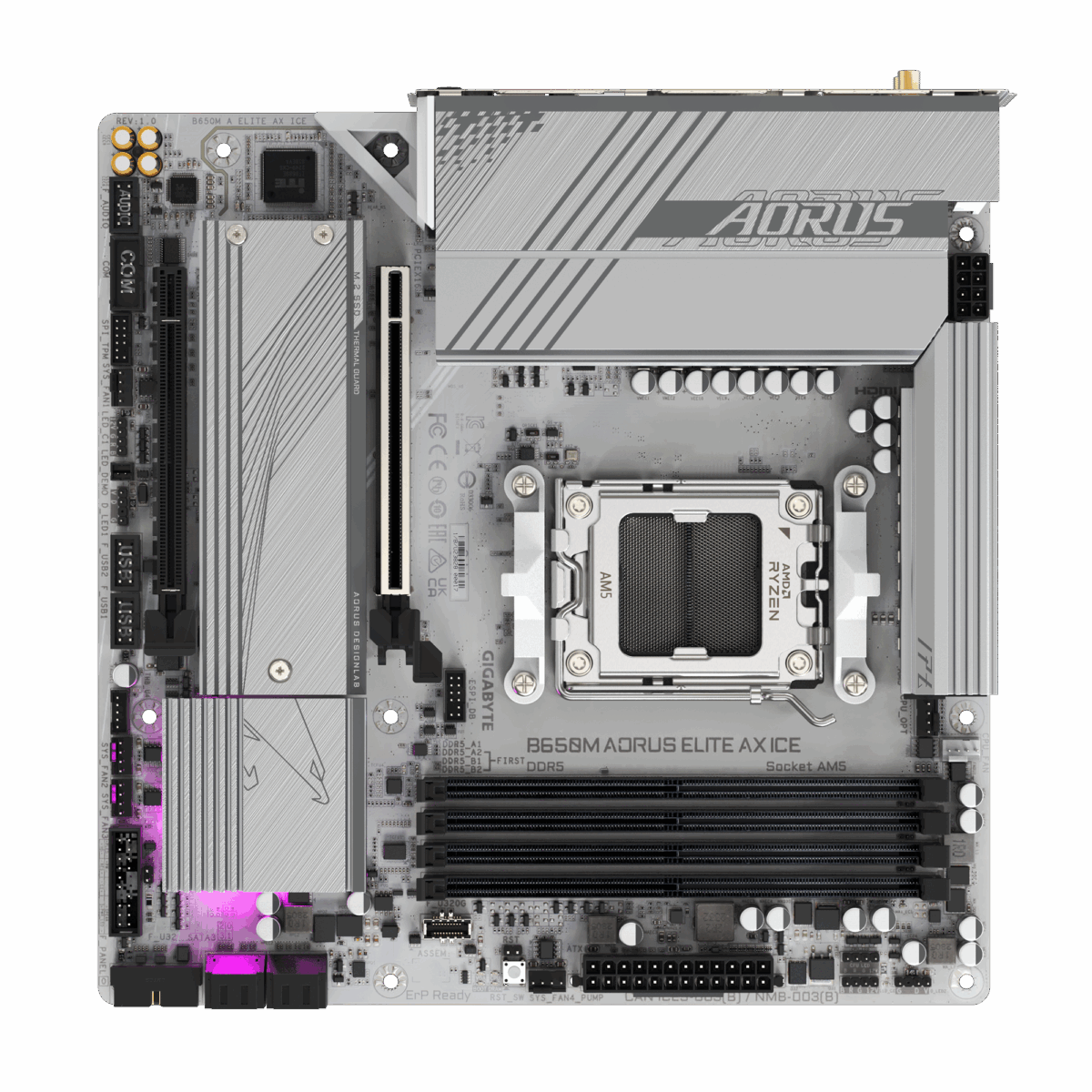

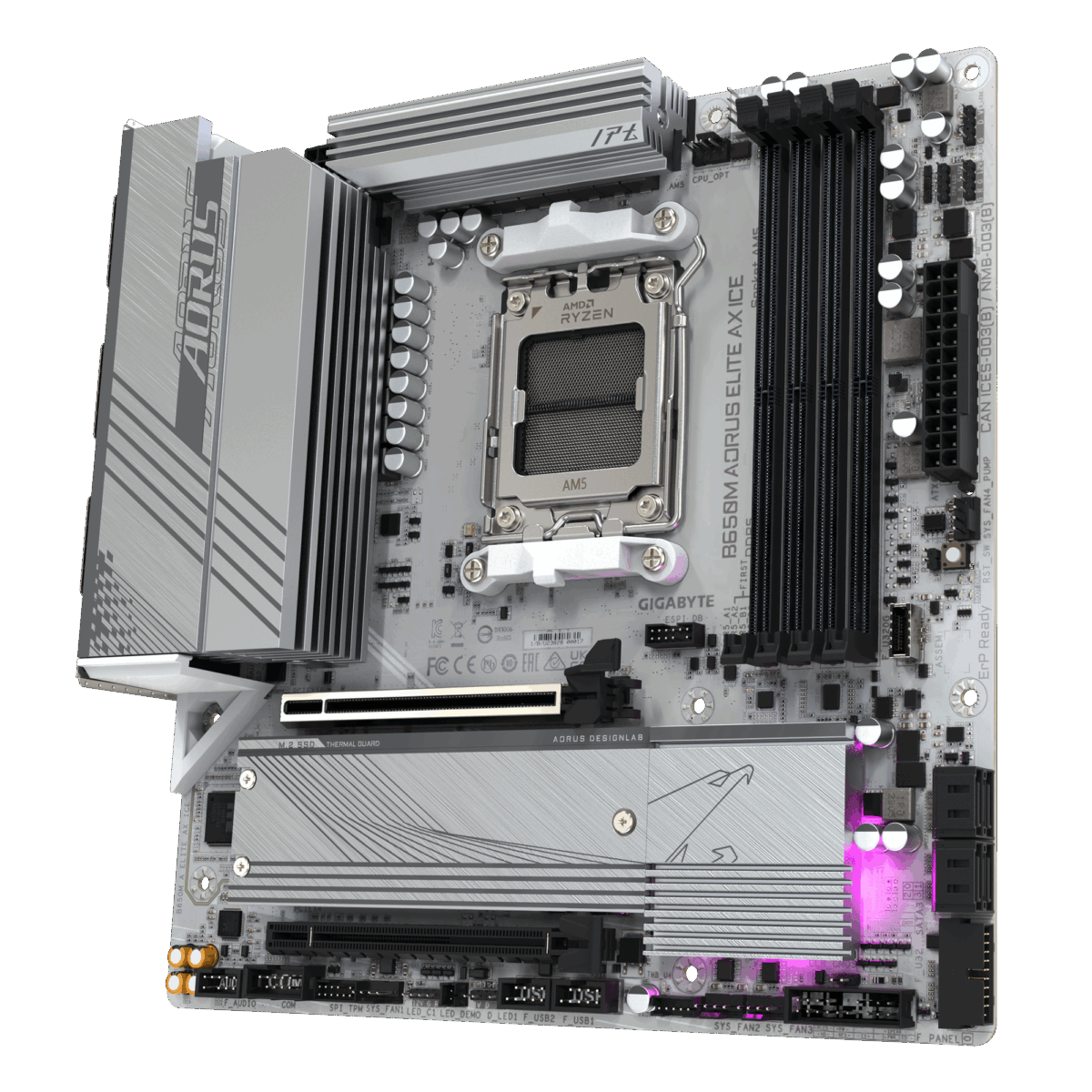

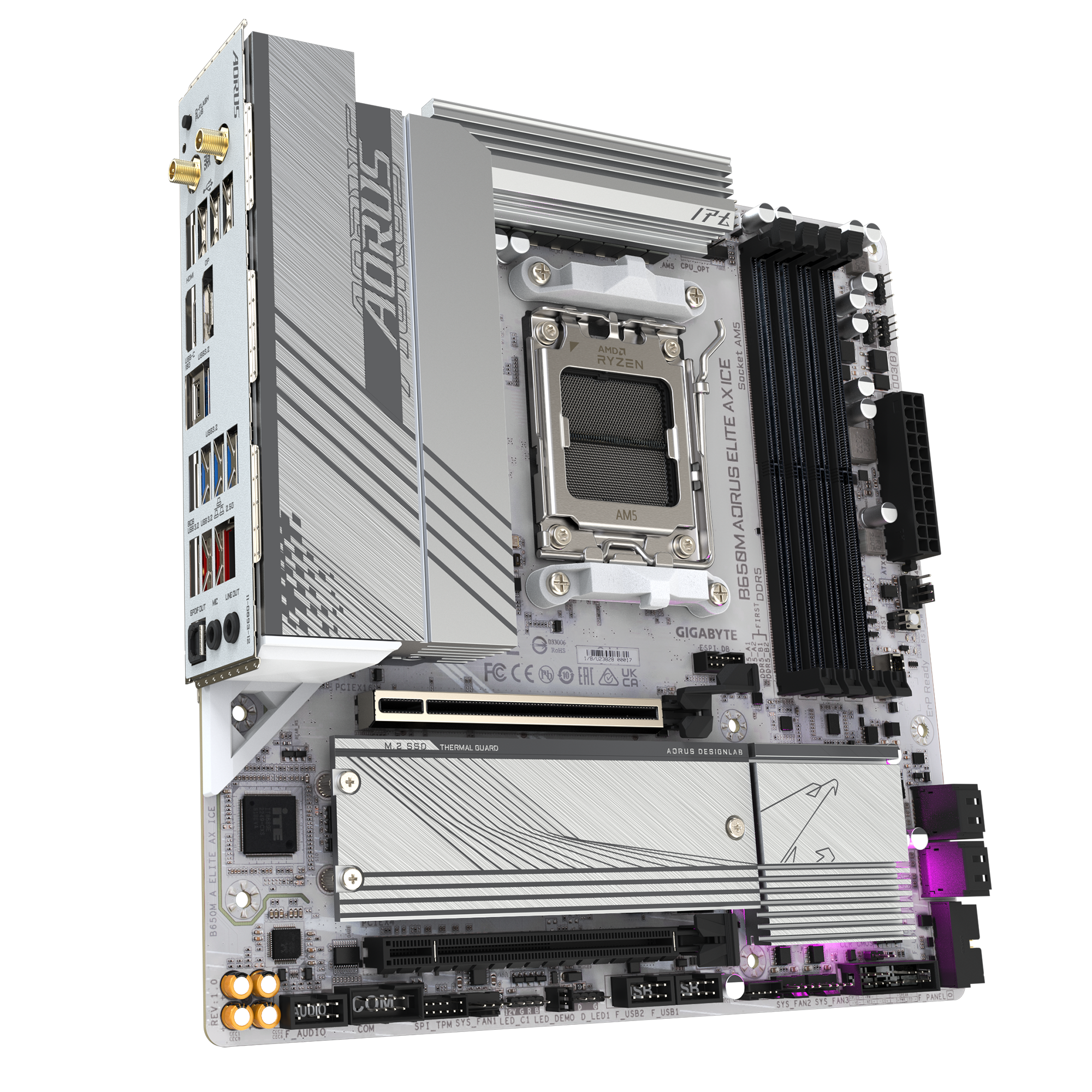

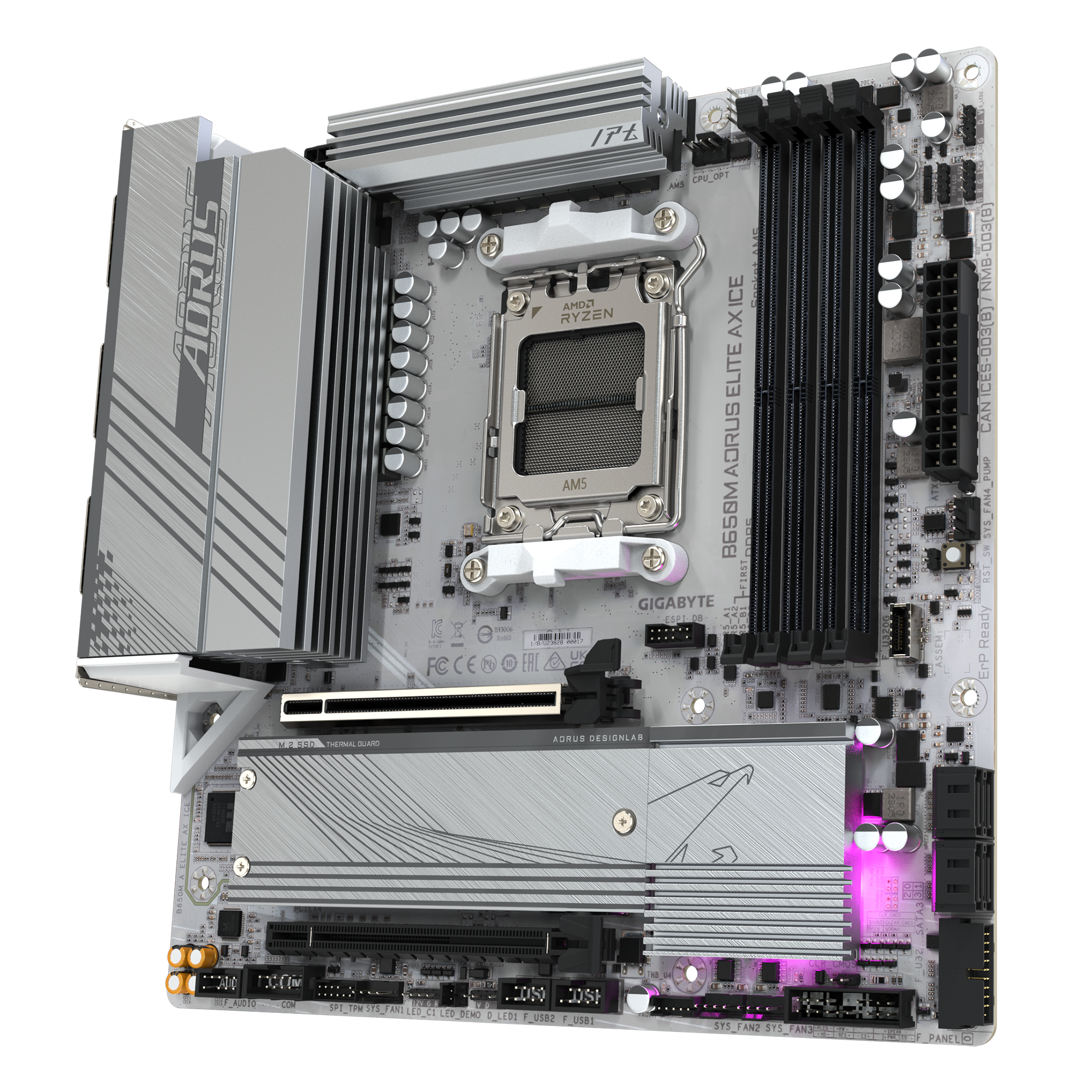

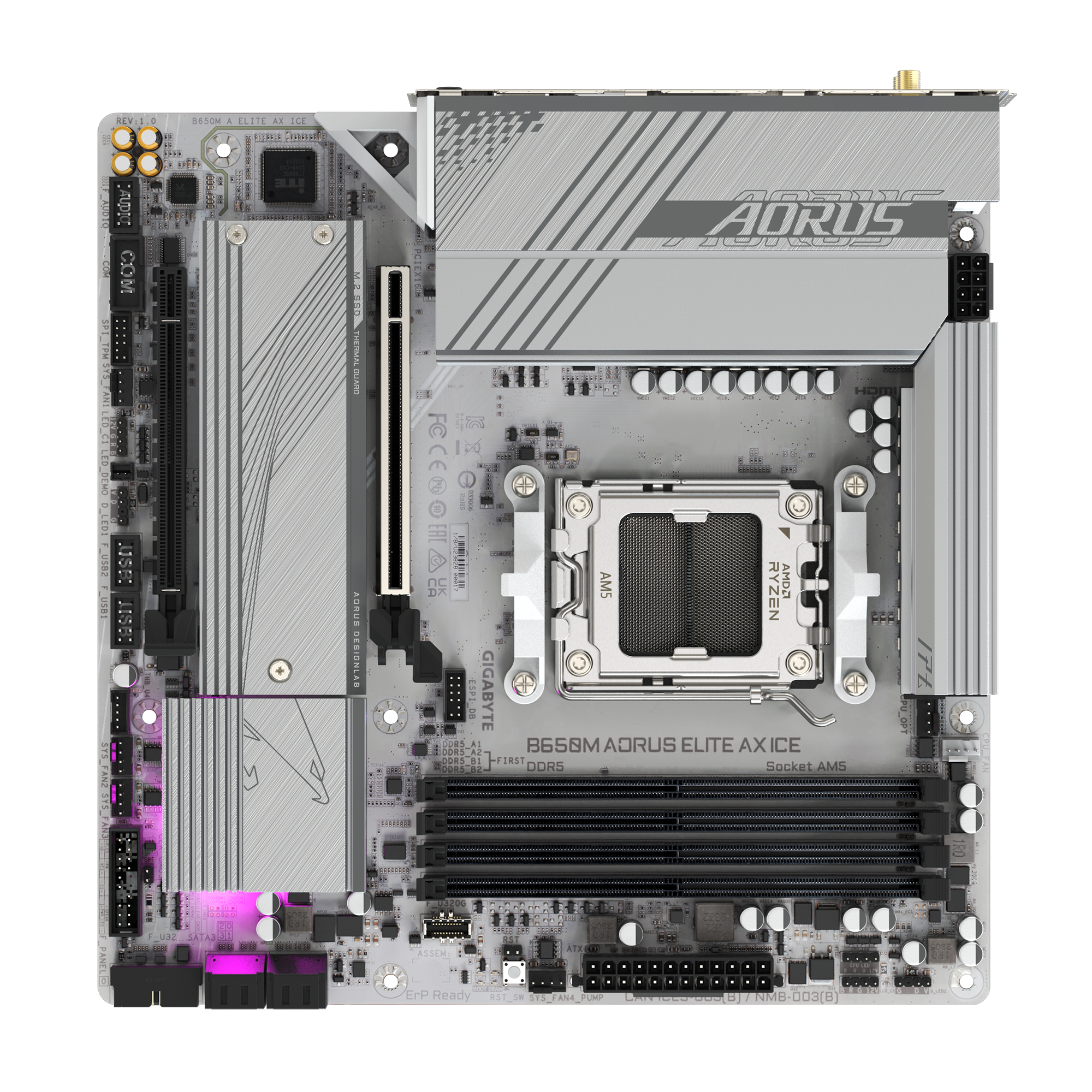

About Gigabyte B650M Aorus Elite AX ICE AM5 Motherboard
Specification | Detail |
---|---|
CPU Compatibility | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 series CPUs |
Power Delivery / VRM | Twin 12+2+2 phase digital VRM (VCORE, SOC, miscellaneous) with 60 A Dr.MOS, solid power components |
Memory Details | Supports DDR5, up to 4 DIMMs; XMP and AMD EXPO profiles; overclockable memory (e.g. to ~8000 MT/s depending on configuration) |
Expansion Slots | Full-length PCIe ×16 (for graphics), additional PCIe ×4 slot; reinforced PCIe UD Slot for GPU |
Storage Interfaces | Two high-speed M.2 slots (one Gen5 x4, one Gen4 x4) with thermal guards; multiple SATA 6Gb/s ports |

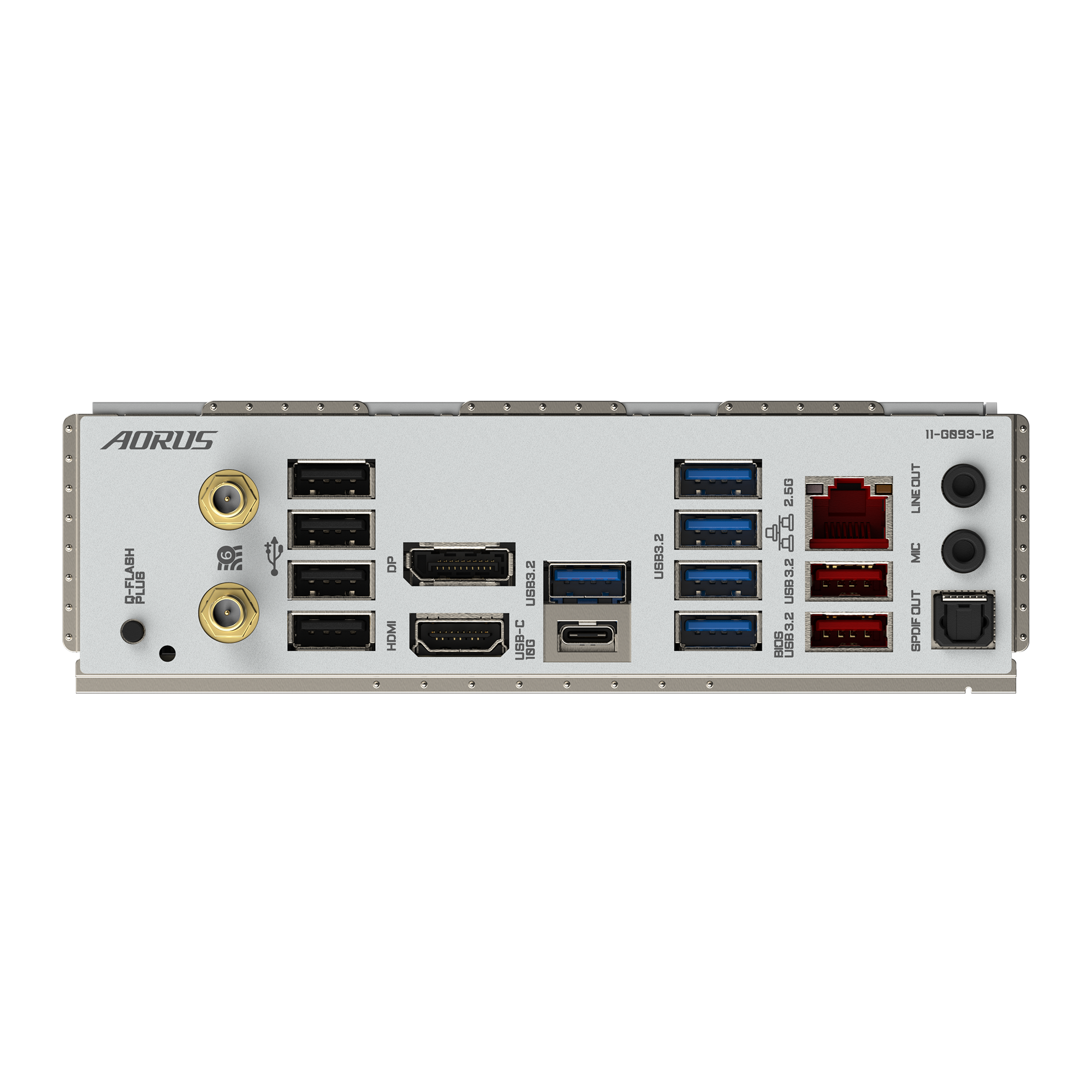

Rear & Front Connectivity | HDMI + DisplayPort; front USB-C 20Gb/s; rear USB-C 10Gb/s; multiple USB3.2 Gen1/Gen2 ports; USB2.0 ports |
Networking | Onboard 2.5Gb Ethernet + Wi-Fi 6E with external “ultra-high gain” antenna |
Cooling & Thermal Design | Hefty heatsinks (VRM Armor Advanced), heatpipe, M.2 Thermal Guards; enhanced PCB (multi-layer, copper) |
BIOS / Special Features | Q-Flash Plus (BIOS update without CPU/GPU installed); Smart Fan 6 with multiple temperature sensors, hybrid headers, FAN STOP features; DIY-friendly features like EZ-Latch for PCIe & M.2 |
Audio | ALC897 codec, premium audio capacitors for enhanced sound quality |
