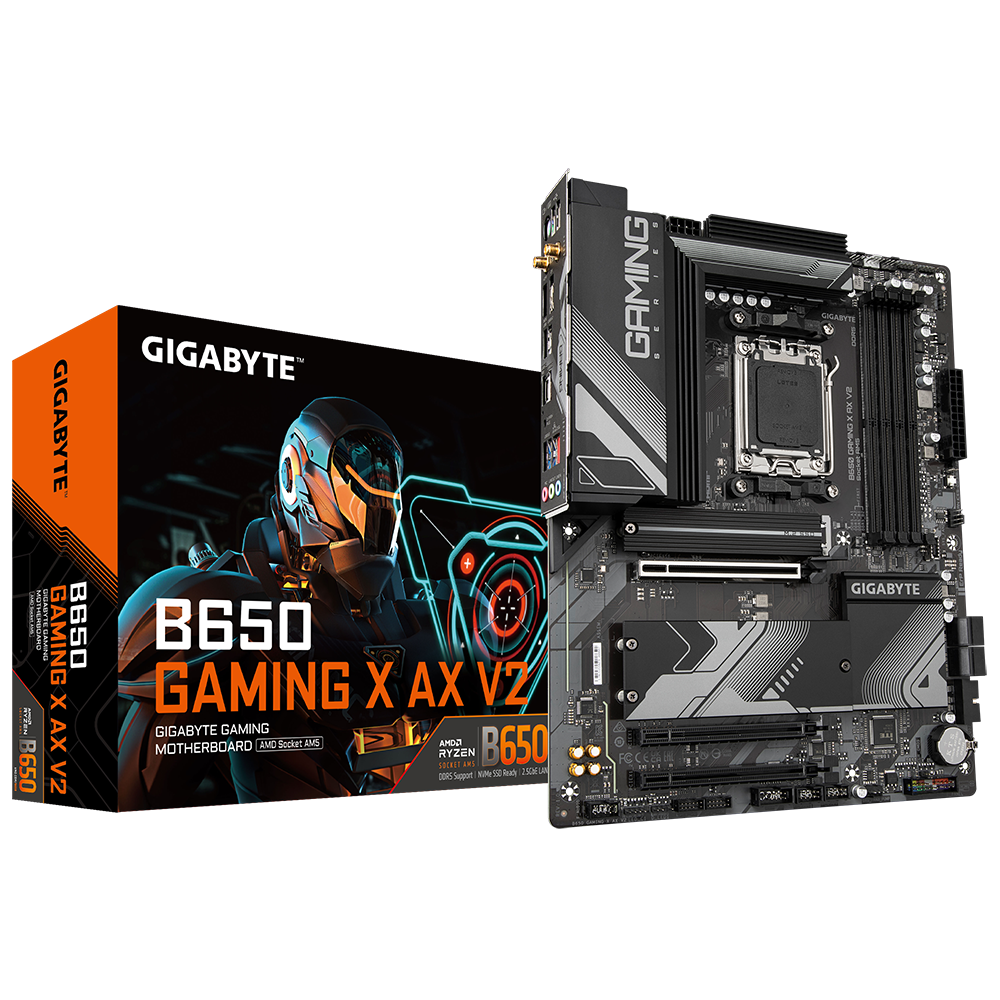

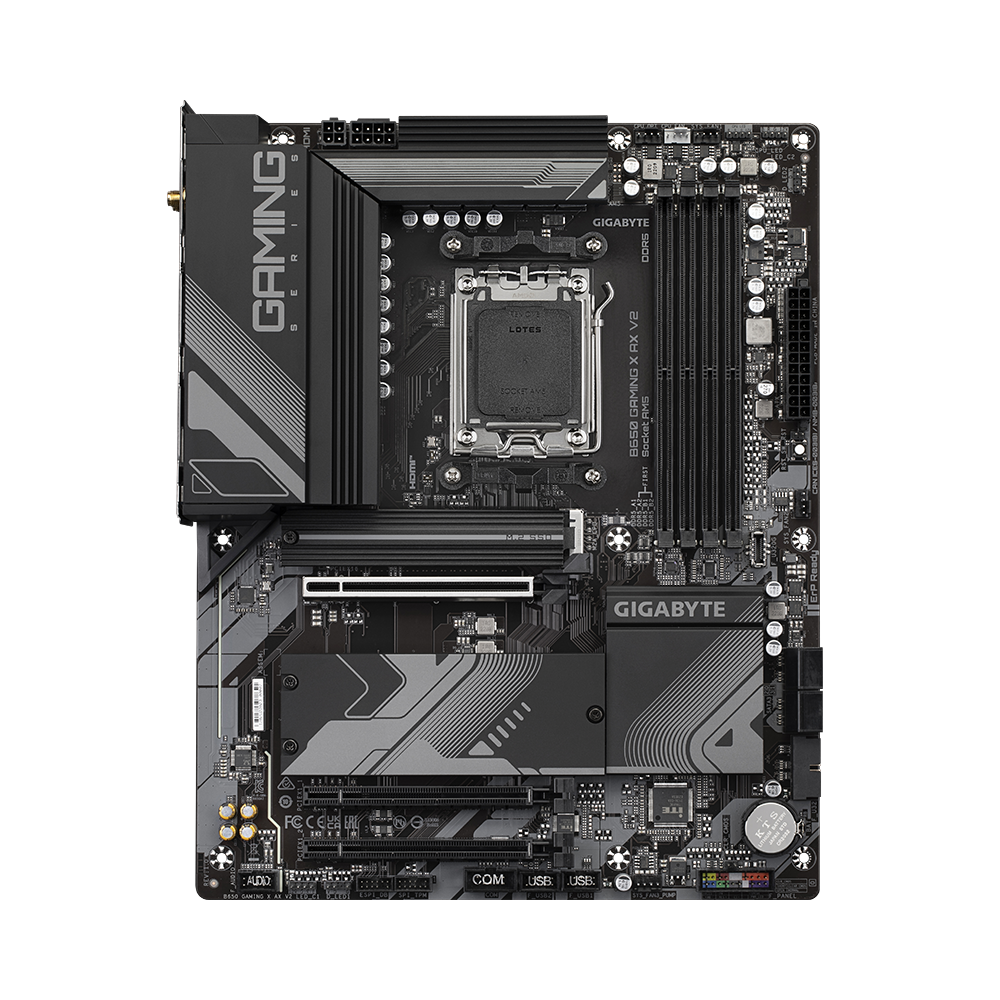

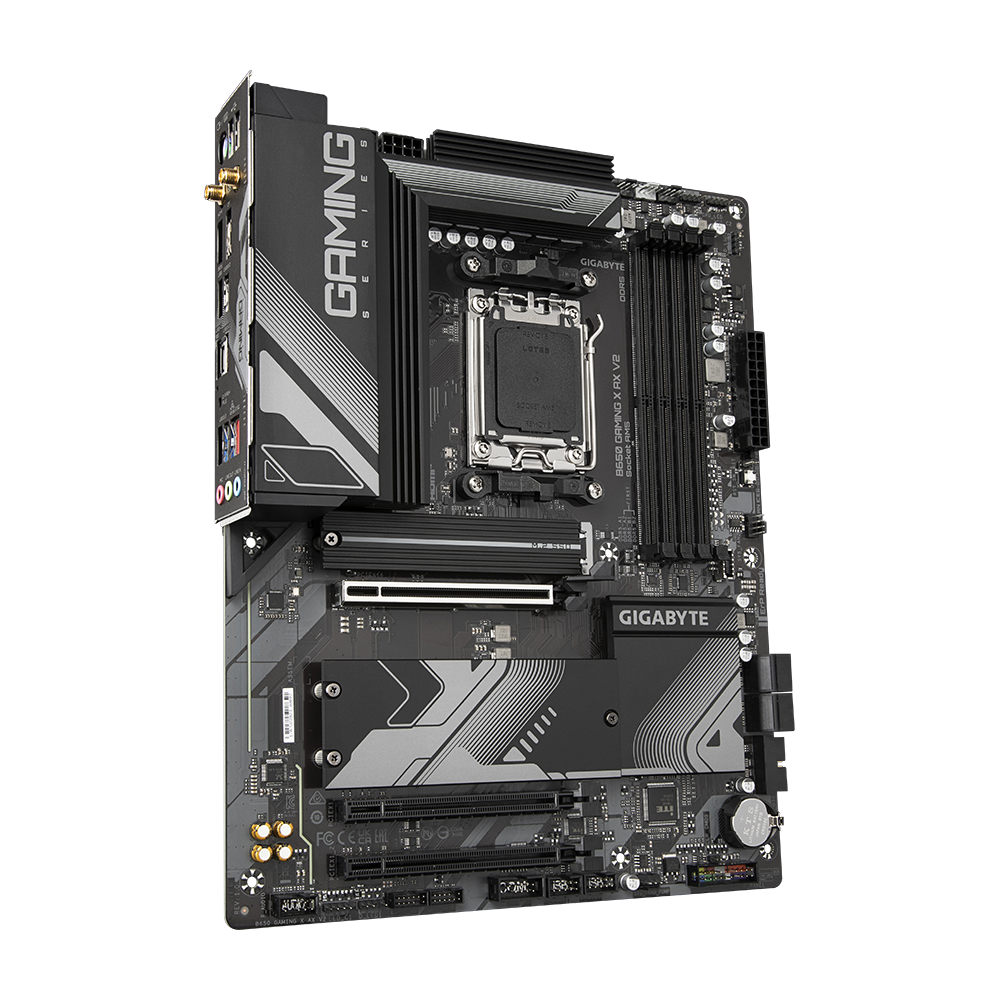

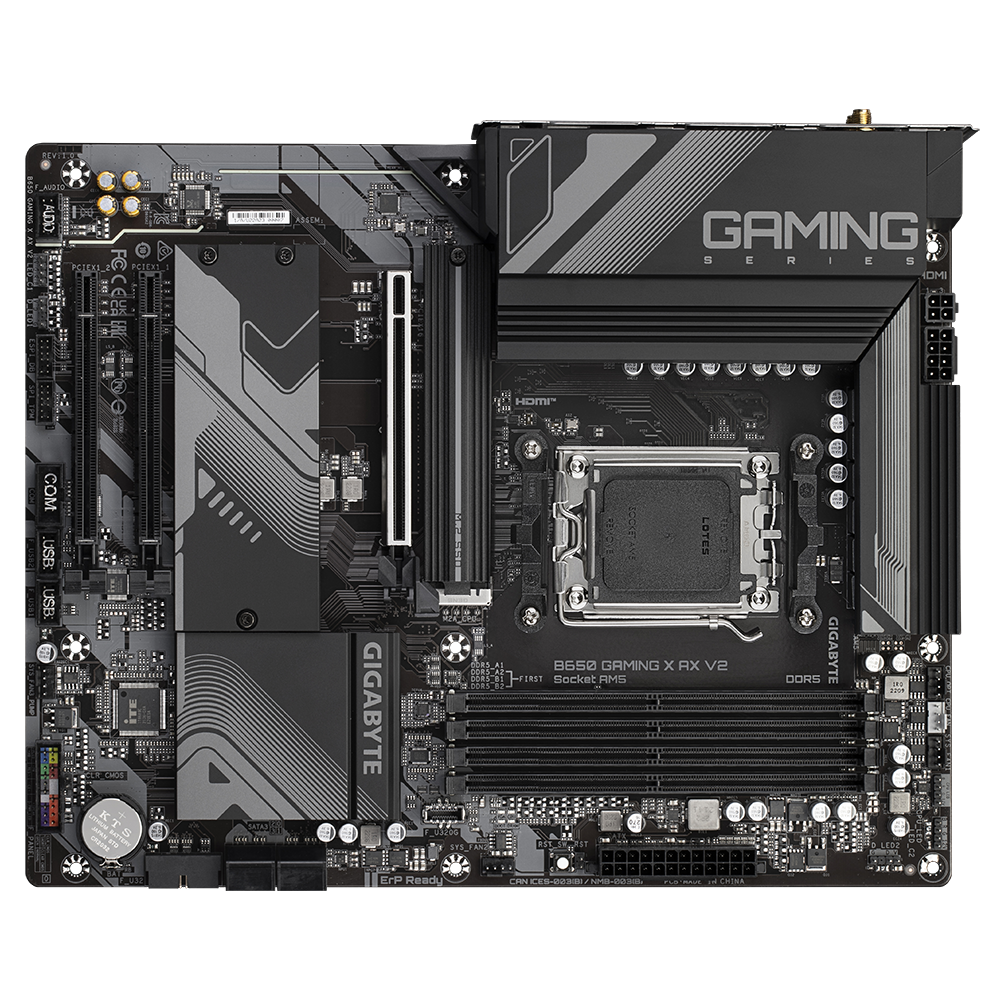

About Gigabyte B650 Gaming X AX V2 Motherboard
| Category | Specification |
|---|---|
| General / Chipset | AMD B650 chipset |
| CPU / Socket | Socket AM5 supporting AMD Ryzen 7000 / 8000 / 9000 series |
| Power / VRM | Direct 8 + 2 + 2 digital VRM, 60A Dr MOS, 8+4 solid pin CPU power connectors |
| Memory / RAM | 4 × 288-pin DDR5 DIMM slots, dual channel Supports speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 (OC) Maximum capacity: 192 GB Non-ECC, unbuffered memory |
| Storage / M.2 / SATA | M.2 slots: 3 total • 1 × PCIe 5.0 x4 (supporting 2280 / 25110) • 2 × PCIe 4.0 x4 M.2 slots (2280 / 25110) SATA 6 Gb/s ports: 4 RAID support: RAID 0, 1, 10 |
| Expansion / PCIe Slots | 1 × PCIe 4.0 x16 slot 2 × PCIe 3.0 x16 (operating at x1 mode) |
| Networking | Ethernet: Realtek 2.5 GbE LAN Wireless: Wi-Fi 6E (802.11ax) + Bluetooth (BT 5.x) |
| USB / I/O | Rear I/O: • 1 × USB 3.2 Gen 2 Type-C (10 Gb/s) • Additional USB 3.2 Gen 2 Type-A, Gen 1, USB 2.0 ports Internal headers: • 1 × USB 3.2 Gen 2×2 Type-C header (front) • 1 × USB 3.2 Gen 1 header (2 ports) • 2 × USB 2.0 headers |
| Display / Graphics | Integrated display outputs (when CPU supports iGPU): 1 × HDMI, 1 × DisplayPort |
| Audio | 7.1-channel HD audio codec, high-end audio capacitors, audio noise guard on PCB |
| Thermal / Cooling | Fully covered MOSFET heatsinks, M.2 Thermal Guards, integrated I/O shield, 5 W/mK thermal pads Smart Fan 6: multiple temperature sensors, hybrid fan headers, FAN STOP, dual curve modes |
| BIOS / Firmware | 256 Mb Flash ROM, UEFI AMI BIOS Features: Q-Flash Plus (BIOS update without CPU / memory / GPU installed), EZ-Latch for PCIe slot removal assistance |
| Power / Connectors | 24-pin ATX main connector, 8-pin + 4-pin CPU power connectors |
| Form Factor / Dimensions | ATX form factor (305 × 244 mm) |
| Other / Miscellaneous | RGB Fusion headers: 3 × RGB, 2 × Addressable LED headers Front panel connectors, Clear CMOS, Reset, multi-key (BIOS / RGB / safe mode) |
As the backbone of your gaming or creative PC, the Gigabyte B650 Gaming X AX V2 Motherboard is engineered to deliver high performance without overextending your budget.
Designed for the AM5 platform, the Gigabyte B650 Gaming X AX V2 Motherboard bridges the gap between cost and capability.
Supporting AMD’s Ryzen 7000 / 8000 / 9000 series processors, it enables you to get full access to the next-generation CPU architectures while retaining flexibility for upgrades down the line.
Performance & Power Delivery done by the Gigabyte AMD Ryzen Desktop Motherboard
Central to its strength is the direct 8+2+2 phases digital VRM design, paired with 60A Dr. MOS components and robust thermal dissipation.
This ensures stable voltage delivery even under heavy CPU loads, supporting overclocking and endurance.
The Gigabyte B650 Gaming X AX V2 Motherboard uses a 6-layer 2× copper PCB and mid-loss PCB design to reduce signal interference and maintain system integrity.
Memory support is wide and flexible: four DDR5 DIMM slots offering native speeds of 4800 MHz and overclocking support up to 8000 MHz (OC) via EXPO and XMP.
The board even allows unlocking of native DDR5 voltage controls to push memory performance further, with shielded memory routing to reduce interference.
Storage & Expansion present in the Gigabyte Dual Channel DDR5 Motherboard
For modern storage needs, the board provides three M.2 slots: one supporting PCIe 5.0 x4 for bleeding-edge SSDs and two supporting PCIe 4.0 x4.
These are equipped with large thermal guards to maintain performance by preventing thermal throttling.
There are also 4 SATA 6 Gb/s ports for legacy drives.
For expansion cards, you’ll find one primary PCIe 4.0 x16 slot suitable for high-end graphics cards, and two additional PCIe 3.0 x16 slots that operate at x1 mode.
This configuration ensures flexibility for add-ons like capture cards or RAID controllers.
Connectivity & Networking present in the Gigabyte Gaming X Desktop Motherboard
On the connectivity front, the board offers a modern mix of wired and wireless networking.
The integrated 2.5 GbE Ethernet gives fast and stable wired throughput, while the onboard Wi-Fi 6E (802.11ax) and Bluetooth support provide strong wireless performance even in congested environments.

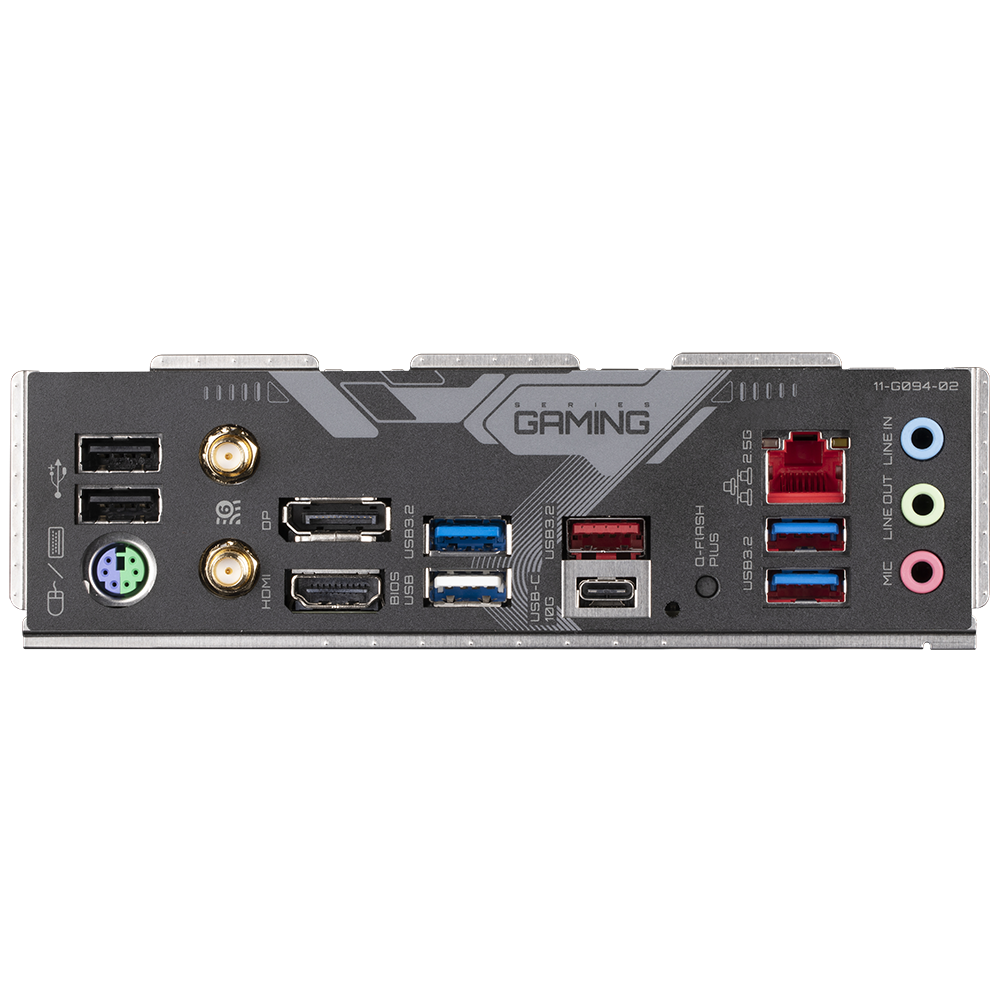

USB connectivity is robust. On the rear I/O, there is a USB-C port (10 Gb/s), multiple USB 3.2 Gen 2 / Gen 1 ports, and USB 2.0 ports.
Internally, you get a front USB-C (20 Gb/s) header via USB 3.2 Gen 2×2, plus standard Gen 1 and 2.0 headers.
These help future-proof your system for high-speed external storage, VR, and more.
Display output is supported via HDMI and DisplayPort (when your CPU has integrated graphics).
This is especially useful for troubleshooting or light use without a discrete GPU.
Thermal and Cooling Design of the Gigabyte B650 Gaming X AX V2 Motherboard
Gigabyte’s Smart Fan 6 system brings advanced cooling control: multiple temperature sensors, hybrid fan headers capable of handling PWM / DC fans or pumps, dual curve modes, and a complete fan stop mode (idle/noise reduction).
Paired with extensive heatsinks and M.2 thermal guards, this design keeps thermal performance high even under long gaming or rendering loads.
User-Friendly Features of the Gigabyte B650 Gaming X AX V2 Motherboard
Gigabyte includes thoughtful additions such as EZ-Latch, which makes removal and insertion of your graphics card easier.
The Q-Flash Plus feature allows you to update the BIOS without needing the CPU, memory, or graphics card installed — handy for future CPU compatibility updates.
It also includes multi-key switches (for reset, RGB control, direct BIOS, Safe Mode) to simplify operation.
Ideal Use Cases & Considerations
Gigabyte B650 Gaming X AX V2 Motherboard is ideal for gamers, content creators, and enthusiasts who want a feature-rich AM5 board without paying for top-tier models.
It supports high-speed memory, next-gen SSDs, fast network connectivity, and expandability while maintaining stability under load.
One key thing to watch: recent BIOS updates (for example, F35) reportedly disabled unofficial PCIe 5.0 support on the primary GPU slot in B650 boards, including this one — meaning that the primary slot may be limited to PCIe 4.0 depending on BIOS version.
Some users recommend sticking to an earlier BIOS (F34) to preserve that functionality (if your board and GPU support it).
Overall, the Gigabyte B650 Gaming X AX V2 Motherboard strikes a strong balance between modern connectivity, overclocking readiness, and practical features, making it a very competitive option in the AM5 motherboard market.
Its combination of network, storage, and expansion features ensures you’ll have headroom for future upgrades without needing to replace the motherboard too soon.
