Gigabyte B650 Gaming X AX V2 Motherboard
Gigabyte B650 Gaming X AX V2 AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN, EZ-Latch ₹16,399.00
Back to products
Gigabyte B650 UD AC ATX Motherboard
Gigabyte B650 UD AC AM5 LGA 1718 AMD B650 ATX Motherboard ₹12,390.00
Gigabyte B650 Eagle AX AMD Motherboard
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 2
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 3
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 4
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 5
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 6
Click to enlarge

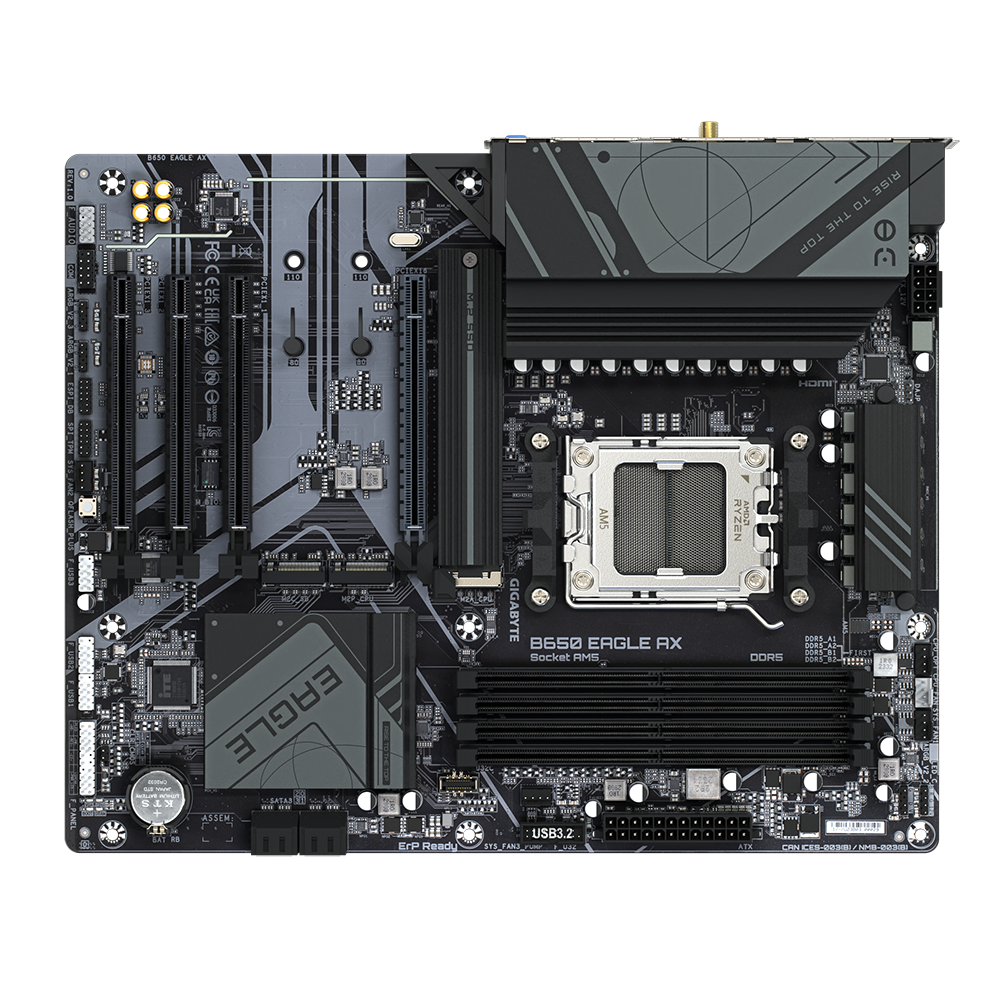

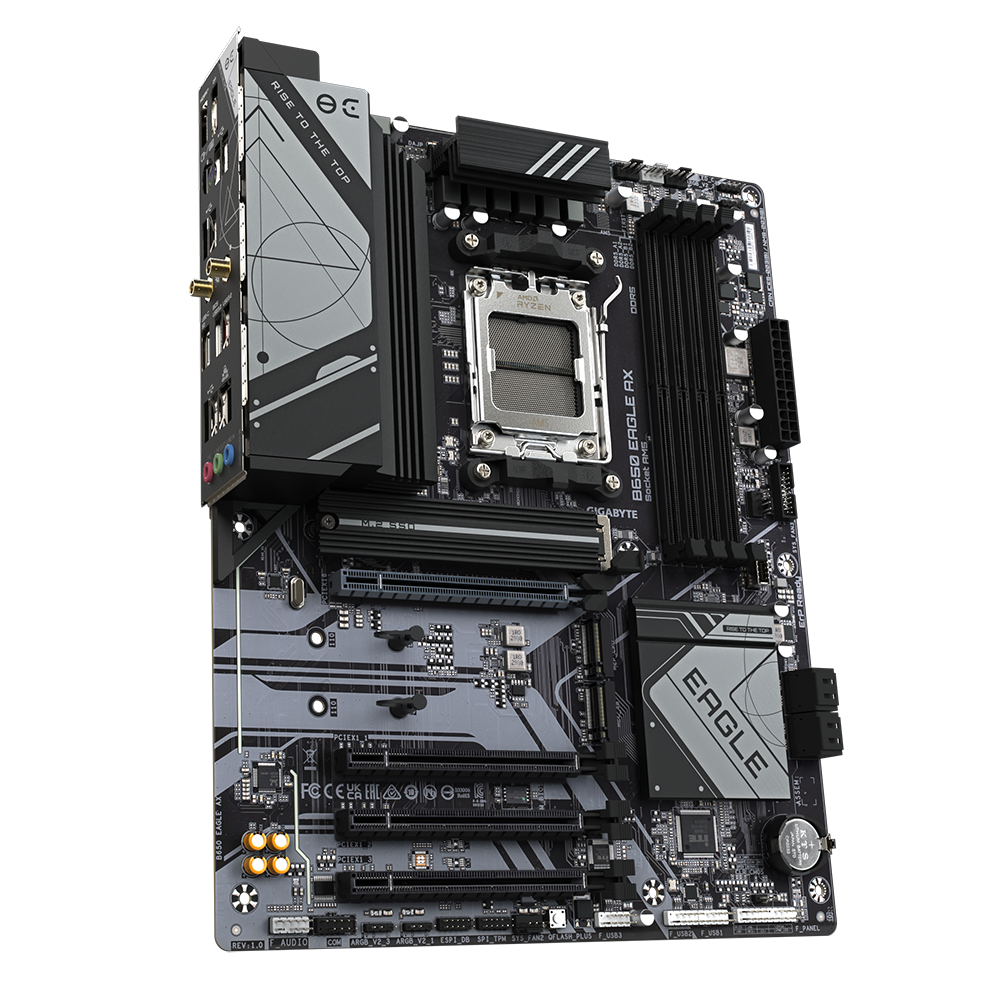

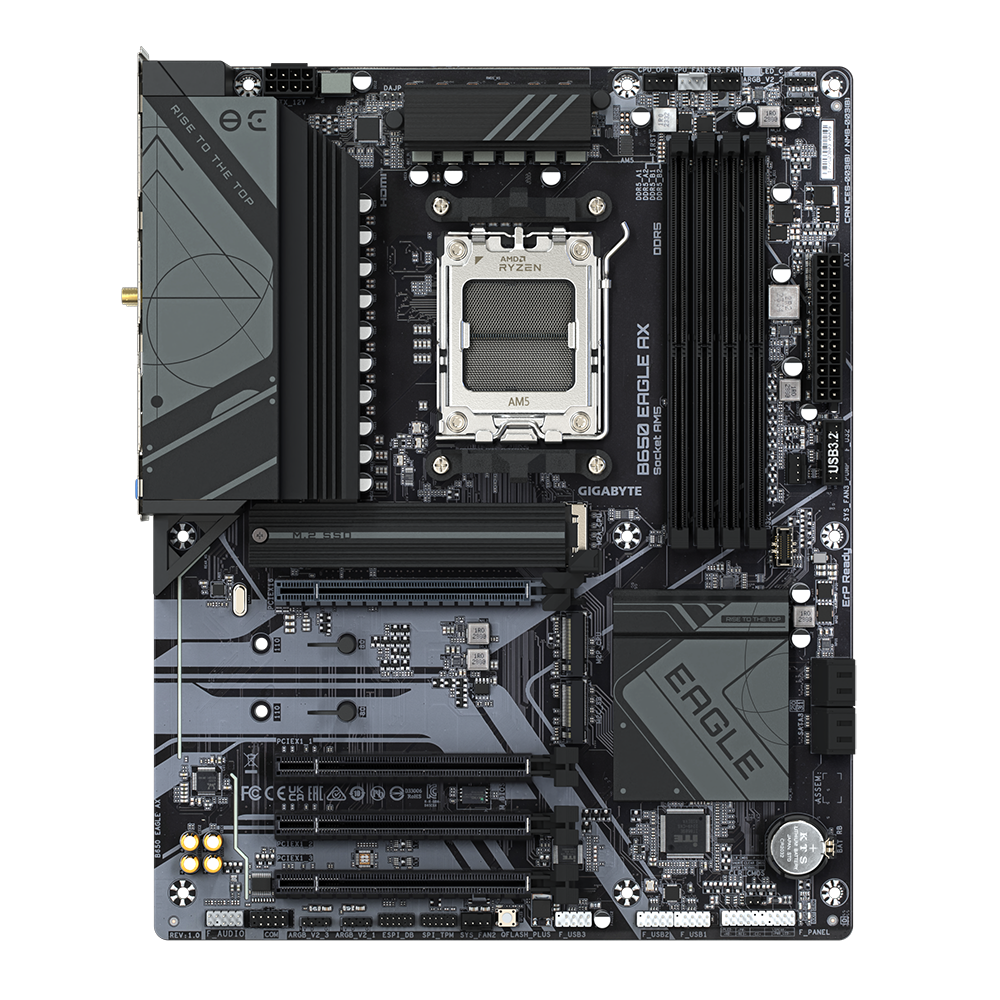

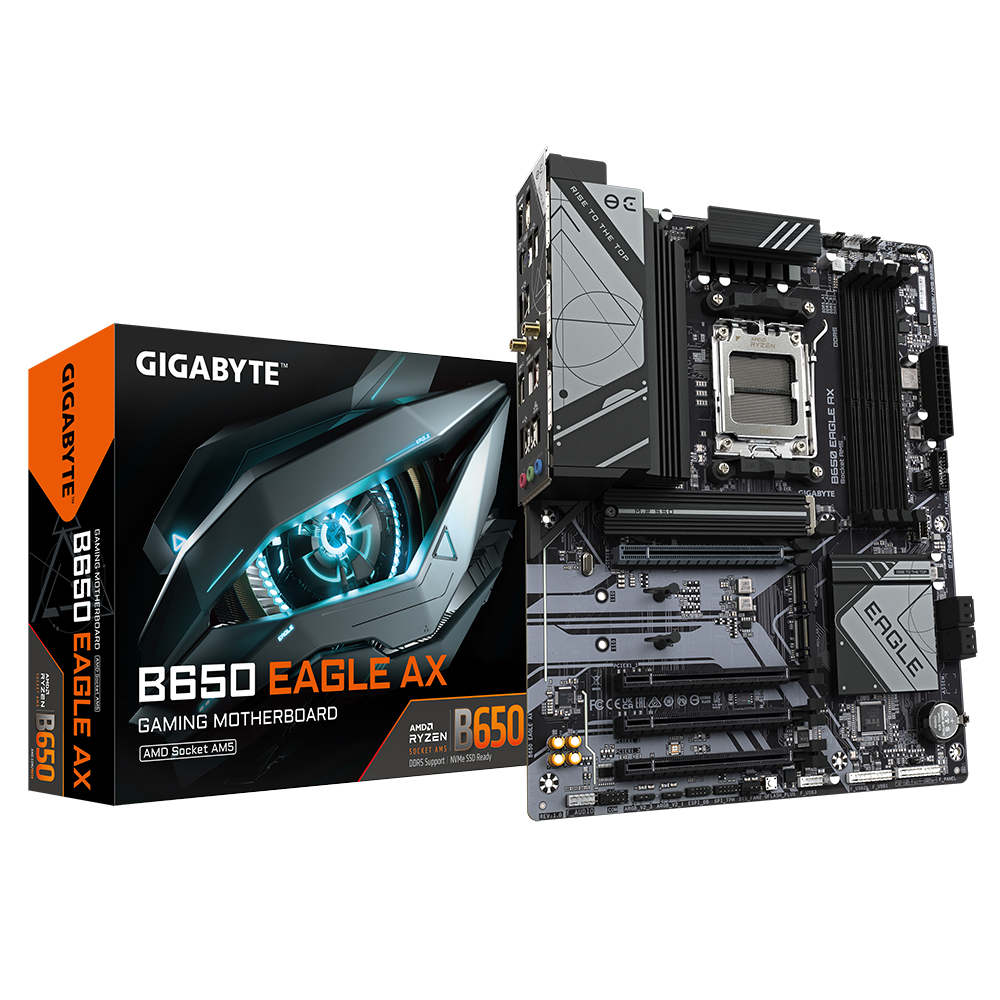

Gigabyte B650 Eagle AX AMD Motherboard
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 2
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 3
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 4
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 5
Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN - Image 6

Gigabyte B650 Eagle AX AMD AM5 LGA 1718 ATX Motherboard, PCIe 5.0, DDR5, USB 3.2 Gen2X2, Wi-Fi 6E, 2.5 GbE LAN

Avail the Gigabyte B650 Eagle AX AMD Motherboard from Avika Retails at the best price. Best in class features includes:

Spec Detail
Socket AMD AM5
Chipset B650
Memory Type DDR5
Form Factor ATX
Networking Wi-Fi 6E + Gigabit Ethernet

About the item:

  • Robust Power Design — The 12 + 2 + 2 phase digital VRM delivers stable and clean power to the CPU, which helps especially with high-load or overclocked Ryzen processors.

  • Next-Gen Storage Support — Includes one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, giving good future-proofing for high-speed NVMe drives.

  • Memory Performance & Overclocking — Compatible with both AMD EXPO and Intel XMP memory profiles; supports DDR5 up to about 7600 MT/s (OC) with dual-channel capacity up to 192 GB.

  • Comprehensive Cooling — Thermal solutions include large MOSFET heatsinks and an M.2 Thermal Guard to manage heat from both VRMs and M.2 SSDs; Smart Fan 6 system provides multiple fan headers and fan stop features.

  • Modern Connectivity & Convenience — Wi-Fi 6E, Gigabit LAN, USB 3.2 Gen2×2 Type-C, display outputs (HDMI, DisplayPort), plus user friendly features like EZ-Latch for graphics card installation and Q-Flash Plus for BIOS updates without core components installed.

₹15,340.00

Add to compare
Add to wishlist
14 People watching this product now!

Payment Methods:

avika retails payment methods we have

Description

About Gigabyte B650 Eagle AX AMD Motherboard

Specification Detail
CPU Support AMD Ryzen 7000, 8000, 9000 Series Processors
Socket Type AM5
Chipset AMD B650
Memory Slots 4 × DDR5 DIMMs (SMD DIMMs)
Maximum Memory Support Up to ~ 192 GB
Supported Memory Speeds Many DDR5 speeds, including 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s (depending on module & overclock)
Storage / M.2 1 × M.2 22110/2580 supporting PCIe 5.0 x4 or PCIe 4.0 x2; 2 × additional M.2 slots (PCIe 4.0)
SATA Ports 4 × SATA III
Expansion / PCIe Slots 1 × PCIe 4.0 x16 (for GPU), plus other PCIe slots for add-ons
Onboard Networking Wi-Fi 6E (802.11ax) + Gigabit Ethernet LAN
Rear I/O / USB Includes USB 10 Gb/s, USB 3.2 Gen2, USB Gen1/Gen2 ports, USB-C etc
Display Outputs HDMI + DisplayPort (for use when CPU has iGPU)
Audio 8-channel HD Audio, with audio noise guard and high-end capacitors
Cooling / Thermal Design Fully covered MOSFET heatsinks, M.2 Thermal Guards, multiple fan headers, Smart Fan 6 with hybrid and PWM/DC support, lots of temperature sensors
Special / Other Features EZ-Latch on the PCIe x16 slot, RGB / addressable LED headers, Q-Flash Plus (BIOS update without CPU/ memory/ GPU installed)
Power Connectors 24-pin ATX main power, 8-pin CPU power, solid pin connector etc.
Form Factor & Physical ATX size (≈ 12.0″ × 9.6″)
