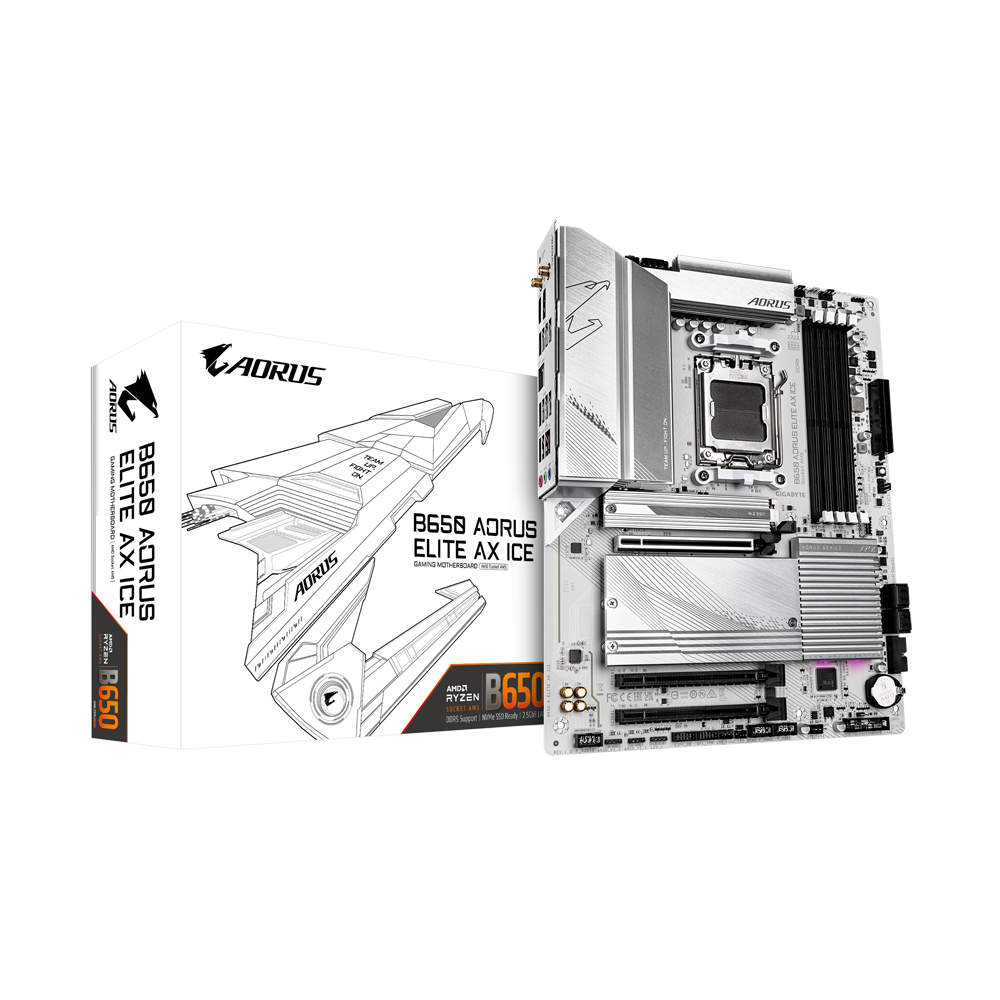

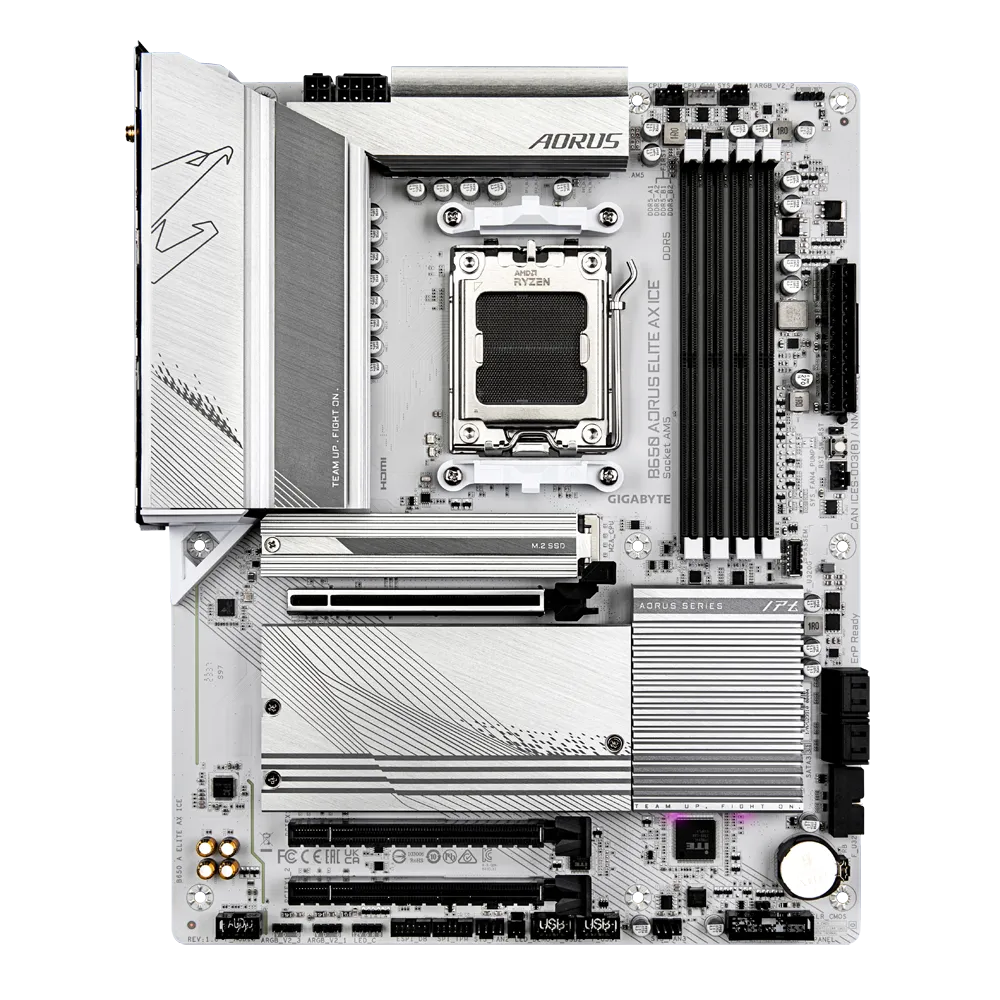

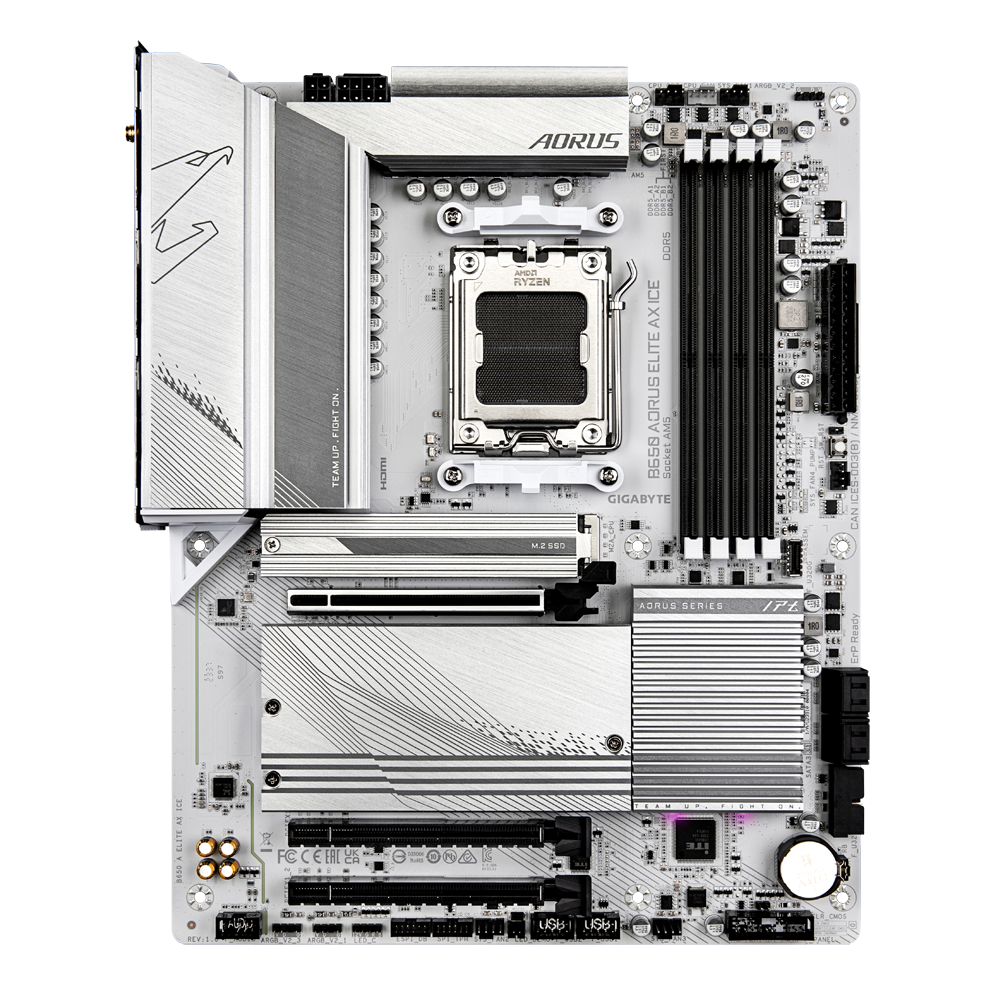

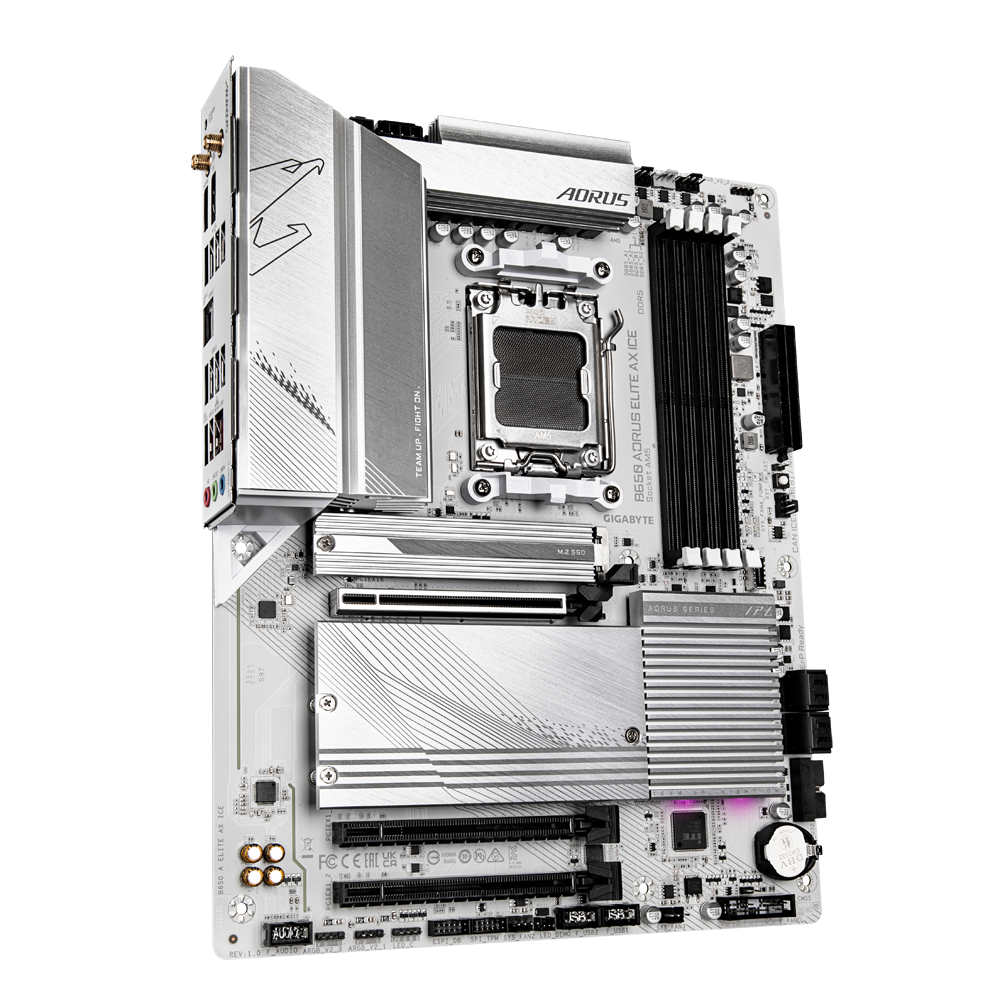

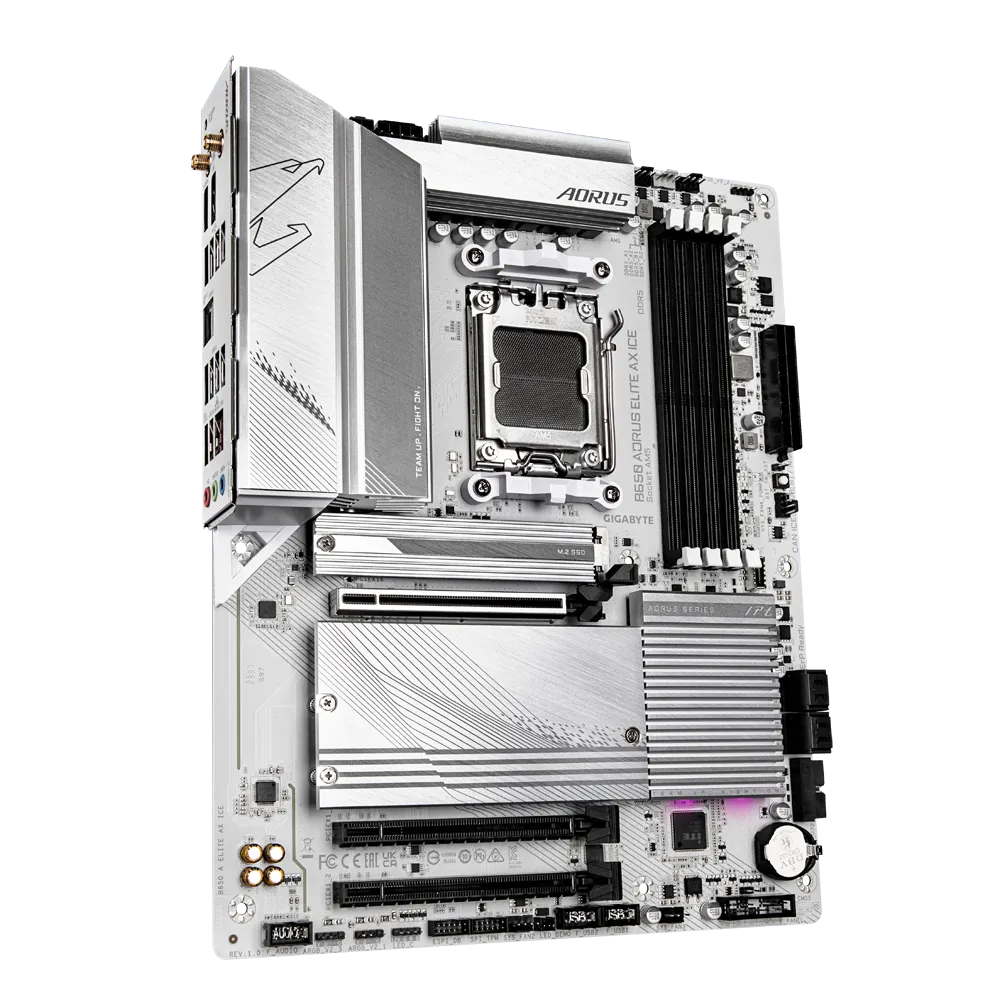

About Gigabyte B650 Aorus Elite AX ICE Motherboard
| Category | Specification |
|---|---|
| General / Platform | ATX form factor; AMD B650 chipset; AM5 socket |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 series processors |
| VRM / Power Design | Twin 12+2+2 digital VRM phases |
| Memory | 4 × DDR5 DIMM slots, dual channel; supports AMD EXPO & Intel XMP |
| Storage / M.2 / SATA | 1 × PCIe 5.0 ×4 M.2 slot; 2 × PCIe 4.0 ×4 M.2 slots 4 × SATA III (6 Gb/s) ports |
| Expansion / PCIe | 1 × PCIe 4.0 x16 slot (for GPU) Other PCIe x1 slots (e.g. 2 × PCIe 3.0 x1) |
| Networking / Wireless / Bluetooth | Wired: 2.5 GbE LAN Wireless: Wi-Fi 6E (802.11ax) & Bluetooth 5.x |
| Audio | Realtek ALC897 (HD audio codec) Supports 7.1 channels; audio noise guard, high-end audio capacitors |

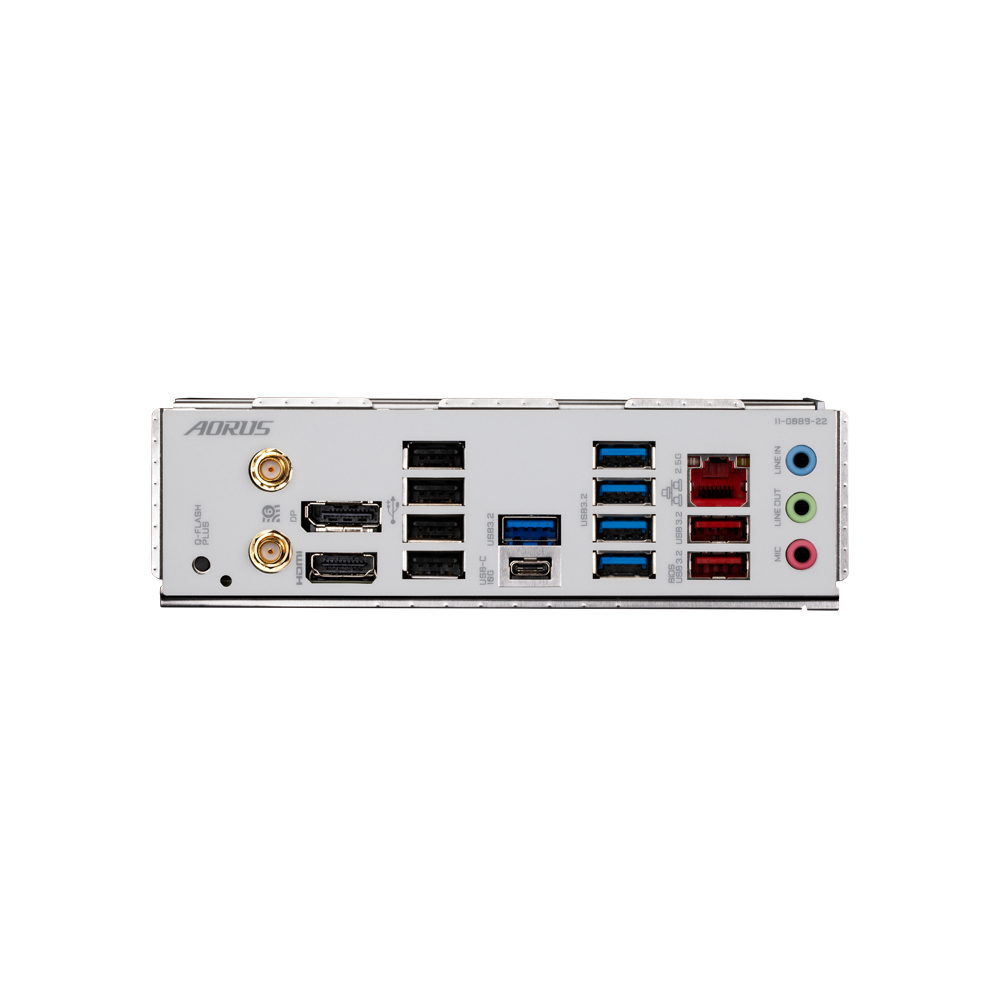

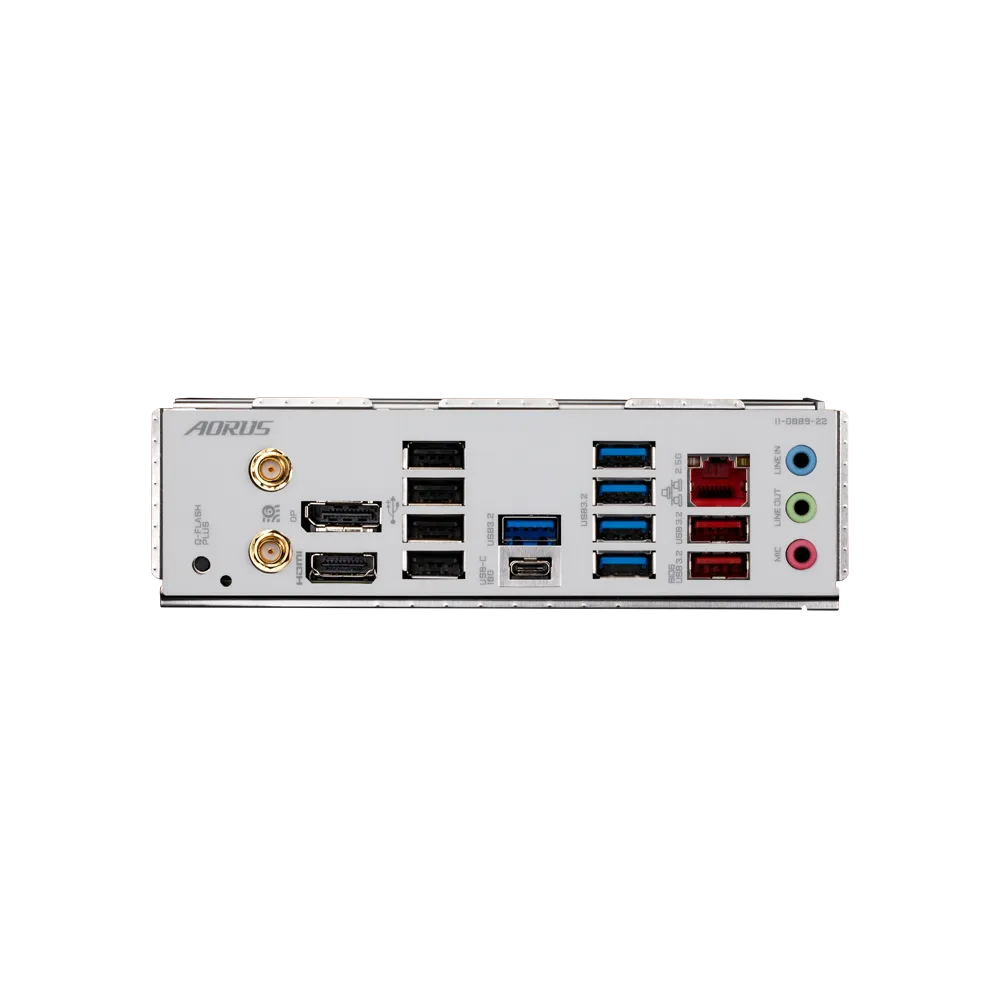

| Rear I/O / External Ports | HDMI (supports version) DisplayPort Front USB-C 20Gb/s, Rear USB-C 10Gb/s USB 3.2 Gen1 / Gen2 ports, USB 2.0 ports Wi-Fi antenna connectors, RJ-45 LAN jack, audio jacks, S/PDIF out |
| Internal Headers / Connectors | 24-pin ATX main power 8+4 pin CPU power Fan / pump headers (Smart Fan) USB headers (USB 2.0, USB 3.2) RGB / ARGB headers Q-Flash Plus, EZ-Latch for M.2 & PCIe Multi-Key / reset / BIOS switches |
| Thermal / Cooling | Advanced thermal design with heatsinks, heatpipe, M.2 Thermal Guard, full coverage of VRM area Smart Fan 6 (multiple sensors, hybrid headers, FAN STOP) |
| Misc / Utilities / Extras | EZ-Latch (quick release) for PCIe & M.2 Q-Flash Plus (BIOS flash without CPU/GPU) RGB / LED customization (addressable & regular) Multi-Key (reset / direct to BIOS / safe mode) |
| Chipset Features / I/O Support | Supports HDMI 2.1, HDCP 2.3 Memory speeds (with OC) per QVL Compatibility lists, drivers, BIOS updates via support page |
The Gigabyte B650 Aorus Elite AX ICE Motherboard — a feature-rich motherboard engineered to meet the demands of modern creators, gamers, and enthusiasts alike.
Built on the AMD B650 chipset with an AM5 socket, the Gigabyte B650 Aorus Elite AX ICE Motherboard offers a versatile platform for Ryzen 7000, 8000, and 9000 series processors, ensuring both power and forward-compatibility for your build.
Exceptional Power & Performance of the Gigabyte Aorus Series Desktop Motherboard
Under the hood, the Gigabyte B650 Aorus Elite AX ICE Motherboard sports a twin 12+2+2 digital VRM design, delivering stable and efficient power distribution across CPU, SOC, and miscellaneous loads.
This arrangement supports demanding workloads and overclocking scenarios with confidence.
Memory support is robust, with 4 DDR5 DIMM slots compatible with AMD EXPO and Intel XMP profiles and high-performance modules validated via the QVL list.
Storage You Can Trust with the Gigabyte Aorus Elite White Motherboard
For storage, the Gigabyte B650 Aorus Elite AX ICE Motherboard includes one PCIe 5.0 ×4 M.2 slot for bleeding-edge SSDs and two PCIe 4.0 ×4 M.2 slots, ensuring you can balance performance and capacity.
The addition of four SATA III ports rounds out compatibility for traditional drives.
Such flexibility makes the Gigabyte B650 Aorus Elite AX ICE Motherboard ideal for content editors, software developers, or gaming rigs where fast load times and large datasets matter.
Connectivity That Keeps You Ahead with Gigabyte Aorus Elite White Motherboard
In a connected world, the Gigabyte B650 Aorus Elite AX ICE Motherboard doesn’t compromise.
It features 2.5 GbE LAN plus full Wi-Fi 6E (802.11ax) and Bluetooth 5.x for high-throughput wired and wireless connectivity.
Data transfers, streaming, remote collaboration — all become smoother. USB connectivity is generous, with both front USB-C 20Gb/s and rear USB-C 10Gb/s, alongside multiple USB Type-A ports to accommodate modern peripherals.
Cooling & Thermal Stability by the Gigabyte Dual Channel DDR5 Motherboard
Performance is only as good as your cooling design.
The Gigabyte B650 Aorus Elite AX ICE Motherboard integrates advanced thermal architecture: full-coverage heatsinks, heatpipes, and M.2 Thermal Guard shields that help maintain stable operation under extended loads.
In tandem with Smart Fan 6, which offers multiple temp sensors, hybrid fan headers, and a fan stop feature, you get granular control over your cooling behavior to strike balance between performance and acoustics.
Built for Builders & Tinkerers
Gigabyte has infused the Gigabyte B650 Aorus Elite AX ICE Motherboard with features aimed at ease of installation and usability. EZ-Latch mechanisms on PCIe and M.2 slots simplify component swaps without fiddly screws.
Q-Flash Plus empowers users to update the BIOS without a CPU, GPU, or memory installed — essential for future CPU compatibility updates.
Multi-Key provides a multifunction hardware switch enabling quick access to reset, direct-to-BIOS booting, or safe mode toggles.
Audio & Multimedia support in the Gigabyte B650 Aorus Elite AX ICE
Audio is handled by the Realtek ALC897 HD codec, supporting up to 7.1 surround output.
Enhanced by noise shielding and high-quality capacitors, the onboard audio provides clean, immersive sound suitable for gaming, video production, or music.
On the display front, HDMI and DisplayPort outputs are available for integrated GPU use (on compatible Ryzen APUs), and the board supports HDMI 2.1 and HDCP 2.3, which ensures modern display compatibility and protection.
Rear and front USB-C support modern workflow demands, from fast file access to powering external displays.
Best Ideal Use Cases & Target Users of the Gigabyte Aorus Series Desktop Motherboard
-
Creators / Content Professionals needing fast storage, flexible connectivity, and stable long-term performance
-
Gamers and streamers seeking high network bandwidth, audio fidelity, and future-proof GPU support
-
PC builders & DIYers wanting easy upgrade paths, BIOS flexibility, and tool-less convenience
-
Hybrid workers & multitaskers relying on seamless connectivity, fast storage, and expandability
With its strong power delivery, next-gen storage support, modern connectivity, and builder-friendly tools, the Gigabyte B650 Aorus Elite AX ICE Motherboard positions itself as a compelling choice for users who want a balance of features without going into ultra-high-end territory.
Its comprehensive feature set and forward-looking design help ensure your system stays capable and relevant across multiple platform upgrades.
