About Gigabyte B650 Aero G Motherboard
| Category | Specification |
|---|---|
| General / Platform | ATX form factor; AM5 socket; AMD B650 chipset; UEFI BIOS (256 Mb Flash ROM) |
| CPU Support | Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 series processors |
| Memory | 4 × DDR5 DIMM slots, dual channel; non-ECC/unbuffered; support for speeds: OC up to 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz etc. Max memory: 128 GB (32 GB per slot) |
| Expansion / Slots | 1 × PCIe x16 slot (via CPU) (PCIe 4.0) 1 × PCIe x16 (wired as x4) (via chipset) 1 × PCIe x1 slot Supports AMD CrossFire (when using PCIe x16 + x4) |
| Storage / M.2 / SATA | CPU side: 1 × M.2 socket (Socket 3, M key, type 25110/2280) supporting PCIe 5.0 x4 / x2 modes CPU side: 1 × M.2 socket (PCIe 4.0 x4 / x2) Chipset side: 1 × M.2 socket (PCIe 4.0 x4 / x2) 4 × SATA III (6 Gb/s) ports (RAID 0, 1, 10) |
| Networking / Wireless / Bluetooth | Wired LAN: Intel 2.5 GbE Wireless: Wi-Fi 6E (802.11ax, bands 2.4 / 5 / 6 GHz) Bluetooth: Bluetooth 5.2 |
| Audio | Realtek ALC1220-VB codec Supports up to 7.1 channels; S/PDIF out on rear panel |
| Rear I/O / External Ports | 2 × SMA antenna connectors (for Wi-Fi) 2 × USB 2.0 Type-A 4 × USB 3.2 Gen1 Type-A 3 × USB 3.2 Gen2 Type-A 1 × USB 3.2 Gen2 Type-C (VisionLINK / supports DisplayPort alternate + charging) 1 × HDMI 2.0 1 × DisplayPort In (for VisionLINK input) 1 × Optical S/PDIF out jack Audio jacks (Line-out, Mic etc.) 1 × RJ-45 2.5 GbE jack |
| Internal Connectors / Headers | 1 × 24-pin ATX main power connector 1 × 8-pin +12V CPU power + 1 × 4-pin +12V power Fan / pump headers: CPU fan, water pump, 4 × sys fan, 2 × sys fan / pump etc. USB headers: 2 × USB 2.0 headers, 1 × USB 3.2 Gen1 (Type-A) header, 1 × USB 3.2 Gen2x2 Type-C header RGB / ARGB LED strip headers: e.g. 2 × addressable LED, 2 × RGB LED strip headers Others: Q-Flash Plus button, reset button, clear CMOS, temperature sensor headers, noise detection header, TPM header etc. |
| Power / Thermal / Cooling | Advanced thermal design with heatsinks, expanded dissipation surface M.2 Thermal Guard III to reduce SSD throttling under load Smart Fan 6 technology: multiple temp sensors, hybrid fan headers, fan stop, noise detection |
| Misc Features / Utilities | VisionLINK: a USB-C port that carries video (via DisplayPort Alt Mode), data, and up to 60 W power delivery EZ-Latch for PCIe x16 and M.2 connectors (quick release / screwless design) Q-Flash Plus: update BIOS without CPU, memory, or GPU installed Support for AMD EXPO & Intel XMP memory modules Extended connectivity: DP IN, HDMI, future USB4 AIC support etc. |
| Physical / Dimensions | 30.5 cm × 24.4 cm (12″ × 9.6″) |
| Warranty | 5 years (parts & labor) as per retailer listing |
Designed around the AMD B650 chipset and AM5 socket, it supports the latest Ryzen processors, ensuring compatibility with current and upcoming generations for long-term value.
With support for high-speed DDR5 memory and advanced overclocking capabilities, it delivers the responsiveness needed for heavy multitasking, content creation, and demanding workloads.
One of its standout features is VisionLINK, a USB-C port that combines video, data, and power delivery into a single cable — ideal for creative professionals using pen displays or high-resolution monitors.
For storage, the Gigabyte B650 Aero G Motherboard offers a PCIe 5.0 M.2 slot alongside multiple PCIe 4.0 M.2 and SATA ports, ensuring lightning-fast transfer speeds and broad expandability.
Networking is equally robust with Wi-Fi 6E, Bluetooth 5.2, and 2.5GbE LAN, making it suitable for modern connected workflows.
Enhanced thermal solutions, including M.2 Thermal Guard III and Smart Fan 6, maintain system stability during intense sessions, while EZ-Latch and Q-Flash Plus simplify upgrades and BIOS updates.
Blending sleek aesthetics with creator-focused features, the Gigabyte B650 Aero G Motherboard is a reliable choice for professionals seeking power, efficiency, and seamless connectivity.

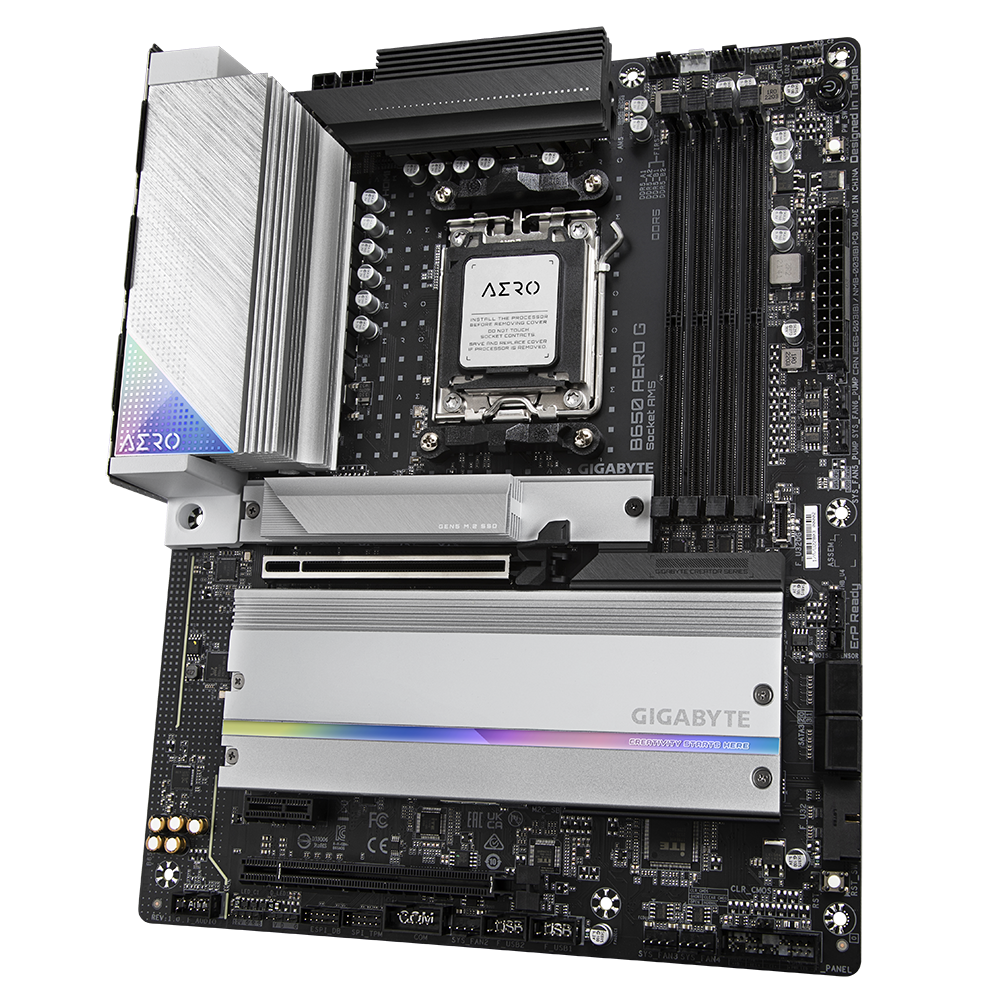

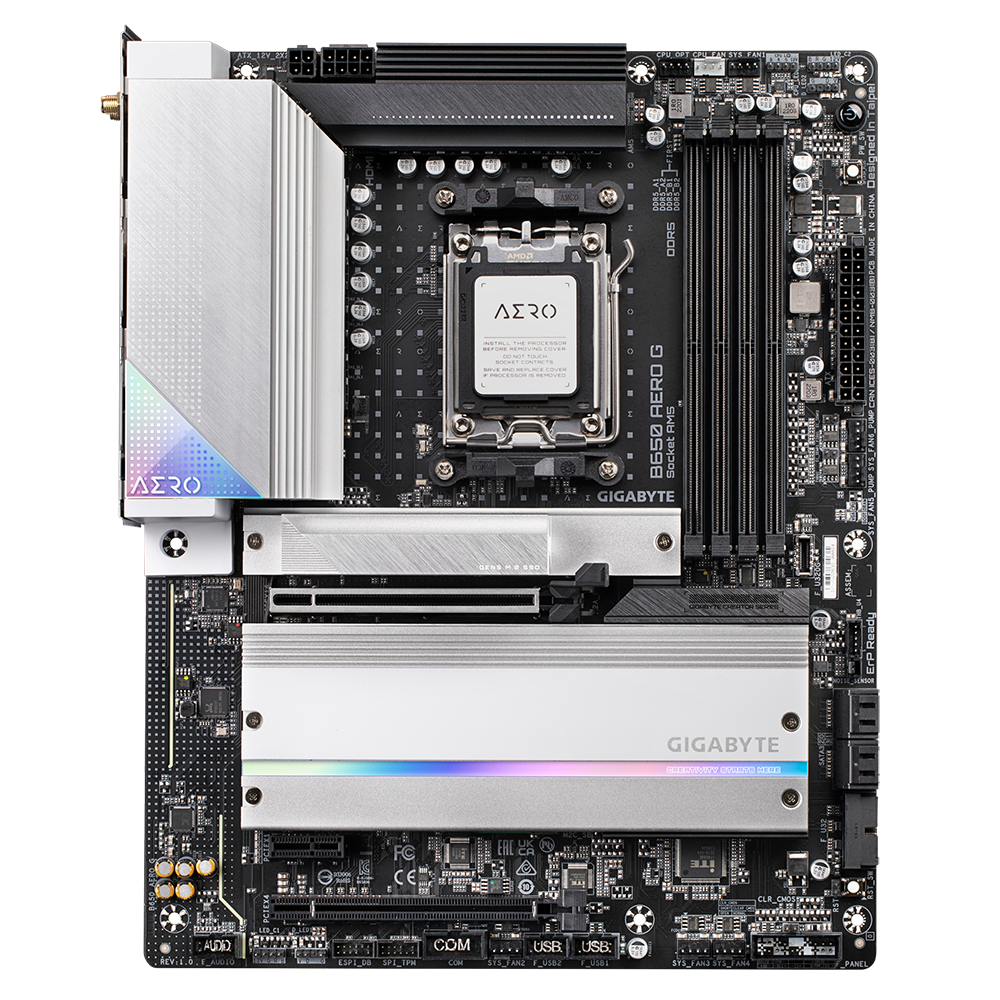

Gigabyte B650 Aero G Motherboard — a high-performance, creator-targeted motherboard engineered for the demands of modern content creation, graphic workstations, and hybrid productivity systems.
Designed under the AERO brand, this board aims to deliver an optimized balance between premium connectivity, thermal resilience, and future-proof specifications suited for demanding workloads.
Purpose & Features of the Gigabyte Aero Gaming Motherboard
At its core, the Gigabyte B650 Aero G Motherboard is built on the AMD B650 chipset paired with the AM5 socket, enabling compatibility with AMD Ryzen 7000, 8000, and even upcoming 9000 series CPUs.
This flexibility ensures that creators can scale CPU performance without needing to upgrade their entire platform prematurely.
With full support for DDR5 memory in a 4-DIMM dual channel configuration, the board supports speeds up to 6600 MHz (OC) and a total memory ceiling of 128 GB — sufficient for heavy multitasking, video editing, 3D rendering, or virtual machines.
One of its signature innovations is VisionLINK, a USB-C interface that simplifies connectivity by unifying video (via DisplayPort Alt Mode), data, and up to 60W power delivery over a single cable.
This is particularly advantageous for professionals using pen displays or external monitors — reducing cable clutter and making docking more seamless.
For storage, the Gigabyte B650 Aero G Motherboard offers three M.2 slots, one of which is a full-speed PCIe 5.0 ×4 slot that future-proofs your setup for next-gen SSDs.
The other two support PCIe 4.0 x4, giving flexibility for high-speed NVMe configurations and RAID setups.
Additionally, four SATA III ports support legacy drives and further expandability.
To ensure stability and performance under load, Gigabyte integrates a robust thermal architecture: generously sized heatsinks, enhanced surfaces for heat dissipation, and their M.2 Thermal Guard III to reduce thermal throttling on high-speed SSDs.
Coupled with Smart Fan 6, which provides multiple temperature sensors and hybrid fan headers (with fan stop and noise detection capabilities), the board can dynamically adjust cooling to your workload.
Connectivity & Networking of the Gigabyte AMD Ryzen Desktop Motherboard
Networking is not compromised.
The B650 AERO G features Intel 2.5 GbE for wired high-throughput networking and Wi-Fi 6E (802.11ax) for wireless users, supporting 2.4 / 5 / 6 GHz bands. Bluetooth 5.2 support further extends flexibility for peripherals.
From large file transfers to live streaming workflows or cloud-based editing, this connectivity suite is well suited for creative professionals.

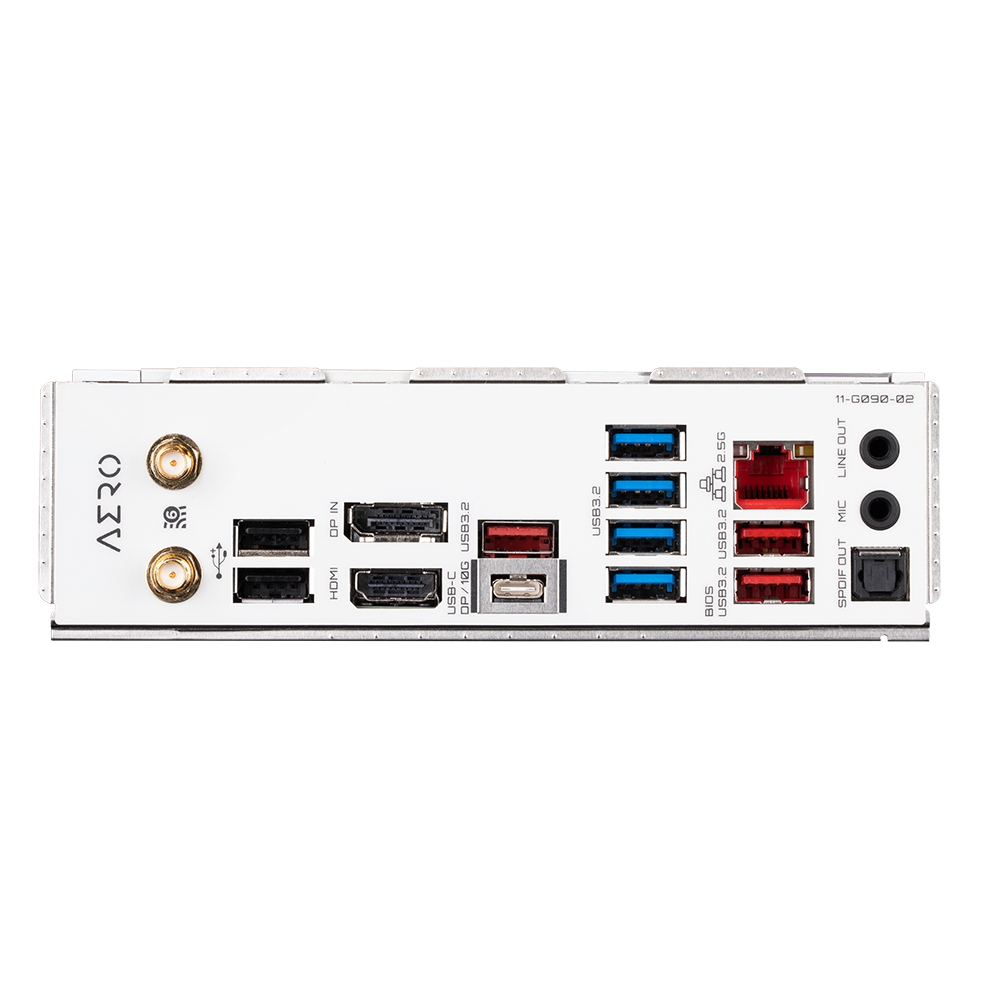

On the rear I/O, you’ll find a versatile mix: USB 3.2 Gen1 and Gen2 Type-A ports, a USB 3.2 Gen2 Type-C (VisionLINK), HDMI 2.0 output, DisplayPort In (for VisionLINK), optical S/PDIF out, audio jacks via the Realtek ALC1220-VB codec (supporting up to 7.1 audio), dual Wi-Fi antenna connectors, and a 2.5G RJ-45 port.
Internally, ports and headers abound for RGB, ARGB, USB, fans, and system sensors — giving deep expandability for custom rigs.
Creator Focus & Utility of the Gigabyte Dual Channel DDR5 Motherboard
Gigabyte positions the AERO line with creators in mind, and the Gigabyte B650 Aero G Motherboard exemplifies that philosophy.
Besides the unified cable benefits of VisionLINK, the board embraces EZ-Latch design (quick-release connectors) for PCIe x16 and M.2 slots to simplify upgrades and swapping.
The ever-handy Q-Flash Plus allows BIOS updating even without a CPU, memory, or GPU installed — a crucial rescue tool for system builders.
Compatibility with both AMD EXPO and Intel XMP memory profiles gives flexibility for users mixing memory brands, and supports overclocking capabilities as well.
Add in abundant headers, sensor support, and a layout optimized for usability, and the Gigabyte B650 Aero G Motherboard becomes a compelling choice for creators who demand both performance and professionalism.
Best Use Cases & Target Audience of the Gigabyte B650 Aero G Motherboard
-
Content creators / video editors who deal with large footage files and require fast storage and connectivity
-
Graphic designers / artists using pen displays or external monitors benefiting from VisionLINK
-
Hybrid professionals / remote workers needing robust networking and expandability
-
System builders & enthusiasts looking for a stable, feature-rich platform without stepping into the premium X670E tier
With a 5-year warranty spanning parts and labor (as per retailer listings), users gain confidence in the platform’s durability and longevity.
