Gigabyte GP-UD1000GM PG5 1000W SMPS
Gigabyte GP-UD1000GM PG5 1000W PCIe 5.0 80 Plus Gold Certified Fully Modular Power Supply ₹12,700.00
Back to products
Gigabyte GP-AE1000PM PG5 Aorus Elite
Gigabyte GP-AE1000PM PG5 Aorus Elite P1000W 80 PLUS Platinum Modular PCIe 5.0 PSU ₹15,500.00
Gigabyte Aorus Elite P1000W White SMPS
Gigabyte Aorus Elite P1000W 80 Plus Platinum Modular PCIe 5.0 Ice Power Supply (GP-AE1000PM PG5 ICE) - Image 2
Gigabyte Aorus Elite P1000W 80 Plus Platinum Modular PCIe 5.0 Ice Power Supply (GP-AE1000PM PG5 ICE) - Image 3
Click to enlarge
Gigabyte Aorus Elite P1000W White SMPS
Gigabyte Aorus Elite P1000W 80 Plus Platinum Modular PCIe 5.0 Ice Power Supply (GP-AE1000PM PG5 ICE) - Image 2
Gigabyte Aorus Elite P1000W 80 Plus Platinum Modular PCIe 5.0 Ice Power Supply (GP-AE1000PM PG5 ICE) - Image 3

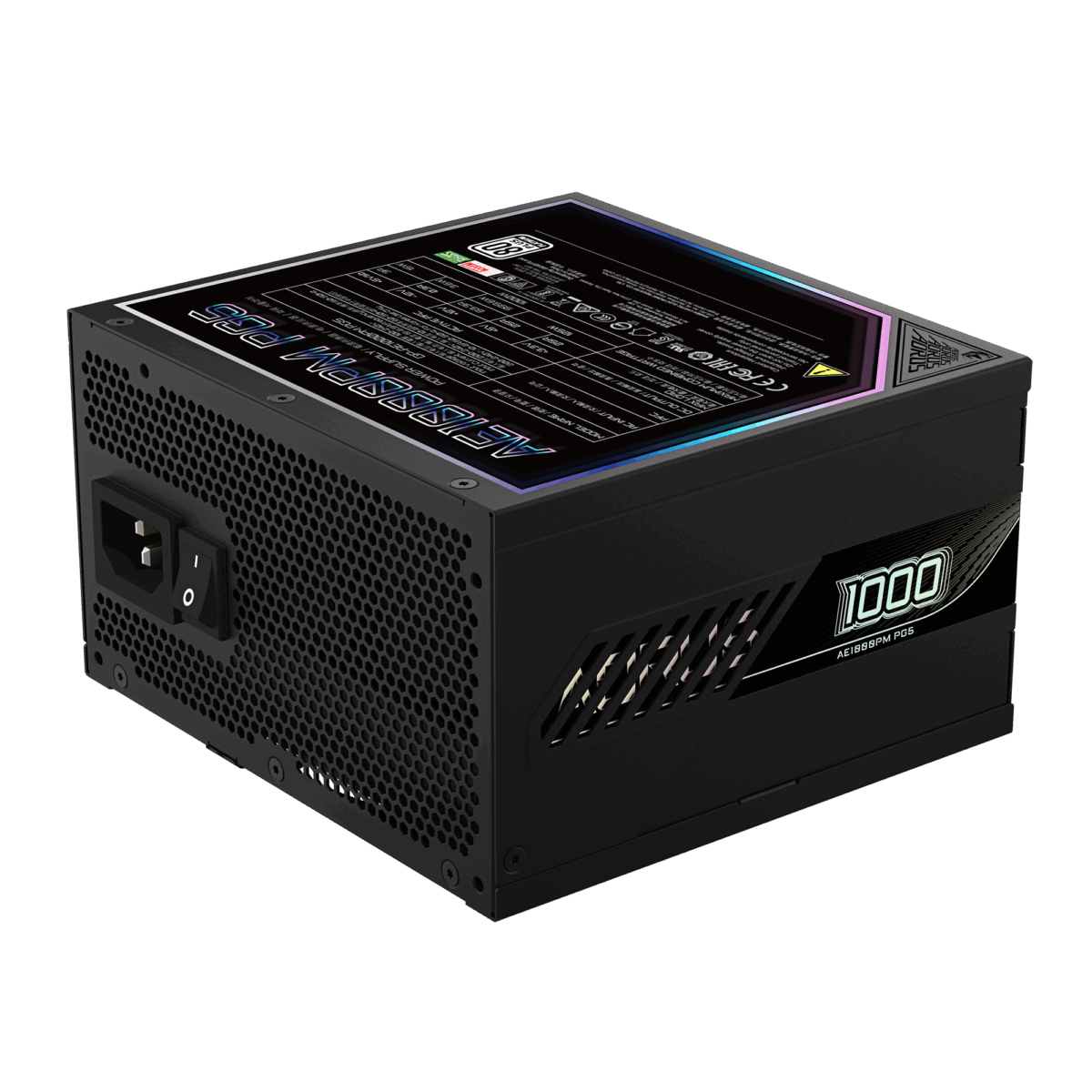

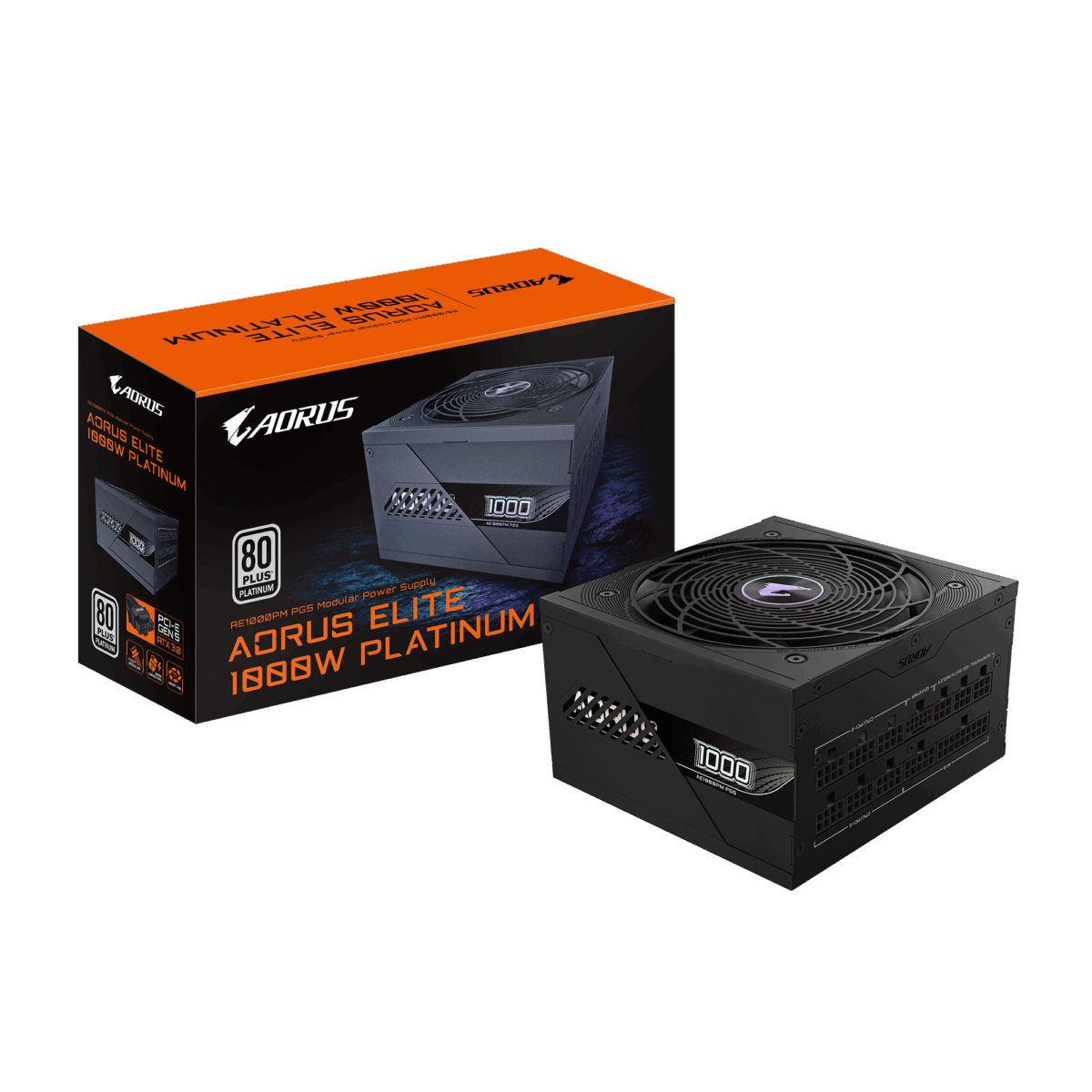

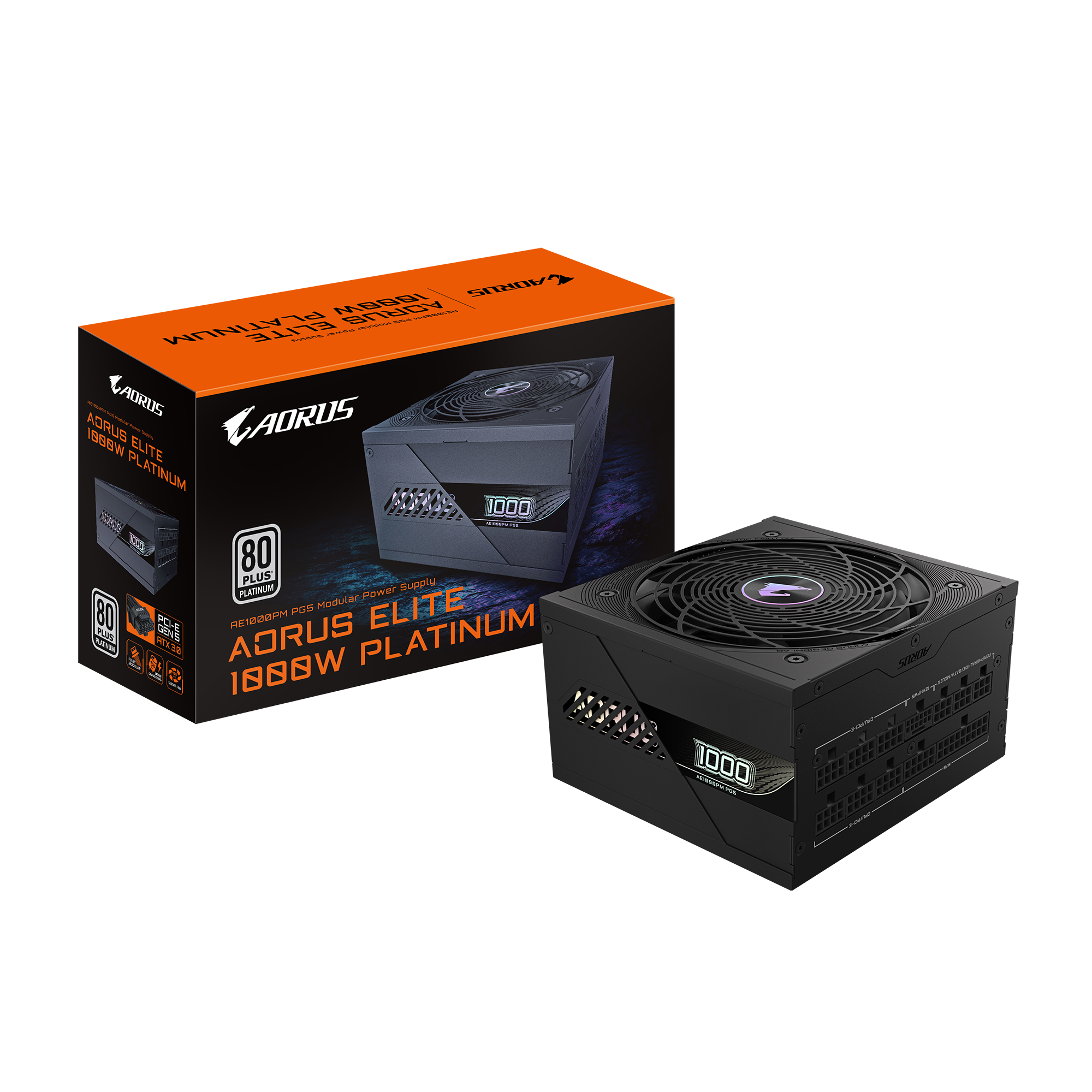

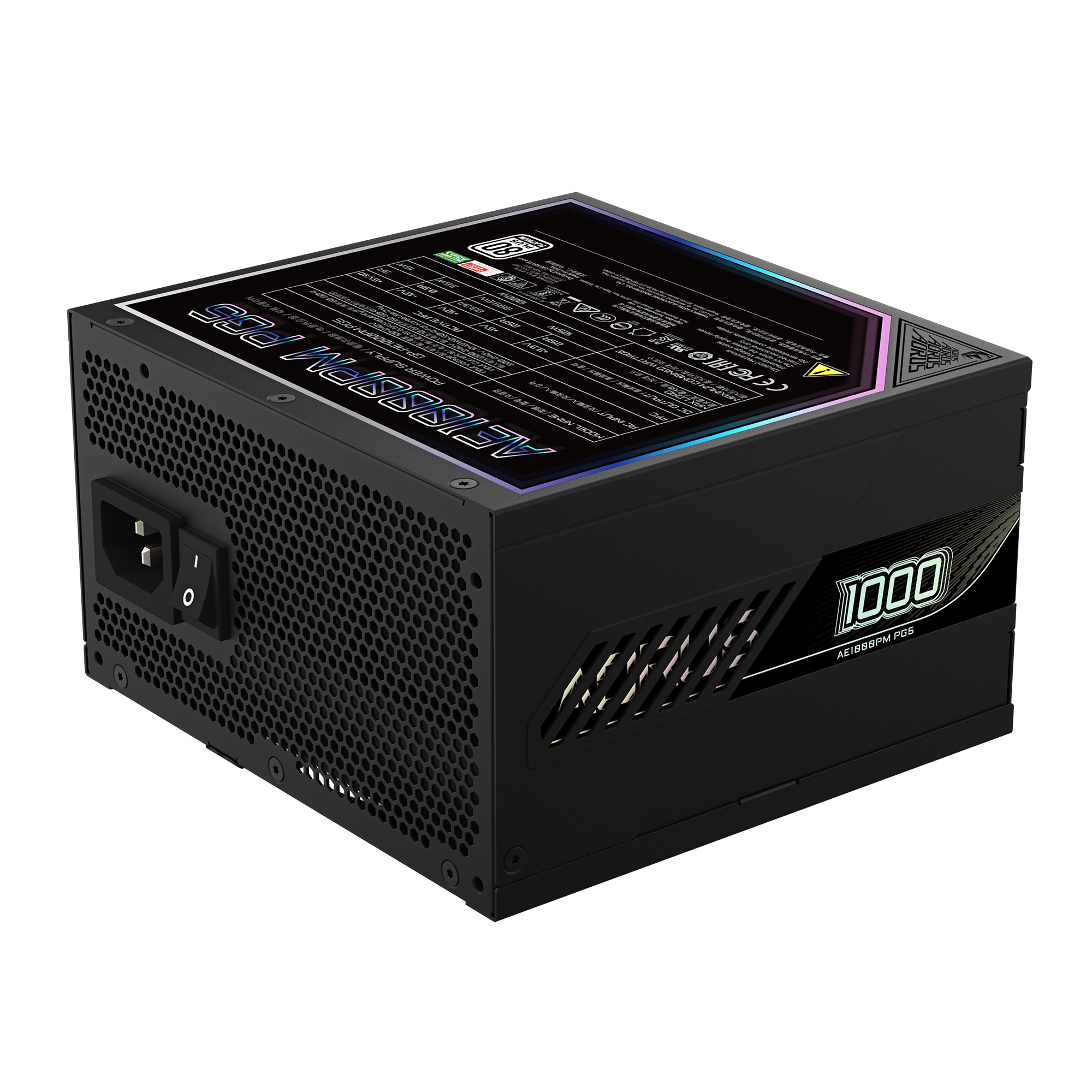

Gigabyte Aorus Elite P1000W 80 Plus Platinum Modular PCIe 5.0 Ice Power Supply (GP-AE1000PM PG5 ICE)

Avail the all-new Gigabyte Aorus Elite P1000W White SMPS from Avika Retails at the best price. Best in-class features includes:

Parameter Value
Power Output 1000 W
Efficiency / Certification 80 PLUS Platinum (≈ 92% typical)
Form Factor / ATX Version ATX 12V v3.0 (compatible with ATX 3.1)
Fan / Cooling 120 mm Fluid Dynamic Bearing (FDB) fan; fan can stop under low load
Protection Features OVP, OPP, SCP, UVP, OCP, OTP

About the item:

  • ATX 3.0 & PCIe 5.0 ready — Supports power excursions per the latest ATX 3.0 standard and includes a native 16-pin (12VHPWR) cable for next-gen GPUs.

  • 80 PLUS Platinum efficiency — Delivers very high efficiency (≈ 92 %) under typical load, reducing heat and power waste.

  • 100% Japanese capacitors & robust protection — Uses high quality capacitors for reliability, and includes multiple safety mechanisms (OVP, OPP, SCP, UVP, OCP, OTP).

  • Smart cooling with 120 mm FDB fan — Fan stops at low loads, speed adjusts automatically, with quiet performance and longevity.

  • Fully modular & compact design — All cables are modular (flat style) for better airflow and cable management; relatively compact depth (140 mm) improves compatibility with tighter cases.

₹16,500.00

Add to compare
Add to wishlist
212 People watching this product now!

Payment Methods:

avika retails payment methods we have

Description

About Gigabyte Aorus Elite P1000W White SMPS

Specification Category Details
Model / Series GP-AE1000PM PG5 ICE / AORUS ELITE P1000W
Output Power 1000 W
Efficiency / Certification 80 PLUS Platinum (≈ 92% efficiency at typical load)
Form Factor / ATX version ATX 12V v3.0 (compatible with ATX 3.1)
Input Voltage / Current / Frequency 100–240 Vac (full range)
Input current: 15–6.5 A
Frequency: 50 / 60 Hz
Power Factor / PFC Active PFC, typical > 0.9
Rail / Output Specifications +12V rail: 83.3 A (≈ 999.6 W)
+3.3V, +5V combined: 125 W max
–12V: 0.3 A
+5Vsb: 3 A
Protection / Safety Features OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection)
Power Good Signal / Hold-Up Time Power Good Signal: 100–150 ms
Hold-up time: > 16 ms
MTBF / Reliability > 100,000 hours
Fan & Cooling 120 mm Fluid Dynamic Bearing (FDB) fan
Fan is “smart” — speed adjusted automatically, stops under low load (< 50 %)
Dimensions 150 mm (width) × 140 mm (depth) × 86 mm (height)
Cabling / Connectors Fully modular, flat cables (white)
Typical cable lengths:
• ATX 20+4 pin ≈ 650 mm
• CPU (4+4) ×2 ≈ 700 mm
• PCIe 16-pin (12VHPWR) ≈ 700 mm
• PCIe 6+2 pin ×6 (various lengths)
• SATA × 8 (series with extensions)
• Molex (4-pin) × 4
Design / Special Features Magnetic plate design for customizable visual orientation
Compact length (140 mm) for better case compatibility
Can sustain power excursions: up to 3× GPU power and 2× total power excursions per ATX 3.0 spec
Warranty 10 years (region-dependent)
